MT9M034I12STMVH-GEVB
MT9M034 Evaluation Board
User's Manual

Evaluation Board Overview

The evaluation boards are designed to demonstrate the features of
ON Semiconductor's image sensors products. This headboard is
intended to plug directly into the Demo 2X system. Test points and
jumpers on the board provide access to the clock, I/Os, and other
miscellaneous signals.

Features

Clock Input
Default – 27 MHz Crystal Oscillator
Optional Demo 2X Controlled MClk
Two Wire Serial Interface
Selectable Base Address
Parallel Interface
HiSPi (High Speed Serial Pixel) Interface
ROHS Compliant

Block Diagram

© Semiconductor Components Industries, LLC, 2016
July, 2016 − Rev. 0

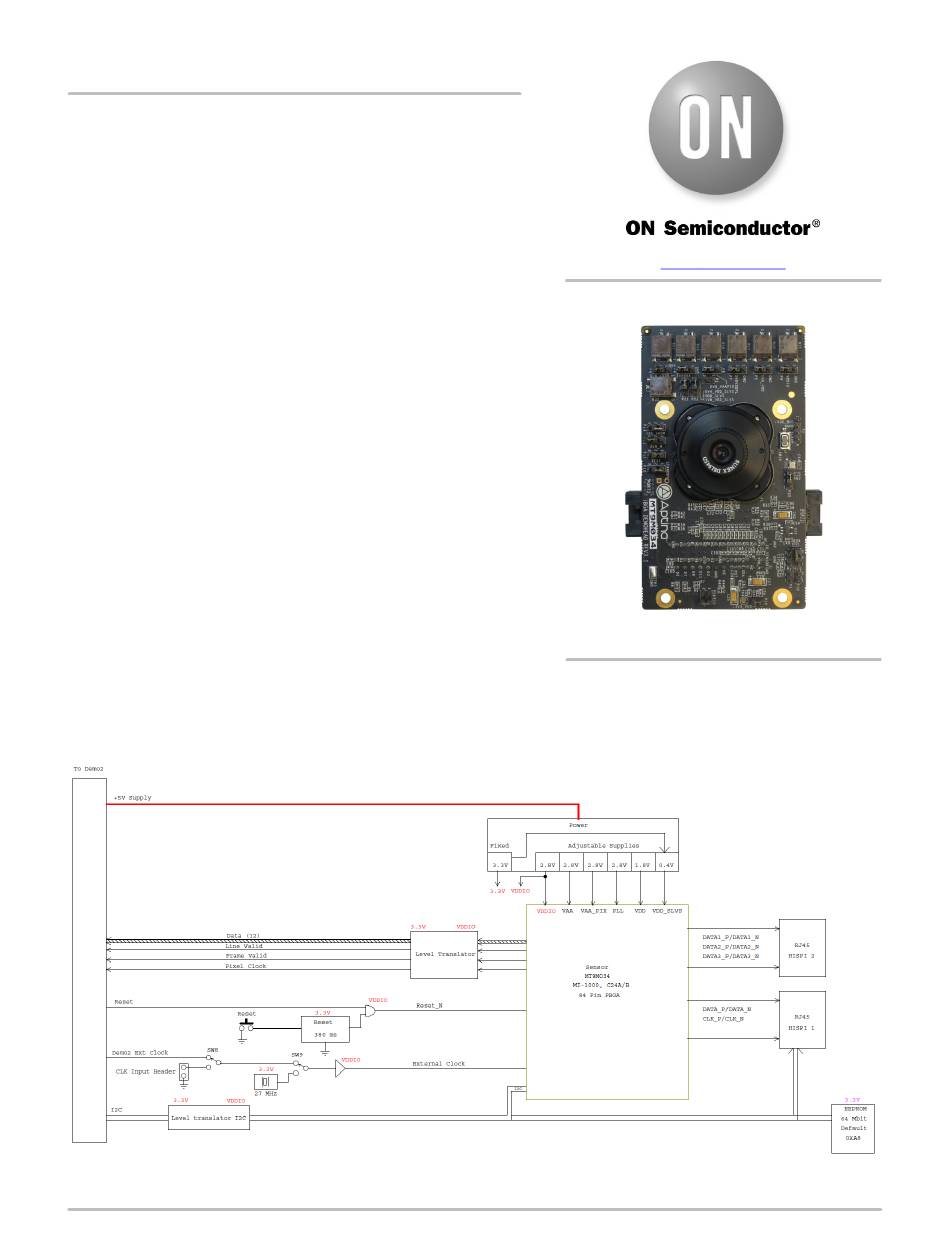

Figure 2. Block Diagram of MT9M034I12STMVH−GEVB
EVAL BOARD USER'S MANUAL

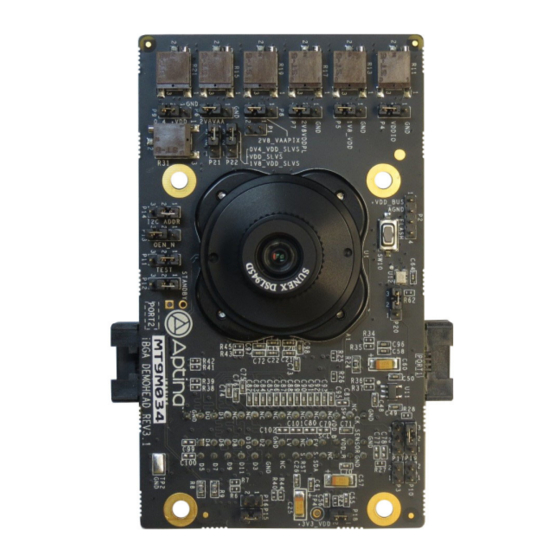

Figure 1. MT9M034 Evaluation Board
1
www.onsemi.com
Publication Order Number:
EVBUM2437/D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MT9M034I12STMVH-GEVB and is the answer not in the manual?

Questions and answers

Summary of Contents for ON Semiconductor MT9M034I12STMVH-GEVB

  • Page 1 Evaluation Board Overview www.onsemi.com The evaluation boards are designed to demonstrate the features of ON Semiconductor’s image sensors products. This headboard is EVAL BOARD USER’S MANUAL intended to plug directly into the Demo 2X system. Test points and jumpers on the board provide access to the clock, I/Os, and other miscellaneous signals.
  • Page 2 MT9M034I12STMVH−GEVB Top View +2V8_VAAPIX P8 +1V8_VDD P5 +2V8_VAA P6 +0V4_VDD_SLVS P9 +VDDIO P4 +1V8_VDD_SLVS P21 +2V8_VDDPLL P7 +VDD_SLVS_SEL P22 +VPP P1 FLASH P2 SADDR P14 RESET SWITCH SW10 OEN_N P13 CLK_SELECT P20 TEST P11 STANDBY P12 TRIGGER P17 MCLK_EN P19 EEPROM ADDR P15, P16 ON_LED P18 Figure 3.
  • Page 3 MT9M034I12STMVH−GEVB Jumper Pin Locations The jumpers on headboards start with Pin 1 on the leftmost side of the pin. Grouped jumpers increase in pin size with each jumper added. Pin 1 Pins 1−4 Figure 5. Pin Locations for a Single Jumper. Pin 1 is Located at the Leftmost Side and Increases as it Moves to the Right Pin 1 Pins 1 and 2...
  • Page 4 FDA Class 3 medical devices or medical devices with a same or similar classification in a foreign jurisdiction or any devices intended for implantation in the human body. Should Buyer purchase or use ON Semiconductor products for any such unintended or unauthorized...
