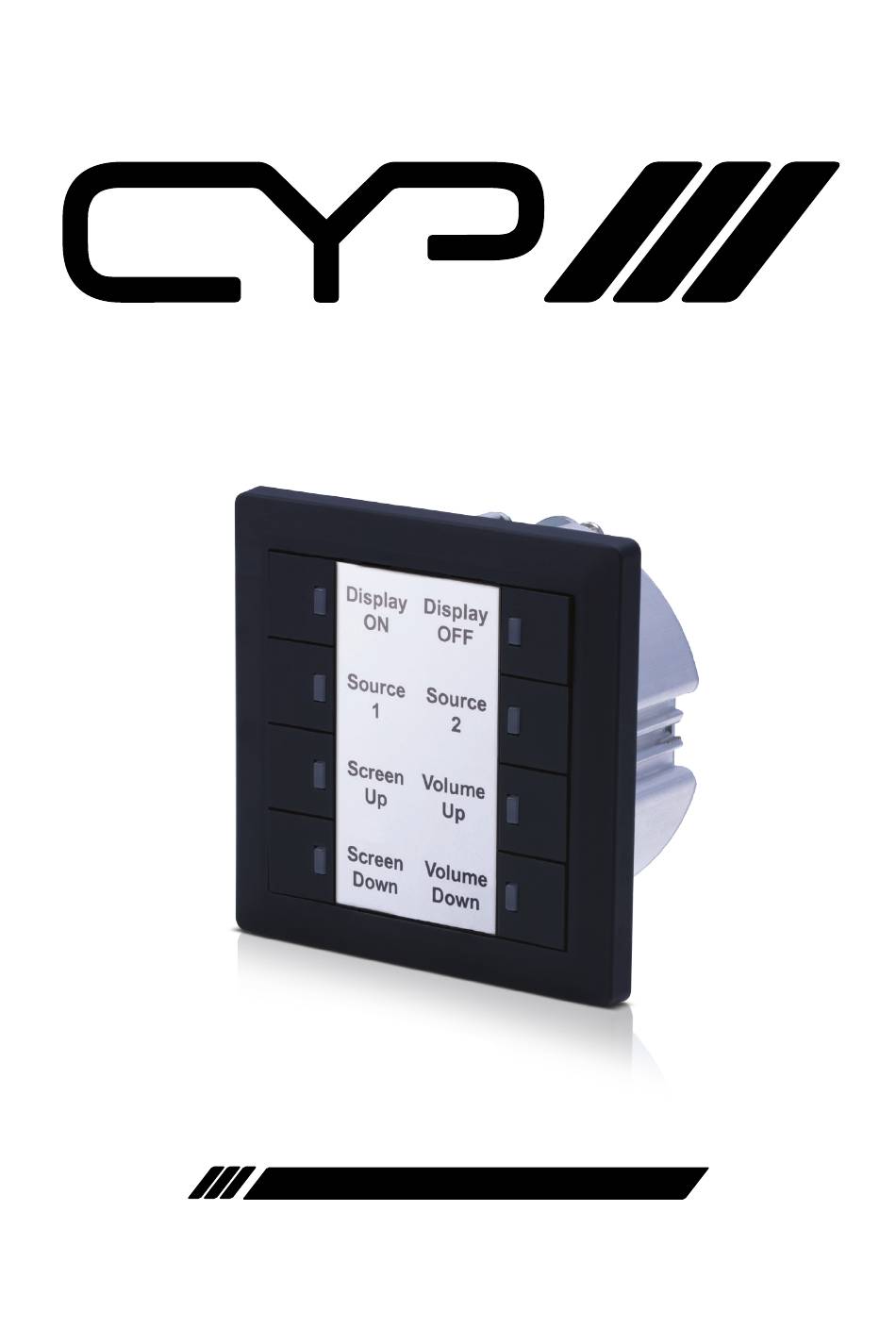

  • Page 1 CR-TG1 Trigger Keypad With 8 Buttons OPERATION MANUAL...
  • Page 3 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fi re, electrical shock and injury to persons.

  • Page 4: Table Of Contents

    CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........4 7. Connection Diagram ......5 8.

  • Page 5: Introduction

    1. INTRODUCTION The Control Trigger Keypad with 8 Buttons is designed to be a simple and efficient interface for a more complex control system. This keypad features a set of 8 buttons which directly activate its 8 trigger connections which can be attached to any compatible control system.

  • Page 6: Features

    5. FEATURES • 8 buttons linked directly to 8 triggers which are capable of instantly activating macros or functions on a connected control device • Provides instant extended physical control of compatible control devices • Allows for easy execution of macros (on compatible control systems) which can activate complex, multi-step, events with a single button press •...

  • Page 7: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel Repeat Matrix test One time Matrix test Test HDCP stop Matrix EDID Note: Labeling provided as an example only. Actual button function depends on the confi guration of the connected control device. Button: Press the button to activate the associated trigger event.

  • Page 8: Rear Panel

    6.2 Rear Panel TRIGGER OUT 1 2 3 VCC: Connects to the 5v power pin on the connected control system’s trigger block. GND: Connects to the ground pin on the connected control system’s trigger block. 1 ~ 8: Connects to the individual trigger pins on the connected control system’s trigger block.

  • Page 9: Connection Diagram

    7. CONNECTION DIAGRAM TRIGGER OUT 1 2 3 Trigger In IP to Relay, IR, & RS-232 Controller(model:CR-CS2)

  • Page 10: Specifi Cations

    8. SPECIFICATIONS Front Panel: Button 8 x Direct contact buttons Link LED 8 x Link LEDs Rear Panel: DC 5V 1 x VCC Ground pin 1 x GND Trigger output 8 x trigger out (pin numbers 1 ~ 8) Chassis Material Plastic Color Black...
  • Page 12 CIE-Group Ltd, 3 Widdowson Close, Blenheim Industrial Estate Nottingham, NG6 8WB Tel: +44 (0)115 977 0075 | Fax: +44 (0)115 977 0081 Email: info@cie-group.com www.cie-group.com RDV1...
