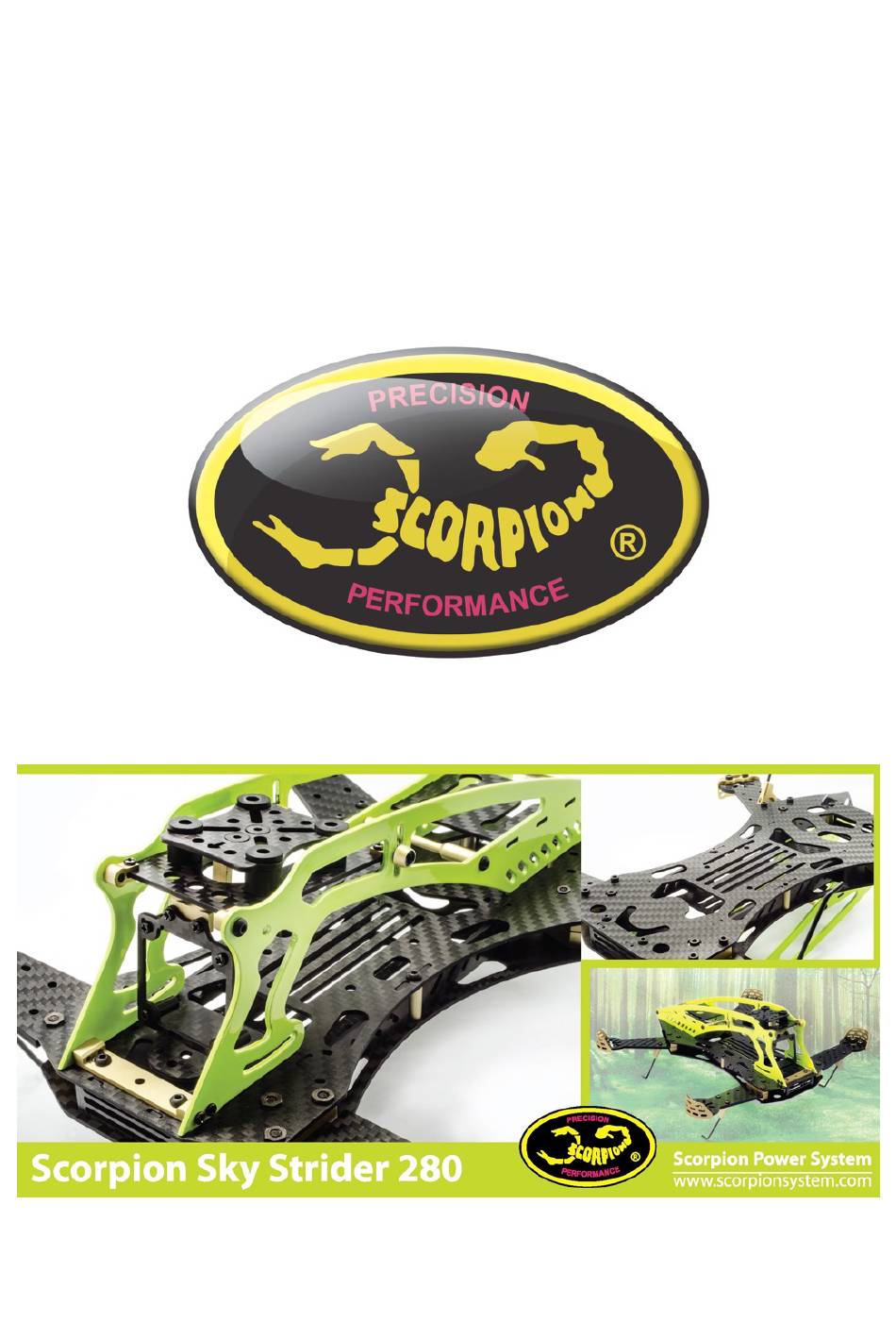

  • Page 1 Scorpion Sky Strider 280 Assembly Manual
...
  • Page 2 Thank you for purchasing Scorpion Sky Strider 280 FPV racing frame. Please prepare the below tools and material before assembly. 3mm phillips 1.5mm hex 2mm hex Thread locker Parts UPPER FRAME *2 MOTOR ARM *4 UPPER DECK*1 LOWER DECK *1 ALUMINIUM CROSS MEMBER *2 FRONT FRAME MOUNT *1 LENS FIXING BOARD *1...
  • Page 3 Include the box there are two carbon fibre deck (upper and lower deck), the one pre-assembly with nuts is the upper deck. Assemble the deck cross member on the lower deck board with M2.5 *6 round screw at the appropriate position. As shown below.
  • Page 4 Insert the straight sides on both sideways and insert the front straight at the front. Position the upper deck and tightened with M2.5 hexagon round screw. After the upper plate placed and tightened the screws into the cross member. Leave the front two screw slot empty. Aluminium alloy parts will mounted on afterward...
  • Page 5 This section shows how to assembly the angled arm clamp, below picture shown the angled arm clamp has two modules, one is upper and other is lower. Position the upper and lower modules in between the decks use M2.5 *14 hexagon head go through the frame and the clamp but do not tighten at this stage.
  • Page 6 When install the rear arm please note the direction of the holes near the frame is for undercarriage. Two holes should be parallel with the frame.    The direction of the holes should be as shown in the photo.
  • Page 7 This section show how to assembly the camera damping system. Insert the damper in between upper and lower board. Use M2 *4 phillips head to fix the camera mount on the L type arm. Then attach the other side to the damping plate with the M3 *6 screws.
  • Page 8 Assembly the upper frame, put the cross member between two frames with M2.5 *6 hexagon round head, the cross member with holes is for antenna tube and it should place at the rear Use M2 * 4 round phillips screw fix to the frame mount between two frames .
  • Page 9 Assembly the camera damping system on the upper frame. Use M2.5 *6 round hexagon screw in the front but not tighten. Then use the M2.5 *6 hexagon screw with cup washer screw in the adjustable track, now you can tight the front screw when it is in the position as your require.
  • Page 10 Use M2.5 *6 assembly the undercarriage under the motor arm. Then heat up a little bit the antenna tube then bend it, insert into the rear cross member.
  • Page 11 COMPLETE PHOTOS
...
  • Page 12 Thank you...
