RL922 - Vertical Storage Rack Assembly Instructions
Steps 1 & 2

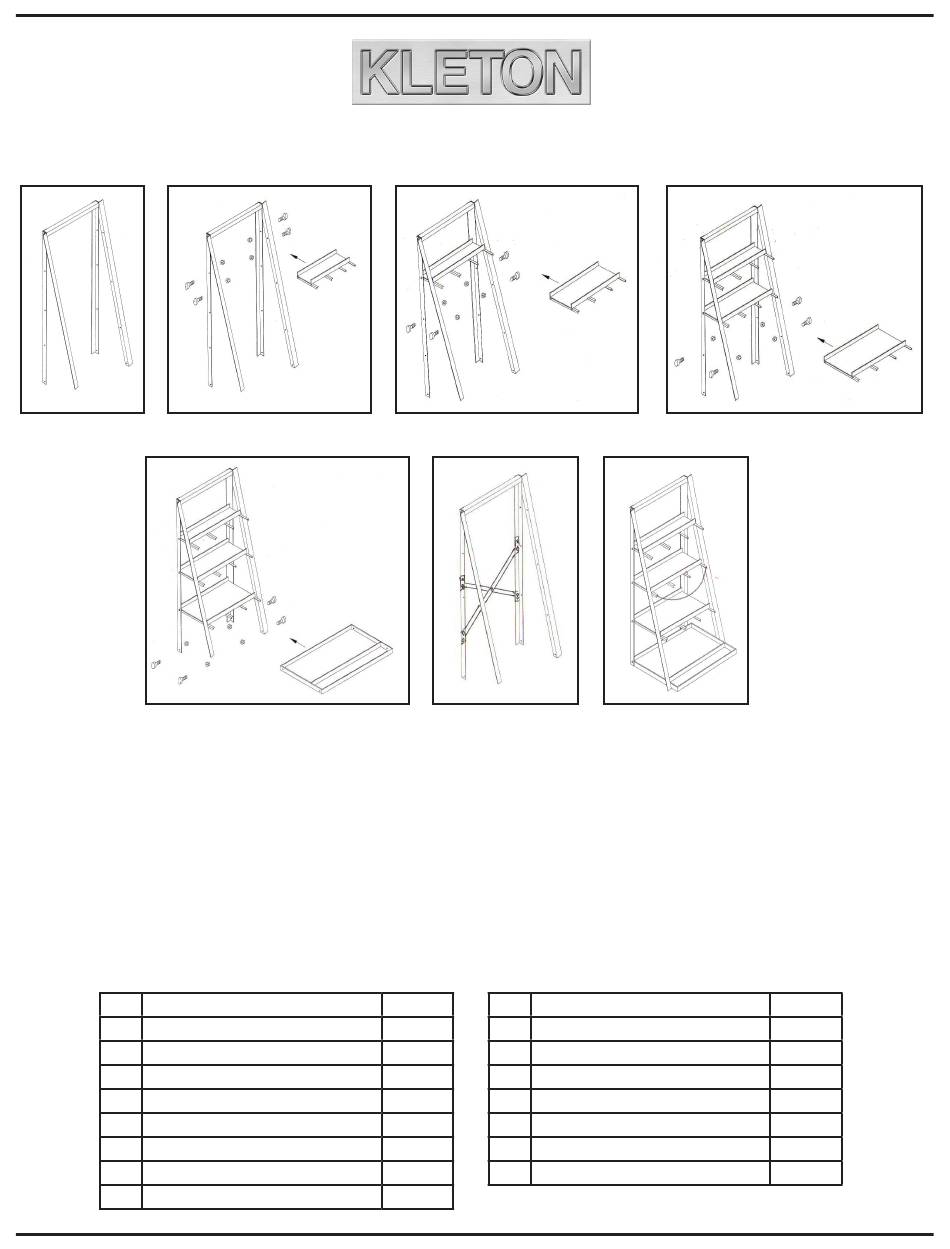

1. Bolt right straight post (part no. 2) and right lean post (part no. 3) to upper beam (part no. 1)
2. Repeat step 1 on opposite side using left straight post (part no. 4) and left lean post (part no. 5)
3. Bolt small pan shelf (part no. 6) to the straight and lean posts, at the highest pre-drilled holes
4. Bolt medium pan shelf (part no. 7) to the straight and lean posts, at the middle pre-drilled holes
5. Bolt large pan shelf (part no. 8) to the straight and lean posts, at the lowest pre-drilled holes
6. Bolt base (part no. 9) to the bottom of the unit.
7. Bolt back brace (part no. 14) to the back of the unit, using the holes provided
8. Install restraint chain (part no. 15) to the front of the medium pan shelf

Parts Descriptions

# Part
1 Upper beam
2 Right straight post, 84" L
3 Right lean post, 86" L
4 Left straight post, 84" L
5 Left lean post, 86" L
6 Small pan shelf, 14 1/2"
7 Medium pan shelf, 18"
8 Large pan shelf, 22"

Step 3

Step 6

Qty.
1
1
1
1
1
1
1
1

Step 4

Step 7

Step 8

# Part
9 Base
10 Bolt, M8 x 18mm
11 Nut
12 Lock washer
13 Washer
14 Back brace
15 Restraint chain

Step 5

Qty.
1
27
27
27
27
2
1
