Axvue E660 Instruction Manual

With 2.4" lcd screen and night vision
Hide thumbs

Advertisement

Quick Links

Download this manual
Model-E660
INSTRUCTION MANUAL

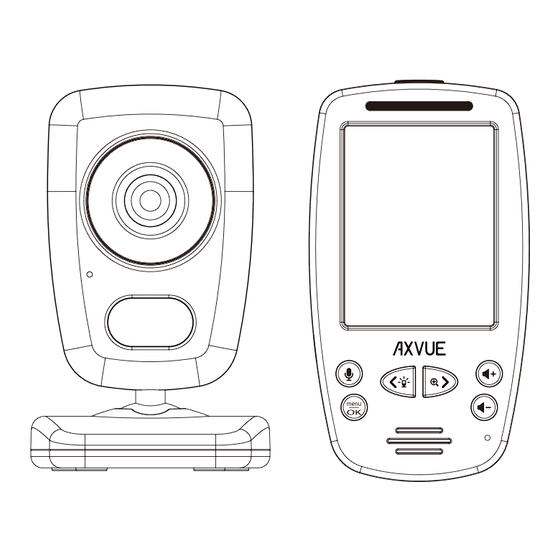

AXVUE E660 VIDEO BABY MONITOR
WITH 2.4" LCD SCREEN AND NIGHT VISION
Please read the following instruc�ons and warnings carefully
Tools required for wall mount: Screwdriver and drill (not included)
Keep this instruc�on manual for future reference.
For technical support see FAQ page.
For adult use only.
Get to know us at: www.axvue.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the E660 and is the answer not in the manual?

Questions and answers

Related Manuals for Axvue E660

Summary of Contents for Axvue E660

  • Page 1 Model-E660 INSTRUCTION MANUAL AXVUE E660 VIDEO BABY MONITOR WITH 2.4" LCD SCREEN AND NIGHT VISION Please read the following instruc�ons and warnings carefully Tools required for wall mount: Screwdriver and drill (not included) Keep this instruc�on manual for future reference.

  • Page 2: Battery Warning

    Adult assembly required. Exercise care when unpacking and assembling the product. BATTERY WARNING -Use only the original rechargeable ba�ery provided. Please contact Axvue Inc. for replacement ba�ery. Contact informa�on can be found on last page of these instruc�ons.

  • Page 3: Features And Components

    Features and components 1 LED* 6 Right/Zoom In 11 Kickstand 2 brightness 7 Volume Up 12 DC Jack 3 Talk Back 8 Volume Down 4 OK / menu 9 Speaker 5 Horn 10 Ba�ery Compartment Adapter for monitor: *LED Power & Low Ba�ery Sound Lights PAGE 2...
  • Page 4 Features and components (continued) 13 Nigh�me LEDs Adapter for camera: 14 Lens 15 Microphone 16 Speaker 17 Power On / Off Switch 18 DC Jack WARNING STRANGULATION HAZARD - Children have STRANGLED in cords. Keep this cord out of reach of children (more than 3 feet (0.9 m) away from the crib).
  • Page 5 Adapter into wall outlet and turn camera power on. Step2: Press and hold ‘POWER/MENU’ bu�on on monitor for 5-seconds un�l the AXVUE showed on the screen.Video should immediately appear on screen. If video does not appear, go to page 5 ‘To pair monitor and camera’.
  • Page 6 Plug the monitor AC adapters into the AC adapter jacks and other ends into standard electrical outlets. Step 2: Press and hold POWER/MENU bu�on for 5-seconds to power up un�l the AXVUE logo or video appears on screen.
  • Page 7 All cameras can be auto-scanned to view on an 8-second rota�on. The SCAN, DELETE, ADD, VIEW CAMERA menu options are used with addtional cameras only. Order the extra camera by visiting us at http://www.axvue.com . Favorite features (continued) DIGITAL ZOOM The zoom op�on enables you to get a closer view on screen.
  • Page 8 Favorite features (continued) ADJUSTABLE VOLUME AND BRIGHTNESS Volume adjustments allow higher volume se�ngs for parents who want to hear every li�le sound from baby, like cooing, and lower volume se�ngs to monitor louder sounds and cries from baby. Easily adjust the volume based on your preferences and the level of other sounds in the home. Brightness can be adjusted, as well, to accommodate the level of light in the room.

  • Page 9: Important Safety Instructions

    RISK OF ELECTRIC SHOCK CAUTION DO NOT OPEN DO NOT EXPOSE TO RAIN OR MOISTURE IMPORTANT SAFETY INSTRUCTIONS -Read safety and opera�ng instruc�ons before the product is operated. -Retain instruc�ons for future reference. -Heed warnings on the product and in the opera�ng instruc�ons. -Follow instruc�ons and operate properly.
  • Page 10 -The product should be mounted to a wall or ceiling only as recommended by the manufacturer. -The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat. Get to know us at: www.axvue.com PAGE 9...

  • Page 11: Fcc Information

    (2) This device must accept any interference received, including interference that may cause undesired opera�on. CAUTION Changes or modifica�ons not expressly approved by AXVUE may void the users authority to operate this euipment. NOTE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 12 Body-worn accessories that do not meet these requirements may not comply with RF exposure requirements and should be avoided. Use only the supplied or an approved antenna. AXVUE stands behind all of its products. If you are not completely sa�sfied or have any ques�ons, please contact us at h�p://www.axvue.com...
