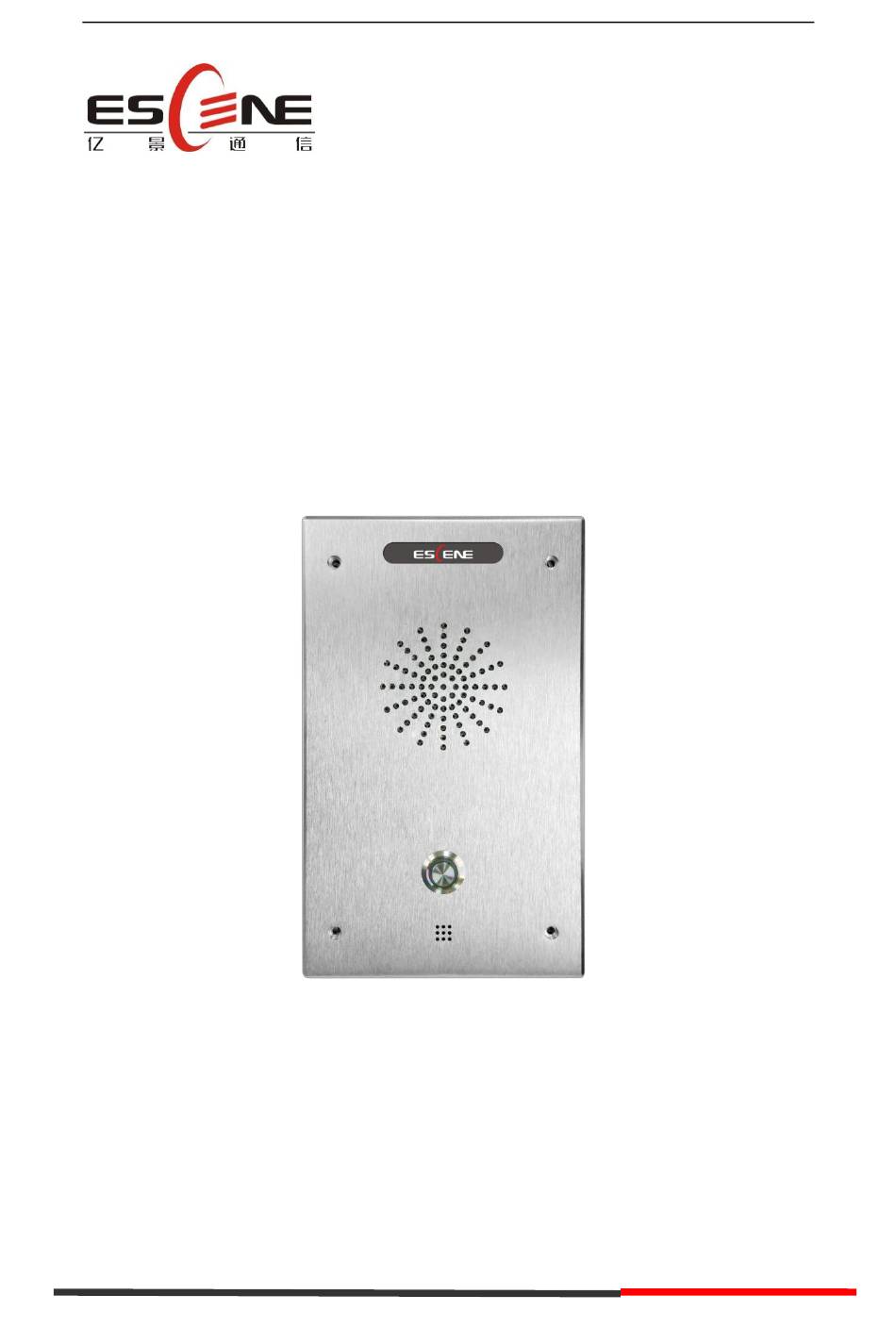

- Page 1 Smart Security IP Intercom Smart Security IP Intercom IS710 User Manual IS710-01 www.escene.cn/en ESCENE COMMUNICATION CO.,LTD...
-
Page 2: Copyright And Disclaimer
Intercom. If this is your first time to use Smart IP Intercom IS710, we recommend that you should read the quick installation guide and product technical manual. The document can be downloaded from the following website: http://www.escene.cn/en. -
Page 3: Table Of Contents
3.7.6 Remote Control ....................27 3.7.7 Action URL ......................28 3.7.8 EP+ ........................28 3.7.9 Other features settings ..................28 3.8 Advanced ......................29 3.8.1 Audio ........................29 3.8.2 Dial Plan ......................30 3.9 Phone call info ...................... 30 www.escene.cn/en ESCENE COMMUNICATION CO.,LTD... - Page 4 3.10.4 Factory reset ....................32 3.10.5 Reboot ......................32 3.10.6 Log ........................32 3.10.7 Auto Provision....................33 4. Brief pictures for application environment .............. 35 4.1 Door security system application ................. 35 4.2 Fire protection system application ................ 36 www.escene.cn/en ESCENE COMMUNICATION CO.,LTD...
-
Page 5: Getting Started
IS710 is dust proof, water proof and dismantle prevention, having a fashion appearance and high protection. IS710 is a bond of door opening by long-distance DTMF. Its powerful performance, stability and reasonable price make it a perfect choice of industry user. -
Page 6: Technical Information
Power adapter: DC 12V/1A; Power over Ethernet ,IEEE 802.3af,class 0; Each motherboard port, check the picture illustration below "Mother Broad Interface". Carton packaging The whole Size：190x115x41mm Product Certification Platform Compatibility Test (non-certificate) ZTE/Alcatel-Lucent/Asterisk/Broadsoft/Metaswitch/Yeastar/Avaya/3CX/Elastix/HUAWEI etc. 1.3 Technical Information INTERFACE SPECIFICATION: Expansion Board Connector Diagram www.escene.cn/en ESCENE COMMUNICATION CO.,LTD... -
Page 7: Intercom Installation
Generally system administrator will connect your new IS710 IP Intercom to company LAN network. If not, please refer to below illustration. Open IS710 packing box, according to the packing list, check the related attachment to make sure to no omitting. Packing list as follows. - Page 8 Smart Security IP Intercom Connect network www.escene.cn/en ESCENE COMMUNICATION CO.,LTD...
- Page 9 Smart Security IP Intercom Internal/External Electric Lock Connection Driver Option www.escene.cn/en ESCENE COMMUNICATION CO.,LTD...
-
Page 10: Embedded
Smart Security IP Intercom Internal/External Electric Lock Connection 2.1 Embedded If the product is used for embedding, then the cutting of embedded need to be a little www.escene.cn/en ESCENE COMMUNICATION CO.,LTD... -
Page 11: Equipment Installation
Notice: the embedded value is up to the actual situation. 2.2 Equipment installation 1、Open the aluminum housing. 2、 Put the IP intercom into it according to the cutting embedded specification. After that, fix four M3*12 screws on the wall with the screw driver. www.escene.cn/en ESCENE COMMUNICATION CO.,LTD... -
Page 12: Configuration Of Ip Intercom
IP address below. Default IP address is 192.168.1.153.in static status. If getting from DHCP, you need to search the related IP address by the third software scanning equipment MAC. (Getting IP by DHCP is not suggested.) www.escene.cn/en ESCENE COMMUNICATION CO.,LTD... -
Page 13: Remote Web Management
Then a login screen will pop up from the intercom equipment. You need to input user name and password. Both default user name and password of system is case letters “root” After the log-in，the easy administrate web page of the intercom will pop up. As below is for example. www.escene.cn/en ESCENE COMMUNICATION CO.,LTD... - Page 14 Smart Security IP Intercom www.escene.cn/en ESCENE COMMUNICATION CO.,LTD...
- Page 15 Smart Security IP Intercom If you want to open the all-round web management, you can enter an URL as follow: www.escene.cn/en ESCENE COMMUNICATION CO.,LTD...
-
Page 16: Phone Status
Smart Security IP Intercom Here you can see as below information: System Run Time, Register Status, Network Status, System Information, 3.2 Phone Status Here you can see as below information: System Run Time, Register Status, Network Status, System Information, www.escene.cn/en ESCENE COMMUNICATION CO.,LTD... -
Page 17: Network
Smart Security IP Intercom 3.3 Network 3.3.1 LAN Port Configuration ITEM DESCRIPTION Network Connection Mode Network Connection Mode has DHCP, Static IP, PPPoE. DNS SETTINGS Select the DNS mode that you want. www.escene.cn/en ESCENE COMMUNICATION CO.,LTD... -
Page 18: Vpn Settings
When using VLAN Setting option, you can set several parameters as follow: VLAN Setting Enable VLAN You can enable/disable VLAN for phone and pc The VLAN ID you want the phone or pc to join [LAN/PC Port] www.escene.cn/en ESCENE COMMUNICATION CO.,LTD... -
Page 19: Port Management Settings
3.3. 4 Port management Settings 3.3. 5 QoS 3.3. 6 Network Packet Mirroring 3.3. 7 LLDP 3.3. 8 Paging Settings Paging Settings (NOTE: This feature priority is followed the serial number, In other words, "paging1" is the highest priority) www.escene.cn/en ESCENE COMMUNICATION CO.,LTD... -
Page 20: Socket5 Proxy Server
3.3.9 Socket5 Proxy Server Socket5 Proxy Server Socket5 Proxy Server Enable/Disable Socket5 Proxy Server. Server IP Socket5 Proxy Server IP address. Port Socket5 Proxy Server port, default is 1080. Anonymous Login Enable/Disable Socket5 Proxy Server login username. www.escene.cn/en ESCENE COMMUNICATION CO.,LTD... -
Page 21: Sip Accounts
When the main server can't work, it also can register in this secondary server. Outbound Proxy Server Put into the address with the outbound proxy server. Secondary Outbound When the main out bound server can't work, it also can use this Proxy Server secondary server. www.escene.cn/en ESCENE COMMUNICATION CO.,LTD... - Page 22 Share with the line. BLA Number BLA Number Subscribe Period Subscribe expire time. Register Expire Time IP phone automatically registered every time SIP Transport There are UDP/TCP/TLS three options Ring Type Select this account ringing type. www.escene.cn/en ESCENE COMMUNICATION CO.,LTD...
-
Page 23: Programmable Keys
You can use this key feature to speed up dial a call with a specified prefix number. DTMF You can use this key feature to send the specification of arbitrary key sequences via DTMF. You can use the BLF feature to monitor a specific user for status changes on the phone. www.escene.cn/en ESCENE COMMUNICATION CO.,LTD... -
Page 24: Phone Settings
See the diagram Server Control Use API command to trigger the relay. Ask us for dev manual please. DTMF Number Pressing DTMF key to trigger the relay when the phone talking. Short Circuit time The relay circuit timer. www.escene.cn/en ESCENE COMMUNICATION CO.,LTD... -
Page 25: Time Settings
You can manage the volume level and mic level as below form. Note: Normally if the mic is on level 7. Please keep the volume below level 4.Unless the using area is small or you have good ability of noise reduction. www.escene.cn/en ESCENE COMMUNICATION CO.,LTD... -
Page 26: Features
If the phone was busy working, the call will be transfer to others. If No Answer If the phone was no answer, the call will be transfer to others. Ring Frequency The ring frequency with the VOIP Call Forward. www.escene.cn/en ESCENE COMMUNICATION CO.,LTD... -
Page 27: Auto Redial
Smart Security IP Intercom 3.7.2 Auto Redial 3.7.3 Pickup function 3.7.4 Hotline function 3.7.5 Auto Answer Default value is on, Values can be changed accordingly。 3.7.6 Remote Control A Third party is permitted to control this device www.escene.cn/en ESCENE COMMUNICATION CO.,LTD... -
Page 28: Action Url
EP+ options are for the users who download the EP+ application on mobile phone. After Completing below settings, EP+ will be activated. For more details, please refer to www.escene.cn/en/en 3.7.9 Other features settings For other features such as call waiting, DTMF etc. -
Page 29: Advanced
Smart Security IP Intercom 3.8 Advanced 3.8.1 Audio For Audio Codecs setting and Jitter Buffer setting. www.escene.cn/en ESCENE COMMUNICATION CO.,LTD... -
Page 30: Dial Plan
This part mainly introduces some maintenance method. According to the below, you can reconfigure Intercom IP Phone or view Intercom IP Phone log to gain more information about maintenance. 3.10.1 HTTP Upgrade You can upgrade the software, kernel and configuration etc. files by HTTP. www.escene.cn/en ESCENE COMMUNICATION CO.,LTD... -
Page 31: Ftp Upgrade
Used for updating/backup to update/backup the phonebook of the phone EXT Module Used updating/backup expansion phone [NOTES：The mode doesn't support this feature] 3.10.3 TFTP Upgrade You can upgrade the software, kernel and configure files by TFTP. www.escene.cn/en ESCENE COMMUNICATION CO.,LTD... -
Page 32: Factory Reset
You can use reboot option to reboot the phone. 3.10.6 Log This feature is use for the administrator to managing the equipment, like debugging, SIP etc,. If you need to catch a debugging Level, you need to setup on this interface. www.escene.cn/en ESCENE COMMUNICATION CO.,LTD... -
Page 33: Auto Provision
When you open this auto provision feature, the phone will do auto provision after it detect a different software or kernel (Higher or Lower) which are putted on the TFTP,HTTP,HTTPS,FTP, server. For the detailed information about auto provision, you can find it in the official website: HTTP://www.escene.cn/en www.escene.cn/en ESCENE COMMUNICATION CO.,LTD... - Page 34 Used for auto download personal phonebook from server Phonebook Booting Checked Used for checking the auto provision when phone booting Disable the phone while Enable/Disable the booting checking feature. booting checking Auto Provision Frequency Used for setting the time interval for auto provision www.escene.cn/en ESCENE COMMUNICATION CO.,LTD...
-
Page 35: Brief Pictures For Application Environment
4. Brief pictures for application environment The following pictures introduce the practical application of IP intercom. Take door security and fire protection for example. More compatibility application is subject to actual test. 4.1 Door security system application www.escene.cn/en ESCENE COMMUNICATION CO.,LTD... -
Page 36: Fire Protection System Application
Smart Security IP Intercom 4.2 Fire protection system application www.escene.cn/en ESCENE COMMUNICATION CO.,LTD...
