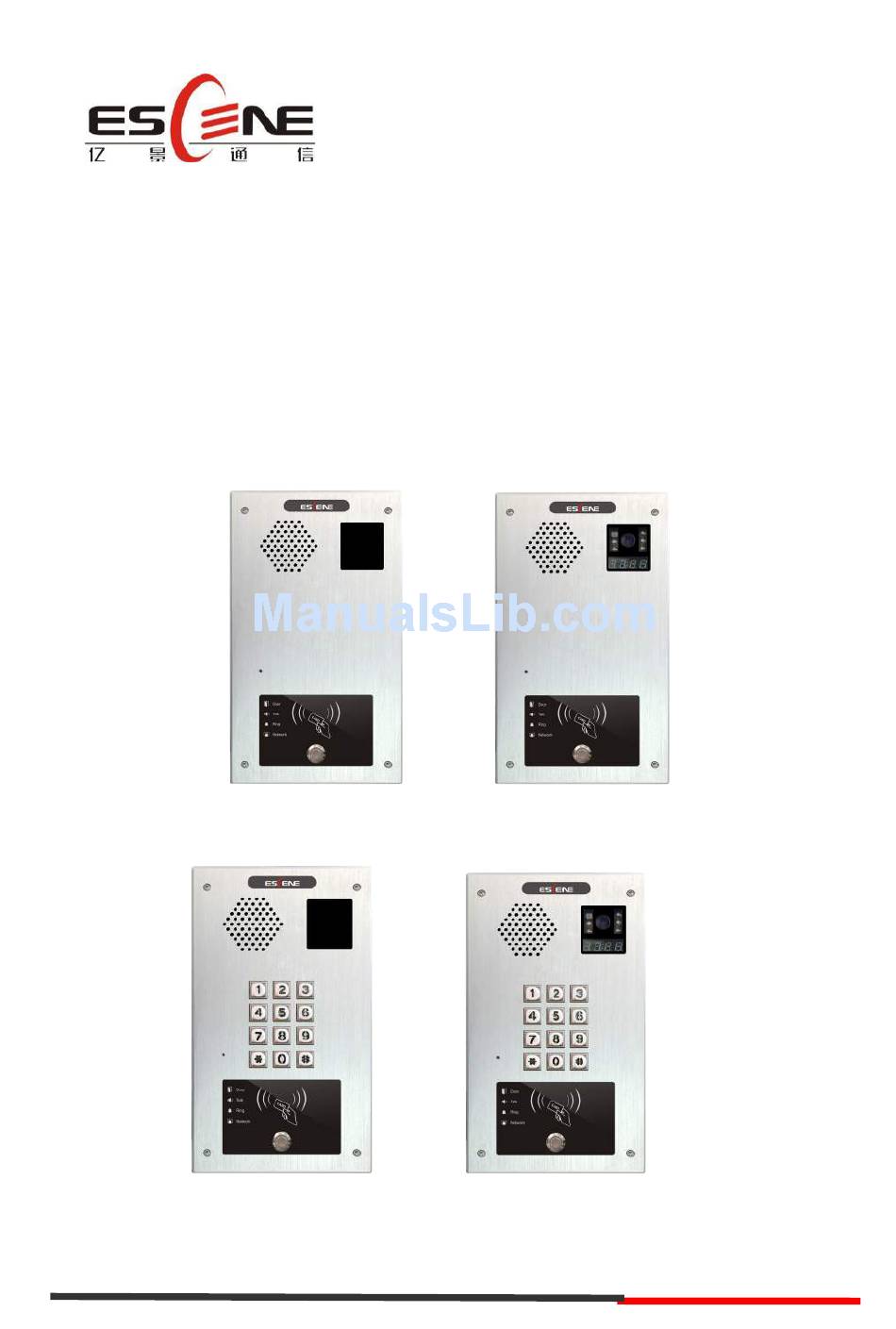

- Page 1 Smart Security IP Intercom Smart Security IP Intercom IS/IV 720 User Manual IS720-01 IV720-01 IS720TD-01 IV720TD-01 www.escene.cn/en ESCENE COMMUNICATION CO.,LTD...
-
Page 2: Copyright And Disclaimer
Intercom. If this is your first time to use Smart Security IP Intercom IS/IV 720, we recommend that you should read the quick installation guide and product technical manual. The document can be downloaded from the following website: http://www.escene.cn/en/en. -
Page 3: Table Of Contents
3.6.2 Time Settings....................26 3.6.3 Backlight......................26 3.6.4 Ring tone......................26 3.6.5 Volume Setting....................27 3.7 Features.......................27 3.7.1 VoIP Call Forward.....................28 3.7.2 Auto Redial.......................28 3.7.3 Pickup function....................28 3.7.4 Hotline function....................28 3.7.5 Auto Answer......................29 3.7.6 Remote Control....................29 3.7.7 Action URL......................29 3.7.8 EP+........................29 www.escene.cn/en ESCENE COMMUNICATION CO.,LTD... - Page 4 4.1.1 RFID Card issuing/revoking in the WUI of the phone........38 4.1.2 Add card Issuer and Revocation...............39 4.2 Press key/Input/ServerControl/DTMF/TouchKey management......40 5. Brief pictures for application environment..............40 5.1 Door security system application.................41 5.2 Fire protection system application...............41 www.escene.cn/en ESCENE COMMUNICATION CO.,LTD...
-
Page 5: Getting Started
IS/IV 720 is dust proof, water proof and dismantle prevention, having a fashion appearance and high protection. IS/IV 720 is a bond of door opening by long-distance DTMF, Password and RFID. Its powerful performance, stability and reasonable price make it a perfect choice of industry user. -
Page 6: Technical Information
Power adapter: DC 12V/1A; Power over Ethernet ,IEEE 802.3af,class 0; Each motherboard port, check the picture illustration below "Mother Broad Interface". Carton packaging The whole Size：162*112*40mm Product Certification Platform Compatibility Test (non-certificate) ZTE/Alcatel-Lucent/Asterisk/Broadsoft/Metaswitch/Yeastar/Avaya/3CX/Elastix/HUAWEI etc. INTERFACE SPECIFICATION: www.escene.cn/en ESCENE COMMUNICATION CO.,LTD... -
Page 7: Intercom Installation
*This data is for information purposes only and is subject to change without notice. 2. Intercom Installation Generally system administrator will connect your new IS/IV 720 IP Intercom to company LAN network. If not, please refer to below illustration. www.escene.cn/en... - Page 8 Smart Security IP Intercom Open IS/IV 720 packing box, according to the packing list, check the related attachment to make sure to no omitting. Packing list as follows. IS/IV 720 Intercom Quick operating guide 8*Screws 2*Rubbers IS/IV 720 could be installed to internet according to the below steps.
- Page 9 Smart Security IP Intercom Internal/External Electric Lock Connection Driver Option www.escene.cn/en ESCENE COMMUNICATION CO.,LTD...
- Page 10 Smart Security IP Intercom Internal/External Electric Lock Connection www.escene.cn/en ESCENE COMMUNICATION CO.,LTD...
-
Page 11: Embedded
If the product is used for embedding,then the cutting of embedded need to be a little bigger than the installing hole of standard dimension 168*116*42mm .(42mm means the extra aluminum housing thickness.),as follows. Notice: the embedded value is up to the actual situation. Front and side structure www.escene.cn/en ESCENE COMMUNICATION CO.,LTD... -
Page 12: Equipment Installation
Back structure 2.2 Equipment installation 1 、 Open the aluminum housing. 2、Put the IP intercom into it according to the cutting embedded specification. After that, fix four M3*12 screws on the wall with the screw driver. www.escene.cn/en ESCENE COMMUNICATION CO.,LTD... -
Page 13: Configuration Of Ip Intercom
You need to know the IP address of IP Intercom before starting setting. You could learn how to get IP address below.Default IP address is 192.168.1.153.in static status.If getting from DHCP,you need to search the related IP address by the third software scanning equipment MAC.(Getting IP by DHCP is not suggested.) www.escene.cn/en ESCENE COMMUNICATION CO.,LTD... -
Page 14: Remote Web Management
Then a login screen will pop up from the intercom equipment. You need to input user name and password. Both default user name and password of system is case letters “root” After the log-in ， the easy administrate web page of the intercom will pop up. www.escene.cn/en ESCENE COMMUNICATION CO.,LTD... - Page 15 Smart Security IP Intercom www.escene.cn/en ESCENE COMMUNICATION CO.,LTD...
- Page 16 Smart Security IP Intercom If you want to open the all-round web management, you can enter an URL as follow: www.escene.cn/en ESCENE COMMUNICATION CO.,LTD...
-
Page 17: Phone Status
Smart Security IP Intercom Here you can see as below information: System Run Time, Register Status, Network Status, System Information, 3.2 Phone Status Here you can see as below information: System Run Time, Register Status, Network Status, System Information, www.escene.cn/en ESCENE COMMUNICATION CO.,LTD... - Page 18 Smart Security IP Intercom www.escene.cn/en ESCENE COMMUNICATION CO.,LTD...
-
Page 19: Network
DESCRIPTION N e t w o r k C o n n e c t i o n Network Connection Mode has DHCP, Static IP, PPPoE. Mode DNS SETTINGS Select the DNS mode that you want. www.escene.cn/en ESCENE COMMUNICATION CO.,LTD... -
Page 20: Pc Port Configuration
Net mask. If you want to use DHCP function, please turn it on, input start IP and end IP. 3.3. 3 VLAN Settings When using VLAN Setting option, you can set several parameters as follow: VLAN Setting Enable VLAN You can enable/disable VLAN for phone and pc www.escene.cn/en ESCENE COMMUNICATION CO.,LTD... -
Page 21: Port Management Settings
3.3. 4 Port management Settings 3.3. 5 QoS 3.3. 6 Network Packet Mirroring 3.3. 7 LLDP 3.3. 8 Paging Settings Paging Settings (NOTE: This feature priority is followed the serial number, In other words, "paging1" is the highest priority) www.escene.cn/en ESCENE COMMUNICATION CO.,LTD... -
Page 22: Socket5 Proxy Server
3.3.9 Socket5 Proxy Server Socket5 Proxy Server Socket5 Proxy Server Enable/Disable Socket5 Proxy Server. Server IP Socket5 Proxy Server IP address. Port Socket5 Proxy Server port, default is 1080. Anonymous Login Enable/Disable Socket5 Proxy Server login username. www.escene.cn/en ESCENE COMMUNICATION CO.,LTD... -
Page 23: Sip Accounts
SIP Server Server for registration, provided by administrator Secondary server When the main server can't work, it also can register in this secondary server. Outbound Proxy Put into the address with the outbound proxy server. Server www.escene.cn/en ESCENE COMMUNICATION CO.,LTD... - Page 24 Share with the line. BLA Number BLA Number Subscribe Period Subscribe expire time. Register Expire Time IP phone automatically registered every time SIP Transport There are UDP/TCP/TLS three options Ring Type Select this account ringing type. www.escene.cn/en ESCENE COMMUNICATION CO.,LTD...
- Page 25 Invite packet to refresh the session during a call if it enable. Session Timer The refresh session time interval. Call Method This method include SIP and TEL. DNS-SRV Enable/Disable DNS-SRV. Allow-events Enable/Disable Allow-events. Registered NAT Enable/Disable Registered to NAT www.escene.cn/en ESCENE COMMUNICATION CO.,LTD...
-
Page 26: Programmable Keys
You can press the con figured intercom key to automatically connect with a remote extension for outgoing intercom calls, and the remote extension will automatically answer the incoming intercom calls This feature such as the BLF. NOTE: ONLY WHEN CHOOSE “SPEED DIAL”, RIGHT www.escene.cn/en ESCENE COMMUNICATION CO.,LTD... -
Page 27: Phone Settings
Use API command to trigger the relay. Ask us for dev manual please. DTMF Number Pressing DTMF key to trigger the relay when the phone talking. Short Circuit time The relay circuit timer. 3.6.2 Time Settings ITEM DECSRIPTIO Time Settings Set Time Mode Include SNTP/SIP Server/PSTN/Manual www.escene.cn/en ESCENE COMMUNICATION CO.,LTD... -
Page 28: Backlight
You can manage the volume level and mic level as below form. Note: Normally if the mic is on level 7. Please keep the volume below level 4.Unless the using area is small or you have good ability of noise reduction. www.escene.cn/en ESCENE COMMUNICATION CO.,LTD... -
Page 29: Features
Headset MIC Volume The headset MIC volume default is Lv3, the range is 1~7 3.7 Features Including VOIP call forward, pickup features. Hot line features, auto answer, remote control. Action URL. EP+. And other features settings. www.escene.cn/en ESCENE COMMUNICATION CO.,LTD... -
Page 30: Voip Call Forward
If the phone was busy working, the call will be transfer to others. If No Answer If the phone was no answer, the call will be transfer to others. Ring Frequency The ring frequency with the VOIP Call Forward. 3.7.2 Auto Redial 3.7.3 Pickup function 3.7.4 Hotline function www.escene.cn/en ESCENE COMMUNICATION CO.,LTD... -
Page 31: Auto Answer
The device will send orders to action URL initiative。 3.7.8 EP+ EP+ options are for the users who download the EP+ application on mobile phone. After Completing below settings, EP+ will be activated. For more details, please refer to www.escene.cn/en/en www.escene.cn/en ESCENE COMMUNICATION CO.,LTD... -
Page 32: Other Features Settings
Smart Security IP Intercom 3.7.9 Other features settings For other features such as Call waiting, DTMF etc. www.escene.cn/en ESCENE COMMUNICATION CO.,LTD... -
Page 33: Advanced
Smart Security IP Intercom 3.8 Advanced 3.8.1 Audio For Audio Codecs setting and Jitter Buffer setting. 3.8.2 Dial Plan 3.9 Phone call info To call or hang up the phone via web www.escene.cn/en ESCENE COMMUNICATION CO.,LTD... -
Page 34: Door Card Setting
This part mainly introduces some maintenance method. According to the below, you can reconfigure Intercom IP Phone or view Intercom IP Phone log to gain more information about maintenance. 3.11.1 HTTP Upgrade You can upgrade the software, kernel and con figuration etc. files by HTTP. www.escene.cn/en ESCENE COMMUNICATION CO.,LTD... -
Page 35: Ftp Upgrade
Providing by FTP server Software Upgrade Used for upgrading the software of the phone Kernel Upgrade Used for upgrading the kernel of the phone Con figuration Used for updating/backup to update/backup the con figure file of the phone www.escene.cn/en ESCENE COMMUNICATION CO.,LTD... -
Page 36: Tftp Upgrade
Con figuration, Phone Book, EXT Module. 3.11.4 Factory reset You can load the phone to the factory default setting in default setting option. Press the ‘Reset to Factory Setting’ option, the phone will load to factory default setting on next reboot. www.escene.cn/en ESCENE COMMUNICATION CO.,LTD... -
Page 37: Reboot
When you open this auto provision feature, the phone will do auto provision after it detect a different software or kernel (Higher or Lower) which are putted on the TFTP,HTTP,HTTPS,FTP, server. For the detailed information about auto provision, you can find it in the of ficial website: HTTP://www.escene.cn/en www.escene.cn/en ESCENE COMMUNICATION CO.,LTD... - Page 38 Used for auto download Enterprise Phonebook from Phonebook server Auto Download Personal Used for auto download personal phonebook from server Phonebook Booting Checked Used for checking the auto provision when phone booting Disable the phone while Enable/Disable the booting checking feature. www.escene.cn/en ESCENE COMMUNICATION CO.,LTD...
-
Page 39: Relay Management
The key of the AES Auto Provision Now Used for doing auto provision immediately 4. Relay management The IS/IV 720 supports RFID card, TouchPad password, physical button, DTMF, API command to trigger the relay. PS: IS/IV 720-PRT, P=PoE, R=RFID Reader, T=TouchPad. Press key Press the dial button to trigger the relay. -
Page 40: Rfid Card Management
3) Refresh the web, you’ll see there’s a message loose in the “Door Card table” 4) Now this card was removed, it could not trigger the relay any more. PS: Must remember to set card reader state=Normal when finishing con figuration. www.escene.cn/en ESCENE COMMUNICATION CO.,LTD... -
Page 41: Add Card Issuer And Revocation
2) Put the card in the reader of the phone. 3) Refresh the Web page, you’ll see a new message in the “Door Card Table”, copy it’s 4) Set card reader state=Card Revoking. 5) Put the card in the reader of the phone, done. www.escene.cn/en ESCENE COMMUNICATION CO.,LTD... -
Page 42: Press Key/Input/Servercontrol/Dtmf/Touchkey Management
Pressing DTMF key to trigger the relay when the phone talking. Door Card Using RFID Card trigger the relay. Touch key Open Pressing digit passwords to trigger the relay. Short Circuit The relay circuit timer. time Press key diagram: www.escene.cn/en ESCENE COMMUNICATION CO.,LTD... -
Page 43: Brief Pictures For Application Environment
The following pictures introduce the practical application of IP intercom. Take door security and fire protection for example. More compatibility application is subject to actual test. 5.1 Door security system application 5.2 Fire protection system application www.escene.cn/en ESCENE COMMUNICATION CO.,LTD...
