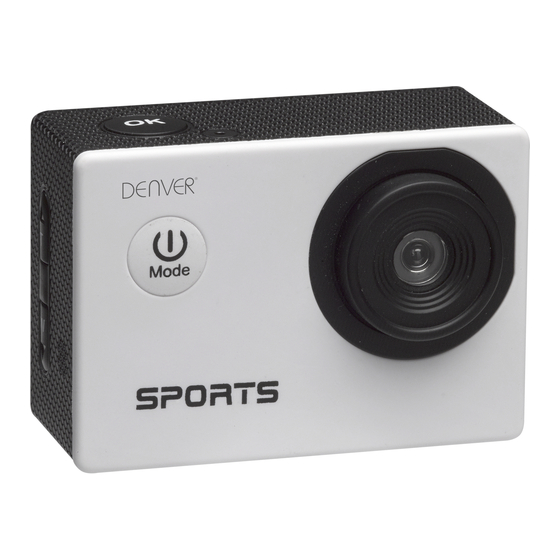

Denver ACT-1013 Quick Start Manual

A A p p p p e e a a r r a a n n c c e e a a n n d d B B u u t t t t o o n n s s I I n n t t r r o o d d u u c c t t i i o o n n
1. On/Off/MODE/Back 2. Lens
3. Display Screen 4/15. Work Indicator
5. Charging Indicator 6.OK /Menu/Confirm
7. Battery Cover 8. Battery Compartment Switch
9. Microphone Hole 10. USB Port
11. TF Card Slot 12. HDMI Port
13.T Button (Upper button for Zoom +) 14.W Button (lower button for Zoom-)
P P r r o o d d u u c c t t I I n n t t r r o o d d u u c c t t i i o o n n

This product is compact in size, and very easy for installation;

The camera supports FHD (1920x1080 25FPS) recording;

Support high-speed USB2.0;

Support 32GB Min SD Card at most;

System Requirements

Operating PC Camera Mode (PCCAM) Microsoft System: Microsoft WindowsXP(SP3), Vista, 7, 8
System Removable Disc iOS system: MAC OS X Version 10.8.0 or latest version
Mode (MSDC) Microsoft System: Microsoft Windows2000, XP, Vista, 7, 8
iOS system: MAC OS X Version: 10.0.0 or latest version
CPU Intel Pentium 1GBHz or CPU with equivalent performance
Internal Memory More than 1GB
Sound card and Graphic card Support DirectX8 or advanced versions.
CD Driver 4x or quicker
Hard Disk Remain more than 2GB memory space
Others USB1.1 or USB2.0 port

This product supports video output with playback function; it also supports HD
picture.
I n i t i a l U s e _ _ _ _ _ _ _
I n i t i a l U s e _ _ _ _ _ _ _
1. Charge External Lithium Battery
USB Cable
Connect the camera with PC for charging, and the charging indicator (blue) will be on. The
indicator will be off when the charging is completed. Generally, it takes 2-4 hours to fully
charge the camera.
ACT-1013 Quick Start Guide

2. Use Storage Card

2.1 According to the recessed reminder beside the storage card slot, push the TF Card
completely into the end.
2. 2. Gently press the rear part of the storage card, and it will automatically pop out.
Please notice: UHS (ultra highspeed) cards doesn't work, as they are
not 100% backward compatible
Note: There is no built-in memorizer for this camera. Please insert a storage card when
using the camera. (High-quality TF Card is recommended.)

3. Start up/Shut Down

3.1 Start up: Keep pressing MODE button for 3s, the display screen will be on, and the
camera enters Start-up status.
3.2. Shut down: Under idle mode, press MODE button and hold on 3s to shut the camera
down.
3.3. Automatic Shutdown of Screen: When the camera's idle time is due, the screen will be
automatically shut down for saving power, and the screen shutdown light will be on.
3.4. Shutdown due to Low Power: When its power is extremely low, LCD will display the
icon ""
", and the User shall conduct charging for the camera immediately. When the
icon is red and flickering, the camera will automatically shut down.

4. Function Mode Switch

This Camera has 3 modes including video recording mode, photo mode and playback mode.
When it is on, press MODE to switch different modes.

5. Indicator

Work Indicator (Red): When the camera is working (such as recording a video, taking a photo,
shutdown and automatic shutdown of screen etc.), the work indicator will flicker.
Charging Indicator (Blue): During the charging process, this indicator will be on; when the
camera is fully charged, it will automatically go out.

6. Video Recording Mode

When it is powered on, DV will directly enter video recording mode; under the preview status,
press OK button and it will start to record a video; press OK button again, and it will stop video
recording. However, video recording will automatically stop when the storage card is full or the
power is extremely low.
1 Mode Icon to indicate Video Recording Mode.
2 It means Video resolution, and FHD 1080P(15FPS)
25FPS / HD 720P(30FPS) / VGA (30FPS) are optional.
3 Recording Time, meaning how much time left for this
Video recording.
4 It means that TF Card is inserted.
5 Battery Icon means current power status.
6 E/V (Exposure Value).
7 It means that White Balance is automatic.
8 Charging Indicator.
9 Work Indicator.
(With maximum 29 minutes video recording per sequence)

7.Photo Mode:

When it is on, press MODE Button to enter Photo Mode; under the preview status, press OK
button to take a photo:
1 Mode Icon to indicate current Photo Mode.
2 Picture size; click this icon to choose
3 Counter, meaning the quantity of photo which
can be taken.
4 It means that TF Card is inserted.
5 Battery Power Icon.
6 It means current sharpness.
7 E/V (Exposure Value).
8 It means that the picture quality is Fine.
9 It means that White Balance is automatic.
10 Charging Indicator.
11 Work Indicator .
ENG-1
1M/2M/3M/5M/8M/12M.3M/5M/8M/10M/12M.
