1. INTRODUCTION
This Instruction Manual contains a description of the type SP-48-NG/PG-FD gas pilot construction,
operation principle and the instructions for installation, start-up and service, including the industrial
health & safety recommendations.
The SP-48-NG/PG-FD-S/M/L (48 mm outer diameter, NG - Natural Gas or PG - Propane Gas, FD -
Forced Draught, S – Small, M – Medium, L – Large capacity range) gas pilot is a reliable and
effective source of ignition for oil and gas burners (see Appendix 1 – the pilot capacity vs. gas
pressure graphs).
S/M/L capacity ranges: Natural Gas: 20 ÷ 46 / 63 ÷ 132 / 84 ÷ 217 kW at 20 ÷ 80 kPa;
A sample of Pilot Part Number for Natural gas and Medium capacity is "SP-48-NG-FD-M-xxx", for
Propane gas and Large capacity range is "SP-48-PG-FD-L-xxx" (other Fuel gas on request) where
"-xxx" is the insertion length "L" from 0.5 to 3.0 metres.
The pilot is constructed of high quality materials and each unit is checked and tested before dispatch.
Acquaintance with the following instructions and strict attention to the indications reduce the
possibility of equipment failure to a minimum and ensure safety during normal operation.
2. OPERATION PRINCIPLE AND TECHNICAL SPECIFICATION
Unit construction provides
and cooling air. No moving parts ensure long, trouble-free operation with low maintenance costs.

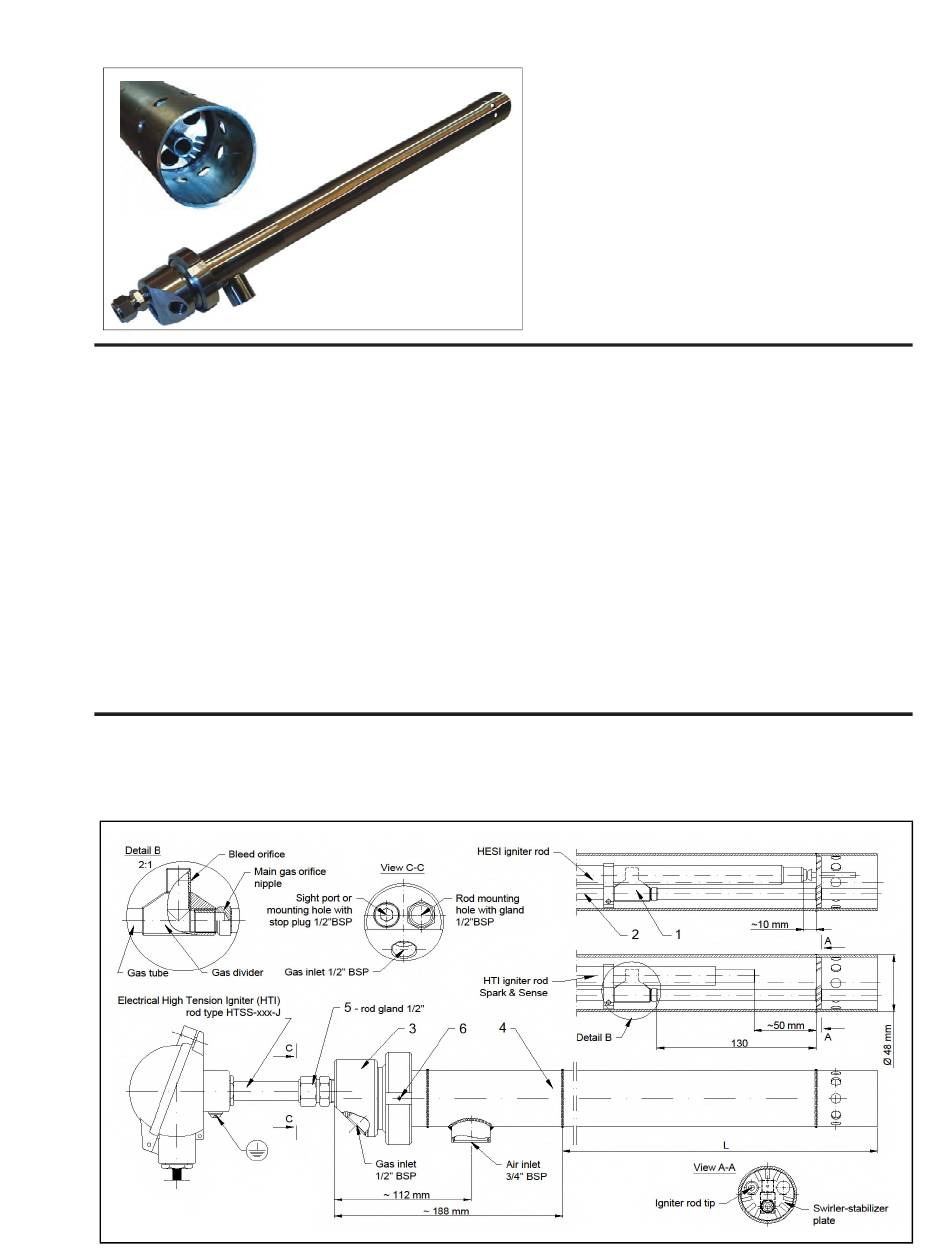

Gas pilot type SP-48-NG/PG-FD-S/M/L.
FIGURE 1.
SP-48-NG/PG-FD-S/M/L
Propane Gas: 35 ÷ 74 / 98 ÷ 203 / 154 ÷ 305 kW at 20 ÷ 80 kPa
a stable flame, ignition repeatability with low demand for combustion
SureFire II
Forced Draught
Gas Pilot type
Instruction Manual
SF-600
Aug.3rd, 2018
TM
Pilot
Advertisement
Table of Contents
Related Manuals for Fireye SP-48-NG-FD-S
Summary of Contents for Fireye SP-48-NG-FD-S
- Page 1 SF-600 Aug.3rd, 2018 SureFire II Pilot Forced Draught Gas Pilot type SP-48-NG/PG-FD-S/M/L Instruction Manual 1. INTRODUCTION This Instruction Manual contains a description of the type SP-48-NG/PG-FD gas pilot construction, operation principle and the instructions for installation, start-up and service, including the industrial health &...
- Page 2 The orifice-stabilizer assembly is optimized for Natural gas or Propane gas. In case of other Fuel gases contact Fireye as this may need the orifice replacement or changes to the assembly. Thanks to this principle of design, the pilot combustion zone is protected, the main combustion zone is outside the pilot, hence the air tube does not overheat and there is no need for retraction of the ignition device rod.
- Page 3 230VAC or 110 VAC. Using the Fireye High Tension Igniter, the end of the rod tip should be placed at a distance of 10 mm back from the swirler- stabilizer (see Fig.1). In case of the High Energy Spark Igniter, the rod tip should be placed further back ~ 50 mm back from the swirler-stabilizer.
-
Page 4: Technical Data
Material used for pilot construction all parts: 304/316 SS, heat-resistant steel 310/330 Notes: 1. If the above parameters are different than those required please contact Fireye 2. For Imperial Units please refer to the Appendix 3 Unit Conversion Table 3. Device complies with the requirements of the European Directive 2002/95/EC (RoHS) 6. -
Page 5: Installation
7. INSTALLATION During the installation, all components have to be protected from impact or bending. Pilot SP-48-FD is designed such that it can be welded directly to the burner plate, or placed in the mounting tube (see Fig. 2). It should be noted that the distance from the gas head with mounting ring to the burner plate should be not less than 150 mm and insertion depth cannot exceed the “L”... - Page 6 ® In case of any doubts, the position of the pilot should be confirmed with the pilot and burner manufacturer. After determining the position of the complete pilot relative to the mounting tube, the mounting tube clamping screws should be tightened to prevent the device from moving. Gas head with ring gasket and swirler-stabilizer assembly with bleed and main gas orifices FIGURE 4.
-
Page 7: Operation
8.4 Power supply to the electrical circuit of the ignition device and spark or arc release should be allowed only after assembly of the device, and when installed in the operating position on the burner or outside the burner only to validate the operation strictly according to the device instructions e.g. - Page 8 ® 9.4 Setting the gas pressure at the correct level. 9.5 Starting of pilot trial for ignition sequence performed by the controller or in some cases by the operator: The correct setting of the main burner combustion air. Checking the interlock conditions before firing up. Providing power to the ignition source.
-
Page 9: Troubleshooting
Pull out the electrical igniter rod by loosening the ignition rod holding gland, only if it is absolutely necessary e.g. when rod is worn or damaged. Check and clean the bleed orifice and main nozzle. For cleaning use a soft copper wire. To remove heavy dirt use a soft wire brush e.g. -
Page 10: Ordering Information
Pilots can be ordered in size increments of 0.1 metre lengths, from 0.5 to 3.0 metres. Part Number coding samples: SP-48-NG-FD-S-1.5 or SP-48-PG-FD-S-1.5 Which means: SureFire II Pilot - 48 mm OD - Natural Gas (NG) or Propane Gas (PG) - Forced Draught (FD) - Small capacity (S) - 1.5 metre insertion length... - Page 11 Table 2 below shows Part Numbers of gas igniter mounting tubes and spare parts. SureFire II Pilot Mounting Tubes & Spare Parts Table 2: Part No Description SP-48-MTF Mounting Tube Flanged, flange OD 80, length 120mm SP-48-MTW-150 Mounting Tube for Welding, length 150 mm SP-48-MTW-600 Mounting Tube for Welding, length 600 mm SP-32/48-LS-SET...
- Page 12 ® APPENDIX No 1 Pilot capacity vs. gas pressure graphs for S, M, L capacity range GAS PILOT type SP-48-NG-FD-S-xxx GAS PILOT type SP-48-PG-FD-S-xxx NATURAL GAS ( 35,73 MJ/Nm ) -(1,15;1,7) PROPANE GAS (91,26 MJ/Nm ) -(1,15;1,7) PRESSURE [kPa] PRESSURE [kPa]...
- Page 13 APPENDIX No 2 Proposal Data Sheet SureFire II Pilot - Forced Draught Gas Pilot Type SP-48-NG/PG-FD-S/M/L-xxx Please provide the following data before placing the Order for gas pilot: Information about End User — Plant Name: ........—...
-
Page 14: Unit Conversion Table
® APPENDIX No 3 UNIT CONVERSION TABLE Quantity Metric Units Imperial Units Length 1 millimetre [mm] x 0.003281 = foot [ft.; ’] x 0.03937 = inch [in; ”] 1 metre [m] x 3.281 = foot [ft; ’] x 39.370 = inch [in; ”] Volume 1 cubic metre [m x 35.315 = cubic foot [ft... - Page 15 - This page intentionally left blank -...
- Page 16 Fireye warranty, as stated in its General Terms and Conditions of Sale, pertains only to the Fireye products and not to any other equipment or to the combined system or its overall performance.
