Summary of Contents for Portable Bar Company COMPACT BAR

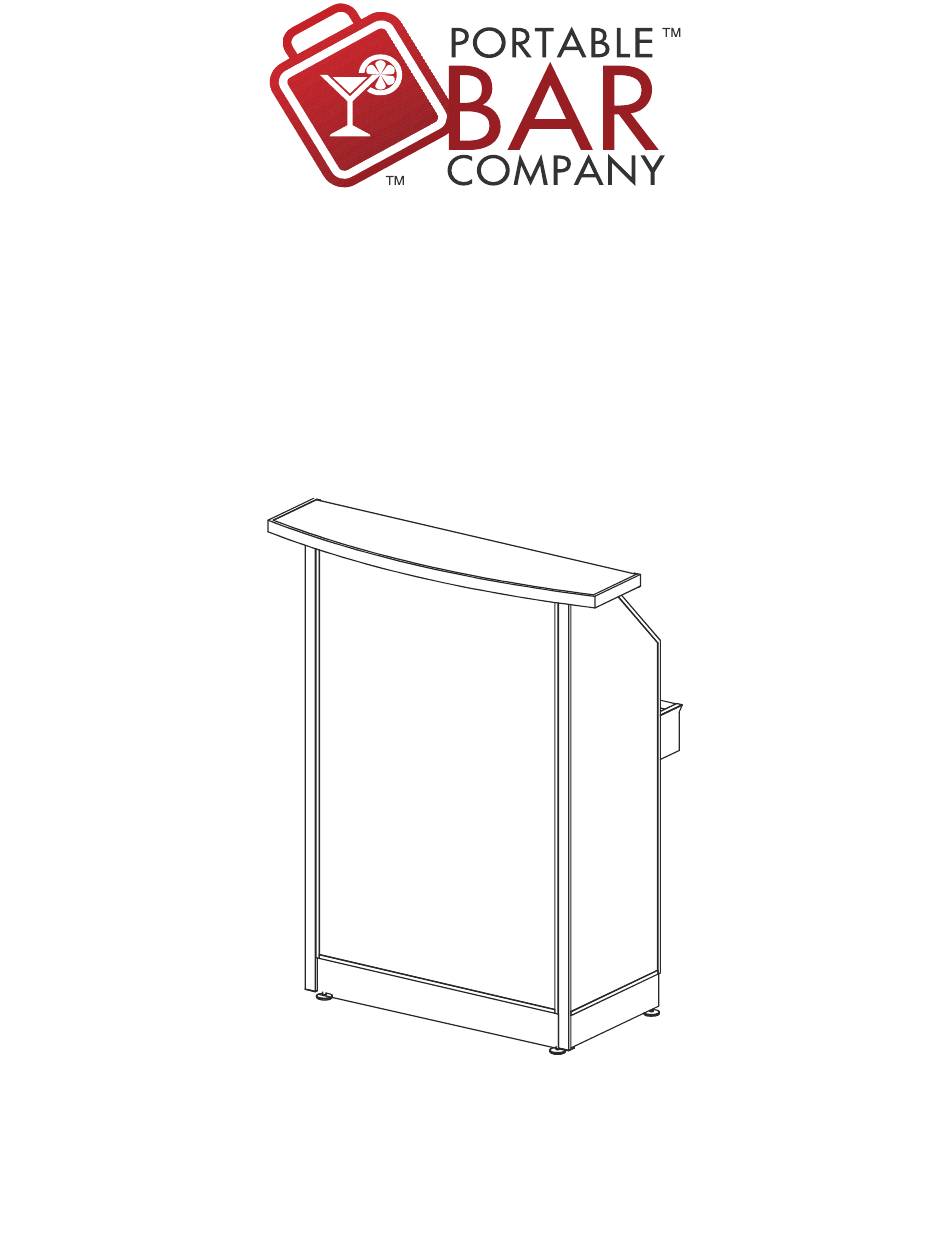

  • Page 1 COMPACT BAR SET UP GUIDE Table of contents: - Part List - Set Up Guide - Compact Bar Covers...
  • Page 2: Before You Begin The Installation

    BEFORE YOU BEGIN THE INSTALLATION PAGE 2 OF 8 • Read all the instructions before installing. • Remove all packing materials before you start. • This installation requires basic mechanical skills. • Proper installation is the responsibility of the installer. •...
  • Page 3 COMPACT BAR ASSEMBLY PART LIST PAGE 3 OF 9 Main Frame Ice Bin QTY: 1 QTY: 1 Cutting Board QTY: 1 Cover QTY: 1 See page 7 Lock Pin QTY: 5 Counter Top QTY: 1 Acrylic Panel QTY: 4 Speed Rail QTY: 1 Note: Parts are not to scale.
  • Page 4 COMPACT BAR ASSEMBLY SET UP STEPS PAGE 4 OF 9 STEP 1: Remove the pins . Unlock the spring Figure 3 latches at the bottom ( Figure 1 STEP 3: Place the side pins as shown below ( Remove pins Figure 4 STEP 2: Open the doors as shown below.
  • Page 5 COMPACT BAR ASSEMBLY SET UP STEPS PAGE 5 OF 9 STEP 4: Lift the shelf and place the pins STEP 6: Insert the pin as shown below. Figure 7 Figure 5 STEP 7: Place the counter top as shown below. Lock the counter...
  • Page 6 COMPACT BAR ASSEMBLY SET UP STEPS PAGE 6 OF 9 Side Panel STEP 8: Place the speed rail and the ice bin as shown below. STEP 1: Remove screws . Then remove the side frame as shown below. Figure 9 Figure 10 STEP 2: Slide out the side panel.
  • Page 7 COMPACT BAR ASSEMBLY SET UP STEPS PAGE 7 OF 9 Figure 11. Full Assembly.
  • Page 8 COMPACT BAR COVERS PAGE 8 OF 9 Main frame cover Speed rail cover Counter cover...
  • Page 9 Contact us Tel # 877-958-7901 Fax # 866-659-3353 E-mail: info@theportablebarcompany.com Visit us at www.theportablebarcompany.com COMPACT BAR SET UP GUIDE - 12/23/2016...
