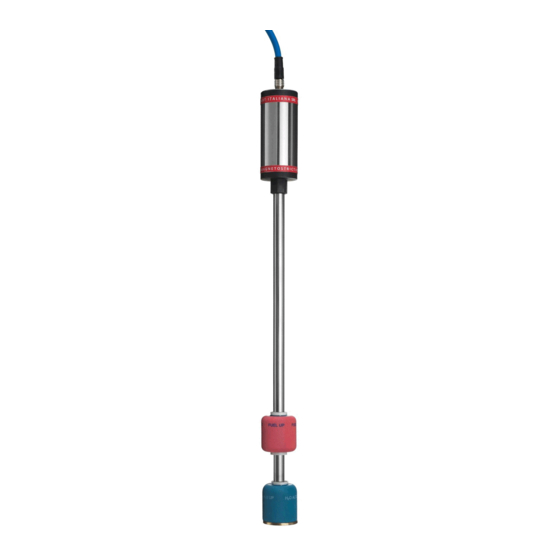

Start italiana XMT-SI-485 Installation Manual

Probes
Hide thumbs Also See for XMT-SI-485:

Advertisement

Table of Contents

INSTALLATION
MANUAL
XMT-SI-485
MAGNETOSTRICTIVE
I.S. PROBE
XMT-SI-RF
WIRELESS
I.S. PROBE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XMT-SI-485 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Start italiana XMT-SI-485

Summary of Contents for Start italiana XMT-SI-485

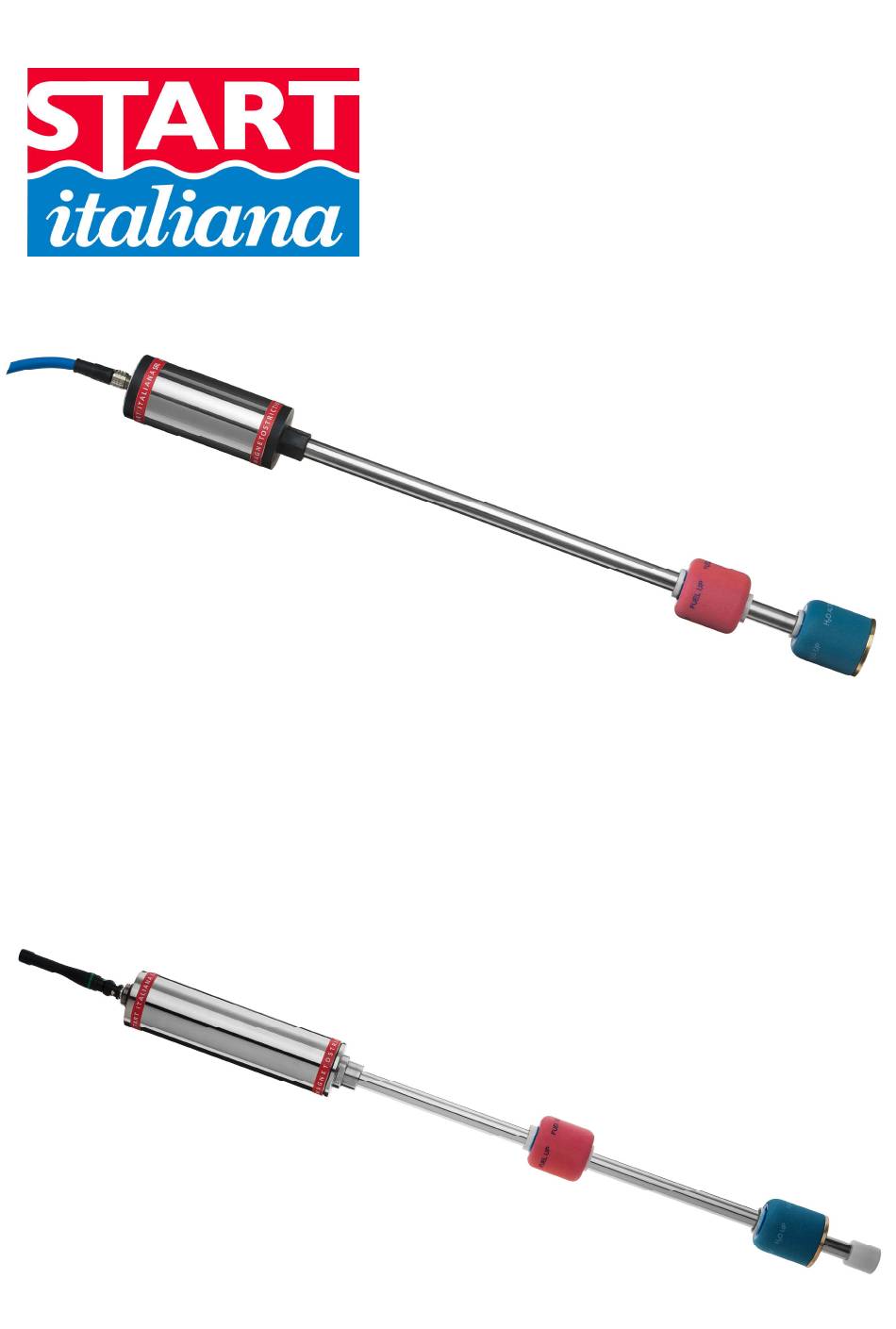

  • Page 1 INSTALLATION MANUAL XMT-SI-485 MAGNETOSTRICTIVE I.S. PROBE XMT-SI-RF WIRELESS I.S. PROBE...
  • Page 2 XMT-SI-485 – XMT-RF eng rev04 12/2013...

  • Page 3: Table Of Contents

    6 PRODUCT LABEL..………...……………………………………………………………………………………..pag. 8 MECHANICAL INSTALLATION XMT-SI…………………………………………………………………………... pag. 9 EXAMPLE OF RISER PREPARATION FOR RF PROBES……...……………………………………………… pag.11 ELECTRICAL CONNECTION……………………………...……………………………………………………….. pag.14 JUMPER SETTING………………………..………….……………………………………………………………… pag.15 XMT-SI-RF MODEL…………….……..……………………………………………………………………………... pag.16 XMT-SI-485 MODEL…………………………………………………………………………………………………. pag.18 XMT-SI-485-LOG – PROBE WITH MEMORY AND DATA LOGGER FUNCTIONALITY…………………… pag.20...

  • Page 4: Introduction

    XMT-SI-485 – XMT-RF eng rev04 12/2013 INTRODUCTION This manual gives all the installation and use instructions for XMT-SI level probes family . GENERAL WARNINGS • Before the installation and use of the equipment please carefully read the instructions given into this manual.

  • Page 5: General Information

    PC positioned in a safety zone for having a complete control of the tank. The following models are available: XMT-SI-485 transmits data on the 485 bus. It can be configured for polling mode or push mode functioning based on the needing. It is externally powered by the communication bus.

  • Page 6: Technical Characteristics Xmt-Si

    Connection cable: hydrocarbons resistant, suitable for underground pose with insulation 0,6-1KV, 2 shielded and twisted pairs, section of the power cable pair of at least 1mm2. • Type of cable supplied by Start Italiana: LiYstCYY INSULATION LEVEL 4 (0,6/1KV) - (2x0.25mm²) + 2x1.00mm² CEI 20-22II IEC 60332-3A ENI 00.181.00 •...
  • Page 7 XMT-SI-485 – XMT-RF eng rev04 12/2013 • Measurement range: from 200 mm. to 12.500 mm. • Maximum mechanical length: 13.000 mm. • Data transmitted: Product level in 0.01 mm Water level in 0.01 mm Medium temperature detected through digital temperature sensor placed along the probe shaft (max 5) •...

  • Page 8: Product Label

    XMT-SI-485 – XMT-RF eng rev04 12/2013 PRODUCT LABEL XMT-SI-485 START ITALIANA S.r.l. - Italy Via Pola 6, 20813 Bovisio Masciago (MI) 0722 CEC 09 ATEX 131 REV.3 II 1G Ex ia IIB T4 Ga II 1D Ex t IIIC T135°C Da IP66/68...

  • Page 9: Mechanical Installation Xmt-Si

    XMT-SI-485 – XMT-RF eng rev04 12/2013 MECHANICAL INSTALLATION XMT-SI The XMT-SI magnetostrictive level probe is supplied into carton packages for station, packed singularly or up to 7 pieces. We recommend to check packing integrity. When removing the original packing please pay attention not to bend the stainless steel men-hole reminding that it is an electronic device.
  • Page 10 XMT-SI-485 – XMT-RF eng rev04 12/2013...

  • Page 11: Example Of Riser Preparation For Rf Probes

    XMT-SI-485 – XMT-RF eng rev04 12/2013 EXAMPLE OF RISER PREPARATION FOR RF PROBES • Use galvanized pipe with internal diameter of mm. 52 (weld pipe); • Cut the correct size in order that once screwed the riser goes to cover the probe head leaving completely free the transmitting-receiving antenna;...
  • Page 12 XMT-SI-485 – XMT-RF eng rev04 12/2013 • Finally tighten the PLT 2” protection supplied with the wireless probe applying a sealant product (Loctite, etc.) between the male riser and female, paying attention not to force too much the screwing.
  • Page 13 XMT-SI-485 – XMT-RF eng rev04 12/2013 XMT-SI-RF WITH RISER XMT-SI-485 WITH RISER XMT-SI-485 WITHOUT RISER Please follow the above procedures if probes are wired. The only difference is that the length of the riser must cover the total length of the probe, and a cap with a cable gland must be screwed to allow the exit of the connection cable.

  • Page 14: Electrical Connection

    The probe is supplied with 2 meters of cable connected through M12 or 7/8 connector to the probe head. This cable must be connected to the back bone using a junction box. It is recommended to use a junction box IP68 for intrinsically safety connection supplied by Start Italiana under request.

  • Page 15: Jumper Setting

    XMT-SI-485 – XMT-RF eng rev04 12/2013 JUMPER SETTING The meaning of the Jumpers is listed below. Jumpers are read during startup of the device. Every change made when the device is switched on won’t be considered. It is necessary to switch off and restart again the device so that the changes are applied.
  • Page 16 XMT-SI-485 – XMT-RF eng rev04 12/2013 MODEL XMT-SI-RF DIP-SWITCH PROGRAMMATION There are several operation modes that can be selected through the internal DIP-Switch. These operation modes can be applied to RF probes. The operation mode defined will amend the life battery duration. Below is a table which gives the information on the estimated life battery referred to the selected operation mode.
  • Page 17 1 mm, so the life battery will be higher than that shown into the above table. These data are calculated based on a 16.5 Ah battery. Use only battery supplied by Start Italiana since this is an Intrinsically Safe certificated device and the supplied batteries satisfy the requirements. If another type of battery is used the Intrinsically Safe certification is compromisd and Start Italiana won’t be...
  • Page 18 Every change made when the device is switched on won’t be considered. It is necessary to switch off and restart again the device so that the changes are applied. TRANSMISSION PROTOCOL Protocol valid for XMT-SI-485, XMT-SI-485-LOG and TTL probes in polling mode. Do not use this protocol for RF probes. Transmission parameters •...
  • Page 19 XMT-SI-485 – XMT-RF eng rev04 12/2013 Using this setting the probe is not placed in sleeping mode but it is always active receiving all the data transmitted on the bus and answering only when a message is coming on its address.

  • Page 20: Xmt-Si-485-Log – Probe With Memory And Data Logger Functionality

    WHAT HAPPENS IF POLLING IS DEACTIVATED OR DATA POLLING IS LOST? PROBE CONTINUES TO WORK AND STORE MOVEMENT DATA This model belongs to the XMT-SI-485 family with data logger functionality which is normally activated when external power supply goes off and data polling is lost.
  • Page 21 XMT-SI-485 – XMT-RF eng rev04 12/2013 S02102=00010=00183=00155=041 S02102=00009=00173=00169=053 S02102=00008=00166=00159=053 S02102=00007=00155=00146=046 S02102=00006=00142=00136=040 S02102=00005=00135=00129=043 S02102=00004=00134=00115=036 S02102=00003=00002=00113=027 S02102=00002=00001=00102=023 S02102=00001=00000=00102=021 Meaning of the fields: S[address]=[record_counter]=[minutes_from_starting_logging]=[mm]=[chk]CrLf Address: is the probe address record_counter: is the progressive number of stored record minutes_from_starting_logging: is related to the minute to which the stored record refers to. Minutes are calculated starting from the moment of power loss or after 1 minute of polling missing.
  • Page 22 XMT-SI-485 – XMT-RF eng rev04 12/2013 It happens the same on a probe that is not queried for a consecutive minute, also in this case a new record session starts with storage from minute 0. If the buffer is empty performing command S the probe will not send any answer.
  • Page 23 XMT-SI-485 – XMT-RF eng rev04 12/2013 APPLICATIONS Service station Depot...
  • Page 24 START italiana S.r.l. Via Pola 6 20813 Bovisio Masciago Tel: +39 0362/1581465 Fax: +39 0362/1581464...
