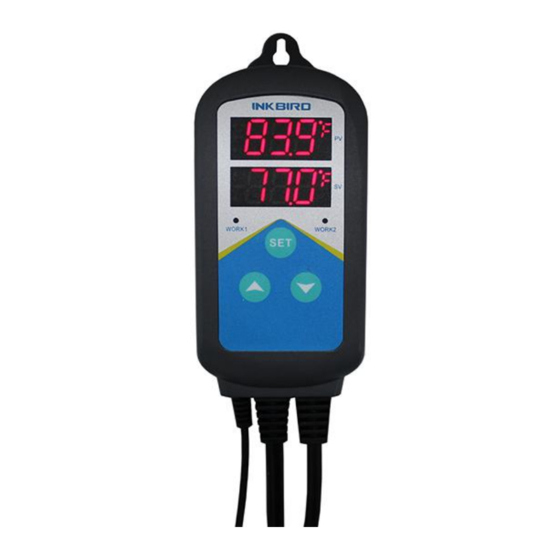

Ink Bird ITC-306T User Manual

Plug and play temperature controller
Hide thumbs
Table of Contents

Advertisement

Quick Links

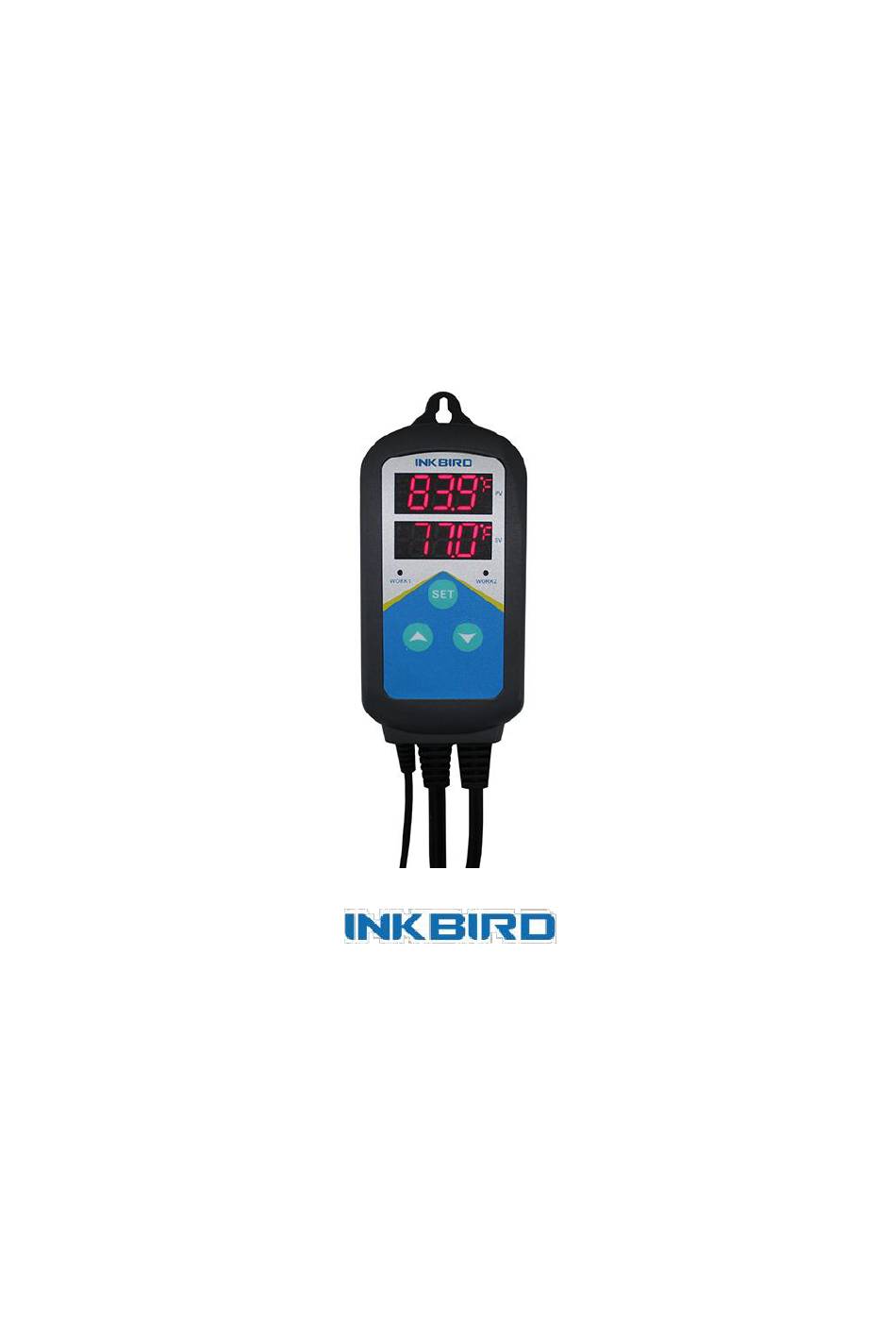

Plug and Play Temperature Controller
ITC-306T
User Manual
Version 1.1s
Inkbird Tech. Co., Ltd.
Copyright
Copyright
©
2016 Inkbird Tech. Co., Ltd. All rights reserved. No part of this document may be reproduced
without prior written permission.
Disclaimer
Inkbird has made every effort to ensure that the information contained in this document is accurate and
complete; however, the contents of this document are subject to revision without notice.
Please contact
Inkbird to ensure you have the latest version of this document.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ITC-306T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ink Bird ITC-306T

Summary of Contents for Ink Bird ITC-306T

  • Page 1 Plug and Play Temperature Controller ITC-306T User Manual Version 1.1s Inkbird Tech. Co., Ltd. Copyright Copyright © 2016 Inkbird Tech. Co., Ltd. All rights reserved. No part of this document may be reproduced without prior written permission. Disclaimer Inkbird has made every effort to ensure that the information contained in this document is accurate and complete;...

  • Page 2: Table Of Contents

    ITC-306T User Manual Contents 1. Overview ................................3 What is ITC-306T? ............................3 Main features ..............................3 2. Specification ............................... 4 3. Keys Instruction ............................... 5 4. Key Operation Instruction ..........................6 4.1 How to set parameters ........................6 4.2 Setup Flow Chart ........................... 7 5.

  • Page 3: Overview

    24 hours according to the day and night, which can more suitable for the physiological needs of animals and plants. ITC-306T can be widely use in over-heat protection and automatic temperature control system of all sorts of electrical equipment for aquarium, pets breeding, hatching, fungus fermenting, and seed germination accelerating, etc.

  • Page 4: Specification

    ITC-306T User Manual 2. Specification Temperature Control Range -50~99 °C / -58~210 ° F Temperature Resolution 0.1 ° C / 0.1° F Temperature Accuracy ±1°C (-50 ~ 70°C) / ±1°F (-58 ~ 160° F) Temperature Control Mode On/Off Control, Heating...

  • Page 5: Keys Instruction

    ITC-306T User Manual 3. Keys Instruction ① PV: Process Value. Under running mode, display current temperature;  Under setting mode, display menu code.  ② SV: Setting Value. Under running mode, display setting temperature;  Under setting mode, display setting value.

  • Page 6: Key Operation Instruction

    ITC-306T User Manual 4. Key Operation Instruction 4.1 How to set parameters When the controller is working normally, press “SET” key for over 3 seconds to enter parameters set up mode. “SET” indicator lamp will on. PV window displays the first menu code “TS1”, while SV window displays according setting value.

  • Page 7: Setup Flow Chart

    ITC-306T User Manual 4.2 Setup Flow Chart Remarks: TE error If TR=1 and it is power-on again after power off. The window of SV displays TE error. When enter to the setting menu, it will jump to TH code directly, then you can set present time (TH, TM) easily and quit into normal working status.

  • Page 8: Menu Instruction

    ITC-306T User Manual 5. Menu Instruction When the temperature is displayed in Centigrade When TR=0 (Default) Menu code Function Setting range Default setting Remarks -50～99.9℃ 25℃ Temperature Set Value 1 Heating Differential 0.3～15℃ 1.0℃ Value1 -15～15℃ 0℃ Temperature Calibration Display in Fahrenheit or...

  • Page 9: Temperature Control Range Setting (Ts, Ds)

    ITC-306T User Manual When the temperature is displayed in Fahrenheit When TR=0(Default) Menu code Function Setting range Default setting Remarks -58～210℉ 77℉ Temperature Set Value 1 Heating Differential 1～30℉ 2℉ Value1 -15℃～15℉ 0℉ Temperature Calibration Display in Fahrenheit or Centigrade Time Setting 0:Off;...

  • Page 10: Cycle Time Setting (Tr, Tah, Tam,Tbh, Tbm, Cth, Ctm)

    ITC-306T User Manual 5.2 Cycle Time Setting (TR, TAH, TAM,TBH, TBM, CTH, CTM) When TR = 0, time setting function is off, and there are not parameter TAH, TAM,TBH, TBM, CTH, CTM showing in the menu. When TR=1, time setting function is on.

  • Page 11: Te Error

    ITC-306T User Manual 6.3 TE error When setting TR=1 and if it is power-on again after power off, the “beep - beep” alarm in 0.5Hz frequency of the buzzer. The temperature controlled by the standard of TS1 while PV window displaying the current temperature and the window of SV displaying TE error.
