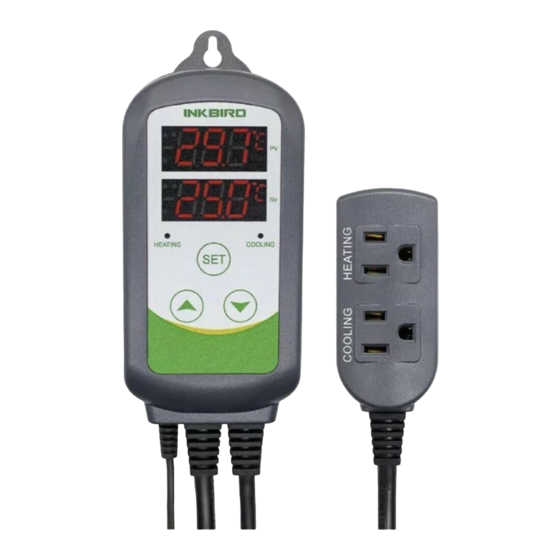

ITC-308 Plug-n-Play Temperature Controller
1. Overview
ITC-308 is an easy-to-use, safe and reliable dual relay output temperature
controller. It can be used as Over-temperature protection and automatic
temperature control system for various electric appliances such as equipment for
home-brew, aquarium, pet breeding, incubation, BBQ, seedling heat mats, oven
temperature control, terrestrial heat control, constant temperature cycle of heating
pump, culture fermentation, accelerating germination, electric radiator, electric
oven, etc.
This product has Plug and Play design with dual relay, be able to connect with
refrigeration and heating equipment easily to realize ideal temperature control.
It's equipped with dual LED display, and offers display options of Centigrade and
Fahrenheit, enabling more humanized temperature control. With large output
power 1,000W(110V) /2,000W(220V), it's suitable for most applications.
ITC-308 is designed with compressor delay protection for refrigeration, high and
low temperature alarm, and sensor fault alarm, which makes the temperature
controller more safe and reliable. Functions such as temperature calibration,
separately set differential for refrigeration and heating, enable more accurate
temperature control.
Main features:
Plug and play design, easy to use;
Dual relay output, be able to connect with refrigeration and heating equipment
at the same time;
Support reading with Centigrade or Fahrenheit unit;
Maximum output load: 1000W(110V)/2000W(220V);
Dual display window, be able to display measured temperature and set
temperature at the same time;
Temperature calibration;
Compressor delay protection for refrigeration control
High and low temperature alarms are available;
Over-temperature and sensor fault alarm
Heating/Cooling differential function could be set separately for refrigeration
and heating to protect temperature controller from violent change.
2. Specification
Temperature Control Range
Temperature Resolution
Temperature Accuracy
Temperature Control Mode
Input Power
Temperature Control Output
Buzzer Alarm
Sensor Type
Sensor Length
Relay Contact Capacity
Input Power Cable Length
Output Power Cable Length
Dimension
Ambient Temperature
Storage
Warranty
User Manual
-50~99 °C / -58~210 ° F
0.1 ° C / 0.1° F
±1°C (-50 ~ 70°C) / ±1°F (-50 ~ 160° F)
On/Off Control, Heating and Cooling
100 ~240VAC, 50Hz/60Hz
Max. 10A, 100V ~240V AC
High and Low Temperature Alarm
NTC sensor (Including)
2m / 6.56ft
Cooling (10A, 100-240VAC)
Heating (10A, 100-240VAC)
1.5m ( 5ft )
30cm ( 1ft )
Body: 140x68x33mm (5.5x2.7x1.3inch)
Socket: 85x42x24mm(3.3x1.7x1inch)
-30~ 75 ° C / -22~ 167 ° F
Temperature -20~ 60 ° C / -4~ 140 ° F
Humidity 20~85% (No Condensate )
1 Year

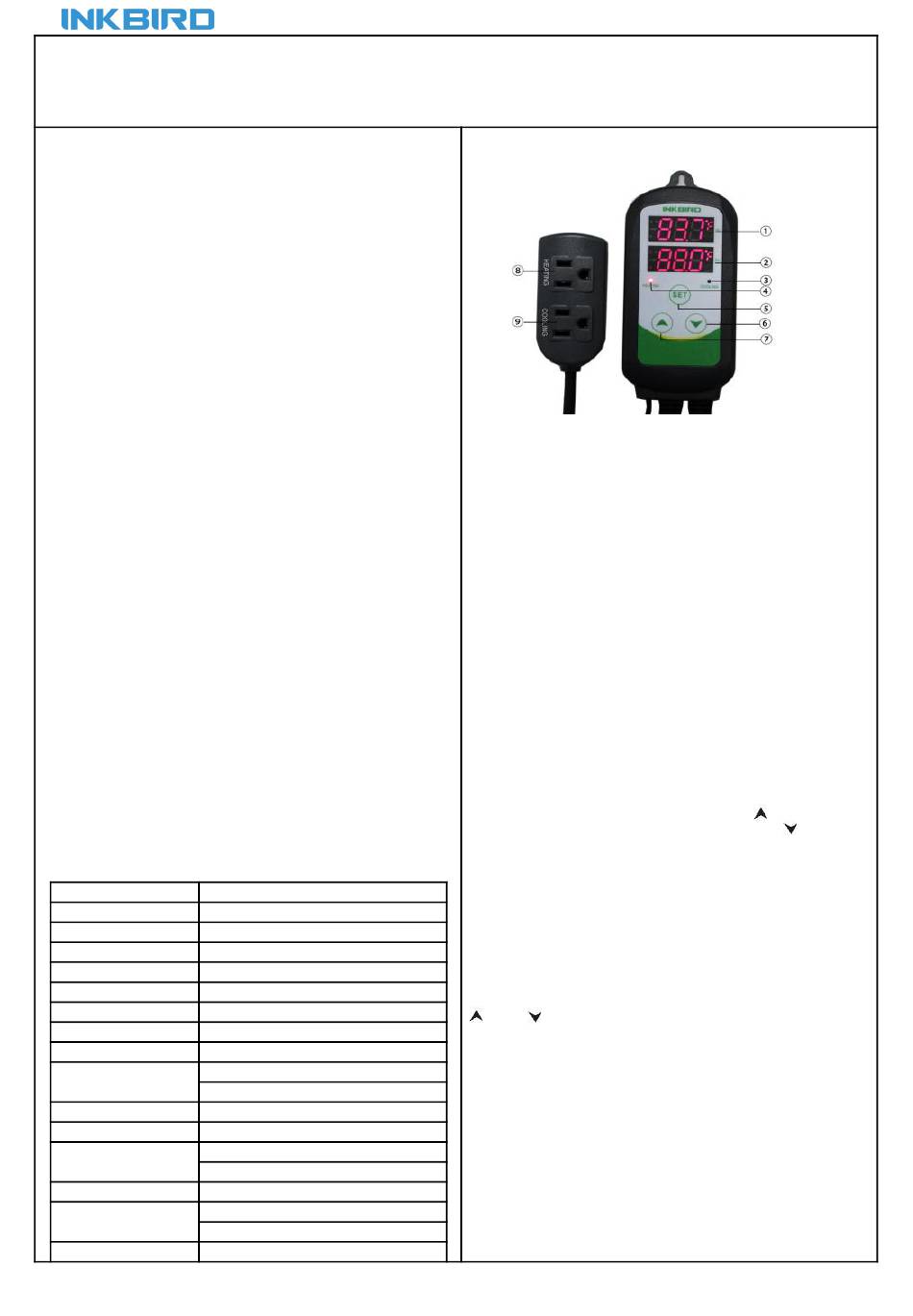

3. Keys instruction
① PV: Process Value. under running mode, display current temperature; under
setting mode, display menu code.
② SV: Setting Value. under running mode, display setting temperature; under
setting mode, display setting value.
③ Cooling indicator Lamp: when the light is on, start refrigeration; when the
light is flickering, the compressor is under delay protection.
④ Heating Indicator Lamp: when the light is on, start heating.
⑤ SET key: press SET key for 3 seconds to enter menu for function setting.
During the setting process, press SET key for 3 seconds to quit and
save setting changes.
⑥ DECRESE key: under running mode, press DECRESE key to inquiry CD
value; under setting mode, press DECRESE key to decrease value.
⑦ INCREASE key: under running mode, press INCREASE key to inquiry HD
value; under setting mode, press INCREASE key to increase value.
⑧ Heating Device Socket: this socket is for heating output.
⑨ Cooling Device Socket: the socket is for refrigeration output.
4. Key operation instruction
4.1 When the controller is working normally, short press " " key for one time,
then the heating differential (HD) will be displayed; short press " " for one time,
then the cooling differential (CD) will be displayed. The screen will return to
normal display mode after 2 seconds.
4.2 How to set parameters
When the controller is working normally, press "SET" key for over 3 seconds to
enter parameters set up mode. "SET" indicator lamp will on. PV window displays
the first menu code "TS", while SV window displays according setting value.
Press "SET" key to go to next menu and display according menu code, press
" " key or "
"key to set current parameter value. After setting done, press
"SET" key for 3 seconds at any time to save the parameters change and return
to normal temperature display mode. During setting, if there is no operation for
10 seconds, the system will quit setting mode and return to normal temperature
display mode without saving the parameters change.
1
V1.0 2015-10-1
© 2015 Inkbird Inc. All rights reserved.
