Summary of Contents for Pliant CrewCom CHB-8C-02

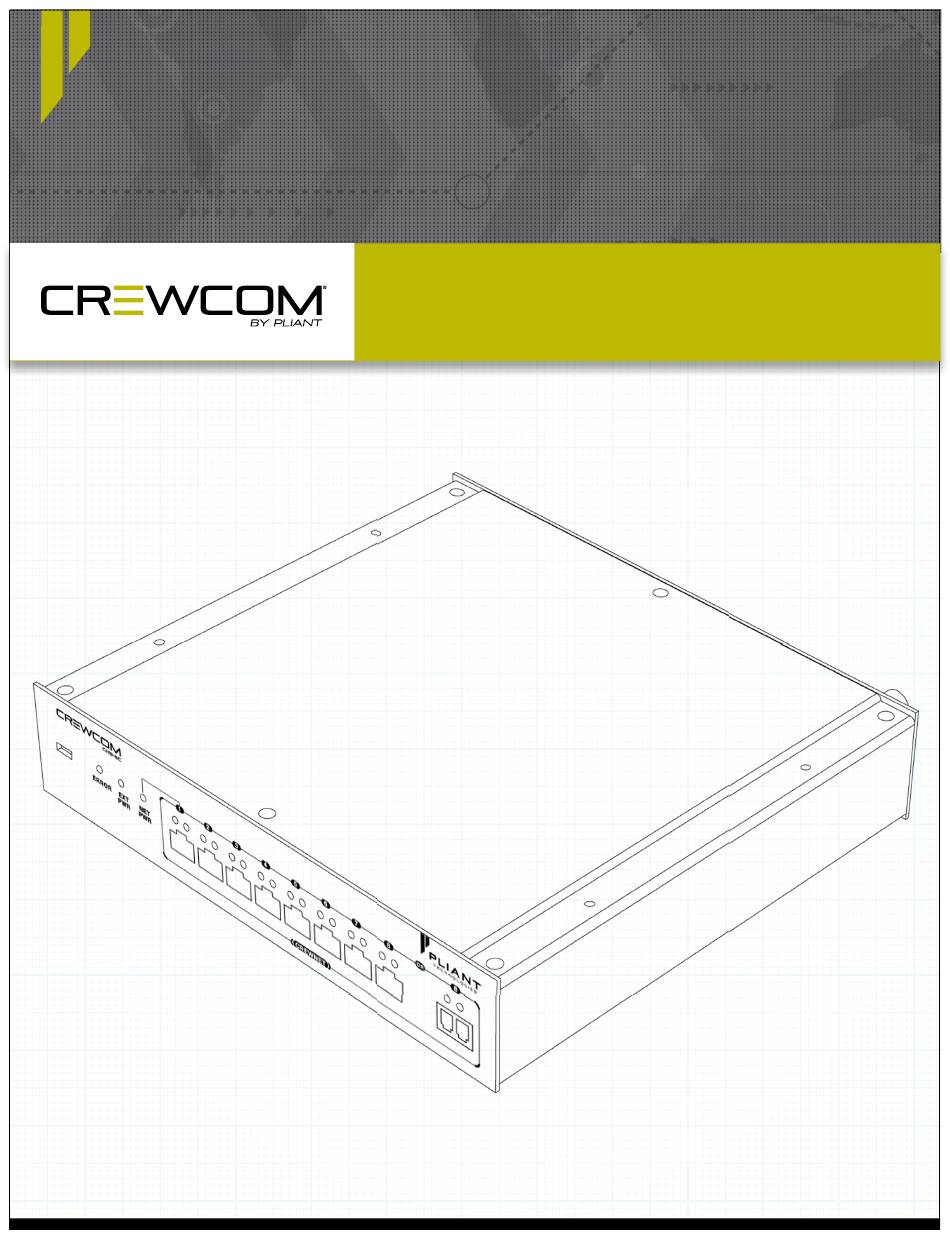

- Page 1 O P E R A T I N G M A N U A L ® ™...
- Page 2 , and CrewNet ™ word marks and the Pliant “P” logo are trademarks of Pliant Technologies, LLC. Any and all other trademark references within this document are property of their respective owners. Model Information This document applies to model CHB-8C, CHB-8C-02, and CHB-8F.
-
Page 3: Table Of Contents
T a b l e o f C o n t e n t s HUB MANUAL Table of Contents Safety Information ..............................1 Safe Operation Recommendations ........................1 Safe Installation Recommendations .........................1 Power Information ............................2 Introduction .................................3 What’s in the box? ............................3 Additional Items Required ..........................3 Optional Item(s) ..............................3 Firmware Release Notes ..........................3... -
Page 4: Safety Information
• Use only attachments/accessories that are specifically made for or certified by Pliant Technologies with the Hub. Any attempt to modify ports in order to use cables or wires that are not manufactured specifically for or certified for use on this system will void the product warranty. -
Page 5: Power Information
S a f e t y I n f o r m a t i o n HUB MANUAL • Circuit Overloading - Consideration should be given to the connection of the equipment to the supply circuit and the effect that overloading of the circuits might have on overcurrent protection and supply wiring. Appropriate consideration of equipment nameplate ratings should be used when addressing this concern. -
Page 6: Introduction
Optional Item(s) • CrewCom-Hub-compatible rack ears (PAC-RMK-S and PAC-RMK-D) are available for purchase separately if needed. Firmware Release Notes Find the latest CrewCom firmware release notes on the Pliant Technologies website at www.plianttechnologies.com/media/ resources/releasenotes/crewcom_release_notes.pdf Download the latest firmware release from www.plianttechnologies.com/downloads. - Page 7 I n t r o d u c t i o n HUB MANUAL Decentralized Network Architecture The CrewCom system utilizes a proprietary network backbone, known as CrewNet , to coordinate and transport all system timing, ™ audio, signaling, and controls. This efficient, decentralized resource network delivers increased flexibility over that of traditional technologies, using a distributed network-to-device intelligence within a modular building block structure.
-
Page 8: Crewcom Configuration File Overview
PoC to connected CrewNet-compatible devices. To ensure best performance, especially with larger CrewCom configurations and longer cable lengths, Pliant recommends utilizing the supplied 48VDC power supply to locally power each Hub. However, powering a Hub and the devices connected to it via PoC may be advantageous in some smaller configurations. -
Page 9: Product Overview
P r o d u c t O v e r v i e w HUB MANUAL Product Overview The CrewCom Hub operates on CrewNet and allows a variety of CrewCom devices to be interconnected. The Hub consists of CrewNet ports that enable users to add more CrewCom devices, such as Radio Transceivers, in order to extend the connection of their CrewCom system. - Page 10 LED information. (E) External (Local) Power (EXT PWR) LED Indicates that external (local) power is being provided via a Pliant 48VDC Power Supply. See the Operation section on page 11 of this manual for more LED information. (F) Network Power (NET PWR) LED Indicates the Hub is receiving PoC via Port 1.
-
Page 11: Crewcom Fiber Hub
P r o d u c t O v e r v i e w HUB MANUAL CrewCom Fiber Hub The Fiber Hub (CHB-8F) functions identically to the Copper Hub, except it has eight ports for fiber optic connections and one copper port. -
Page 12: Setup And Installation
After securely placing the Hub, connect it to other CrewCom devices via its available CrewNet ports. Device port connections must match the CCF in order to operate. Pliant recommends making all cable connections between devices prior to powering on the system. -
Page 13: Powering The Device
S e t u p a n d I n s t a l l a t i o n HUB MANUAL About Hub Layers Any additional Hub cascaded from a previous Hub is considered a new Hub layer. Cascading can be direct from a previous Hub or through another CrewNet device. -
Page 14: Operation
O p e r a t i o n HUB MANUAL Operation Understanding the Hub LEDs Each LED on the Front and Rear of the Hub display identical connection and power status information, allowing the user to monitor the device easily from both a free-standing or rack mount configuration. Table 1: Hub LED Descriptions Connection/LED Description... -
Page 15: Product Specifications
6,562 ft. (2,000 m) RoHS *Notice About Specifications: While Pliant makes every attempt to maintain the accuracy of the information contained in this manual, this information is subject to change without notice, and published device/system functions and features are subject to... -
Page 16: Product Support
All shipments of Pliant products should be made via UPS, or the best available shipper, prepaid and insured. The equipment should be shipped in the original packing carton; if that is not available, use any suitable container that is rigid and of adequate size to surround the equipment with at least four inches of shock-absorbing material. -
Page 17: Maintenance And Storage
All electronic devices can be susceptible to particulate contamination. If yours are exposed to an extremely dusty environment, contact Pliant’s Customer Service for internal cleaning. Temperature and Humidity CrewCom components are designed to be very durable and can tolerate a wide range of environmental conditions; however, you should take all necessary precautions to keep your system devices safe, dry, and out of extreme conditions. -
Page 18: License Information
L i c e n s e I n f o r m a t i o n HUB MANUAL License Information Warning: Changes or modifications to this device not expressly approved by Pliant could void the user’s authority to operate the equipment. 1. FCC Notices 1.1. -
Page 19: Warranty Information
All accessories carry a one-year warranty. The sole obligation of Pliant Technologies, LLC during the warranty period is to provide, without charge, parts and labor necessary to remedy covered defects appearing in products returned prepaid to Pliant Technologies, LLC. This warranty does not cover any defect,... -
Page 20: Glossary
G l o s s a r y HUB MANUAL Glossary Audio Output: Outputs are created by mixing one or more audio entities. This could be for use at any headset connection or for output to a wired connection. Conference: A grouping of audio entities. Wireless Radio Packs (or other CrewCom I/O) may be subscribed to one or more of 1024 available Conferences. -
Page 21: Index
I n d e x HUB MANUAL Index Subscriber 5 Symbols Subscription 5 System Administrator 5 2-Wire 4, 5 4-Wire 4, 5 Warranty 3, 15 Wired Intercom 5 AC Power 2 Audio Output 5 Cat 5e. See Copper Conference 5 Control Unit 4, 7 Overview 4 Copper 3, 4, 6, 7, 8, 9, 12 CrewCom Configuration File 5, 7, 10... - Page 22 Copyright ©2018–2019 Pliant Technologies. All rights reserved. The Pliant , CrewCom , and CrewNet word marks and the Pliant “P” ® ® ™ logo are trademarks of Pliant Technologies, LLC. Any and all other trademark references within this document are property of their respective owners.
