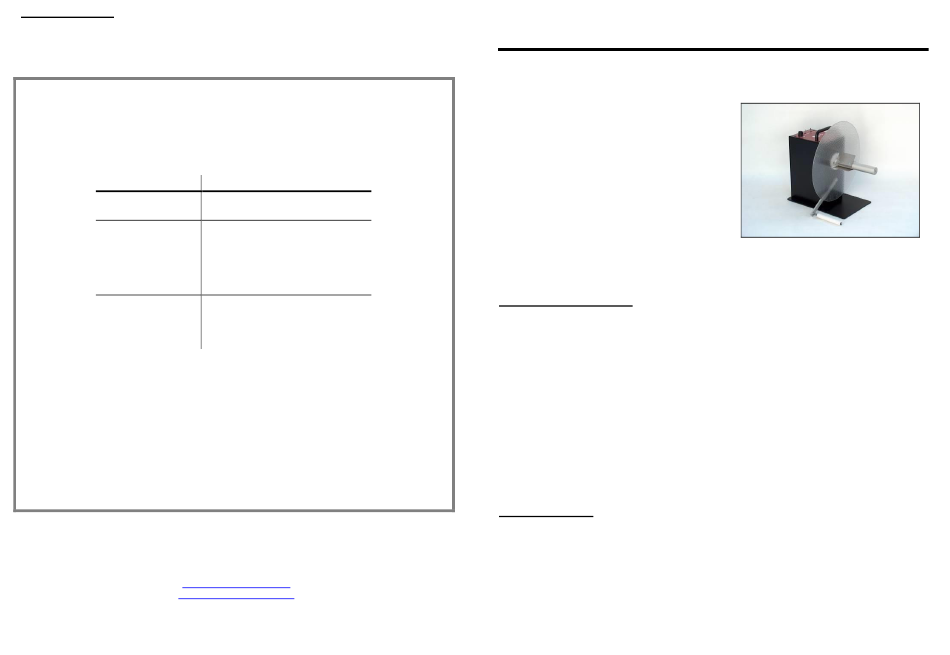

Labelmate UCAT-3 User Manual

MAINTENANCE:
requires no maintenance.
Your UCAT-3
Product Limited Warranty
All Labelmate Products are warranted to the original end-user customer to be free from defects in
materials and workmanship. If it is determined by Labelmate that a product has failed under the terms of
this warranty, the product will be repaired or replaced at no charge to the customer. Labelmate reserves all
rights to determination of coverage and liability under this warranty. The warranty period for all new
Labelmate products is outlined below:
Warranty Period
5 years
3 years
1 year
The warranty period for all products starts on the date purchased by the original end-user customer.
Warranty coverage is not transferable with ownership and will terminate immediately upon rental, resale or
any other change in ownership. This warranty does not cover repair to any product which is damaged, has
been modified, is missing parts, or has been opened or repaired by any unauthorised person. Use of any
unauthorised accessory or attachment will void coverage. Purchase documentation should be retained for
coverage verification.
In the event your product requires service, please contact the distributor you bought the product from. The
customer assumes responsibility for all cost and risk incurred in transport for service.
Labelmate makes no other warranty of any kind expressed or implied, or to suitability or fitness for a
particular purpose. No other person, agent or reseller is authorised to give any warranties on behalf of
Labelmate. Any obligation to warranty other than that specifically addressed above is hereby disclaimed.
LABELMATE
290, Chaussée de Ruisbroek, 1620 Drogenbos, BELGIUM
TEL: +32 2.375.69.60 – FAX: +32 2.375.38.96
brussels@labelmate.com
www.labelmateeurope.com
© LABELMATE – User_UCAT-3-CE – 05/17 – Original user manual.
Products Covered
Label Rewinders
Label Unwinders
Label Counters (mechanical parts
only)
Label Slitters (mechanical parts
only)
Label Dispensers
Printer Mechanisms
Power Supply Modules
Counter modules
Encoders
Any products not specified above.
SPRL
UCAT-3
Heavy-Duty "UCAT" On-Demand Powered Unwinder
•
TM
Constant Adjustable Torque "CAT"
technology
•
Switched Directional and Dual Range
Control
•
Precise Variable Torque Control
Remove all parts from the shipping container and verify contents.
PACKAGE CONTENTS:
•
User Manual (this document)
•
UCAT-3 Drive Unit
•
Power Supply Module
•
LABELMATE "Quick-Chuck" ™ Quick-Locking Core Chuck
or Standard Shaft with three (3) metal Vanes installed,
or Model-10-INCHES Shaft with six (6) metal Vanes installed,
or Model –ACH: Adjustable Core Holder
•
Two 300mm Plastic Flange Plates (One only for QC, none for ACH)
•
Control Arm with setscrews and shaft screw.
Retain the Shipping Container and Packaging for Storage and Transport
SPECIFICATIONS:
Weight of the machine: 9,5Kg to 13Kg depending on model.
Max. Label Roll Weight: STD: 8Kg – ACH: 7Kg – QC: 8Kg – 10-IN: 10Kg.
Max. Label Roll Diam.: 300mm (280mm for ACH).
Start/Stop: ON/OFF/ON Direction Switch
Input: 220-240VAC – 50-60Hz.
Power Supply:
Output: 15VDC – 4.33A
● KEEP MANUAL IN A SAFE PLACE FOR FUTURE REFERENCE ●
