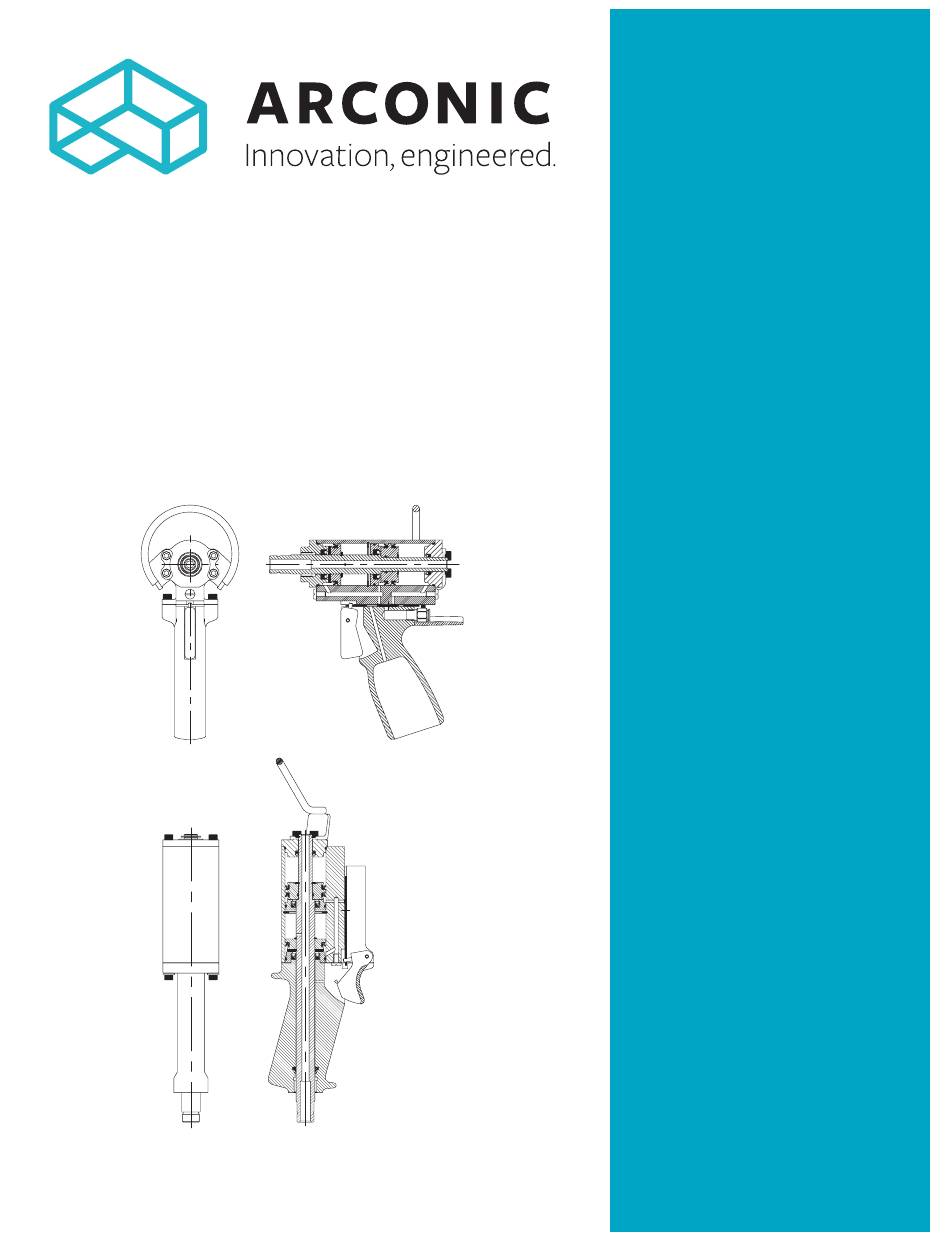

ERT7 and ERT8 Ebbert Rivet Tools (HK1061) Safety Instructions 8. There is possibility of forcible ejection of pintails or spent mandrels from GLOSSARY OF TERMS AND SYMBOLS: front of tool. III. OPERATING HAZARDS: - Product complies with requirements set forth by 1. Use of tool can expose the operator’s hands to hazards including: crushing, impacts, cuts, abrasions and heat. Wear suitable gloves to the relevant European directives. protect hands. 2. Operators and maintenance personnel shall be physically able to handle - Read manual prior to using this equipment. the bulk, weight and power of the tool. 3. Hold the tool correctly and be ready to counteract normal or sudden movements with both hands available.
ERT7 and ERT8 Ebbert Rivet Tools (HK1061) Principle of Operation PULL CYCLE RETURN CYCLE When the trigger is pressed, the incoming non-oiled plant When the trigger is released, the pressurized air is air, regulated at 90 psi forces the Piston Assembly and directed to the rear of the pistons, causing them to move Double Piston to the rear of the tool, and air is exhausted forward. The fastener pintail is vacuumed out the rear of out the bottom of the tool. The fastener is installed, and the tool and into the Power Unit Pintail Collection bin, the fastener pintail breaks off.
ERT7 and ERT8 Ebbert Rivet Tools (HK1061) Attaching Nose Assembly to Tool 1. Remove Vacuum Tube Connector Assembly from complete, slide sleeve over collet, and tighten down remaining Pulling Head Assembly. into end of tool. Tighten the sleeve nut. 2. Take remaining pulling head assembly, and remove 3. Reinstall Vacuum Tube Connector Assembly to outer sleeve.
ERT7 and ERT8 Ebbert Rivet Tools (HK1061) Maintenance WARNING: Inspect tool for damage or wear before each use. Do not operate if damaged or worn, as severe personal injury may occur. CAUTION: Keep dirt and other harmful material out of air flow system, which includes tool, hoses, couplers and Power Unit. Parts must be kept away from unclean work surfaces. GOOD SERVICE PRACTICES PREVENTIVE MAINTENANCE Carefully handle all parts, and examine for damage and System Inspection wear. Replace parts where required. Always replace The operating efficiency of the tool is directly related O-rings and Back-up rings when tool is disassembled for to the performance of the complete system, including any reason. See applicable Service Kit. the tool with pulling head assembly, trigger, control cord, and Power Unit. Therefore, an effective preventive • The efficiency and life of the tool depends on proper maintenance program includes scheduled inspections of maintenance. Use this manual to better understand the system to detect and correct minor troubles.
ERT7 and ERT8 Ebbert Rivet Tools (HK1061) Disassembly CAUTION: Before performing any maintenance, Rivet Tool Disassembly (Figures 2 & 3) disconnect the tool’s hoses from the Power 1. Remove the Pulling Head Assembly from the tool; Unit. remove all nicks and burrs from front of Piston Rod Close attention must be directed to the recommended Assembly.
ERT7 and ERT8 Ebbert Rivet Tools (HK1061) Components Drawing & Parts List ERT7 Figure 2...
Page 10
ERT7 and ERT8 Ebbert Rivet Tools (HK1061) Assembly Drawing & Parts List ERT8 Figure 3...
Page 11
Huck International, Inc. warrants that its installation tools and Powerig® hydraulic power sources manufactured after Huck shall not be liable for any loss or damage resulting December 1, 2016 shall be free from defects in materials from delays or non-fulfillment of orders owing to strikes, and workmanship for a period of two years from date of fires, accidents, transportation companies or for any reason purchase by the end user. This warranty does not cover...
