- Page 1 EE-21x EE-22x User Manual eego amplifier EE-211, EE-212, EE-213, EE-214, EE-215 / version 1.2 EE-221, EE-222, EE-223, EE-224, EE-225 / version 1.2 User Manual Revision 5, July 2016 Copyright eemagine Medical Imaging Solutions GmbH. All rights reserved.
- Page 2 Phone: +49 (0)30 2904 8404 E-Mail: support@eemagine.com IMPORTANT NOTICES Following the European Medical Device Directive 93/42/EEC Annex IX, eego amplifier is a CE class IIa medical device. This User Manual only covers the EE-21x and EE-22x variants of the eego amplifier. Refer to dedicated User Manual for other variants.
-
Page 3: Table Of Contents
Mounting Options for the eego amplifier ................14 Battery and Charger for the eego amplifier ................15 LED and SOUND Status Indicators for the eego amplifier ............16 APPENDIX A: CONNECTORS AND PINNING TABLES ................17 EEG Connectors (Referential) ......................17 Bipolar Connector .......................... -
Page 4: General Information
We will coordinate communication with your dealer in case you purchased the device locally. INTENDED USE The eego amplifier is intended to be used by or under the direction of a physician for acquisition of EEG signals and to transmit them digitally to a computer. -
Page 5: Safety Warnings
The following warnings and cautions apply to the eego amplifier: Proper use of the eego amplifier depends on careful reading of all instructions and labels that come with or on the device inaccurate measurements may be caused by incorrect use of the device. -
Page 6: Precautionary Measures
The eego amplifier should not be used adjacent to or stacked with other equipment; if this is still necessary, verify normal operation in the configuration in which it will be used. Do also not stack multiple eego amplifiers directly on top of each other. -
Page 7: Maintenance And Cleaning
USB devices, and do not make changes to any connections. If the eego amplifier is upgraded or replaced for any reason, make sure to have the control software and interfacing computer checked for compliance by eemagine support before continuing to work with the device. -
Page 8: Product Variants
See the APPENDIX D: Datasheet. PC REQUIREMENTS See the APPENDIX D: Datasheet. CONTACT INFORMATION For more information and for reporting problems with eego amplifier, please contact eemagine at: eemagine Medical Imaging Solutions GmbH Gubener Str. 47 D-10243 Berlin, Germany Phone: + 49 30 29048404 E-Mail: support@eemagine.com... -
Page 9: The Eego Amplifier, Hardware Setup Description

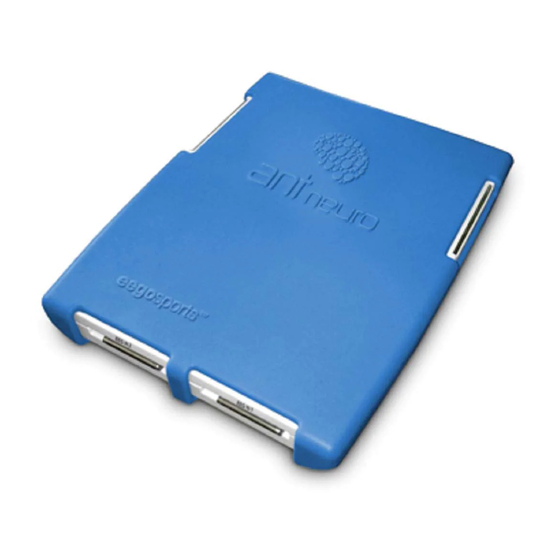

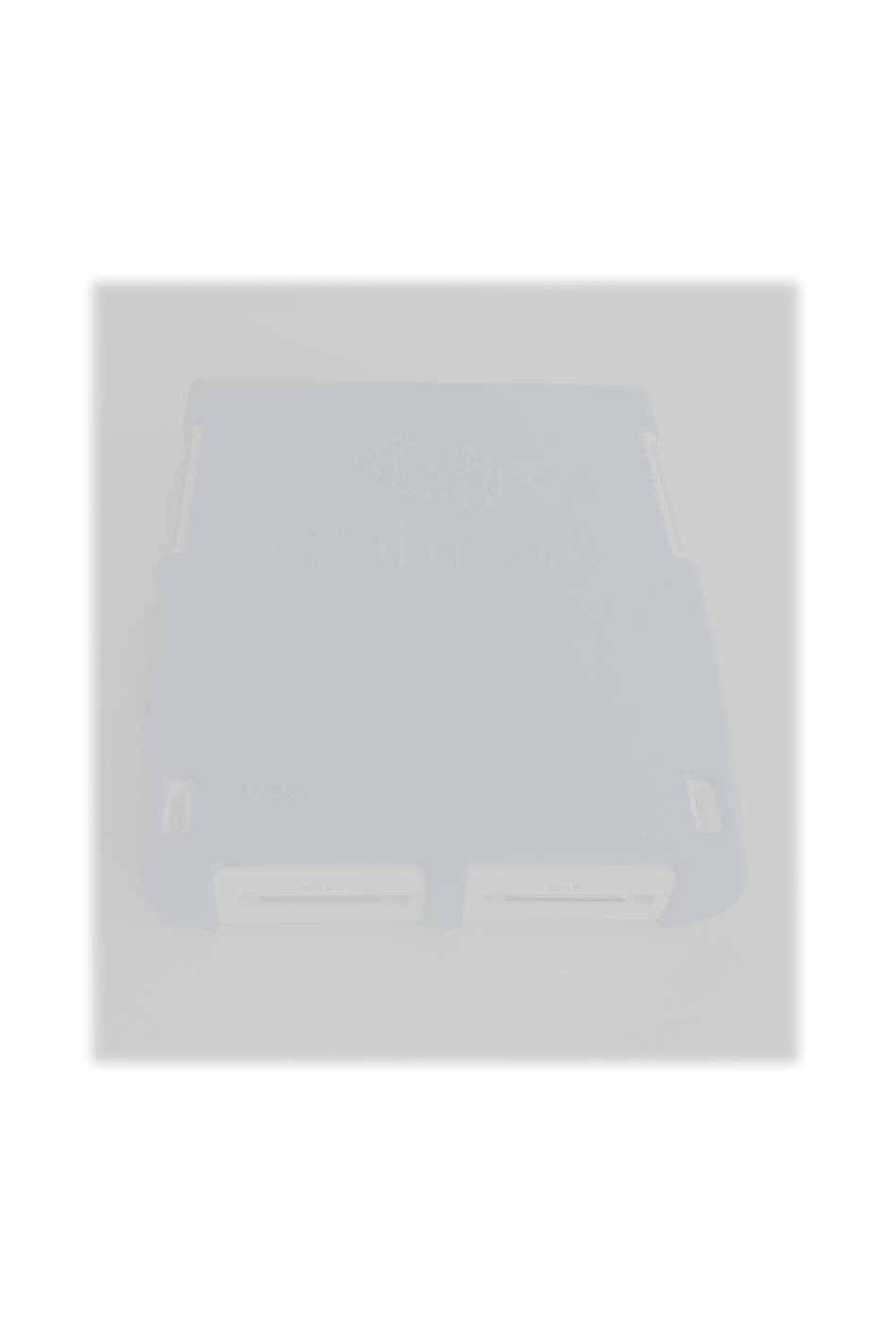

Figure 2-1. The eego amplifier EE-211 amplifier shown from the front. The amplifier (white) is mechanically protected by the eego amplifier soft-shell (blue). Two high density connectors (EEG IN 1 and EEG IN 2) provide access to 64 shielded referential inputs, reference and ground. The openings allow securing the amplifier, e.g., on the table. - Page 10 The trigger adapter XS-230 allows to connect eego amplifier with DSUB25 compatible trigger sources. Figure 2-3. The eego amplifier shown from the rear. The ON/OFF pushbutton to the left is the power button. The TRIGGER high density connector gives access to 8 electrically decoupled TTL lines for recording of synchronized trigger input.
- Page 11 EE-21x EE-22x User Manual Figure 2-5. Side view of the eego amplifier with soft-shell. The LED light bars at the left and right sides work symmetrically and contain multicolor LEDs for DATA and POWER status. eemagine Medical Imaging Solutions GmbH Gubener Str.
- Page 12 EE-21x EE-22x User Manual Figure 2-7. Compatible waveguard cap CA-200, 64 electrodes plus GND (medium size shown). The white labels on the cable indicate product code, (and on other side of label) manufacturer information and serial number. Rev. 5, DRN-PDO-1664...
-
Page 13: Biosignal And Impedance Measurements
Measurements of physiological parameters such as EEG require highest quality and fidelity of the electronic equipment and sensors used with it. The eego amplifier has been developed on the basis of latest state of the art core electronic components (integrated circuits). The modern chip-set allowed miniaturizing hardware without compromises in signal quality and keeping the power consumption at a minimum. -
Page 14: Recording Trigger Input
(less than) ms (milliseconds) and a few nV (nano Volts), depending on the selected sampling rate, signal range and resolution (see eego amplifier datasheet). Each signal is treated by its own converter, so that no multiplexing effects occur. -
Page 15: Battery And Charger For The Eego Amplifier
WARNING: Do not attempt to open the amplifier or battery compartment yourself! The battery charger for eego amplifier comes with a power cord and plug fit for a particular region. A green LED indicator in the power supply shows whether the device is turned on. -
Page 16: Led And Sound Status Indicators For The Eego Amplifier
LED AND SOUND STATUS INDICATORS FOR THE EEGO AMPLIFIER The LED light-pipes at the side edges of the eego amplifier communicate POWER and DATA status as well as possible hardware problems. The two multi-color LED indicators at each side operate symmetrically. -
Page 17: Appendix A: Connectors And Pinning Tables
APPENDIX A: CONNECTORS AND PINNING TABLES EEG CONNECTORS (REFERENTIAL) The eego amplifier has two EEG input connectors, EEG IN 1 and EEG IN 2. The 68-pin high-density, high-quality connectors give access to the 64 shielded referential inputs, the reference electrode and the patient ground, and are typically used according to the pinning tables below. -
Page 18: Bipolar Connector
EE-21x EE-22x User Manual BIPOLAR CONNECTOR The eego amplifier has one bipolar input connectors, BIPOLAR IN. The 50-pin high-density, high- quality connectors give access to the 24 bipolar inputs and the patient ground. The patient ground is identical to the referential channel patient ground. Only one patient ground connection should be established and used when preparing a subject. -
Page 19: Trigger Connector
EE-21x EE-22x User Manual TRIGGER CONNECTOR The eego amplifier provides an 8-bit trigger input via the 36-pin high-density connector at the amplifier backside. The trigger connector is compatible with the XS-230 trigger adapter, which should be used whenever connecting the amplifier with a trigger source (TTL). -
Page 20: Power And Usb Connector
Do not connect any other power source to the amplifier! The USB connector of the eego amplifier is typically connected with the USB port of a computer (USB plug type A). This cable is necessary for data transmission. It does not power the amplifier or battery but supplies the electrically isolated USB communication module. -
Page 21: Appendix B: Amplifier Technical Specifications (Emc)
32 unipolar EEG inputs) Guidance and manufacturer’s declaration – electromagnetic emissions The eego amplifier is intended for use in the electromagnetic environment specified below. The customer and/or user of the eego amplifier should ensure that it is used in such an environment. - Page 22 RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the eego amplifier is used exceeds the applicable RF compliance level above, the eego amplifier should be observed to verify normal operation.
-
Page 23: Appendix C: Explanation Of Symbols
EE-21x EE-22x User Manual APPENDIX C: EXPLANATION OF SYMBOLS Manufacturer symbol: indicated with name, address Serial number Year of manufacture Conformité Europeenne, CE mark, with number of Notified Body involved in the conformity assessment Follow the instructions for use (i.e., this user manual) -
Page 24: Appendix D: Datasheet
Classification: CE class IIa according to the MDD 93/42/EEC Annex IX Description: The eego amplifier has been designed as a mobile recording device for high-density EEG and other electrophysiological signals. It provides access to recorded data over a USB connection to external software over its signal driver interface. The eego amplifier comes with a built-in rechargeable battery for recordings of several hours. - Page 25 64ch referential, 2kHz EE-212 eego amplifier, 32ch referential, 2kHz EE-213 eego amplifier, 16ch referential, 2kHz EE-214 eego amplifier, 32ch referential, 24ch bipolar, 2kHz EE-215 eego amplifier, 64ch referential, 24ch bipolar, 2kHz EE-221 eego amplifier, 16ch referential, 16kHz EE-222...
- Page 26 2014/53/EU where applicable. Warning: Proper use of the eego amplifier depends on careful reading of all instructions and labels that come with or are present on the device. Incorrect use of the device may cause inaccurate measurements. Non-compliance with warnings and safety regulations may result in severe personal injury and total loss of equipment.
