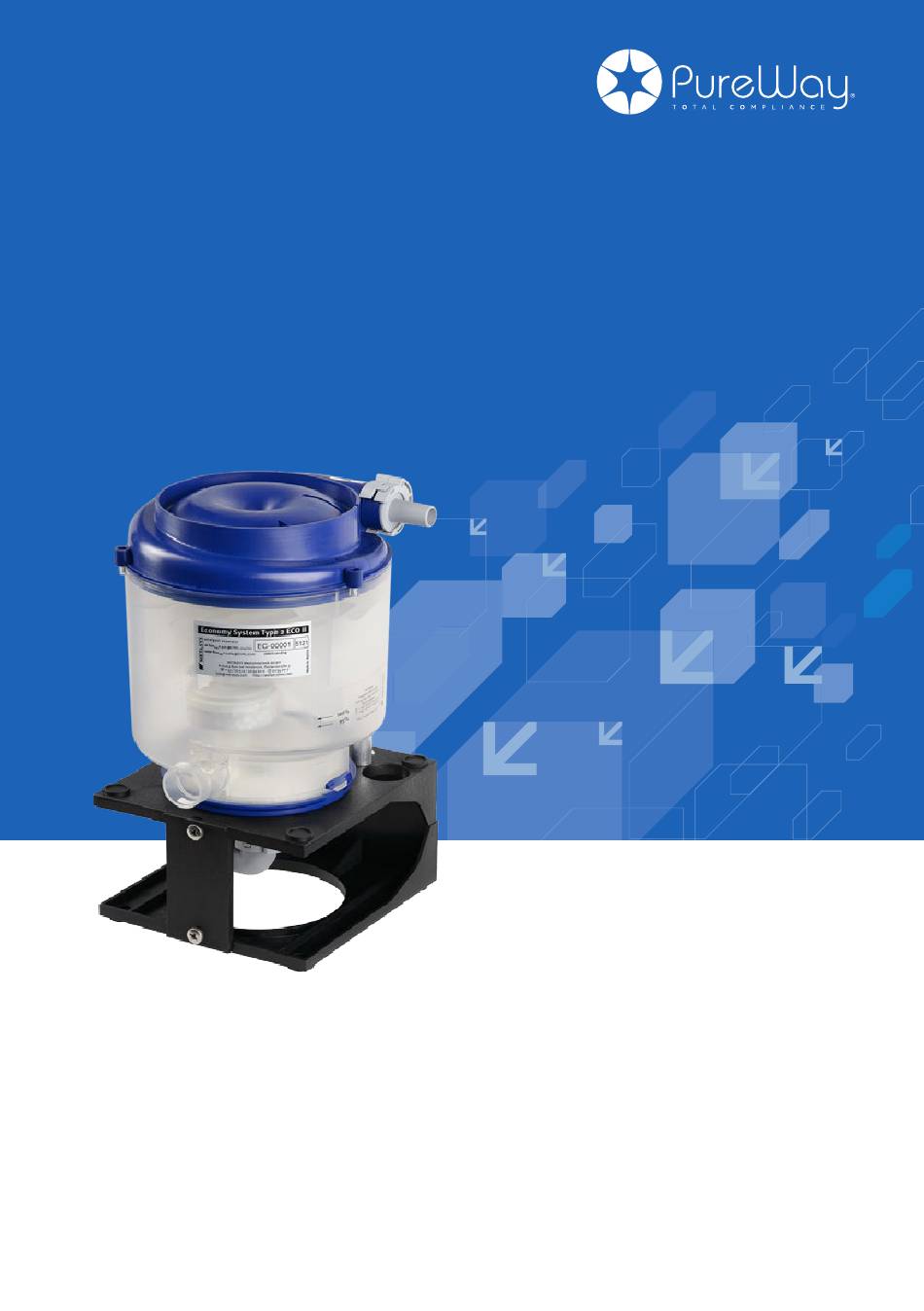

- Page 1 ECO II AMALGAM SEPARATOR EQUIPMENT LOGBOOK ASSEMBLY, OPERATION AND MAINTENANCE PureWay Compliance, Inc. 20501 Katy Freeway Suite 206 Katy, TX 77450 877.765.3030 www.PureWay.com...
- Page 2 Name of the person who inspected: who inspected: Date of Inspection: — — Date of Inspection: — — Was the system operating properly? Was the system operating properly? Was the system needing to be replaced? Was the system needing to be replaced? PureWay...
-
Page 3: Table Of Contents
AMALGAM SEPARATOR SECTION PAGE Index Technical Data Explanation of how the system works ECO II Application and explanation of the type plate ECO II Assembly Instructions ECO II Installation Guide ECO II Tandem Maintenance and Replacing the collection container Disposal of the full collection container... -
Page 4: Technical Data
ECO II Application and Explanation of Components Explanation of how the system works The amalgam separator ECO II works on the principle of sedimentation, divided into several sections. With dry vacuum systems the waste water from the dental units runs from the air/water separation tank into the inlet nozzle the ECO II. - Page 5 Application The Economy System Type II (ECO II) is a sedimentation amalgam separator. When used in a wet ring system, the ECO II can be installed in the vacuum line before the wet ring pump. Possible Vacuum Systems • dry vacuum system with air/water seperation •...
-
Page 6: Eco Ii Assembly Instructions
ECO II Assembly Instructions The ECO II Amalgam Separator requires minor assembly before ready to install to a dental vacuum system. Follow the instructions below to assemble your ECO II and then proceed to install instructions. STEP Remove all contents from the ECO II. Each system comes with the following components •... - Page 7 2 on the front. STEP Fit the stainless-steel cylinders onto the two-canister base support as shown in the illustration below. Then fit the ECO II canister on top of the base support cylinders and then secure with the small screws. STEP Identify the appropriate fittings you plan on using during installation and fit the O-rings on to the applicable fittings as shown below.
- Page 8 Optional Wall Bracket Installation If you would like your ECO II to be mounted on a wall you must request these wall mounts at 877.765.3030 or go to www.PureWay.com contact page and request. STEP STEP Stainless steel rectangular wall mounts...
- Page 9 As soon as the solid content of the collection container has reached the maximum flling level, the ECO II must be replaced. However it has to be replaced at least once a year even if the maximum flling level has not yet been reached.
-
Page 10: Eco Ii Tandem
ECO II Tandem Installation Instructions STEP In order to connect the ECO II in tandem configuration, take two ECO II systems STEP and connect them using a Y-Connector as shown in the illustrations below. STEP PureWay... -
Page 11: Maintenance And Replacing The Collection Container
Maintenance and Replacing the Collection Container The ECO II collection container must be exchanged according to the replacement intervals as defined in the replacement interval table (cf. page 8, chapter 6). Wear protective gloves and face mask! Avoid contact with the... - Page 12 Check inlet and outlet of the ECO II for tightness! Suck in a large quantity of water (at least 0.5 gal or 2 l) to check the system for leakages. If leakages are found, check the hose connections.
-
Page 13: Disposal Of The Full Collection Container
For installation and replacement how to videos, please visit STEP www.pureway.com/ecoii-amalgam-separator Need assistance installing your ECO II? Call Put the amalgam 877.765.3030 and PureWay can assist you in separator and the finding a qualified technician to install your system! styrofoam shells into the box and close it. -
Page 14: Contact Us
ECO II AMALGAM SEPARATOR Contact Us PureWay Compliance, Inc. 20501 Katy Freeway Suite 206 Katy, TX 77450 877.765.3030 www.PureWay.com...
