GAELCO TOKYOCOP Operator's Manual

2nd edition
Hide thumbs
Table of Contents

Advertisement

Quick Links

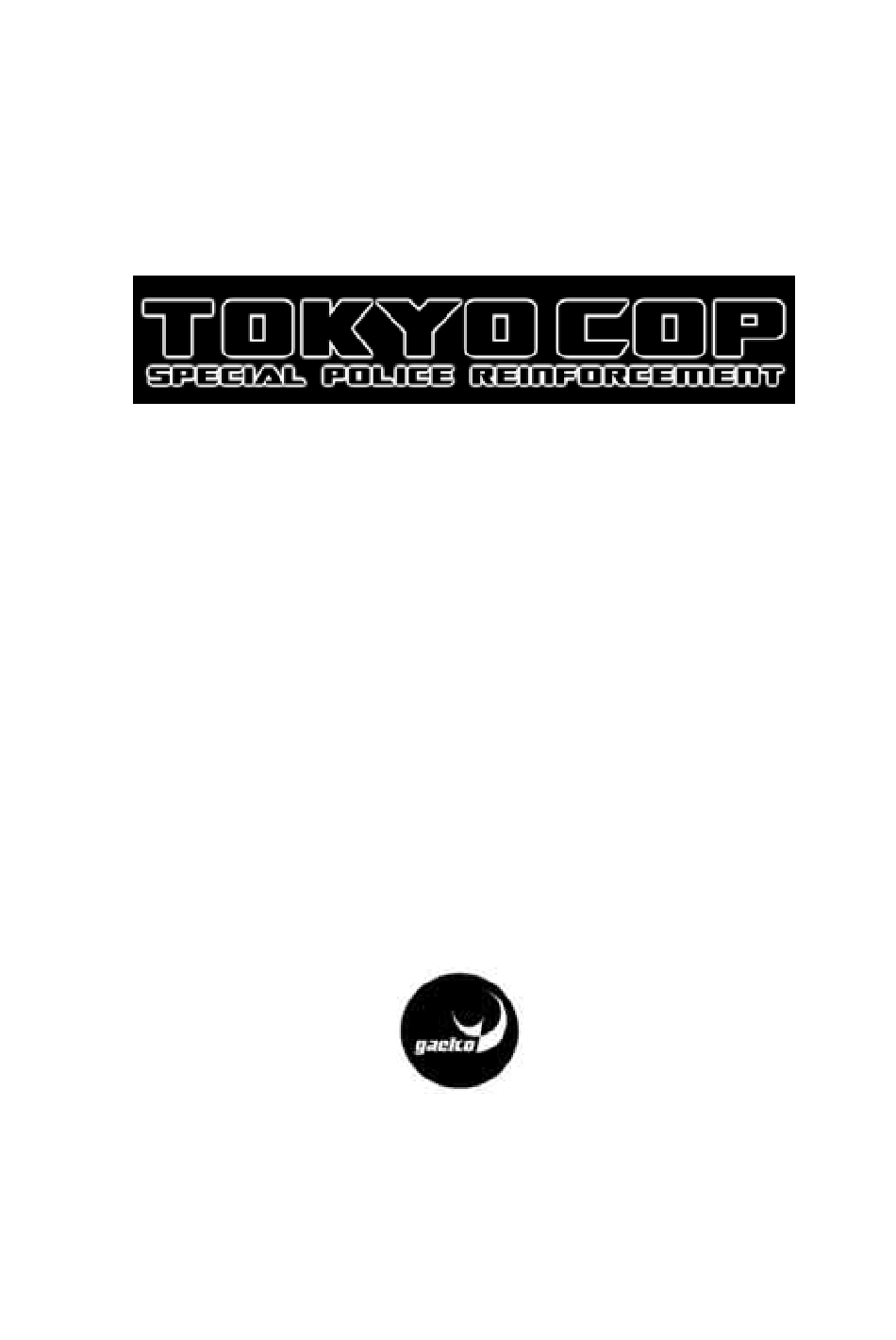

OPERATOR'S MANUAL
2nd EDITION
© GAELCO 2003
IT IS THE RESPONSIBILITY OF THE OPERATOR TO CARE ABOUT COSTUMER SAFETY AT ALL
TIMES. PLEASE READ AND OBSERVE THE NOTES ON SAFETY DESCRIBED IN THIS MANUAL.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TOKYOCOP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GAELCO TOKYOCOP

Summary of Contents for GAELCO TOKYOCOP

  • Page 1 OPERATOR’S MANUAL 2nd EDITION © GAELCO 2003 IT IS THE RESPONSIBILITY OF THE OPERATOR TO CARE ABOUT COSTUMER SAFETY AT ALL TIMES. PLEASE READ AND OBSERVE THE NOTES ON SAFETY DESCRIBED IN THIS MANUAL.
  • Page 2 GAELCO - TOKYOCOP About TOKYOCOP Thank you for purchasing a Gaelco’s product. This manual explains how to safely operate your TOKYOCOP® machine. Failing to operate the machine correctly could result in malfunction or accident, so please read the manual carefully before starting operation, specially the SAFETY NOTES (Section 3).

  • Page 3: Table Of Contents

    GAELCO -TOKYOCOP INDEX GENERAL INFORMATION HOW TO LINK TWO MACHINES Manufacturer and Machine data Legislation references TECHNICAL SERVICE Technical Service Prior considerations Responsibility Safety precautions Motion system - Block diagram MACHINE SPECIFICATIONS Emergency stop Position potentiometers SAFETY NOTES Commander SE parameters...
  • Page 4 GAELCO - TOKYOCOP...

  • Page 5: General Information

    GAELCO - TOKYOCOP GENERAL INFORMATION 1.1 MANUFACTURER AND MACHINE DATA Manufacturer GAELCO, S.A. Address Escipión 11 08023 City Barcelona Country : SPAIN Tel. 34 93 417 36 26 34 93 417 28 02 e-mail gaelco@gaelco.com Technical Service sat@gaelco.com Name of the game TOKYOCOP®...

  • Page 6: Responsibility

    SPECIFICATIONS GAME DESCRIPTION TOKYOCOP® is a “catch me if you can” game. The player drives a police car and patrols the streets of Tokyo. The goal is to capture as many criminals as possible within the span of time allowed by the machine. As the criminals drive crazy and have fast cars, the chase turns in a frantic urban race.
  • Page 7 GAELCO - TOKYOCOP 3) Total dimensions of the machine, installed on site height width depth 1513 mm 2463 mm 2164 mm POWER SUPPLY Operating Power: 220-230 VAC, 50 Hz Output: +5VDC 20A, +12VDC 8A MONITOR 34" Hantarex Polo/2 STAR PH, code 01297790...

  • Page 8: Safety Notes

    When transporting or reselling the machine, be sure to attach this Manual. The TOKYOCOP machine has been designed for indoor use only, within residential or commercial areas, and must be used exclusively for the purpose intended.
  • Page 9 GAELCO - TOKYOCOP 3.1 GENERAL SAFETY CONSIDERATIONS Before operating the machine, check that it has been installed correctly and in accordance with this Manual. As some parts of the machine move during game play, there are places where the distance between the stationary section and the mobile section changes. Despite the...

  • Page 10: Location

    Do not run the power cord across passages where pedestrian's feet could get caught on the cord. Ensure that the location’s power supply is equipped with an Earth Leakage Breaker rated at 30mA. GAELCO shall not be held responsible for any damage resulting from the failure to observe these instructions.

  • Page 11: Moving The Machine

    3.2.1 SECURING IN PLACE Ensure that all the leg levellers make firm contact with the surface of the floor. This precaution is crucial for the TOKYOCOP version with motion system, because the machine can move of itself, causing an accident.

  • Page 12: Operation

    3.5 SAFETY DEVICES CONCERNING THE MOTION SYSTEM The TOKYOCOP / MOTION machine has an EMERGENCY STOP BUTTON placed on top of the coin tower, which can be easily activated by the player or the operator at any time.

  • Page 13: Material Handling

    Store the packed machine in sheltered and dry areas. Temperatures allowed: maximum +45ºC / minimum -5ºC. 4.3 RECEPTION The TOKYOCOP packaging should be carefully inspected upon receipt to ensure that the product is delivered in good conditions. Shipping damage may void warranty. In case of shipping damage, contact your Distributor...

  • Page 14: Assembling

    Once the packaging is removed, the machine looks as shown in the illustration. 5.1 INSPECTION BEFORE ASSEMBLING Normally, GAELCO products are ready to assemble immediately after transporting to the location. Nevertheless, some mishandling may occur during transportation. Check the following points to ensure that the machine has been properly delivered:...
  • Page 15 GAELCO - TOKYOCOP 5.2 ASSEMBLING & INSTALLATION To assemble the machine proceed as follows: 1. Take out the boxes containing the accessories. 2. Remove the metal brackets that fix each unit to its pallet. 3. Raise the leg levellers and put the units down on the floor with the help of a ramp. Be very careful to avoid the risk of being crushed! 4.
  • Page 16 GAELCO - TOKYOCOP 5. Assemble the billboard on the top of the monitor cabinet, using a step. Do not climb on the cabinet! The screws that fix the billboard are already installed on its place. Remove those screws and use them for fixing the billboard. Plug the connector of the fluorescent tube.
  • Page 17 GAELCO - TOKYOCOP 8. Approach the two units so you can connect the other end of the harness to the monitor cabinet. The screws that fix the harness plate are allready installed on its place. 9. The gap between tha platform and the monitor cabinet should be about 300mm (12”).
  • Page 18 GAELCO - TOKYOCOP 10. Level the platform . The levellers of the middle (number 3 in the drawing) should be adjusted the last ones. 11. Carefully adjust all the levellers so that the whole machine rests firm and level on the floor.

  • Page 19: Switching On The Machine

    GAELCO - TOKYOCOP 5.3 GETTING READY TO START BEFORE SWITCHING ON THE MACHINE, PLEASE CHECK THAT THE INTALLATION FITS ALL THE REQUIREMENTS DESCRIBED ON CHAPTER 3 (SAFETY NOTES) AND ESPECIALLY THOSE OF SECTION 3.2 The installation of the machine at its final site should be carried out by trained people.

  • Page 20: Screen Test

    GAELCO - TOKYOCOP PROGRAMMING THE MACHINE AND TEST MODE An automatic check of the memories is made when the machine is switched on. This coincides with the presentation of the Screen Test. After a few seconds, if no error occurs, it automatically goes on to show the game.
  • Page 21 GAELCO - TOKYOCOP 6.1 SCREEN TEST This screen is the ADJUSTMENT CARD, which should be used to suitably adjust the monitor. It shows you, also, information about the installed software version. You can return to de Main Menu by pushing the START button placed In the centre of...

  • Page 22: Controls Test

    GAELCO - TOKYOCOP 6.2 CONTROLS TEST This screen enables you to check the correct functioning of all controls of the machine. The device to be tested is selected by pushing the VIEW and SIREN buttons placed on the front panel. To return to the main menu just push both buttons at once.

  • Page 23: Motion System Test

    GAELCO - TOKYOCOP 6.3 MOTION SYSTEM TEST This screen enables you to check some functions related to the motion system. MOTION SYSTEM Left motor Start : Turn : Speed : Pot : Right motor Start : Turn : Speed :...

  • Page 24: Settings

    GAELCO - TOKYOCOP 6.4 SETTINGS On this screen you can change the following game parameters: SETTINGS Difficulty: Advertising sound: Free play: Credits to start: Credits to continue: 1 Coin /credit conversion: 1 coins (1) 1 credits (1) 1 counter pulses (1)

  • Page 25: Link Settings

    GAELCO - TOKYOCOP Debug mode This option is for programming purposes only and has no utility for the operator. Save player game This option allows the player to save the game, by means of a personal code introduced with the alphanumeric keypad. The game can be restored later at the same stage as it was when saved.
  • Page 26 The message will be LINK ERROR if there is any interconnection problem. This could be due to a cable fault or because both machines have the same status (Master/Master or Slave/Slave). The section 8 (ADVANCED OPTIONS) explains the different ways to link the TOKYOCOP machines, and how to connect them to Internet.

  • Page 27: Sound Test

    GAELCO - TOKYOCOP 6.6 SOUND TEST This screen allows you to check the whole sound system. SOUND Volume: Bass level: Left channel test: Right channel test: ON Woofer test: Exit As for the previous screens, the selection of the required option is made by means of the VIEW and SIREN buttons.

  • Page 28: Book Keeping

    GAELCO -TOKYOCOP Reading from top to bottom: Total time the machine is connected in hours and minutes Total time the machine is busy in hours and minutes Time of the shortest play in minutes and seconds Time of the longest play in minutes and seconds...
  • Page 29 GAELCO - TOKYOCOP 6.8 LEAVING THE TEST MODE The last two options of the main menu allows you to leave the test mode and go back to the play mode. Screen test Controls Motion system Settings Link settings Sound Book-keeping...
  • Page 30 TokyoCop can be connected to Internet. If that were the case, all the above information would be stored in Gaelco's server and be provided to the player in any TokyoCop machine connected to Internet.
  • Page 31 TOKYOCOP machines use the same connector for all link modes: Mode 1. You just need the link cable supplied by Gaelco. This cable is an standard RJ45- RJ45 Ethernet crossed cable, available in any computer shop.
  • Page 32 LAN administrator. Remote U U RL/IP: This is the complete URL of the server that will manage the connection of the TOKYOCOP machines. By default it is the Gaelco server located in Spain: www.gaelco.es/cgi-bin/tokyomaq.pl It also allows raw IP address:...
  • Page 33 LINK OK will appear after a few seconds. 8.2.2 CONNECTION TO INTERNET OF TWO LINKED MACHINES When two TOKYOCOP machines are linked, the Base IP must be set to the same IP in both machines. The effective IP address of the Master machine will be Base IP (i.e. 90.0.0.232). The Slave machine will use Base IP+1 (in this case 90.0.0.233).
  • Page 34 GAELCO - TOKYOCOP...

  • Page 35: Technical Service

    Make sure there is plenty of room for maintenance to be carried out. At least 3 metres should be left free between the machine itself and other objects (e.g. adjacent machines, walls, etc.). When parts needs replacing, use only those approved by Gaelco S.A. and which meet the relevant specifications.

  • Page 36: Motion System - Block Diagram

    GAELCO - TOKYOCOP 9.3 MOTION SYSTEM - BLOCK DIAGRAM For a better understanding of the motion system, pease refer to the diagram below. The CPU Board (TOK-357) provides four analogic signals (0-3V) to the Power Board (TOK-358). Two of them are the inputs of the DC driver, which controls the steering motor with a +/-24V output.
  • Page 37 GAELCO - TOKYOCOP 9.4 EMERGENCY STOP The motion system includes an emergency stop which is operated by a red knob on top of the coin tower. The emergency circuit-breaker is connected in series so that it will bring the car to a standstill (see the block diagram of section 9.3). Should the movement system not work, the cause may lie in: either of the stop switch;...

  • Page 38: Position Potentiometers

    GAELCO - TOKYOCOP 9.5 POSITION POTENTIOMETERS If the movement system is not working properly, the position potentiometers (TOK-305) should be checked and changed if necessary. The following points need to be borne in mind in this connection: 1. In Test Mode, go to the MOTION SYSTEM screen.

  • Page 39: Commander Se Parameters

    GAELCO - TOKYOCOP 9.6 CHECKING THE COMMANDER SE PARAMETERS If the motion system does not work properly, you can check the parameter values, which should match the ones shown on the list below. Starting position: Machine connected, movement system off.

  • Page 40: Troubleshooting

    GAELCO - TOKYOCOP 9.7 TROUBLESHOOTING PROCEDURES 1) PROBLEM:The machine does not start when the mains switch is thrown. CHECKS Check the mains cable and its connections. Check the fuses. Check the specifications are met. Check whether the fuses have blown and that they have the correct current rating. The fault may have been caused by an overload current.
  • Page 41 GAELCO - TOKYOCOP 6) PROBLEM:The machines do not work when they are linked up. CHECKS Check that the link cable properly connects the two machines. Follow the instructions in Section 6.5 (Link Settings). 7) PROBLEM: There is no sound or it is of poor quality.

  • Page 42: Parts List

    GAELCO - TOKYOCOP 10. PARTS LIST - GENERAL INDEX PLASTIC PARTS CODE DESCRIPTION SECTION POSITION TOK-434 GRAB HANDLE, monitor cabinet 10.1 TOK-510 PLASTIC FRAME, monitor 10.1 TOK-801 SEAT, mobile platform 10.15 TOK-802 BACK COVER, seat 10.15 TOK-803 SEAT BASE COVER, mobile platform 10.15...
  • Page 43 GAELCO - TOKYOCOP ELECTRIC & ELECTRONIC PARTS CODE DESCRIPTION SECTION POSITION TOK-350 MONITOR 10.6 TOK-355 10.7 TOK-357 10.7 TOK-358 POWER PCB 10.7 TOK-362 8" SUBWOOFER 10.2 TOK-363 10.7 TOK-364 MAINS SWITCH AND FUSE HOLDER 10.5 TOK-370 TOROIDAL TRANSFORMER 10.7 TOK-372 INDUCTANCE 10.8...
  • Page 44 GAELCO - TOKYOCOP 10.1 MONITOR CABINET – ACCESSORIES CODE DESCRIPTION TOK-131 SIDE COVER - LEFT TOK-132 SIDE COVER - RIGHT TOK-502 STICKER - LEFT TOK-503 STICKER - RIGHT TOK-434 PLASTIC GRAB HANDLE TOK-515 BILLBOARD ASSEMBLY TOK-510 PLASTIC FRAME - monitor...

  • Page 45: Subwoofer Parts

    GAELCO - TOKYOCOP 10.2 MONITOR CABINET – SUBWOOFER PARTS CODE DESCRIPTION TOK-375 8” GRILL (subwoofer) TOK-376 2” GRILL TOK-362 8” SUBWOOFER 100W/4 UNION HARNESS (see section 1.3) SCREW UM1001 M6X30 BLACK...

  • Page 46: Union Harness Assembly

    GAELCO - TOKYOCOP 10.3 UNION HARNESS ASSEMBLY CODE DESCRIPTION TOK-441 NUT, conduit gland TOK-230 FIXING PLATE - CABINET SIDE TOK-442 CONDUIT GLAND - SEM STRAIGHT TOK-443 PROTECTION TUBE, corrugated TOK-840 FIXING PLATE - PLATFORM SIDE UNION HARNESS (see note) The union harness is includes the following parts:...

  • Page 47: Billboard Assembly

    GAELCO - TOKYOCOP 10.4 MONITOR CABINET – BILLBOARD ASSEMBLY CODE DESCRIPTION TOK-517 FLUORESCENT ASSEMBLY TOK-121 SIDE COVER - LEFT TOK-122 SIDE COVER - RIGHT SCREW DIN7505 B4X10 SCREW UM1001 M6X30 BLACK...

  • Page 48: Rear Accesories

    GAELCO - TOKYOCOP 10.5 MONITOR CABINET – REAR ACCESORIES CODE DESCRIPTION TOK-367 VENTILATION GRILL 15X15 TOK-364 MAINS SWITCH & FUSE HOLDER (2X10A) TOK-105 REAR DOOR - MONITOR...
  • Page 49 GAELCO - TOKYOCOP 10.6 MONITOR CABINET – MONITOR ASSEMBLY AND FRONT DOOR CODE DESCRIPTION TOK-350 MONITOR Polo2 - 34”, STAR PH - CODE 02197790 TOK-104 FRONT DOOR SCREW DIN 603 M8X45 WASHER DIN125 M8 NUT DIN938 M8 NUT985 M8 TOK-234...

  • Page 50: Electronic Parts 1

    GAELCO - TOKYOCOP 10.7 MONITOR CABINET – ELECTRONIC PARTS 1 CODE DESCRIPTION TOK-357 CPU - TOKYOCOP TOK-355 PSU - PSATX10300 TOK-370 TOROIDAL TRANSFORMER 220/18-0-18 160VA - CROVISA 218316 TOK-358 POWER PCB - DC MOTOR DRIVER & SIGNAL ADPATER TOK-110 MOUNTING BASE (WOOD)
  • Page 51 GAELCO - TOKYOCOP 10.8 MONITOR CABINET – ELECTRONIC PARTS 2 CODE DESCRIPTION TOK-392 FREQUENCY CONVERTER SE11200075 TOK-391 MONOPHASIC FILTER 25A CODE 11018 TOK-390 SERIAL FILTER 800/6A TOK-372 INDUCTANCE 25mH/6,3A TOK-363 FAN 120X120X38 TOK-365 FAN GRILL (metalic) TOK-225 FARADAY BOX TOK-385...

  • Page 52: Bottom Parts

    GAELCO - TOKYOCOP 10.9 MONITOR CABINET – BOTTOM PARTS CODE DESCRIPTION TOK-432 CASTOR Ø80 TOK-433 SWIVELING CASTOR Ø80 TOK-235 BRACKET, leg leveller TOK-372 LEG LEVELLER SCREW DIN603 M8X45, castor NUT DIN985 M8 SCREW DIN603 M6X70, leg leveller NUT DIN985 M6, leg leveller...
  • Page 53 GAELCO - TOKYOCOP 10.10 PLATFORM – MAIN ASSEMBLIES CODE DESCRIPTION DASHBOARD ASSEMBLY SEAT ASSEMBLY MOBILE PLATFORM ASSEMBLY PROTECTION FOLDING HOOD BASE ASSEMBLY COIN TOWER ASSEMBLY...

  • Page 54: Dashboard Assembly - 1

    GAELCO - TOKYOCOP 10.11 DASHBOARD ASSEMBLY - 1 CODE DESCRIPTION TOK-833 TUBULAR STRUCTURE TOK-852 STEERING MECHANISM TOK-806 BACK COVER, BLACK TOK-833 4” LOUDSPEAKER, 4 / 60W - 2 WAY, code 35.1367 TOK-865 LOUDSPEAKER COVER, code 11.0349 TOK-881 KEYPAD AK707 TOK-882...
  • Page 55 GAELCO - TOKYOCOP 10.12 DASHBOARD ASSEMBLY - 2 CODE DESCRIPTION TOK-805 FRONT COVER TOK-804 STICKER, instructions TOK-880 PUSH BUTTON AO113, RED, dashboard TOK-853 COUPLING CYLINDER, steering wheel TOK-851 STEERING WHEEL TOK-854 PUSH BUTTON, steering wheel WASHER DIN6798A M12 LOCKNUT DIN985 M12...

  • Page 56: Steering Assembly

    GAELCO - TOKYOCOP 10.13 STEERING ASSEMBLY – MAIN PARTS CODE DESCRIPTION C-22-03036 WASHER, belt fastener C-22-0103660 SCREW, belt fastener C-22-0501410 SLEEVE, potentiometer pinion C-22-80025525 KEY WODRUF, steering wheel shaft C-29-401582 MOTOR 20VDC, 3.9A MODEL 1582 C-29-405680 POTENTIOMETER 5KW , with PCB (SDR-305)
  • Page 57 GAELCO - TOKYOCOP...

  • Page 58: Pedals Assembly

    GAELCO - TOKYOCOP 10.14 PEDALS ASSEMBLY CODE DESCRIPTION C-11-416020 SPRING, brake pedal C-22-03601218 WASHER Ø12X Ø18X1 C-41-605510 SLEEVE PAF-12120 INA P-10 C-22-0112520 SCREW DIN912 M5X20 C-22-03065 SPRING WASHER DIN7980 M5 C-41-605530 SHAFT Ø12X69,5 C-22-02014 NUT DIN934 M4 BRAKE PEDAL S410260010000...
  • Page 59 GAELCO - TOKYOCOP...
  • Page 60 GAELCO - TOKYOCOP 10.15 SEAT ASSEMBLY CODE DESCRIPTION TOK-801 SEAT TOK-837 PROTECTION PLATE TOK-885 HANDLE, seat slides TOK-838 SUPPORTING PLATE, seat TOK-803 PLASTIC COVER TOK-802 BACK COVER, seat TOK-813 STICKER, back cover SCREW DIN7981 3,9X16 SPRING WASHER DIN127 M8 SCREW DIN912 M8X16...
  • Page 61 GAELCO - TOKYOCOP...

  • Page 62: Mobile Platform Assembly

    GAELCO - TOKYOCOP 10.16 MOBILE PLATFORM ASSEMBLY CODE DESCRIPTION TOK-832 PLATFORM TOK-860 PEDALS ASSEMBLY TOK-836 METALIC COVER, access to motors TOK-810 PROTECTION FOLDING HOOD TOK-846 BRACKET, protection folding hood TOK-807 PLASTIC COVER, tubes SCREW DIN912 M12X30 FLAT WASHER DIN125 M12...

  • Page 63: Base Assembly

    GAELCO - TOKYOCOP 10.17 BASE ASSEMBLY CODE DESCRIPTION TOK-831 BASE TOK-839S CARDAN ASSEMBLY TOK-821 MOTOR ASSEMBLY - LEFT TOK-820 MOTOR ASSEMBLY - RIGHT TOK-810 PROTECTION FOLDING HOOD TOK-863 SWIVELING CASTOR Ø80 TOK-862 CASTOR Ø80 TOK-861 LEG LEVELLER, rubber base Ø60, M16...
  • Page 64 GAELCO - TOKYOCOP 10.18 MOTOR ASSEMBLY CODE DESCRIPTION GEARED MOTOR - LEFT: TOK-821 / RIGHT: TOK-820 TOK-827 SHAFT CRANK, motor trasmission TOK-826 HEXAGONAL ROD, motor transmission TOK-825 SWIVEL JOINT, male M14 + male M16, SBA-0418 TOK-841N SUPPORTING PLATE, motor TOK-829...

  • Page 65: Tower Assembly

    GAELCO - TOKYOCOP 10.19 COIN TOWER ASSEMBLY CODE DESCRIPTION TOK-834 TOWER TOK-835 TOWER BASE TOK-861 LEG LEVELLER rubber base Ø60, M16 TOK-410 DOUBLE FRAME MINIDOOR 1E TOK-817 EMERGENCY STOP BUTTON TOK-299 TEST PANEL SCREW ISO7380 M4X8 BLACK WASHER DIN6798 M4...
  • Page 66 GAELCO - TOKYOCOP...

  • Page 67: Wiring Diagrams

    GAELCO - TOKYOCOP 11. WIRING DIAGRAMS 11.1 POWER WIRING DIAGRAM...
  • Page 68 GAELCO - TOKYOCOP 11.2 CABINET WIRING DIAGRAM...
  • Page 69 GAELCO - TOKYOCOP 11.3 UNION HARNESS WIRING DIAGRAM...
  • Page 70 GAELCO - TOKYOCOP 11.4 PLATFORM WIRING DIAGRAM...
  • Page 71 GAELCO - TOKYOCOP 11.5 DASHBOARD WIRING DIAGRAM...
  • Page 72 GAELCO - TOKYOCOP 11.6 COIN TOWER WIRING DIAGRAM...

  • Page 73: Credit Distributor Setup

    GAELCO - TOKYOCOP 12. CREDIT DISTRIBUTOR SETUP JP1:Not used JP2:Cabinet JP3:Coin controller JP4:Not used Connector JP2: This connector should be connected to ATV PCB wiring Description Values Source/Destination Pin 1 Input GND GND power supply Pin 2 Input VDC +12 VDC...
  • Page 74 GAELCO - TOKYOCOP PROGRAMMING OF COIN CONTROLLERS Controllers supported: COIN CONTROL C-120 NRI G-13.6000 MARS CASHFLOW 330 MARS 330/S 212 NRI G-13.6000 Channel Channel Channel Channel Channel Channel Coin Control C 120 Coin 1 Coin 2 Coin 3 Coin 4...
  • Page 75 GAELCO - TOKYOCOP APPLICATION EXAMPLES Game price: 50c, NO BONUS Switch set up: Game price: 50c, BONUS FOR 2 ¤ (4 credits + 1 credit free) Switch setup: Game price: 1 ¤ , NO BONUS Switch setup: Game price: 1 ¤, BONUS FOR 2,5¤ (2 credits + 1 credit free)
  • Page 76 GAELCO - TOKYOCOP SWITCH SETUP FOR OTHERS CURRENCIES SW1: Always OFF SW2: Coin multiplication factor SW2=OFF Chanel: Euro ¤, and rest of Europe Value: SW2=ON Chanel: (USA) Value: SW3: Not used SW4-SW5: Extra Credits (Bonuses) Combinations of these two dip switches are used to program bonuses (free games) according to the scale shown in the table.
  • Page 77 GAELCO - TOKYOCOP APPLICATION EXAMPLES Example 1 Switzerland SW1 = SERIAL input. (5 FS via PIN 5) = (Channel 3) SW2 = Input values x1 x2 — x5 SW3 = Not used SW4 = EXTRA credit on the 20th pulse (=20FF)
