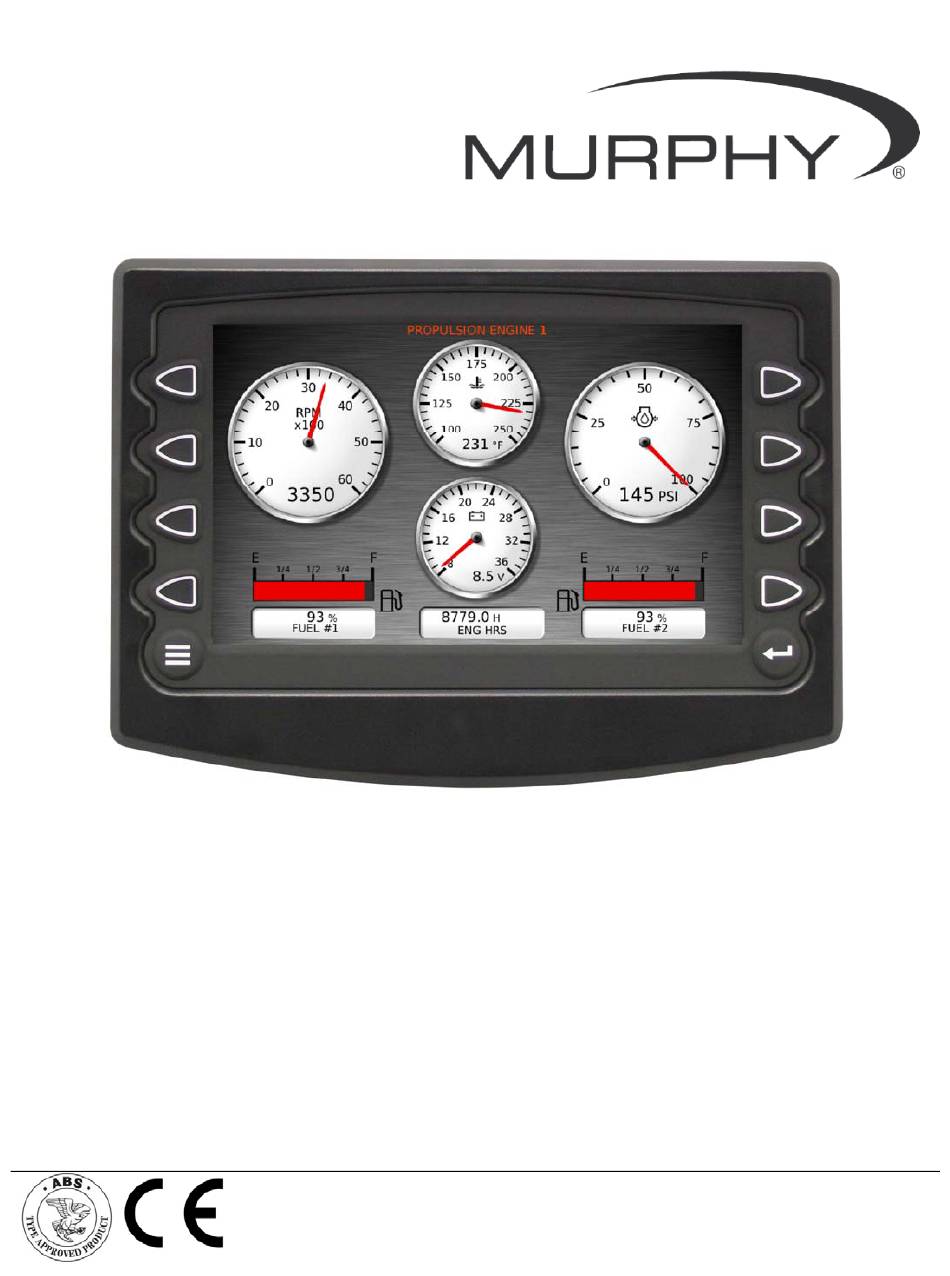

- Page 1 HelmView™ Model HV750; HVS750 Installation Manual 00-02-0803 03-07-12 Section 78...
- Page 2 The latest version of this manual can be found at www.fwmurphy.com. Please read the following information before installing. BEFORE BEGINNING INSTALLATION OF THIS MURPHY PRODUCT: Read and follow all installation instructions. Please contact FW MURPHY immediately if you have any questions.
-
Page 3: Table Of Contents
Contents Hardware Installation ..................1 Inspecting Package Contents ..................1 Dash-Mounted Installation.................... 1 Wiring Instructions ..................5 Single Engine ....................... 5 PVA and Dual Engine Gages ..................6 USB Wiring ........................7 Analog Video ........................ 8 ... - Page 4 (THIS PAGE INTENTIONALLY LEFT BLANK)
-
Page 5: Hardware Installation
NOTE: When using the paper template from the manual, if you downloaded this document from the FW Murphy website, be aware that the pdf file may not automatically print to scale. When submitting the file for print, you will need to select “None”... - Page 6 Mounting the Unit 1. Place the backside of the display through the opening in the dash. 2. Use the four screws to line up the unit with the drilled holes. 3. Push the unit through the opening and screws through the drilled holes until the back of the case is flush.
-
Page 7: Wiring Instructions
Wiring Instructions The following illustrations are examples of typical quick-connect options for setup. Wiring harnesses are sold separately. Single Engine Section 78 00-02-0803 03-07-12 - 5 -... -
Page 8: Pva And Dual Engine Gages
PVA and Dual Engine Gages NOTE: Port B and C connectors are keyed differently than Port A and D connectors to ensure proper connection. If both PVA gages* and Video camera are going to be used, an extra harness is needed (P/N 78000688 PVW-750-MINI). -
Page 9: Usb Wiring
USB Wiring Section 78 00-02-0803 03-07-12 - 7 -... -
Page 10: Analog Video
Analog Video NOTE: If both PVA gages and video camera are going to be used, an extra harness is needed (P/N 78000688 PVW-750-MINI). Section 78 00-02-0803 03-07-12 - 8 -... -
Page 11: Nmea Wiring
NMEA Wiring Section 78 00-02-0803 03-07-12 - 9 -... -
Page 12: Pin Specifications For Deutsch Dt04-6P Style Connections
Pin Specifications for Deutsch DT04-6P Style Connections Signal Definitions CAN 3 ports according to CAN specification 2 ( 1 port isolated according to NMEA 2000 USB 2.0 host Video input: NTSC/PAL Inputs (3) 0-5 VDC analog inputs ( 1 input configurable to support measurement frequencies from 2 Hz - 10kHz, values from 0-100% duty cycle ... -
Page 13: Wiring Schematic
Wiring Schematic Section 78 00-02-0803 03-07-12 - 11 -... -
Page 14: Specifications
Specifications Electrical Display 7” (178mm) color transmissive TFT LCD Resolution WVGA, 800 x 480 pixels, 16-bit color Aspect Ratio 16:9 Orientation Landscape Backlighting LED, 400-500 cd/mC (50,000 h lifetime) Microprocessor Freescale IMX.31 32bit, 400 MHz Operating System QNX operating system Flash Memory 2 GB 128 Mbytes SDRAM... - Page 15 Mechanical Dimensions (W x H) 8.37 x 6.0 in (212.5 x 152.3mm) landscape Unit Depth – 3.57 in (90.8mm) Shipping Weight Approximately 2.5 lbs. (1.13 kg) Case Material Polycarbonate back case Section 78 00-02-0803 03-07-12 - 13 -...
