Murphy HelmView HV750 Operation Manual

Marine display module
Hide thumbs Also See for HelmView HV750:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation Manual
HelmView™
Model HV750
Operations Manual
00-02-0805
12-09-11
Section 78

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HelmView HV750 and is the answer not in the manual?

Questions and answers

Related Manuals for Murphy HelmView HV750

Summary of Contents for Murphy HelmView HV750

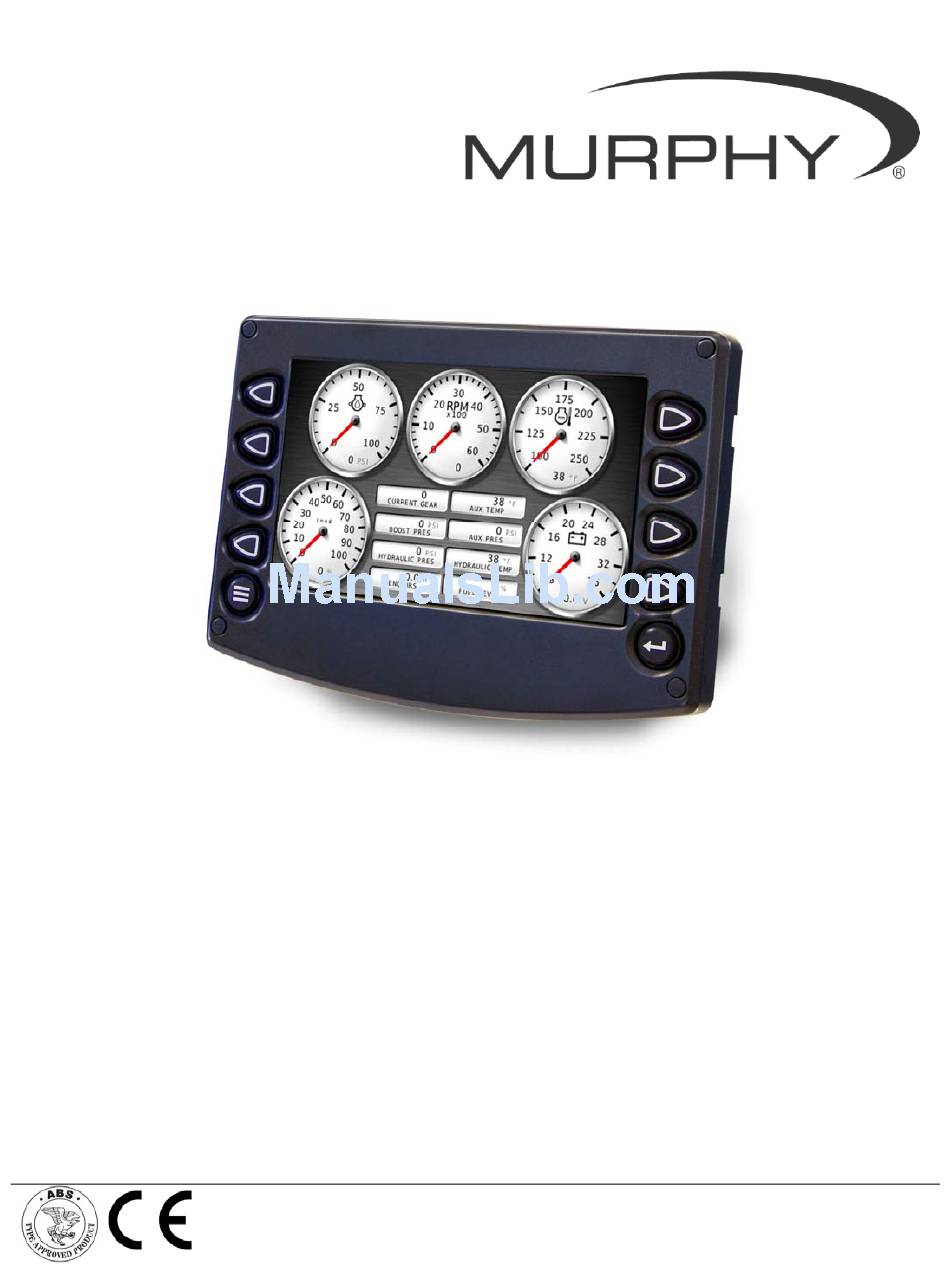

  • Page 1 HelmView™ Model HV750 Operations Manual 00-02-0805 12-09-11 Section 78...
  • Page 2 The latest version of this manual can be found at www.fwmurphy.com. Please read the following information before installing. BEFORE BEGINNING INSTALLATION OF THIS MURPHY PRODUCT: Read and follow all installation instructions. Please contact FW MURPHY immediately if you have any questions.

  • Page 3: Table Of Contents

    Contents Product Information ..................3   FW Murphy Forum Access ................... 3   HV750 Features and Operations .................. 4   Setting up the HV750 Display for the First Time .......... 5   Product Features....................7   Power Up ........................7  ...
  • Page 4 (THIS PAGE INTENTIONALLY LEFT BLANK)

  • Page 5: Product Information

    FW Murphy Forum. FW Murphy Forum Access FW Murphy has created a forum for PowerVision supported products. The forum is a location where a demonstration/trial version of the PowerVision configuration tool is available for download. Many frequently asked questions are stored on the forum along with demo configurations and examples on how to configure products.

  • Page 6: Hv750 Features And Operations

    HV750 Features and Operations The features and operations below are for the Murphy Standard HV750 configuration. Flat Screen Display A color screen displays gauges, soft key commands, and fault messages, as well as menu options for setup and configuration. Soft Key Commands Columns of vertical commands located to the left and/or right of the display.

  • Page 7: Setting Up The Hv750 Display For The First Time

    Setting up the HV750 Display for the First Time The guidelines below are intended for setting up the HV750 display for the first time. If you require assistance during the set up process, contact FW Murphy Customer Support at (918) 317-4100.
  • Page 8 3. From the Utilities menu, use the soft keys to select ‘System Settings’. The following screen displays. 4. With the cursor highlighting the J1939 source addresses, use the Arrow soft keys on the left to scroll through the available ports (A, B, & D). Use the Arrow soft keys on the right to change the address.

  • Page 9: Product Features

    Product Features Power Up The HelmView display is frequently installed with power connected to the ignition. When you turn the ignition on, the HV750 powers up and you can view vital engine conditions via preconfigured gauge screens. Main Menu The main menu can be activated at any time by pressing the Menu key on the display. Access the following features through the Main menu: ...

  • Page 10: Gauge Display

    Gauge Display The Gauge Display screen consists of several predefined layouts that contain combinations of analog gauges, straight bar gauges, or digital (text) readouts. These screens display upon startup. NOTE: On occasion gauges may ‘grey out’; this is caused when the HV750 is not reading the CAN message properly from the source address for which it is configured.
  • Page 11 Soft Key commands provide quick navigation and access to the following features:  Previous  Next  Video  Day/Night  Home Previous and Next These soft keys allow you to scroll through and display the various gauge screens. Video When enabled, displays either full screen video or partial video within a window on the Gauge display.

  • Page 12: Engine Diagnostics

    Night View - Red Day View Night View - Blue Backlight Toggle Engine Diagnostics Choose Engine Diagnostics from the Menu for the HV750 to query the Engine Control Unit(s) and provide feedback on any activated service codes. Faults displayed are based on engine or auxiliary sources. Section 78 00-02-0805 - 10 -...

  • Page 13: Fault Code Pop-Ups

    The following is a list of definitions for fields on the Engine Diagnostics screen:  Status – indicates if the fault has been corrected.  Source – identifies the component having the fault - port or starboard engine, or auxiliary (for example, transmission). ...
  • Page 14 WARNING SHUTDOWN How to Hide/Show Faults To hide the fault code pop-up displayed on the screen, press the soft key on the upper right next to the Hide icon. The pop-up disappears, however the Warning or Stop icon remains on the screen to indicate there is still a fault.

  • Page 15: User Settings

    User Settings User Settings allows you to set viewing preferences for the HV750 Display. Pressing Up and Down navigates through the options. To change an option, press the corresponding soft key next to the desired soft key command. Ambient Light The ambient light options include one Day, two Night, and a Backlight Toggle.
  • Page 16 Brightness You can set the brightness control by using the soft keys to change the settings in +1% and +5% increments until the desired brightness is achieved. NOTE: Brightness levels will change with ambient light setting. You can save two brightness levels, one for day, and one for night. Units Select how units display by using the soft keys to select from the following: ...
  • Page 17 Language This option allows you to select the language displayed on the HelmView. Available languages include English, Spanish, German, Italian, French, Brazilian Portuguese, Russian, Chinese, Japanese, Czech, and Arabic. NOTE: English is the standard language for this configuration. Additions to this feature will be provided in future software updates or posted on the forum at:...
  • Page 18 Video Mode Change accordingly to match video input – either NTSC (National Television Standards Committee used primarily in North and South America, or PAL (Phase Alternating Line) used in Europe and Asia. Degradation of picture quality and resolution can occur if the correct Video Mode is not selected.
  • Page 19 Enable DST To Enable Daylight Savings Time, press the soft key for DST ON. To turn DST OFF, press the soft key for DST Off. Save Once all changes have been made, press Save. The following confirmation screen is displayed. Press the Enter soft key to Save, or press the Menu soft key to Cancel.
  • Page 20 To restore the default user settings, press the soft key for Restore Defaults. The following confirmation screen displays. Press the Enter soft key to Restore Defaults or press the Menu soft key to Cancel the action. Section 78 00-02-0805 - 18 - 12-09-11...

  • Page 21: Utilities

    Utilities The Utilities menu allows you to configure communication settings, setup data logging, and trip parameters. When you select System Settings or Service Reminders, you will only see the abbreviated screens you saw when you set up the unit. To see the expanded screens, see Accessing the Hidden System Settings Screens on page 21.

  • Page 22: Trip Parameters

    Trip Parameters Trip Parameter calculates or uses J1939 to determine fuel usage. Press the adjacent soft key to select J1939 and use SPN 182 (Engine Trip Fuel) to display fuel used during all or part of a voyage. Press the adjacent soft key to select Calc. The HV750 will use all engine-trip fuel-data to calculate a fuel usage number.

  • Page 23: Accessing The Hidden Screens

    Accessing the Hidden Screens There are three hidden menus: System Settings, Service Reminders, and CAN GROUP Settings. You reach these screens from the Main Menu. Instructions on how to use each of these screens is included in this section. To reach the Hidden Menus, Press the second Soft Key down on the right side, twice.

  • Page 24: System Settings Screen

    System Settings screen The System Settings screen displays the current software version loaded on the HV750 display. You can enter individual settings for the available options and ‘Save’, or select Restore Defaults to reset to the factory settings. The yellow Up and Down keys on the left allow you to move the cursor through ‘J1939 Source Addresses’...

  • Page 25: Can Group Settings Screen

    To edit the service reminders, use the soft keys for the gray UP and DOWN arrows on the left side to reach the Service Reminder you wish to change. Use the soft keys for the gray arrows on the right side to reach the correct number column.
  • Page 26 Return to both engines (port and starboard) on Plug A Section 78 00-02-0805 - 24 - 12-09-11...

  • Page 27: Gauge Screen Addendum

    Gauge Screen Addendum This section contains a view of each gauge screen in the Murphy Standard version of the HelmView HV750. Review these to see what options are available before setting your preferences on the User Settings screen. Propulsion Engine 1...
  • Page 28 Dual Engine 1 Dual Engine 2 Auxiliary 1 Section 78 00-02-0805 - 26 - 12-09-11...
  • Page 29 Dual Auxiliary Transmission 1 Dual Transmission Section 78 00-02-0805 - 27 - 12-09-11...
  • Page 30 Overview Tanks GPS Screen Section 78 00-02-0805 - 28 - 12-09-11...
  • Page 32 CALL MURCAL TO PLACE YOUR ORDER P:(661)272-4700 F:(661)947-7570 www.murcal.com e-mail: sales@murcal.com...
