Digital multifunction control

Advertisement

Quick Links

Important:
This guide and the user guide are available at www.aldes.ca/products/residential/accessories

Model

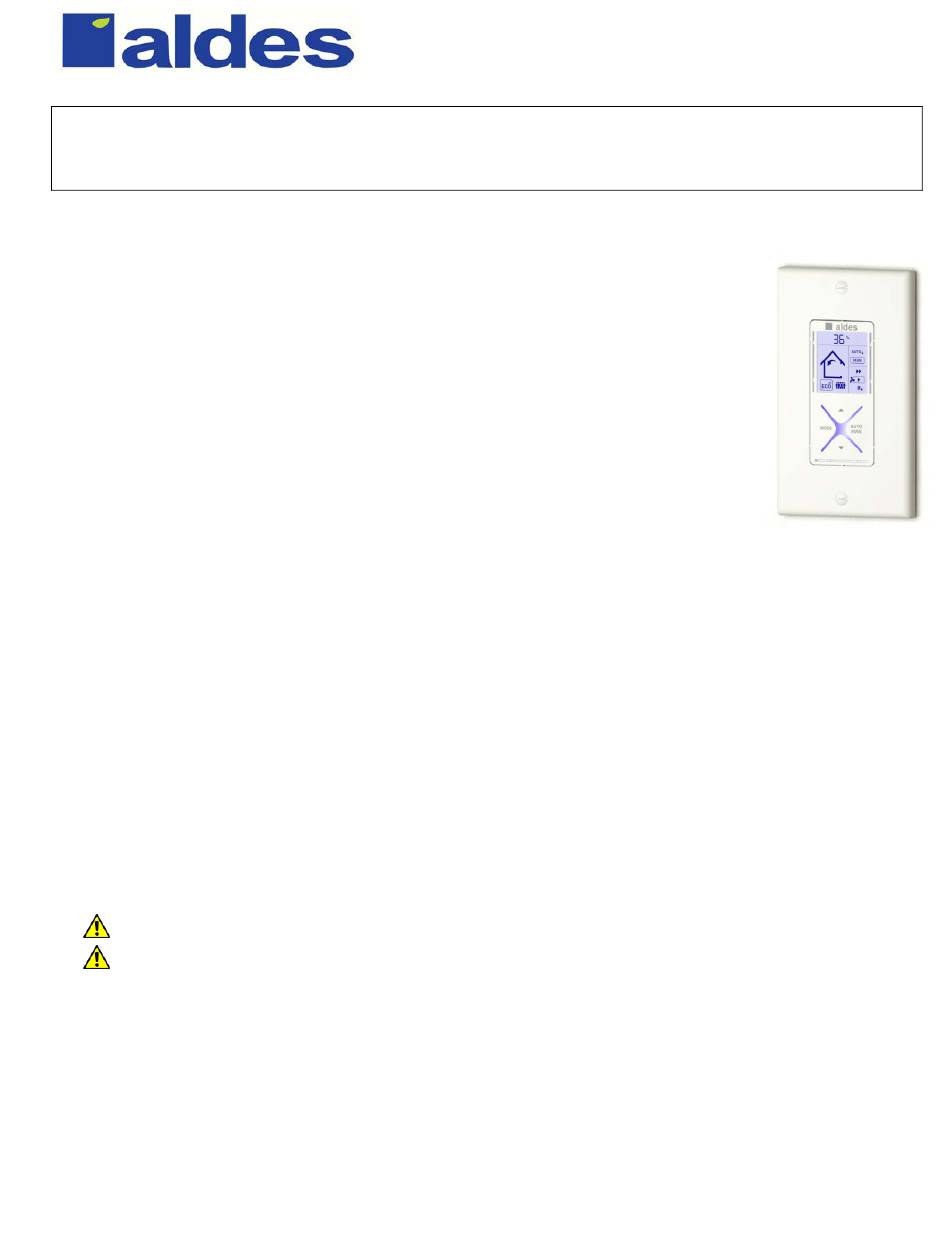

611242 – Digital Multifunction Control

Description

Decora™-style wall mount electronic controller with dehumidistat, compatible with Aldes
HRV and ERV air exchange systems.

Characteristics

Compact and elegant design that fits discreetly in every decor
High-accuracy, fast-response humidity sensor
Liquid-crystal display showing the current humidity level, setpoint, and mode of
operation
4-button keypad to select the mode of operation, the setpoint value, and the fan speed
Blue LED backlight configurable as a night light
Two energy-friendly modes with automatic exchange and exchange-recirculation cycles
Timer-controlled high-speed exchange modes for high occupancy conditions: birthdays, celebrations, etc.

Specifications

Power entry:
Maximum load, high-speed control output:
Maximum load, low-speed control output:
Timer input:
Operating temperature range:
Storage temperature range:
Dimensions:

Precautions and warnings

Always switch off the power supply to the air exchange system during the installation of the control.
Do not install the control on an electrical junction box embedding wires at 120 / 240VAC or else. The
multifunction control must be installed on a dedicated electrical junction box or wall opening.
First check if the control is compatible with your air exchange system before connecting and powering-up the
unit. Non-compatibility could result in a dysfunction or breakage, or could damage the air exchange system.
Connect the multifunction control in compliance with the instructions provided in this document. An improper
connection could result in a dysfunction or could damage the device.
Do not spray any type of liquid nor apply a soaked cloth on the device. Any infiltration in the device can corrupt
its operation momentarily or permanently.
Always service your air exchange system as prescribed in its operating manual to prevent any loss of
performance.
Install the multifunction control on an internal wall for optimal reading of the ambient relative humidity.
Manual 611242 - Installation, R04
611242 - Digital Multifunction Control
22 to 26 VAC, 60 Hz
10 Watts maximum (0.42 A @ 24 VAC)
0.24 Watts maximum (0.01 A @ 24 VAC)
Compatible with Aldes Timer 611228
0 to 50 °C (32 to 122 °F)
-20 to 50 °C (-4 to 122 °F)
Height 102.7 mm, Width 44.3 mm, Depth 28.5 mm
(4.04" x 1.74" x 1.12")
Installation guide
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 611242 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for aldes 611242

  • Page 1: Specifications

    611242 - Digital Multifunction Control Installation guide Important: This guide and the user guide are available at www.aldes.ca/products/residential/accessories Model 611242 – Digital Multifunction Control Description Decora™-style wall mount electronic controller with dehumidistat, compatible with Aldes HRV and ERV air exchange systems.
  • Page 2 611242 - Digital Multifunction Control Installation guide Configuration The unit must be configured before its installation, using the 2 micro-selectors located behind the device. 'On': air exchange system with air recirculation 'Off': air exchange system without air recirculation 'On': air exchange system without bypass damper for free cooling...
  • Page 3 611242 - Digital Multifunction Control Installation guide Installation over an electrical junction box 1. Disconnect the power cable of your air exchange system; 2. Install an electrical junction box (metal or plastic) at the location selected for the multifunction control;...
