Digital multifunction control

Advertisement

Quick Links

Important:

This guide and the installation guide are available at www.aldes.ca/products/residential/accessories

Model

611242 – Digital Multifunction Control

Description

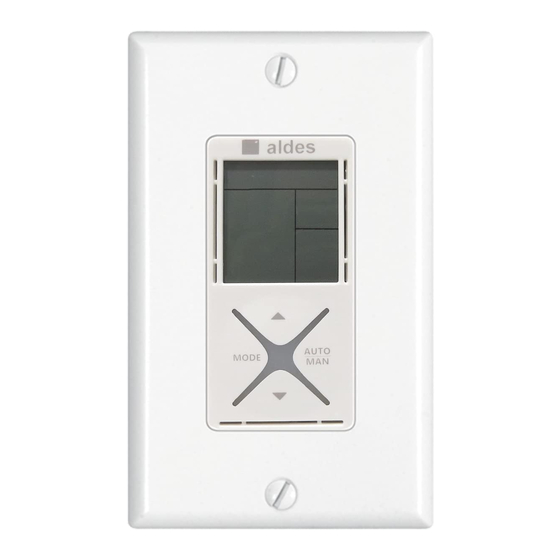

Decora™-style wall mount electronic controller with dehumidistat, compatible with Aldes HRV and
ERV air exchange systems.

Characteristics

Compact and elegant design that fits discretely in every decor
High-accuracy, fast-response humidity sensor
Liquid-crystal display showing the current humidity level, setpoint, and mode of operation
Keypad with 4 buttons to select the mode of operation, the setpoint value, and the fan
speed
Blue LED backlight configurable as a night light
Two energy-friendly modes with automatic exchange and exchange-recirculation cycles
Timer-controlled high-speed exchange modes for high occupancy conditions: birthdays, celebrations, etc.

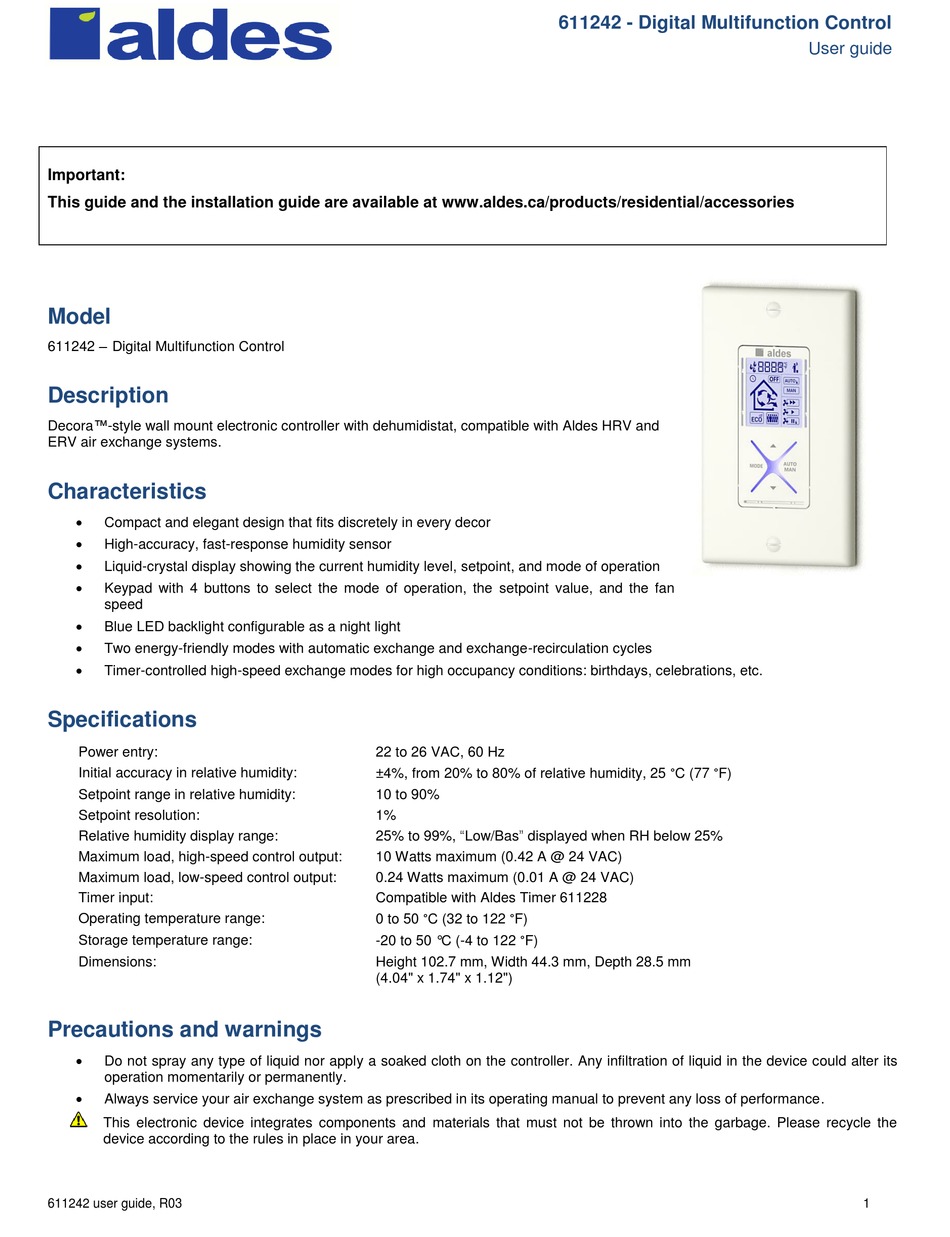

Specifications

Power entry:
Initial accuracy in relative humidity:
Setpoint range in relative humidity:
Setpoint resolution:
Relative humidity display range:
Maximum load, high-speed control output:
Maximum load, low-speed control output:
Timer input:
Operating temperature range:
Storage temperature range:
Dimensions:

Precautions and warnings

Do not spray any type of liquid nor apply a soaked cloth on the controller. Any infiltration of liquid in the device could alter its
operation momentarily or permanently.
Always service your air exchange system as prescribed in its operating manual to prevent any loss of performance.
This electronic device integrates components and materials that must not be thrown into the garbage. Please recycle the
device according to the rules in place in your area.
611242 user guide, R03
22 to 26 VAC, 60 Hz
±4%, from 20% to 80% of relative humidity, 25 °C (77 °F)
10 to 90%
1%
25% to 99%, "Low/Bas" displayed when RH below 25%
10 Watts maximum (0.42 A @ 24 VAC)
0.24 Watts maximum (0.01 A @ 24 VAC)
Compatible with Aldes Timer 611228
0 to 50 °C (32 to 122 °F)
-20 to 50 °C (-4 to 122 °F)
Height 102.7 mm, Width 44.3 mm, Depth 28.5 mm
(4.04" x 1.74" x 1.12")
611242 - Digital Multifunction Control
User guide
1
