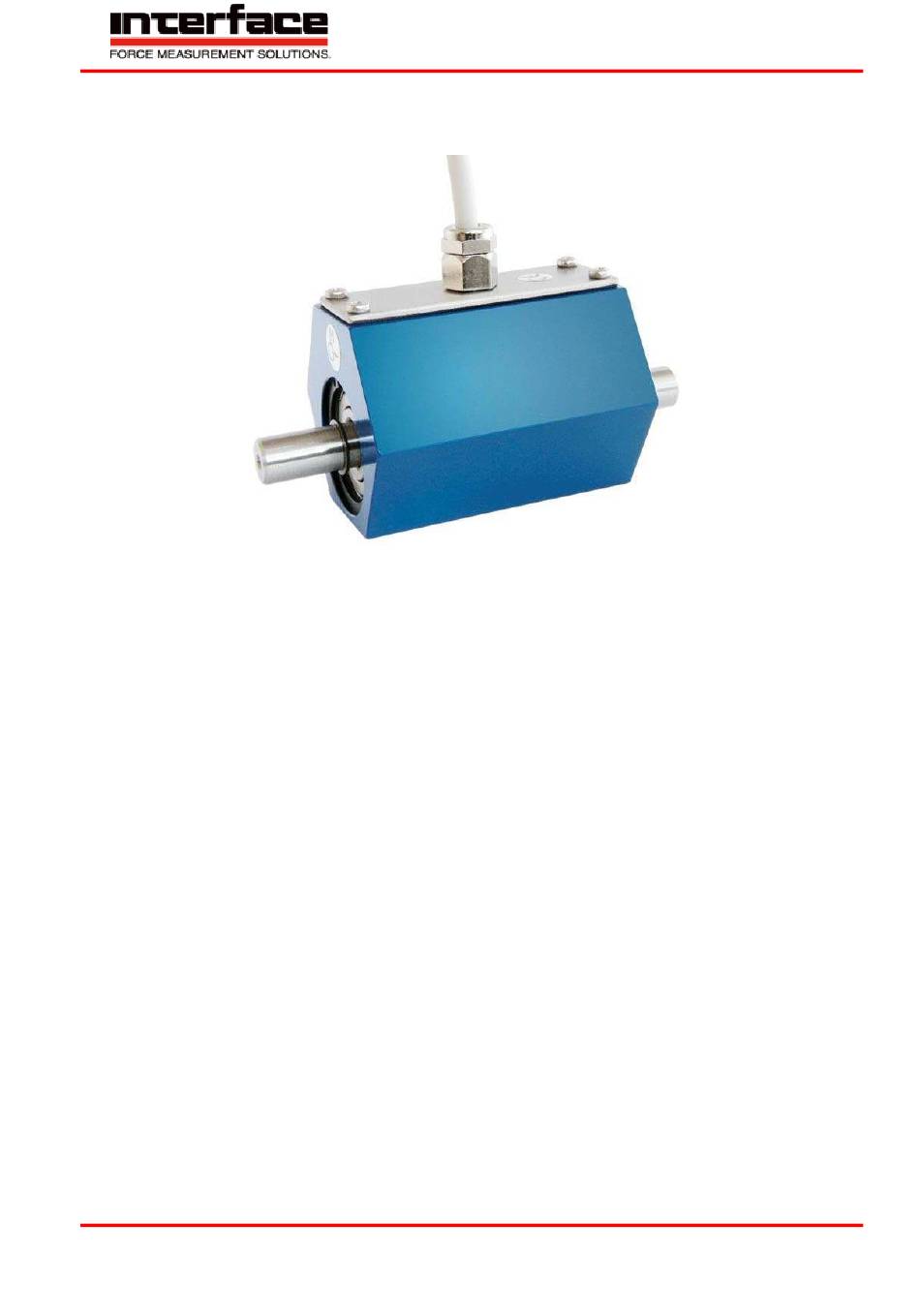

- Page 1 T8 Torque Sensor Operation Manual T8 Torque Sensor Operation Manual Interface Inc. ● 7401 East Butherus Drive, Scottsdale, Arizona 85260 USA ● Phone 480.948.5555 ● Fax 480.948.1924 ● Email: ● 800.947.5598 www.interfaceforce.com contact@interfaceforce.com Page 1 of 11...
-
Page 2: Imprint
Warming-up period of the torque sensor is approx. 5 min. Natural Resonances An operation of the device in natural resonance can lead to permanent damages. Interface Inc. ● 7401 East Butherus Drive, Scottsdale, Arizona 85260 USA ● Phone 480.948.5555 ● Fax 480.948.1924 ● Email: ● 800.947.5598 www.interfaceforce.com... -
Page 3: Table Of Contents
Calibration ............................... 11 Proprietary Calibration ............................11 DKD-Calibration ............................... 11 Re-Calibration ................................. 11 Data Sheet ............................... 11 Interface Inc. ● 7401 East Butherus Drive, Scottsdale, Arizona 85260 USA ● Phone 480.948.5555 ● Fax 480.948.1924 ● Email: ● 800.947.5598 www.interfaceforce.com contact@interfaceforce.com... -
Page 4: Read First
During operation, the safety precautions must be operative. By vibrations, damages can occur at the device. Interface Inc. ● 7401 East Butherus Drive, Scottsdale, Arizona 85260 USA ● Phone 480.948.5555 ● Fax 480.948.1924 ● Email: ●... -
Page 5: Term Definitions
For supply and measuring signal conditioning, electronics are integrated in the stator and the rotor. Interface Inc. ● 7401 East Butherus Drive, Scottsdale, Arizona 85260 USA ● Phone 480.948.5555 ● Fax 480.948.1924 ● Email: ●... -
Page 6: Electrical Setup
The hub must fit corresponding to the connection. During the assembly, the sensor must be supported to protect it from falling down. Interface Inc. ● 7401 East Butherus Drive, Scottsdale, Arizona 85260 USA ● Phone 480.948.5555 ● Fax 480.948.1924 ● Email: ●... -
Page 7: Torque Sensors Below 20 N·m
In this installation case, double-jointed couplings cannot be used for both sides! Risk of Breakage! Interface Inc. ● 7401 East Butherus Drive, Scottsdale, Arizona 85260 USA ● Phone 480.948.5555 ● Fax 480.948.1924 ● Email: ● 800.947.5598 www.interfaceforce.com... -
Page 8: Foot Version Assembly
If troubles occur through the measuring cable, we recommend to run the cable in a grounded steel conduit. Interface Inc. ● 7401 East Butherus Drive, Scottsdale, Arizona 85260 USA ● Phone 480.948.5555 ● Fax 480.948.1924 ● Email: ● 800.947.5598 www.interfaceforce.com... -
Page 9: Measuring
Magnetic disturbances, • EMC (electromagnetic disturbances), Therefore avoid these disturbance variables by decoupling of vibrations, covers, etc. Interface Inc. ● 7401 East Butherus Drive, Scottsdale, Arizona 85260 USA ● Phone 480.948.5555 ● Fax 480.948.1924 ● Email: ● 800.947.5598 www.interfaceforce.com contact@interfaceforce.com... -
Page 10: Maintenance
The sensor should be tidily packed into film so that no packing material can reach into the sensor (ball bearings). Larger sensors should be packed in cases. Interface Inc. ● 7401 East Butherus Drive, Scottsdale, Arizona 85260 USA ● Phone 480.948.5555 ● Fax 480.948.1924 ● Email: ●... -
Page 11: Transportation
After inappropriate handling • Demand of high-quality standards • Special traceability requirements Data Sheet www.Interfaceforce.com Interface Inc. ● 7401 East Butherus Drive, Scottsdale, Arizona 85260 USA ● Phone 480.948.5555 ● Fax 480.948.1924 ● Email: ● 800.947.5598 www.interfaceforce.com contact@interfaceforce.com Page 11 of 11...
