Related Manuals for Parker PGBV-2600
Summary of Contents for Parker PGBV-2600

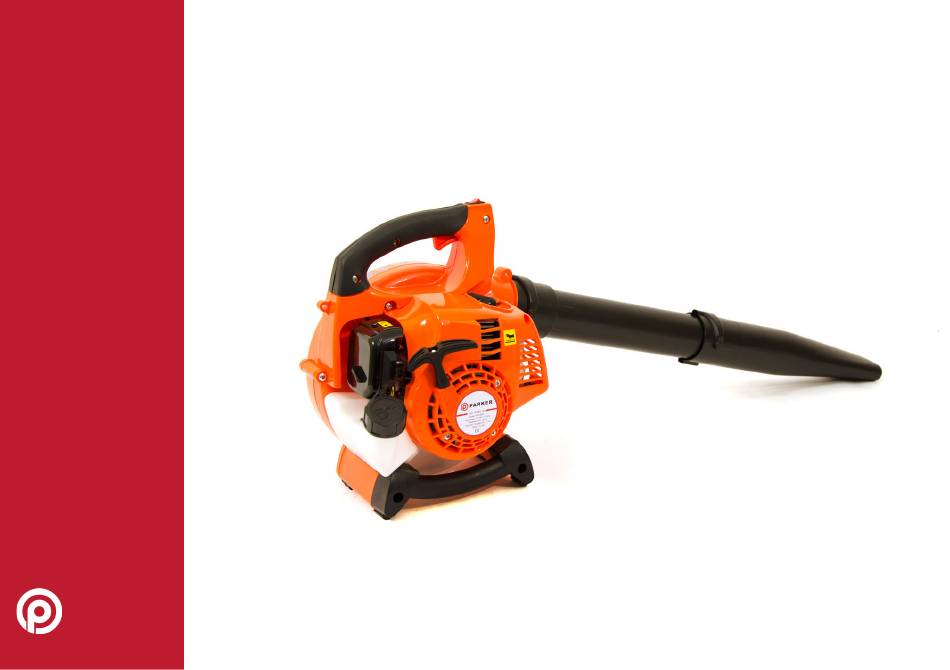

- Page 1 26cc petrol leafblower/vac mulcher PGBV-2600 OWNERS MANUAL PA R K E R...
-
Page 2: Table Of Contents
C O N T E N T S Contents Guarantee General Safety Instructions This manual has been produced by Parker Products Ltd and should be Pipe Identification kept with the product and referenced for operation, maintenance and troubleshooting purposes. Part description... -
Page 3: Guarantee
12 months from the date of purchase. A proof of purchase must be provided with the product. ■ Read this manual carefully before using this machine. In case of any fault please return the product to Parker Products Ltd or an authorised repair agent. ■... -
Page 4: Pipe Identification
P I P E I D E N T I F I C AT I O N PA R T D E S C R I P T I O N Intake pipe Intake pipe Discharge pipe Discharge pipe Blow pipe Blow pipe Dust bag Intake pipe... -
Page 5: Assembly
A S S E M B LY ASSEMBLING THE VACUUM 1. Open the fan cover, connect the intake pipe C and D. Discharge pipe 2. Insert the discharge pipe into the dust bag Use screw M5 x 10 to secure... - Page 6 Stop switch BLOWER ASSEMBLY Throttle lever handle Starter handle Air filter cover THIS PAGE HAS INTENTIONALLY BEEN LEFT BLANK Fuel tank Lower handle (a) Fuel Tank (mixture of fuel and oil) (b) Closed air position (c) Open air position...
- Page 7 F I L L I N G T H E F U E L TA N K A S S E M B LY BLOW PIPE INSTALL WARNING! NOTE: The pipe is a tight fit to ensure that the vacuum is air tight! Blow pipe A Danger of fire and burn injury! ■...
-
Page 8: Starting The Machine
S TA R T I N G T H E M AC H I N E IMPORTANT! For maximum vacuum performance and operating life, allow the engine to warm before use. STEP 1: TURN THE ENGINE STEP 2: PRIME THE CARBURETOR STEP 3: FOR COLD ENGINE STARTS STEP 4: PULL THE STARTER STEP 5: RUN THE ENGINE... -
Page 9: Flooded Engine Procedure
F LO O D E D E N G I N E P RO C E D U R E WARNING! Incorrect spark plug installation can result in serious engine damage! STEP 1: DISCONNECT THE LEAD STEP 2: REMOVE THE SPARK PLUG STEP 3: INSTALL THE SPARK PLUG STEP 4: START THE ENGINE STEP 5: RUN THE ENGINE... -
Page 10: Adjusting The Idle Speed
A D J U S T I N G T H E I D L E S P E E D S TO P P I N G T H E E N G I N E ADJUSTING THE ENGINE IDLE SPEED STOPPING THE ENGINE Idle speed adjusting screw... -
Page 11: Routine Maintenance
RO U T I N E M A I N T E N A N C E DAILY MAINTENANCE EVERY 50 HOURS STORAGE (30 days or longer) EVERY 10 HOURS (More Frequently in dusty conditions) CLEANING (More Frequently in dusty conditions) Thoroughly clean the machine exterior WARNING! INSPECTION... -
Page 12: Troubleshooting
T RO U B L E S H O OT I N G If the engine does not function correctly (lack of power, unstable, idle, etc.) If the engine does not start: S Y M P TO M P RO BA B LY C AU S E C O R R E C T I V E AC T I O N C O M P R E S S I O N T H E S PA R K I S... -
Page 13: Specification
PARKER Garden Leaf Blower Parker Products Ltd. Model PGBV - 2600 Model/Type: Richmond Park Displacement (cm3) Richmond Road PBV-2600 / PGBV-2600 Louth Power (w) LN11 0FU Manufacturing Date/Serial Number: Engine speed (Km/h) 7.000 20157 Technical file complied by: Parker Products Ltd. - Page 14 PA R K E R www.parkerbrand.co.uk REVISION 2...
