Thank you for purchasing this Panasonic product.
■ This manual is intended for products manufactured from Aug. 2018 and beyond.
■ Before operating this product, please read the instructions carefully, and save this manual
for future use.
■ Before using your projector, be sure to read "Read this first!" (x pages 4 to 12).

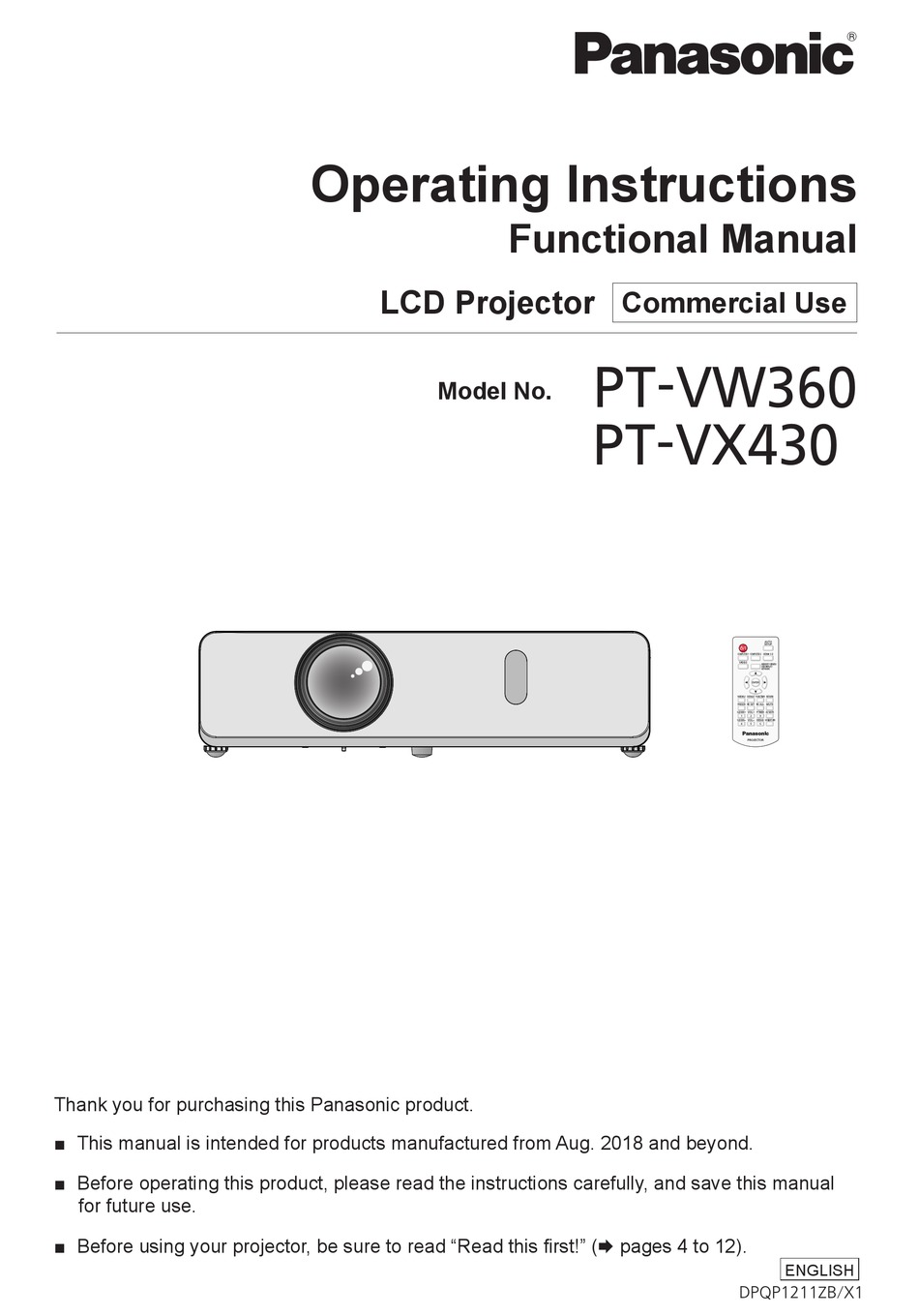

Operating Instructions
LCD Projector
Model No.
Functional Manual
Commercial Use
PT-VW360
PT-VX430
ENGLISH
DPQP1211ZB/X1
Advertisement
Chapters
Table of Contents
Related Manuals for Panasonic PT-VW360
Summary of Contents for Panasonic PT-VW360
- Page 1 PT-VW360 Model No. PT-VX430 Thank you for purchasing this Panasonic product. ■ This manual is intended for products manufactured from Aug. 2018 and beyond. ■ Before operating this product, please read the instructions carefully, and save this manual for future use.
-
Page 2: Table Of Contents
Contents Contents Read this first! ..........4 Using the auto setup function ....... 47 Using the screen adjustment function ....47 Using the digital zoom function ......48 Chapter 1 Preparation Using the presentation timer function ....48 Using the FUNCTION button ........ 49 Precautions for use .......... - Page 3 Contents Chapter 6 Maintenance [OTHER FUNCTIONS] ......... 73 [PROJECTOR SETUP] menu ........74 Lamp and Warning Indicators ......115 [STATUS] .............. 74 When an indicator lights up .........115 [COMPUTER1 INPUT SETTING]......74 Maintenance/replacement........116 [COMPUTER2 SELECT] ........74 Before performing maintenance/replacement ..116 [PROJECTOR ID] ..........
-
Page 4: Read This First
Read this first! Read this first! WARNING: THIS APPARATUS MUST BE EARTHED. WARNING: To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or moisture. This device is not intended for use in the direct field of view at visual display workplaces. To avoid incommoding reflexions at visual display workplaces this device must not be placed in the direct field of view. - Page 5 Do not remove FCC NOTICE (USA) Declaration of Conformity Model Number: PT-VW360, PT-VX430 Trade Name: Panasonic Responsible Party: Panasonic Corporation of North America Address: Two Riverfront Plaza, Newark, NJ 07102-5490 General Contact: http://www.panasonic.com/support Projector Contact: https://panasonic.net/cns/projector/ This device complies with Part 15 of the FCC Rules.
- Page 6 • This product has a High Intensity Discharge (HID) lamp that contains mercury. Disposal may be regulated in your community due to environmental considerations. For disposal or recycling information, please visit Panasonic website: http://www.panasonic.com/environmental or call 1-888-769-0149. 6 - ENGLISH...
- Page 7 Read this first! IMPORTANT: THE MOULDED PLUG FOR YOUR SAFETY, PLEASE READ THE FOLLOWING TEXT CAREFULLY. This appliance is supplied with a moulded three pin mains plug for your safety and convenience. A 13 amp fuse is fitted in this plug. Should the fuse need to be replaced, please ensure that the replacement fuse has a rating of 13 amps and that it is approved by ASTA or BSI to BS1362.
- Page 8 Read this first! WARNING: „ POWER The wall outlet or the circuit breaker shall be installed near the equipment and shall be easily acces- sible when problems occur. If the following problems occur, cut off the power supply immediately. Continued use of the projector in these conditions will result in fire or electric shock. z If foreign objects or water get inside the projector, cut off the power supply.
- Page 9 If liquid enters inside of the projector, consult your dealer. z Particular attention must be paid to children. Use the ceiling mount bracket specified by Panasonic. Using the ceiling mount bracket other than the specified one will result in falling accidents.
- Page 10 Read this first! CAUTION: „ POWER When disconnecting the power cord, be sure to hold the power plug and power connector. If the power cord itself is pulled, the lead will become damaged, and fire, short-circuits or serious electric shocks will result. When not using the projector for an extended period of time, disconnect the power plug from the wall outlet.
- Page 11 Read this first! CAUTION: When not using the projector for an extended period of time, remove the batteries from the remote control. Failure to observe this will cause the batteries to leak, overheat, catch fire or explode, which may result in fire or contamination of surrounding area.
- Page 12 Read this first! To remove the battery 1. Press the guide and lift the cover. 2. Remove the batteries. (ii) Brazil Only Brasil Apenas „ Manuseio de baterias usadas BRASIL Após o uso, as pilhas e /ou baterias deverão ser entregues ao estabelecimento comercial ou rede de assistência técnica autorizada.
- Page 13 PURPOSE. Please refer to the detailed terms and conditions thereof shown in the attached CD-ROM. At least three (3) years from delivery of this product, Panasonic will give to any third party who contacts us at the contact information provided below, for a charge no more than our cost of physically performing source code distribution, a complete machine-readable copy of the corresponding source code covered under GPL V2.0,...
- Page 14 Features of the Projector Quick Steps For details, see the corresponding pages. Comfortable viewing in a bright environment 1. Set up your projector. (x page 30) ▶ The high contrast ratio 20 000 : 1 is achieved in a compact body. ▶...
-
Page 15: Chapter 1 Preparation
Preparation Chapter 1 This chapter describes things you need to know or check before using the projector. ENGLISH - 15... -
Page 16: Precautions For Use
Chapter 1 Preparation - Precautions for use Precautions for use Cautions when transporting f When transporting the projector, hold it securely by its bottom and avoid excessive vibration and impacts. They may damage the internal parts and result in malfunctions. f Do not transport the projector with the adjustable feet extended. - Page 17 Chapter 1 Preparation - Precautions for use The angle that can be corrected through [POSITION] menu → [SCREEN ADJUSTMENT] → [KEYSTONE] is within ±35°. If the vertical tilt of the projector with respect to the screen surface exceeds 35°, vertical trapezoidal distortion may not be fully corrected.
-
Page 18: Security
Panasonic takes no responsibility for any damage to the product caused by an inappropriate choice of location for installing the projector, even if the warranty period of the product has not expired. -
Page 19: Application Software Supported By The Projector
Application software supported by the projector The projector supports following application software. For details or downloading each application software, visit the Panasonic website (https://panasonic.net/cns/projector/). f Logo Transfer Software This application software transfers the original image, such as company logo, which is projected at the start, to the projector. -
Page 20: Storage
Chapter 1 Preparation - Precautions for use Storage When storing the projector, keep it in a dry room. Disposal To dispose of the product, ask your local authorities or dealer for correct methods of disposal. The luminous lamp contains mercury. When disposing of used lamp units, contact your local authorities or dealer for correct methods of disposal. -
Page 21: Accessories
Chapter 1 Preparation - Precautions for use Accessories Make sure the following accessories are provided with your projector. Numbers enclosed < > show the number of accessories. Wireless remote control unit <1> CD-ROM <1> (N2QAYA000154) (Operating Instructions are included.) AAA/R03 or AAA/LR03 battery <2> Power cord (TXFSX02UXRZ) (for remote control unit) -
Page 22: Optional Accessories
Chapter 1 Preparation - Precautions for use Optional accessories Options Model No. ET-PKL100H (for high ceilings) Ceiling Mount Bracket ET-PKL100S (for low ceilings) ET-PKV400B (Projector Mount Bracket) Replacement Lamp Unit ET-LAV300 Replacement Filter Unit ET-RFV300 D-SUB - S Video conversion cable ET-ADSV Wireless Module ET-WML100... -
Page 23: About Your Projector
Chapter 1 Preparation - About your projector About your projector Remote control 10 <DAYLIGHT VIEW> button Power <v/b> button (v Standby / b Power on) Used to correct the image when the projector is used in a bright Sets the projector to the state where the projector is switched surroundings. -
Page 24: Projector Body
Chapter 1 Preparation - About your projector Note f The remote control can be used within a distance of about 7 m (22'11-5/8") if pointed directly at the remote control signal receiver. The remote control can control at angles of up to ± 30 ° vertically and ± 30 ° horizontally, but the effective control range may be reduced. f If there are any obstacles between the remote control and the remote control signal receiver, the remote control may not operate correctly. - Page 25 Chapter 1 Preparation - About your projector rControl panel and indicators AUTO SETUP Power <v/b> button (v standby / b power on) <ENTER> button Sets the projector to the state where the projector is switched Determines and executes an item in the menu screen. off (standby mode).
- Page 26 Chapter 1 Preparation - About your projector rConnecting terminals <LAN> terminal <HDMI 1 IN> terminal / <HDMI 2 IN> terminal This is the LAN terminal to connect to the network. These are the terminals to input HDMI signal. <USB A (VIEWER/WIRELESS)> terminal <SERIAL IN>...
-
Page 27: Preparing The Remote Control
Chapter 1 Preparation - Preparing the remote control Preparing the remote control Inserting and removing batteries (ii) Fig.2 Fig.1 Open the cover. (Fig. 1) Insert batteries and close the cover. (Insert the "m" side first.) (Fig. 2) f When removing the batteries, perform the steps in reverse order. When using the system with multiple projectors When you use the system with multiple projectors, you can operate all the projectors simultaneously or each projector individually by using single remote control, if a unique ID number is assigned to each projector. -
Page 28: Attaching The Lens Cap
Chapter 1 Preparation - Attaching the lens cap Attaching the lens cap When moving this projector or while not using it over an extended period of time, it is recommended to attach the lens cap to avoid contaminating the lens. To prevent loss of the lens cap, please attach the lens cap with the string of accessories according to the following procedures. -
Page 29: Chapter 2 Getting Started
Getting Started Chapter 2 This chapter describes things you need to do before using the projector such as the setup and connections. ENGLISH - 29... -
Page 30: Setting Up
Chapter 2 Getting Started - Setting up Setting up Installation mode There are four ways to set up the projector. Set the [PROJECTOR SETUP] menu → [PROJECTION METHOD] (x page 75) depending on the installation location. Setting on a desk/floor and projecting forward Setting on a desk/floor and projecting from rear (Using the translucent screen) Menu item... -
Page 31: Parts For Ceiling Mount (Optional)
Chapter 2 Getting Started - Setting up In the case of [AUTO], it will be detected as [FRONT/DESK] even when the projector tilts over ±40° with the top side upward or over ±30° with the top side downward. To use the projector that tilts over ±30° with the top side downward, set the [PROJECTOR SETUP] menu →... - Page 32 Chapter 2 Getting Started - Setting up Projection distance A ±5 % error in listed projection distances may occur. When [SCREEN ADJUSTMENT] is used, distance is corrected to become smaller than the specified image size. For PT-VW360 (Unit: m) Projection For 16:10 aspect ratio...
- Page 33 The calculated distance may contain a certain error. If you want to calculate the projection distance with projected image size SD (unit: inch) by substituting, please assign 0.0254 times to the SD value. For PT-VW360 For 16:10 aspect ratio For 16:9 aspect ratio...
-
Page 34: Connecting
Chapter 2 Getting Started - Connecting Connecting Before connecting f Before connecting, carefully read the operating instructions for the external device to be connected. f Turn off the power switch of the devices before connecting cables. f Take note of the following points before connecting the cables. Failure to do so may result in malfunctions. - When connecting a cable to a device connected to the projector or the projector itself, touch any nearby metallic objects to eliminate static electricity from your body before performing work. -
Page 35: Connecting Example : Av Equipment
Chapter 2 Getting Started - Connecting <HDMI 1 IN> terminal / <HDMI 2 IN> terminal pin assignments and signal names Outside view Pin No. Signal names Pin No. Signal names T.M.D.S data 2+ T.M.D.S clock shield T.M.D.S clock - T.M.D.S data 2 shield Even-numbered pins T.M.D.S data 2 - T.M.D.S data 1+... -
Page 36: Connecting Example : Computers
Chapter 2 Getting Started - Connecting Connecting example : Computers Control computer Computer Computer Computer USB memory Optional wireless module (Model No.: ET-WML100) Control computer Audio equipment Attention f When connecting the projector to a computer or an external device, use the power cord supplied with each device and commercially available shielded cables. -
Page 37: Chapter 3 Basic Operations
Basic Operations Chapter 3 This chapter describes basic operations to start with. ENGLISH - 37... -
Page 38: Powering On/Off
Chapter 3 Basic Operations - Powering on/off Powering on/off Connecting the power cord Make sure that the supplied power cord is securely fixed to the <AC IN> terminal of the projector body to prevent it from being removed easily. For details of power cord handling, refer to “Read this first!” (x page 4). Attaching the power cord Check the shapes of the <AC IN>... -
Page 39: Powering On The Projector
Chapter 3 Basic Operations - Powering on/off Indicator status Status The power plug is not connected to the outlet. The power is switched off (in standby mode). The [PROJECTOR SETUP] menu → [ECO MANAGEMENT] → [STANDBY MODE] is set to [ECO]. The power is switched off (in standby mode). -
Page 40: When The Initial Setting Screen Is Displayed
Press asqw to select the display language. Press the <ENTER> button to proceed to the initial setting. Initial setting (installation setting) If necessary, change the setting of each item. PT-VX430 PT-VW360 INITIAL SETTING INITIAL SETTING PROJECTION METHOD PROJECTION METHOD AUTO... -
Page 41: Making Adjustments And Selections
Chapter 3 Basic Operations - Powering on/off Item Description Page Set [PROJECTION METHOD] depending on the installation mode. [PROJECTION METHOD] After completing the initial setting, you can change the setting from the [PRO- 30, 75 JECTOR SETUP] menu → [PROJECTION METHOD]. Set the screen format (aspect ratio) and display position of the image. -
Page 42: Powering Off The Projector
Chapter 3 Basic Operations - Powering on/off Powering off the projector 1) 2) 1) 2) AUTO SETUP Press the power <v/b> button. f The [POWER OFF] confirmation screen is displayed. Press qw to select [OK], and press the <ENTER> button. (Or press the power <v/b>... -
Page 43: Projecting
Chapter 3 Basic Operations - Projecting Projecting Check the connections of the peripheral devices (x page 34) and connection of the power cord (x page 38) and switch on the power (x page 39) to start the projector. Select the image and adjust the state of the image. Selecting the input signal AUTO SETUP Remote control... -
Page 44: How To Adjust The State Of The Image
Chapter 3 Basic Operations - Projecting Press the <INPUT SELECT> button again. f The input will switch each time you press the <INPUT SELECT> button. f When the detailed input guide is displayed, you can select the input with the asqw buttons on the remote control or on the control panel. -
Page 45: Adjusting Adjustable Feet
Chapter 3 Basic Operations - Projecting Adjusting adjustable feet By pressing the adjustable feet lock with your finger, the adjustable feet lock is released and becomes free. It will be locked when you release the finger. Lift the front side of the projector while pressing the adjustable feet lock with your finger, and release your finger until the projection position is aligned. -
Page 46: Basic Operations By Using The Remote Control
Chapter 3 Basic Operations - Basic operations by using the remote control Basic operations by using the remote control Using the AV mute function If the projector is not used for a certain period of time during the meeting intermission, for example, it is possible to turn off the audio and image temporarily. -
Page 47: Using The Auto Setup Function
Chapter 3 Basic Operations - Basic operations by using the remote control button Press the <FREEZE> button on the remote control. f The video is paused and the audio is muted. [FREEZE] is displayed on the lower left of the screen during FREEZE. -
Page 48: Using The Digital Zoom Function
Chapter 3 Basic Operations - Basic operations by using the remote control Using the digital zoom function (Only for still image-based signals input) You can enlarge the center area. You can also change the location of the area to be enlarged. buttons Press the <D.ZOOM +>... -
Page 49: Using The Function Button
Chapter 3 Basic Operations - Basic operations by using the remote control Press the <P-TIMER> button again. f The count is resumed. Note f Pressing the <P-TIMER> button for at least 3 seconds to release the P-TIMER function. f For details, please refer to the [DISPLAY OPTION] menu → [P-TIMER] (x page 72). Using the FUNCTION button Some frequently used menu items can be assigned to the <FUNCTION>... - Page 50 Chapter 3 Basic Operations - Basic operations by using the remote control Attention f Since the ID number of the remote control can be set without the projector, do not press the <ID SET> button on the remote control carelessly. If the <ID SET> button is pressed and no number (<1> - <6>) buttons are pressed within 5 seconds, the ID number returns to its original value before the <ID SET>...
-
Page 51: Chapter 4 Settings
Settings Chapter 4 This chapter describes the settings and adjustments you can make using the on-screen menu. ENGLISH - 51... -
Page 52: Menu Navigation
The on-screen menu (Menu) is used to perform various settings and adjustments of the projector. Navigating through the menu Operating procedure button Press the <MENU> button on the remote control or the control panel. f The menu screen appears. PT-VW360 PICTURE MODE DYNAMIC PICTURE CONTRAST BRIGHTNESS... -
Page 53: Main Menu
Chapter 4 Settings - Menu navigation f For some items, press qw to display an individual adjustment screen with a bar scale as shown below. Note f Pressing the <MENU> button or <RETURN> button while the menu screen is displayed returns to the previous menu. f Some items may not be adjusted or used for certain signal formats to be input to the projector. -
Page 54: Sub-Menu
Chapter 4 Settings - Menu navigation Sub-menu You can set and adjust the items in each submenu. [PICTURE] Sub-menu item Factory default Page [PICTURE MODE] [STANDARD] [CONTRAST] [BRIGHTNESS] [COLOR]* [TINT]* [SHARPNESS] [+8] [COLOR TEMPERATURE] [DEFAULT] [IRIS] [ON] [ADVANCED MENU] [DAYLIGHT VIEW] [ON] [DIGITAL CINEMA REALITY]* [ON]... - Page 55 Chapter 4 Settings - Menu navigation [PROJECTOR SETUP] Sub-menu item Factory default Page [STATUS] [COMPUTER1 INPUT [RGB/YP SETTING] [COMPUTER2 SELECT] [COMPUTER2 IN] [PROJECTOR ID] [ALL] [INITIAL START UP] [LAST MEMORY] [PROJECTION METHOD] [AUTO] [HIGH ALTITUDE MODE] [OFF] [LAMP POWER] [NORMAL] [ECO MANAGEMENT] [EMULATE] [DEFAULT]...
-
Page 56: [Picture] Menu
Chapter 4 Settings - [PICTURE] menu [PICTURE] menu On the menu screen, select [PICTURE] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (x page 52) for the operation of the menu screen. [PICTURE MODE] You can switch to the desired picture mode suitable for the image source and the environment in which the projector is used. -
Page 57: [Tint]
Chapter 4 Settings - [PICTURE] menu Press qw or the <ENTER> button. f The [COLOR] individual adjustment screen is displayed. Press qw to adjust the level. Operation Adjustment Adjustment range Press the w button. Deepens colors. -32 ~ +32 Weakens colors. Press the q button. -
Page 58: [Advanced Menu]
Chapter 4 Settings - [PICTURE] menu Press qw or the <ENTER> button. f The [IRIS] individual adjustment screen is displayed. Press qw to switch the item. f The items will switch each time you press the button. [OFF] No correction. [ON] Corrects the aperture. -
Page 59: [Digital Cinema Reality]
Chapter 4 Settings - [PICTURE] menu [DIGITAL CINEMA REALITY] You can increase the vertical resolution and enhance the image quality by performing cinema processing when the PAL (or SECAM) 576i signal, the NTSC 480i signal, and 1080/50i, 1080/60i are input. Press as to select [DIGITAL CINEMA REALITY]. - Page 60 Chapter 4 Settings - [PICTURE] menu Press qw to switch the item. f The items will switch each time you press the button. f Normally it is set to [AUTO]. If it cannot project properly with [AUTO], set it to [RGB], [YC ] or [YP according to the input signal.
-
Page 61: [Position] Menu
Chapter 4 Settings - [POSITION] menu [POSITION] menu On the menu screen, select [POSITION] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (x page 52) for the operation of the menu screen. [REALTIME KEYSTONE] The projector can correct the vertical trapezoidal distortion automatically when the projector is installed tilted. - Page 62 Chapter 4 Settings - [POSITION] menu Press asqw to adjust the item. Items Operation Adjustment Adjustment range Left side will be Press the q button. smaller. -70 ~ +70 Right side will be Press the w button. smaller. Upper will be Press the a button.
-
Page 63: [Shift]
Chapter 4 Settings - [POSITION] menu Press as to select [CURVED CORRECTION]. Press the <ENTER> button. f The [CURVED CORRECTION] screen is displayed. Press as to select one item to adjust. [KEYSTONE] Adjusts when the trapezoid of the projected image is distorted. [ARC] Adjusts when the radian of the projected image is distorted. -
Page 64: [Dot Clock]
Chapter 4 Settings - [POSITION] menu Orientation Operation Adjustment Press the a button. The image position moves up. Vertical (up and down) adjustment The image position moves down. Press the s button. Press the w button. The image position moves to the right. Horizontal (right and left) adjustment The image position moves to the left. -
Page 65: [Over Scan]
Chapter 4 Settings - [POSITION] menu Press qw to adjust the value. f The adjustment values will change between [-16] to [+16]. Adjust so that the amount of interference is at a minimum. Note f Certain signals may not be adjustable. f Optimal value may not be achieved if the output from the input computer is unstable. -
Page 66: [Frame Lock]
Chapter 4 Settings - [POSITION] menu [FRAME LOCK] (Only for still image RGB signals input) This setting is available for specific computer signals. Set when the movie is distorted. Press as to select [FRAME LOCK]. Press qw or the <ENTER> button. f The [FRAME LOCK] individual adjustment screen is displayed. -
Page 67: [Language] Menu
Refer to “Navigating through the menu” (x page 52) for the operation of the menu screen. Changing the display language You can select the language of the on-screen display. Press as to select the display language, and press the <ENTER> button. PT-VW360 ENGLISH PICTURE DEUTSCH FRANÇAIS... -
Page 68: [Display Option] Menu
Chapter 4 Settings - [DISPLAY OPTION] menu [DISPLAY OPTION] menu On the menu screen, select [DISPLAY OPTION] from the main menu, and select an item from the sub- menu. Refer to “Navigating through the menu” (x page 52) for the operation of the menu screen. [ON-SCREEN DISPLAY] Set the on-screen display. -
Page 69: [Hdmi Signal Level]
Chapter 4 Settings - [DISPLAY OPTION] menu [HDMI SIGNAL LEVEL] Switch the setting when the external equipment is connected to the <HDMI 1 IN> / <HDMI 2 IN> terminal of the projector and the image is not projected correctly. Press as to select [HDMI SIGNAL LEVEL]. Press qw to switch the item. -
Page 70: [Screen Setting]
Disables the startup logo display. Note f The startup logo will disappear in approximately 30 seconds. f To create/register the [USER LOGO] image, use “Logo Transfer Software”. The software can be downloaded from the Panasonic website (https://panasonic.net/cns/projector/). 70 - ENGLISH... -
Page 71: [Auto Setup Setting]
Displays the image registered by the user. Note f To create/register the [USER LOGO] image, use “Logo Transfer Software”. The software can be downloaded from the Panasonic website (https://panasonic.net/cns/projector/). f If you do not register the image of the [USER LOGO], the projected image will be displayed in black even if the [BACK COLOR] is set to [USER LOGO]. -
Page 72: [P-Timer]
Chapter 4 Settings - [DISPLAY OPTION] menu Press as to select [SXGA MODE]. Press qw to switch the item. f The items will switch each time you press the button. [AUTO] Displays by judging the signal automatically. Set to this mode normally. [1280x1024] Switches the item to [1280x1024] or [1400x1050] manually if the whole projected image is not displayed when SXGA signal is input. -
Page 73: [Other Functions]
Chapter 4 Settings - [DISPLAY OPTION] menu f The start time will be "000:00" when [MODE] is set to [COUNT UP]. f When [MODE] is set to [COUNT DOWN], the start time becomes the value set at [TIMER]. f The time gauge turns clockwise when [COUNT UP] is set, and turns counterclockwise when [COUNT DOWN] is set. Ending the presentation timer Press as to select [P-TIMER]. -
Page 74: [Projector Setup] Menu
Note f If you attach a lamp unit used in a projector of a model different from the projector (PT-VW360, PT-VX430) to the projector, or when the lamp unit used in the projector to a projector of a different model, the [RUNTIME] displayed in [STATUS] may differ from the actual time. -
Page 75: [Projector Id]
Chapter 4 Settings - [PROJECTOR SETUP] menu [PROJECTOR ID] The projector has an ID number setting function that can be used when multiple projectors are used side by side to enable simultaneous control or individual control via a single remote control. Press as to select [PROJECTOR ID]. -
Page 76: [Lamp Power]
Chapter 4 Settings - [PROJECTOR SETUP] menu Press as to select [HIGH ALTITUDE MODE]. Press qw to switch the item. f The items will switch each time you press the button. [OFF] Select when using the projector in the elevation of below 1 400 m (4 593'). [HIGH1] Select when using the projector in the elevation of above 1 400 m (4 593') and below 2 000 m (6 562′). -
Page 77: [Off]
Chapter 4 Settings - [PROJECTOR SETUP] menu f The items will switch each time you press the button. [ON] Enables above setting. [OFF] Disables above setting. Note f Luminous lamp power cannot be reduced automatically in the following cases: - When the luminous lamp lighting is just completed or the setting of [LAMP POWER] is just completed, etc.. f When [AUTO POWER SAVE] is set to [OFF], settings of [AMBIENT LIGHT DETECTION], [SIGNAL DETECTION] and [AV MUTE DETECTION] are unavailable. -
Page 78: [Emulate]
[EMULATE] When controlling the projector on a computer via the <SERIAL IN> terminal, set use of control commands on a previously purchased Panasonic projector. This allows the control software for an existing Panasonic projector to be inherited and used. Press as to select [EMULATE]. -
Page 79: [Off]
Chapter 4 Settings - [PROJECTOR SETUP] menu Adjusting the volume Press as to select [AUDIO SETTING]. Press the <ENTER> button. f The [AUDIO SETTING] screen is displayed. Press as to select [VOLUME]. Press qw to adjust the level. Operation Adjustment Range Increases the volume. -
Page 80: [Test Pattern]
Chapter 4 Settings - [PROJECTOR SETUP] menu Press as to select [AUDIO SETTING]. Press the <ENTER> button. f The [AUDIO SETTING] screen is displayed. Press as to select one item of [AUDIO IN SELECT]. [COMPUTER1] Set the audio output when COMPUTER1 input is selected. [COMPUTER2] Set the audio output when COMPUTER2 input is selected. -
Page 81: [Initialize All]
Chapter 4 Settings - [PROJECTOR SETUP] menu Press as to select [FILTER COUNTER]. Press the <ENTER> button. f The [FILTER COUNTER] screen is displayed. [FILTER COUNTER] Displays the usage time of the filter. [TIMER] Sets the replacement cycle of the air filter. [FILTER COUNTER Resets the air filter usage time. -
Page 82: [Security] Menu
Chapter 4 Settings - [SECURITY] menu [SECURITY] menu On the menu screen, select [SECURITY] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (x page 52) for the operation of the menu screen. f When the projector is used for the first time Initial password: Press awsqawsq in order, and press the <ENTER>... -
Page 83: [Text Change]
Chapter 4 Settings - [SECURITY] menu Press qw to switch the item. f The items will switch each time you press the button. [OFF] Disables the text display. [ON] Enables the text display. [TEXT CHANGE] Register or change the displayed text when [TEXT DISPLAY] is set to [ON]. Press as to select [TEXT CHANGE]. - Page 84 Chapter 4 Settings - [SECURITY] menu Press the <ENTER> button. f The [CONTROL DEVICE SETUP] screen is displayed. Press as to select one item between [CONTROL PANEL] and [REMOTE CONTROLLER]. [CONTROL PANEL] You can set the limitation on the control from the control panel. [REMOTE CONTROLLER] You can set the limitation on the control from the remote control.
-
Page 85: [Network/Usb] Menu
Chapter 4 Settings - [NETWORK/USB] menu [NETWORK/USB] menu On the menu screen, select [NETWORK/USB] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (x page 52) for the operation of the menu screen. Note f The on-screen menu (menu screen) of the projector has not the network setting about the wireless LAN. -
Page 86: [Network Control]
Chapter 4 Settings - [NETWORK/USB] menu Select [OK] with the as buttons and press the <ENTER> button. f To cancel the change of the name, select [CANCEL] and press the <ENTER> button. Note f [Name □□□□] (□□□□ is 4-digit number) is set before the projector leaves the factory. [NETWORK CONTROL] Set when you want to control the projector from a computer connected to the network. - Page 87 Chapter 4 Settings - [NETWORK/USB] menu [SLIDE RIGHT] The slides switch from left to right. [SLIDE DOWN] The slides switch from top to bottom. Press as to select [APPLY]. Press the <ENTER> button. f The setting will be effective. [SORT ORDER] Sets the order of images to be played in the slideshow.
-
Page 88: [Status]
Chapter 4 Settings - [NETWORK/USB] menu [REPEAT] Sets whether to loop the slideshow. Press as to select [REPEAT]. Press qw to switch the item. f The items will switch each time you press the button. [OFF] After playing the last file, exit the slideshow and return to the thumbnail display. [ON] After playing the last file, return to the first file and repeat playback. -
Page 89: Chapter 5 Operation Of Function
Operation of Function Chapter 5 This chapter describes the operation methods of some functions. ENGLISH - 89... -
Page 90: Memory Viewer Function
Chapter 5 Operation of Function - Memory Viewer function Memory Viewer function The Memory Viewer function makes it possible to display the still images stored in the USB memory as projected images. Images that can be played back with the Memory Viewer function The Memory Viewer function of this projector supports the following files. -
Page 91: Displaying The Memory Viewer Screen
, it will neither be enlarged nor reduced, so degradation of image quality can be reduced. *1 The maximum number of display dot for each product is as follows. PT-VW360: 1 280 x 800 PT-VX430: 1 024 x 768 Executing the slide All the still images in the same folder will be played continuously according to the setting of [NETWORK/USB] menu →... -
Page 92: Usb Display Function
Chapter 5 Operation of Function - USB display function USB display function The USB display function makes it possible to project the image and audio from the computer through a USB converting cable. When using the USB display function on Mac, the audio output is disabled. When using on a Windows computer r Operating environment Windows 7 32/64 bit, Windows 8.1 32/64 bit, Windows 10 32/64 bit... -
Page 93: When Using Mac
Chapter 5 Operation of Function - USB display function When using Mac r Operating environment OS X 10.11 macOS 10.12, 10.13 Intel Core 2 Duo 2.0 GHz or faster Amount of memory 512 MB or more 20 MB or more Hard-disk free space Resolution 640 x 480 or more, 1 600 x 1 200 or less Display... -
Page 94: Network Connection
For details, visit the Panasonic website (https://panasonic.net/cns/projector/). f Image transfer application software Using the Panasonic image transfer application software, the image sent from a device can be displayed as a projected image. For details on how to use the still image transfer application software “Presenter Light” compatible with Windows computers, please refer to the Operating Instructions of “Presenter Light Software”. -
Page 95: Connecting With Wireless Lan
Chapter 5 Operation of Function - Network connection Projector settings Use the LAN cable to connect the projector with computer. Turn on the projector. Select the [NETWORK/USB] menu → [WIRED LAN] from the main menu and press the <ENTER> button. Set the detailed setup of [WIRED LAN]. -
Page 96: Computer Settings
LOGIN PASSWORD : 5678 PROJECTOR NAME : Name1234 f IP ADDRESS(WIRED) SSID : Panasonic Projector IP ADDRESS(WIRELESS) : 172.28.120.1 IP ADDRESS(WIRED) : 192.168.1.100 Attention f Please do not move or transport the projector while the wireless module is attached. Doing so may cause the wireless module to be damaged. -
Page 97: About Presenter Light
The factory default settings are User name: dispuser (user rights)/dispadmin (administer rights); Password: @Panasonic. Click [OK]. f The [Projector Control Window] page is displayed. PT-VW360 000000000 Click [Download]. f The download screen of “Presenter Light” is displayed. ENGLISH - 97... - Page 98 This software is used as the executable file format. It cannot be installed in the computer. f Execute this file when using the software. Please save this software or make a shortcut for convenient use. Note f For details about how to use the “Presenter Light Software”, please visit our website (https://panasonic.net/cns/projector/). 98 - ENGLISH...
-
Page 99: Web Control Function
Enter the IP address set on the projector into the URL entry field of the web browser. Enter the user name and the password. f The factory default settings are User name: dispuser (user rights)/dispadmin (administer rights); Password: @Panasonic. Click [OK]. f The [Projector Control Window] page is displayed. - Page 100 About computer screen illustrations The subsequent web control screens show examples for PT-VW360. Screen content may differ from that for the projector model you are using. In addition, the screen size and the display may differ from this manual depending on the OS, web browser or the type of computer you are using.
- Page 101 Chapter 5 Operation of Function - Web control function Descriptions of items PT-VW360 000000000 Page tab [Change password] Pages are switched by clicking this item. The [Change password] page is displayed by clicking this item. [Status] [Crestron Connected(TM)] The status of the projector is displayed by clicking this item.
- Page 102 When [Error (Detail)] or [Warning (Detail)] is displayed in the self-diagnosis display of the [Projector status] screen, click it to display the error/warning details. f The projector may go into the standby status to protect the projector depending on the contents of the error. PT-VW360 000000000 Self-diagnosis result display Displays the item check results.
- Page 103 Chapter 5 Operation of Function - Web control function 1 [WIRELESS LAN] 2 [WIRED LAN] Displays the configuration details of wireless LAN. Displays the configuration details of wired LAN. [Basic control] page Click [Projector control] → [Basic control]. MEMORY VIEWER 1 [INPUT] 4 [AV MUTE] Switches the image input to be projected.
-
Page 104: Ip Address]
Chapter 5 Operation of Function - Web control function [Network config] page Click [Detailed set up] → [Network config]. Click [Network config]. f The [CAUTION!] screen is displayed. Select the item which you want to change the setting, then click [Next]. f The current setting is displayed. - Page 105 Chapter 5 Operation of Function - Web control function Wireless LAN (Only when the wireless module is attached) 1 [WIRELESS LAN] 4 [ENCRYPTION] Selects [Enable] when you want to enable the wireless LAN Selects [WPA2-PSK(AES)] when performing encrypted function. communications. 2 [SSID] 5 [KEY] Sets the SSID for use.
- Page 106 Chapter 5 Operation of Function - Web control function [LAMP POWER] [AV MUTE DETECTION] Selects the [LAMP POWER] setting. Selects to enable ([ON])/disable ([OFF]) the AV MUTE detection function. [AUTO POWER SAVE] Sets to [ON] when setting [SIGNAL DETECTION] and [AV [POWER MANAGEMENT] MUTE DETECTION].
- Page 107 Chapter 5 Operation of Function - Web control function [E-MAIL ADDRESS 1], [E-MAIL ADDRESS 2] [LAMP RUNTIME]: Enter the E-mail address to be sent. Leave [E-MAIL ADDRESS Sends an E-mail when the remaining time for the luminous lamp 2] blank when two E-mail addresses are not to be used. has reached the value set at the right field.
-
Page 108: Ip Address
Chapter 5 Operation of Function - Web control function Contents of E-mail sent Example of E-mail sent when E-mail is set The following E-mail is sent when the E-mail settings have been established. === Panasonic projector report(CONFIGURE) === Projector Type PT-VW360 Serial No... - Page 109 Chapter 5 Operation of Function - Web control function Example of the E-mail sent for an error The following E-mail is sent when an error has occurred. === Panasonic projector report(ERROR) === Projector Type : PT-VW360 Serial No : 000000000...
- Page 110 Chapter 5 Operation of Function - Web control function [Change password] page Click [Change password]. [Administrator] [Next] Used to change the setting of the [Administrator]. Used to display the screen for changing the password. [User] Used to change the setting of the [User]. [Administrator] account [Account : Administrator] [New]...
- Page 111 Chapter 5 Operation of Function - Web control function [User] account [Account : User] [OK] Displays the account to change. Determines the change of password. [New] [User name]: Enter the desired new user name. (Up to 16 characters in single byte) [Password]: Enter the desired new password.
-
Page 112: [Subnetmask]
Chapter 5 Operation of Function - Web control function Control page [Tools], [Info], [Help] [Input Select] Tabs for selecting the setting, information, or help page of the Controls input selection. projector. Not available when the power of the projector is turned off. [POWER] Menu screen control buttons Turns off/on the power. - Page 113 Chapter 5 Operation of Function - Web control function [Info] page Click [Info] on the control page. [Projector Name] [Source] Displays the projector name. Displays the selected input. [Mac Address] [Lamp Mode] Displays the MAC address. Displays the setting status of [LAMP POWER]. [Lamp Hours] [Error Status] Displays the runtime of the luminous lamps (converted value).
-
Page 114: Chapter 6 Maintenance
Maintenance Chapter 6 This chapter describes methods of inspection when there are problems, maintenance, and replacement of the units. 114 - ENGLISH... -
Page 115: Lamp And Warning Indicators
Chapter 6 Maintenance - Lamp and Warning Indicators Lamp and Warning Indicators When an indicator lights up If a problem should occur inside the projector, the lamp indicator <LAMP> and the warning indicator <WARNING> will inform you by lighting or blinking. Check the status of the indicators and remedy the indicated problems as follows. -
Page 116: Maintenance/Replacement
Chapter 6 Maintenance - Maintenance/replacement Maintenance/replacement Before performing maintenance/replacement f When you perform maintenance or replacement of the parts, make sure to turn off the power and disconnect the Æ power plug from the wall outlet. ( pages 38) f Be sure to observe the procedure “Powering off the projector” (x page 42) when performing power supply operation. - Page 117 Chapter 6 Maintenance - Maintenance/replacement Attaching the air filter unit Attach the unused air filter unit to the projector. f Hold the air filter unit that the tab is in up-left side in the figure, put the right side in the figure first, and press the tab side until make a click sound.
- Page 118 The luminous lamp contains mercury. Consult your local municipality or your dealer about correct disposal of used lamp units. Attention f Panasonic takes no responsibility for any damage or malfunction of the product resulting from use of lamp units which are not manufactured by Panasonic. Use only specified lamp units. Note f The model numbers of accessories and optional accessories are subject to change without prior notice.
- Page 119 Chapter 6 Maintenance - Maintenance/replacement Lamp cover Lamp unit fixing screws Handles Lamp cover fixing screw Turn off the power by following the procedure in “Powering off the projector”. (x page 42) Remove the AC power plug from the wall outlet. f Wait at least 1 hour and make sure the lamp unit and surroundings are cool.
-
Page 120: Troubleshooting
Chapter 6 Maintenance - Troubleshooting Troubleshooting Please check following points. For details, see the corresponding pages. Reference Problem Cause page f The power cord may not be connected. — f No electric supply is at the wall outlet. — Power does not turn on. f The circuit breakers have tripped. -
Page 121: Chapter 7 Appendix
Appendix Chapter 7 This chapter describes specifications and after-sales service for the projector. ENGLISH - 121... -
Page 122: Technical Information
INST ? Returns the projector name set in [NAME CHANGE] of NAME ? Projector name query ××××× [NETWORK/USB]. INF1 ? Manufacturer name query Panasonic Returns manufacturer name. VW360 INF2 ? Model name query Returns model name. VX430 INF0 ? Other information query ×××××... -
Page 123: Control Commands Via Lan
“xxxxxx:yyyyy:zzzzzzzz” xxxxxx : Administrator rights user name for web control (Default user name is “dispadmin”) yyyyy : Password of above administrator rights user (Default password is “@Panasonic”) zzzzzzzz : 8-byte random number obtained in Step 2) Command data format It is the data format used for sending and receiving commands. - Page 124 Chapter 7 Appendix - Technical Information When web control administrator rights password is not set (Non-protect mode) Connection method Obtain the IP address and port number (Initial set value = 1 024) of the projector and make a request for connection to the projector. f Acquire the IP address from the menu screen of the projector, and the port number from the web control page.
-
Page 125: Serial In> Terminal
Chapter 7 Appendix - Technical Information <SERIAL IN> terminal The <SERIAL IN> terminal of the projector conforms to RS-232C so that the projector can be connected to and controlled from a computer. Connection Connecting terminals on projector Computer D-Sub 9-pin (female) D-Sub 9-pin (male) Communication cable (straight) Pin assignments and signal names... - Page 126 Chapter 7 Appendix - Technical Information Basic format Transmission from the computer starts with STX, then the ID, command, parameter, and ETX are sent in this order. Add parameters according to the details of control. ID designate ZZ, 01 to 06 (2 byte) Colon (1 byte) 3 command characters (3 bytes)
-
Page 127: [Menu Lock Password] Operations
Chapter 7 Appendix - Technical Information Control commands When controlling the projector from a computer, the following commands are available. r Projector control command Parameter/response Command Control Details Remark (parameter) string Power on ― To check if the power is on, use the “Power query” command. Power standby STANDBY Power query... -
Page 128: List Of Compatible Signals
Chapter 7 Appendix - Technical Information List of compatible signals The following table specifies the type of signals compatible with the projectors. f Symbols that indicate formats are as follows. g V: VIDEO, Y/C g R: RGB g Y: YC g H: HDMI Scanning frequency PnP*... - Page 129 Note f The number of display dots is 1 280 x 800 for the PT-VW360 and 1 024 x 768 for the PT-VX430. A signal with a different resolution will be projected after converting the resolution to match the projector display.
-
Page 130: Specifications
When [STANDBY MODE] of [ECO MANAGEMENT] is set to [NORMAL] : 8 W When [STANDBY MODE] of [ECO MANAGEMENT] is set to [NORMAL], and [IN STAND- BY MODE] of [AUDIO SETTING] is set to [ON] : 24 W PT-VW360 1.5 cm (0.59") (aspect ratio 16 : 10) Panel size PT-VX430 1.6 cm (0.63") (aspect ratio 4 : 3) - Page 131 Chapter 7 Appendix - Specifications Operating environment temperature * 0 °C (32 °F) to 40 °C (104 °F) (Elevation: below 1 400 m (4 593'); [HIGH ALTITUDE MODE]: [OFF]) 0 °C (32 °F) to 30 °C (86 °F) (Elevation: 1 400 m (4 593') ~ 2 000 m (6 562′); [HIGH ALTITUDE MODE]: [HIGH1]) Operating environment 0 °C (32 °F) to 30 °C (86 °F) (Elevation: 2 000 m (6 562′) ~ 2 700 m (8 858′);...
- Page 132 Chapter 7 Appendix - Specifications r Wireless LAN To use the wireless LAN function with the projector, it is necessary to attach the optional Wireless Module (Model No.: ET-WML100). Compliance standards IEEE802.11b/g/n Transmission method DSSS, OFDM Frequency range 2 412 MHz to 2 462 MHz (1 to 11 ch) (Channel) IEEE802.11b Maximum 11 Mbps...
-
Page 133: Dimensions
Chapter 7 Appendix - Dimensions Dimensions <Unit : mm (inch)> 113 (4-7/16") 198 (7-25/32") 326 (12-27/32") 352 (13-27/32") Actual dimension may differ by product. ENGLISH - 133... -
Page 134: Ceiling Mount Bracket Safeguards
Ask a qualified technician to do the installation work such as mounting the projector on the ceiling. f Panasonic takes no responsibility for any damage to the projector resulting from use of a ceiling mount bracket not manufactured by Panasonic or the inappropriate choice of location for installation, even if the warranty period of the projector has not expired. -
Page 135: Index
Chapter 7 Appendix - Index Index <FREEZE> button [POSITION] ........61 Remote control ......47 Power button About Presenter Light .......97 <FUNCTION> button Projector body .......25 Accessories ........21 Remote control ......23, 49 Remote control ......23 <AC IN> terminal ......24 [FUNCTION BUTTON] .....78 Power indicator ......25, 38 Adjusting adjustable feet ....45 Powering off the projector ....42... - Page 136 Atıkların atılmasıyla ilgili yanlış uygulamalar yasayla belirlenmiş olan cezalara sebebiyet verebilir. Panasonic Corporation Web Site : https://panasonic.net/cns/projector/ © Panasonic Corporation 2018 Panasonic System Solutions Company of North America Two Riverfront Plaza, Newark, NJ 07102 TEL: (877) 803 - 8492 Panasonic Canada Inc.
