- Page 1 Industrial Electric Steam Iron Gravity lron USER MANUAL...
- Page 2 Iron Installation & Operation 1. Hang Water Tank① at more than 5ft above from the ironing surface ① Hang Water Tank (see figure at the right side) ☞ 2. Connect one end of Silicon Hose② to Solenoid Valve③, and the other ④...
- Page 3 Gravity lron Important Notice Do not place iron upright direction when not in use. (See following figure) How to operate 1. After iron temperature is sufficiently heated, open water tank valve, and press the steam switch. (Press for 1~2 seconds and pause for 3~4 seconds. Repeat, pressing 1~2 seconds then resting 3~4 seconds.) Press the steam switch this way when you need steam.
- Page 4 1. Be careful when connecting iron power cord, and check whether iron’s indicated voltage matches with power supply socket voltage. 2. Fill water tank with clean water. Use of Silver Star's water purifier agent is recommended. 3. Be sure to disconnect the power plug from socket before filling water to water tank.
- Page 5 WATER BOTTLE SET THERMOSTAT SET WATER BOTTLE THERMOSTAT WATER BOTTLE FILTER THERMOSTAT KNOB WATER BOTTLE VALVE SOL VALVE SET [ES-300 ] SILICONE HOST SET SOL VALVE SET [ES-300L] SILICONE IRON REST HANDLE CAP SET COVER [ES-300] HANDLE SET COVER [ES-300L]...
- Page 6 ES-94A/ES-94A Ⅱ/ ES-94AL PARTS NAME PARTS NAME BASE SET [ES-94A ] POWER CORD SET BASE SET [ES-94AL] WATER BOTTLE SET THERMOSTAT SET WATER BOTTLE THERMOSTAT WATER BOTTLE FILTER THERMOSTAT KNOB WATER BOTTLE VALVE SOL VALVE SET [ES-94A ] SILICONE HOST SET SOL VALVE SET [ES-94AL ] SILICONE IRON REST HANDLE CAP SET...
- Page 7 Gravity lron EZ5/EZ5L PARTS NAME PARTS NAME BASE SET [EZ5 ] POWER CORD SET BASE SET [EZ5L ] WATER BOTTLE SET THERMOSTAT SET WATER BOTTLE THERMOSTAT WATER BOTTLE FILTER THERMOSTAT KNOB WATER BOTTLE VALVE SOL VALVE SET [EZ5 ] SILICONE HOST SET SOL VALVE SET [EZ5L ] SILICONE IRON REST HANDLE CAP SET...
- Page 8 ES-90A PARTS NAME PARTS NAME BASE SET WATER BOTTLE THERMOSTAT SET WATER BOTTLE FILTER THERMOSTAT WATER BOTTLE VALVE THERMOSTAT KNOB SILICONE HOST SET SOL VALVE SET SILICONE IRON REST HANDLE CAP SET COVER HANDLE SET THERMO SHIELD HANDLE BODY SET MAIN COVER POWER CORD SET I/O SWITCH...
- Page 9 Gravity lron ES-85AF PARTS NAME PARTS NAME BASE SET POWER CORD SET THERMOSTAT SET WATER BOTTLE SET THERMOSTAT WATER BOTTLE THERMOSTAT KNOB WATER BOTTLE FILTER SOL VALVE SET WATER BOTTLE VALVE HANDLE CAP SET SILICONE HOST SET HANDLE SET SILICONE IRON REST MAIN SWITCH SET COVER...
- Page 10 ES-97A PARTS NAME PARTS NAME BASE SET WATER BOTTLE SET THERMOSTAT SET WATER BOTTLE THERMOSTAT WATER BOTTLE FILTER THERMOSTAT KNOB WATER BOTTLE VALVE SOL VALVE SET SILICONE HOST SET HANDLE CAP SET SILICONE IRON REST HANDLE SET COVER MAIN SWITCH SET THERMO SHIELD POWER CORD SET...
- Page 11 Gravity lron PARTS NAME PARTS NAME BASE SET WATER BOTTLE SET THERMOSTAT SET WATER BOTTLE THERMOSTAT WATER BOTTLE FILTER THERMOSTAT KNOB WATER BOTTLE VALVE SOL VALVE SET SILICONE HOST SET HANDLE CAP SET SILICONE IRON REST HANDLE SET COVER MAIN SWITCH SET THERMO SHIELD POWER CORD SET...
- Page 12 EZ300 PARTS NAME PARTS NAME BASE SET WATER BOTTLE SET THERMOSTAT SET WATER BOTTLE THERMOSTAT WATER BOTTLE FILTER THERMOSTAT KNOB WATER BOTTLE VALVE SOL VALVE SET SILICONE HOST SET HANDLE CAP SET SILICONE IRON REST HANDLE SET COVER MAIN SWITCH SET THERMO SHIELD POWER CORD SET...
- Page 13 Gravity lron Size and Specifications Model Voltage Wattage Weight Base size Usage ES-94A 120V/220V~ 1000W 2.1kg 209×120 Intermediate process ES-300 120V/220V~ 1000W 2.1kg 209×120 Intermediate process ES-85AF 120V/220V~ 1000W 2.3kg 205×124 Intermediate process ES-90A 120V/220V~ 1000W 2.1kg 200×112 Intermediate process...
- Page 14 Accessory parts usage and instruction to use ① Steam hole pin Usage Steam hole at the bottom of iron may be clogged after long time use due to foreign material inside the iron. When it happens, use steam hole pin to clear the clogged hole.
- Page 15 HEAD OFFICE & FACTORY EUNSUNG ELECTRIC CO.,LTD 104-5,SHINPYUNG-RI,SHINBUK-MYON, POCHUN-SI, KYUNGGI- DO,KOREA TEL: 82-31-531-8131~6 FAX : 82-31-531-8130 E-MAIL:EUNSUNG5@KORNET.NET JIAXING EUNSUNG ELECTRIC CO.,LTD. MU YANG ROAD 349# ECONOMIC DEVELOPMENT ZONE JIAXING ZHEJIANG CHINA TEL: 86-573-8222-4373 FAX: 86-573-8222-4391 E-MAIL:EUNSUNG5@KORNET.NET www.silverstar.co.kr...
Need help?
Do you have a question about the ES-300 and is the answer not in the manual?
Questions and answers
How to unclog the steam hole
To unclog the steam hole on the Silver Star ES-300, use the steam hole pin to clear any foreign material blocking the hole at the bottom of the iron. Be careful not to touch the hot bottom surface of the iron during this process.
This answer is automatically generated

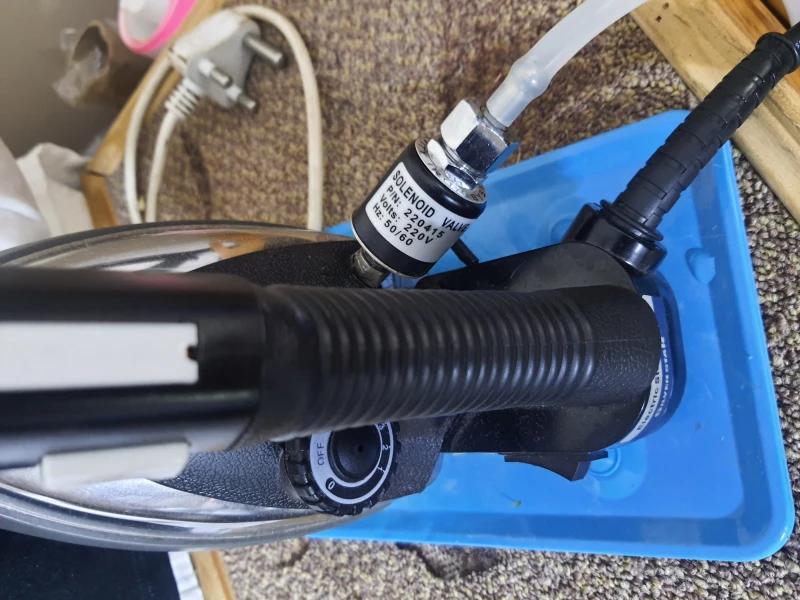

Hi! My iron doesn’t create steam anymore, don’t see it dripping. Not sure what could be wrong.
If the Silver Star ES-300 iron does not create steam or drips, possible issues include:
1. Steam Switch Malfunction – The steam switch may be out of order.
2. Rubber Packing Issue – The rubber packing inside the solenoid switch may not be pressing properly.
3. Worn-Out Valve – The valve inside the solenoid switch may be worn out.
4. Continuous Steam Switch Use – Pressing the steam switch continuously for more than 10 seconds can cause water to flow instead of steam.
5. Excessive Force on Steam Switch – Pressing the steam switch too hard may cause a malfunction.
If these issues occur, contacting the head office or an authorized service center is recommended.
This answer is automatically generated
Good Day, My iron keeps dispensing water continuously, what can be the problem?
The problem could be due to a malfunction of the solenoid valve, corrosion, or a faulty valve spring. To fix this, open the solenoid valve using a spanner, replace the steam switching rubber or valve spring, and reassemble it in the correct sequence. If not assembled properly, the iron may not function correctly.
This answer is automatically generated
How to know which one is true or flakes?

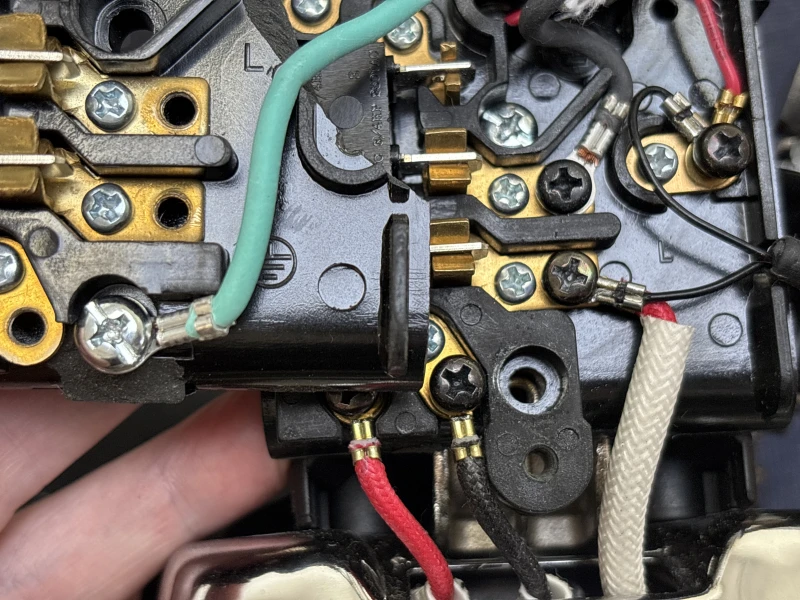

My switch housing broke. I ordered another on ebay, everything went together perfectly until the turquoise wire, the old one had a space for the ring connection to exit under the screw, but this one does not. Please advise how to remedy. Can i just get a longer screw?
