Opticis Optical USB
Extension Module
(M2-100 User's Manual)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M2-100 and is the answer not in the manual?

Questions and answers

Related Manuals for opticis M2-100

Summary of Contents for opticis M2-100

  • Page 1 Opticis Optical USB Extension Module (M2-100 User’s Manual)

  • Page 2: Table Of Contents

    Contents Precautions Package Content 2. Introduction 2.1 Function 3. Installation 3.1 Set-up 3.2 Connection Trouble Shooting Specifications 5.1 Opticis Optical USB Extension Module 5.2 AC-To-DC 6. Warranty...
  • Page 3 Precautions WARNING Do not dismantle the housing or modify the module. Dismantling the housing or modifying the module may result in electrical shock or burn. Refer all servicing to qualified service personnel. Do not attempt to service this product yourself as opening or removing housing may expose you to dangerous voltage or other hazards.

  • Page 4: Package Content

    1. Package Contents 1.1 Opticis Optical USB Module Module(M2-100) 1.2 AC-To-DC Adapter...

  • Page 5: Introduction

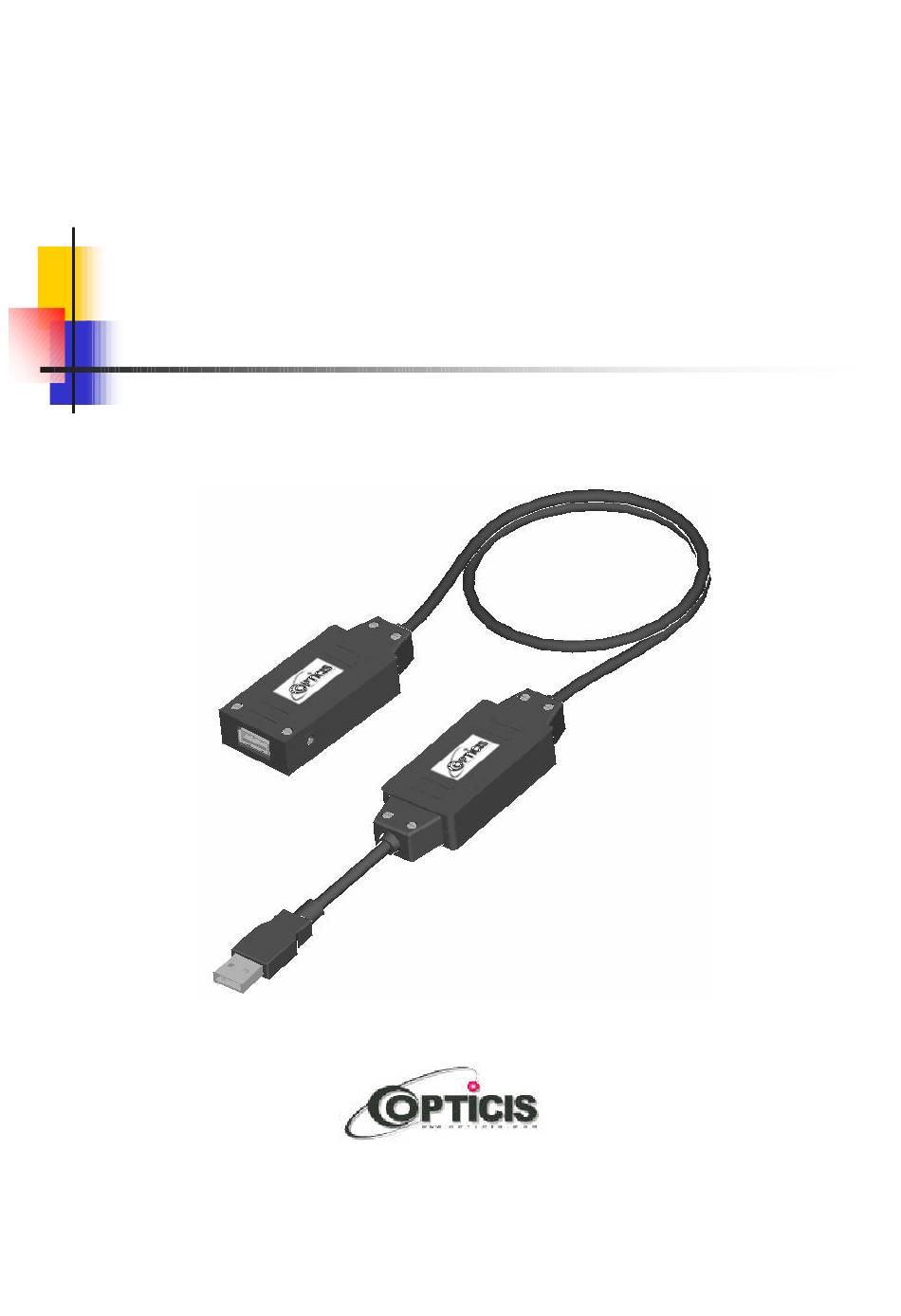

    2. Introduction Our Optical USB Extension Module M2-100 links the USB signal up to 50 meter without any repeater. 2.1 Function - Application with self-powered - One Up-Stream Module, A Socket, One Down-Stream Module - Compatible with USB 1.1 (12Mbps, 1.5Mbps)

  • Page 6: Installation

    - AC-To-DC Adapter Requirements : 5 V, 600mA (Core is 5 V) 3.2 Connection - Connect M2-100 with the adapter. - Connect “A” plug in M2-100 with PC’s USB ports(Figure.1) - Connect USB peripheral device(key board, mouse, camear Etc) with USB downstream port(A Receptacle)

  • Page 7: Trouble Shooting

    6. Click and select “Property”. 7. Make sure the sentence “ Installation functions rightly” is shown in “ Installation state”. a) In this case, you can see “Opticis Optical USB Extension Module” is functioning well. If other equipments connected with “Opticis Optical USB Extension Module”...
  • Page 8 Contact PC manufacturer is not installed. not apply for USB. and request them to reinforce USB function. “General USB Hub” Our product, M2-100 is not Check if downstream port is not installed by connected rightly. is rightly power-connected operation system.

  • Page 9: Specifications

    5. Specifications 1) Opticis Optical USB Module (M2-100) Size (Width x Length x Height) Up-stream: Down-stream: Length (Whole): Packaging: Weight: Net weight : Gross weight : Power input 5V DC 600mA Speed High: 12Mbps Low: 1.5Mbps 2) Power – Adapter Power input: A.C- 100~240 V, 5060Hz 0.1A...

  • Page 10: Warranty

    Opticis or its authorized agents, causes other than from ordinary use or failure to properly use the product in the application for which said product is intended.
  • Page 11 * FCC LABELLING REQUIREMENTS This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operations.
  • Page 12 INFORMATION TO THE USER INFORMATION TO THE USER This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
