opticis M1-2Rx-TR User Manual

Installation
Important: Please use the installation procedure below. Improper, or no
operation may result if the start-up sequence is not correctly followed.
Step 1
Carefully unpack the contents of the shipping group.
Step 2
With system power turned off, connect the upstream Transmitter box to the
DVI receptacle of a media receiver or a computer by one DVI copper cable in
the shipping group.

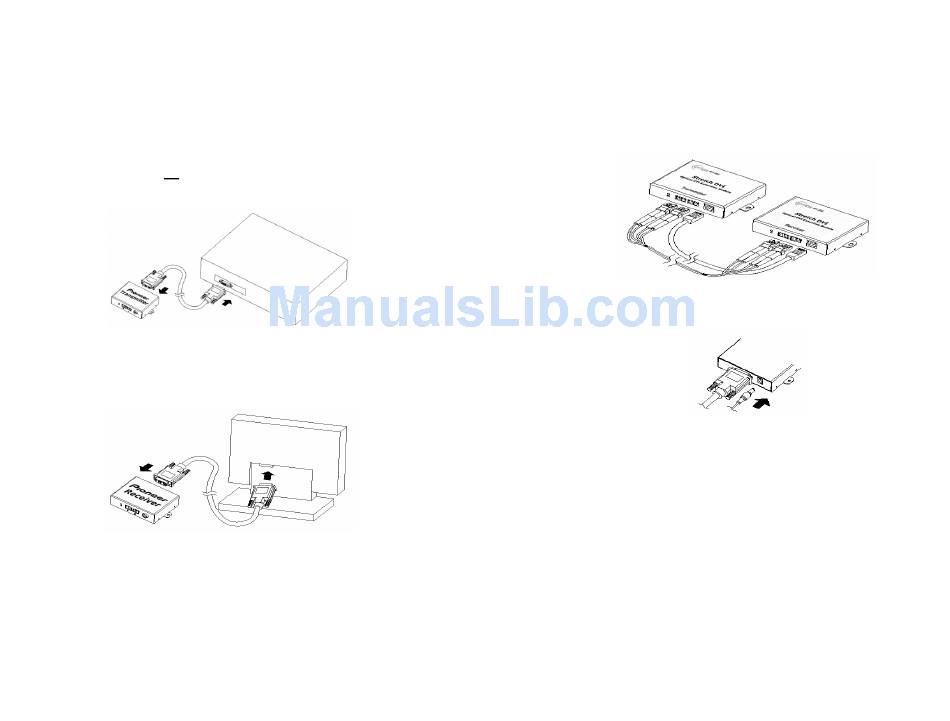

Figure 2 – Connection of DVI cable between Transmitter box and media receiver
Step 3
In the same way as above, connect the Receiver box into the DVI receptacle
of the display by the other DVI copper cable.
Figure 3 – Connection of DVI cable between Receiver box and display
Notice: Please DO NOT look directly into the LC receptacles of the
Transmitter box, while it is powered on, although this product is regulated
strictly enough to operate under the Laser Class I, classified by CDRH/FDA
for eye safety.
1-3 Installation
Step 4
Remove the module dust covers and connect each duplex LC fiber cable one
by one to each of 4 LC receptacles of the Transmitter and Receiver boxes, as
shown in Fig. 2. Plug A to A and B to B. Carefully recheck polarities and
ensure the duplex connectors are fully engaged.
Step 5
Connect each RJ-45C plug of the DDC cable to each RJ-45C receptacle of
the Transmitter and Receiver boxes.
Figure 4 – Connection of 2 duplex LC fiber cables
Step 6
Connect an AC/DC power adapter to either of the Transmitter and Receiver
boxes as your availability of AC outlets.
Figure 5 – Connection of AC/DC power adaptor
Step 7
Power on the media receiver or computer and display.
Tip 1: After initial installation as guided in the above, we recommend you to
power On and Off while all connections are set and the Tx/Rx boxes are
powered in.
Tip 2: Avoid "hot plugging" the Tx or Rx boxes as this is not recommended
practice with live digital voltages.
1-4 Installation (continued)
