Page 1: Operating Instructions

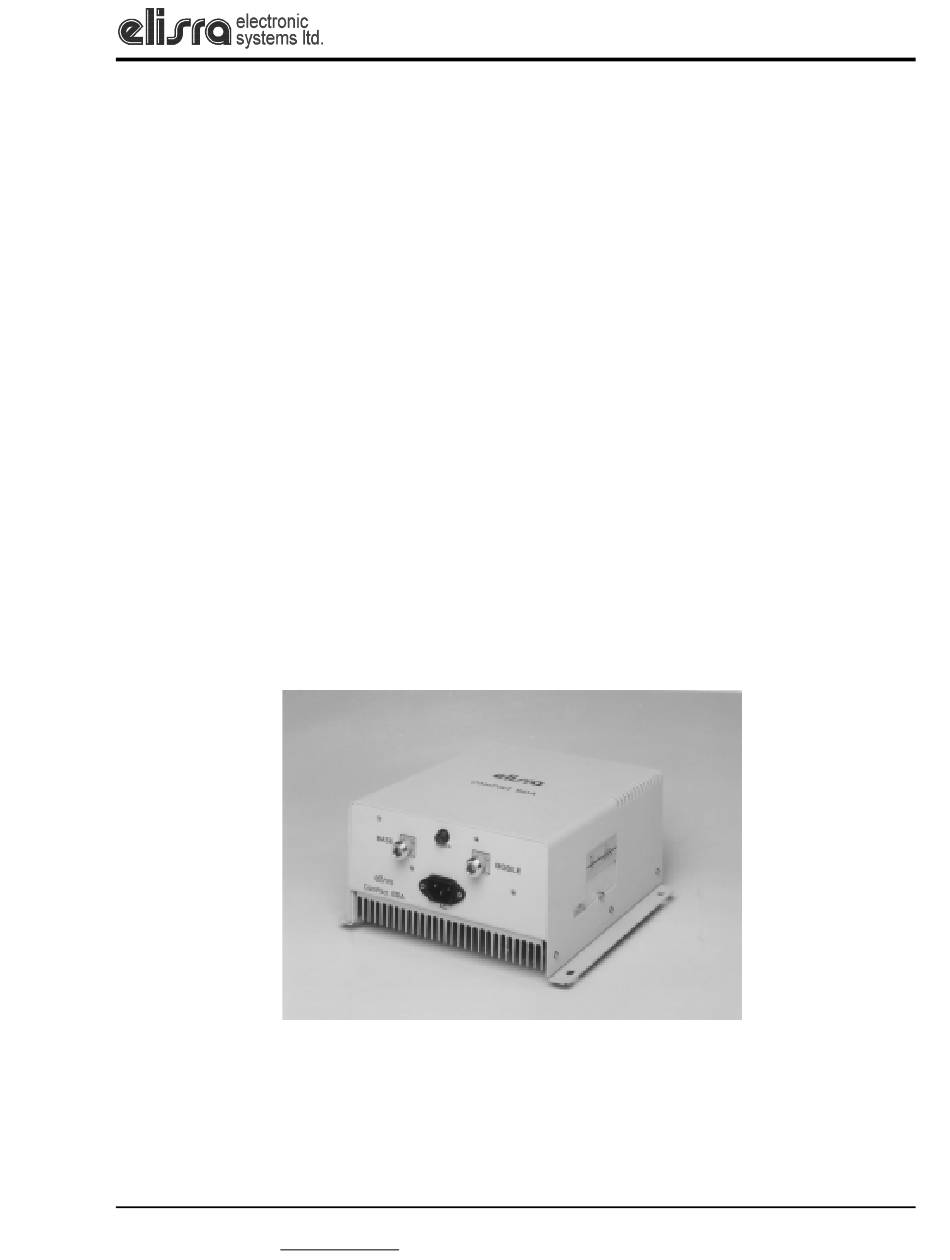

Wireless Solutions INSTALLATION OPERATING INSTRUCTIONS MW-CBDA-TDMAB-1W60-A CELLULAR BI-DIRECTIONAL AMPLIFIER 48 Mivtza Kadesh St. Bene Beraq 51203 , ISRAEL Tel: +972-3-6175639 Fax:+972-3-6175962 trm1@elisra.com 3 RI HPDLO :HE VLWH ZZZPZHOLVUDFRP 5HY% ... - Page 2 Wireless Solutions TABLE OF CONTENTS PARAGRAPH PAGE No BDA OVERVIEW BLOCK DAIGRAM DESCRIPTION BDA OPERATION AGC & MGC FUNCTION RF EXPOSURE WARNING ELECTRICAL SPECIFICATIONS MECHANICAL SPECIFICATIONS ENVIRONMENTAL CONDITIONS LIST OF DRAWINGS DRAWING PAGE No BDA (WITH AGC) RF BLOCK DIAGRAM DRAWING AGC &...
- Page 3 Wireless Solutions BDA OVERVIEW: The Bi-Directional Amplifier (BDA) assembly provides an exceptional repeater/booster performances to extend the coverage area of radio communications in buildings and RF shielded environments. Features such as high linearity power amplifiers are contributing for the overall improved system linearity performances.
- Page 4 Wireless Solutions 0*& $*& 5) $03/,),(5 '(7(&7(5 $*& &,5&8,7 &283/(5 'RZQOLQN $5($ %$6( $17(11$ 67$7,21 'XSOH[HU 'XSOH[HU $17(11$ '(7(&7(5 17<3( $*& &,5&8,7 17<3( 0*& &283/(5 8SOLQN $*& 5) $03/,),(5 BDA with AGC & MGC DETAILED RF BLOCK DIAGRAM BDA OPERATION connected to the antenna pointing into the area to be covered by the BDA.
- Page 5 Wireless Solutions AGC & MGC FUNCTION The BDA has AGC function. Their amplifier has a directional coupler and a detector at the output of the high power amplifier to monitor the output power. When a high signal is received the automatic level control detects the amplitude and sends a feedback signal to a voltage variable attenuator which attenuates the signal level so that the output power of the amplifier does not exceed the preset limit.
- Page 6 Wireless Solutions RF EXPOSURE WARNING In order to satisfy the FCC RF exposure requirements, you must ensure that the installation complies with the following: One antenna is connected via cable that has typical 1~10 dB attenuation (depends on the length of the cable) to the BDA BASE port. This antenna is installed outdoor and has very sharp beam (Yagi type or similar) pointed to the donor (BTS).
-
Page 7: Electrical Specifications
Wireless Solutions ELECTRICAL SPECIFICATIONS: Frequency Range Up Link : 835 849 MHz Down Link : 880 894 MHz Passband Gain @ min attenuation 60 dB minimum Passband Ripple 1.5 dB typical Output Power AGC Set +24 1 dBm AGC Dynamic Range 30 dB min MGC (Manual Gain Control) Dynamic Range 15 dB min... - Page 8 Wireless Solutions MECHANICAL OUTLINE 48 Mivtza Kadesh St. Bene Beraq 51203 , ISRAEL Tel: +972-3-6175639 Fax:+972-3-6175962 trm1@elisra.com 3 RI HPDLO :HE VLWH ZZZPZHOLVUDFRP 5HY% ...
