11.3 Batterybox Structure & Accessories

11.3.1 Batterybox structure

1. Battery connector: Connect to vehicle's battery for battery test.
2. B type USB terminal: Connect to the X-431 Throttle tablet with USB cable.

11.3.2 Test accessories

11.4. Connections & Operations

11.4.1 Connection

Connect one end of the A/B cable to the B type USB terminal of the batterybox,
and then connect the other end to the USB port of X-431 Throttle tablet. This
connection applies to outside the vehicle test and inside the vehicle.
Notes:
1. Wait about 10 seconds and begin to communicate since the batterybox needs to
initialize after connection is complete, otherwise, communication may fail.

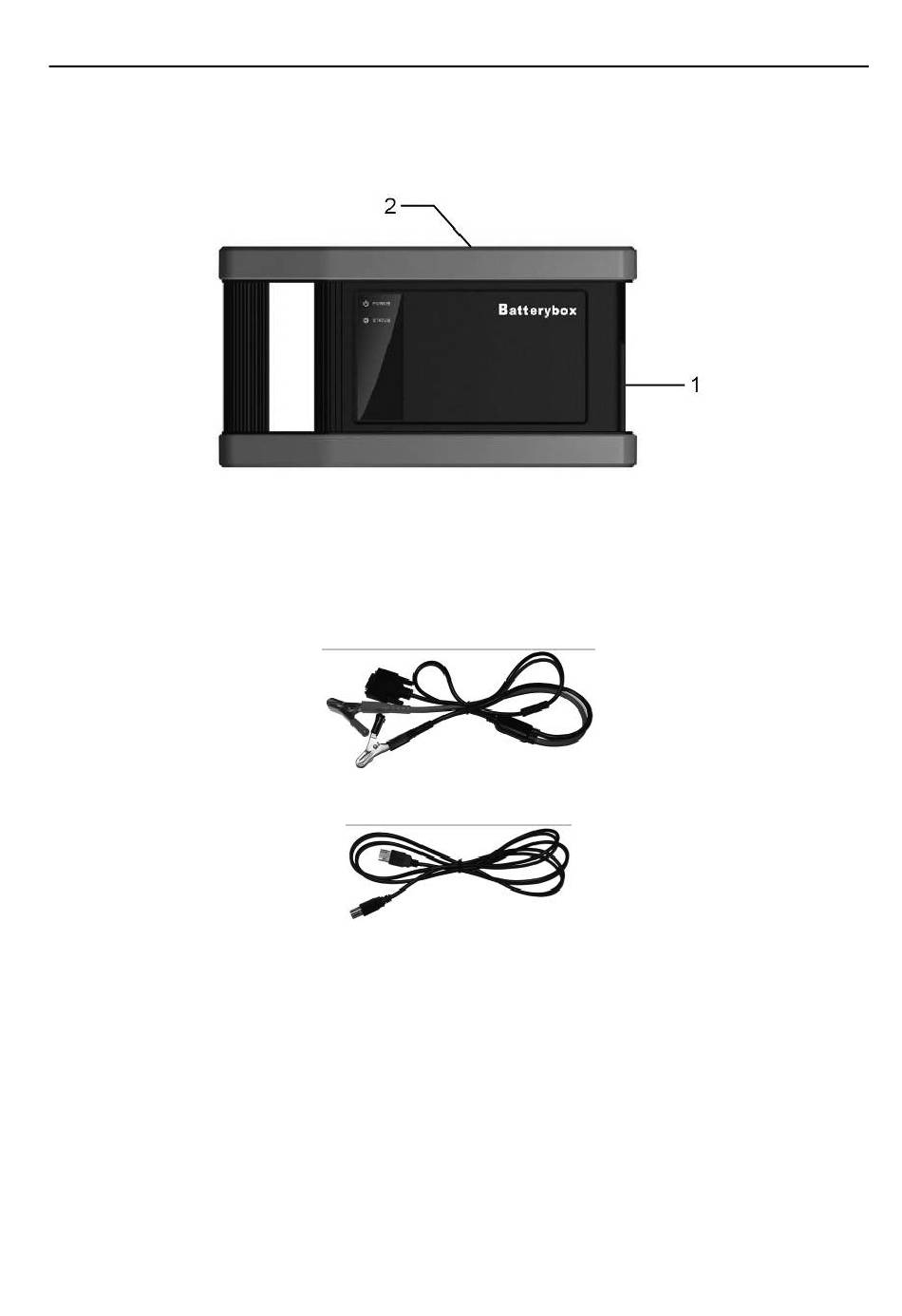

Fig.11-1 Batterybox structure diagram
Fig. 11-2 Kelvin clip
Fig. 11-3 A/B cable
X-431 Throttle User Manual
