LAUNCH
Combine – this option is mostly used in graph merge status for data
comparison. In this case, different items are marked in different colors.
On-screen Buttons:

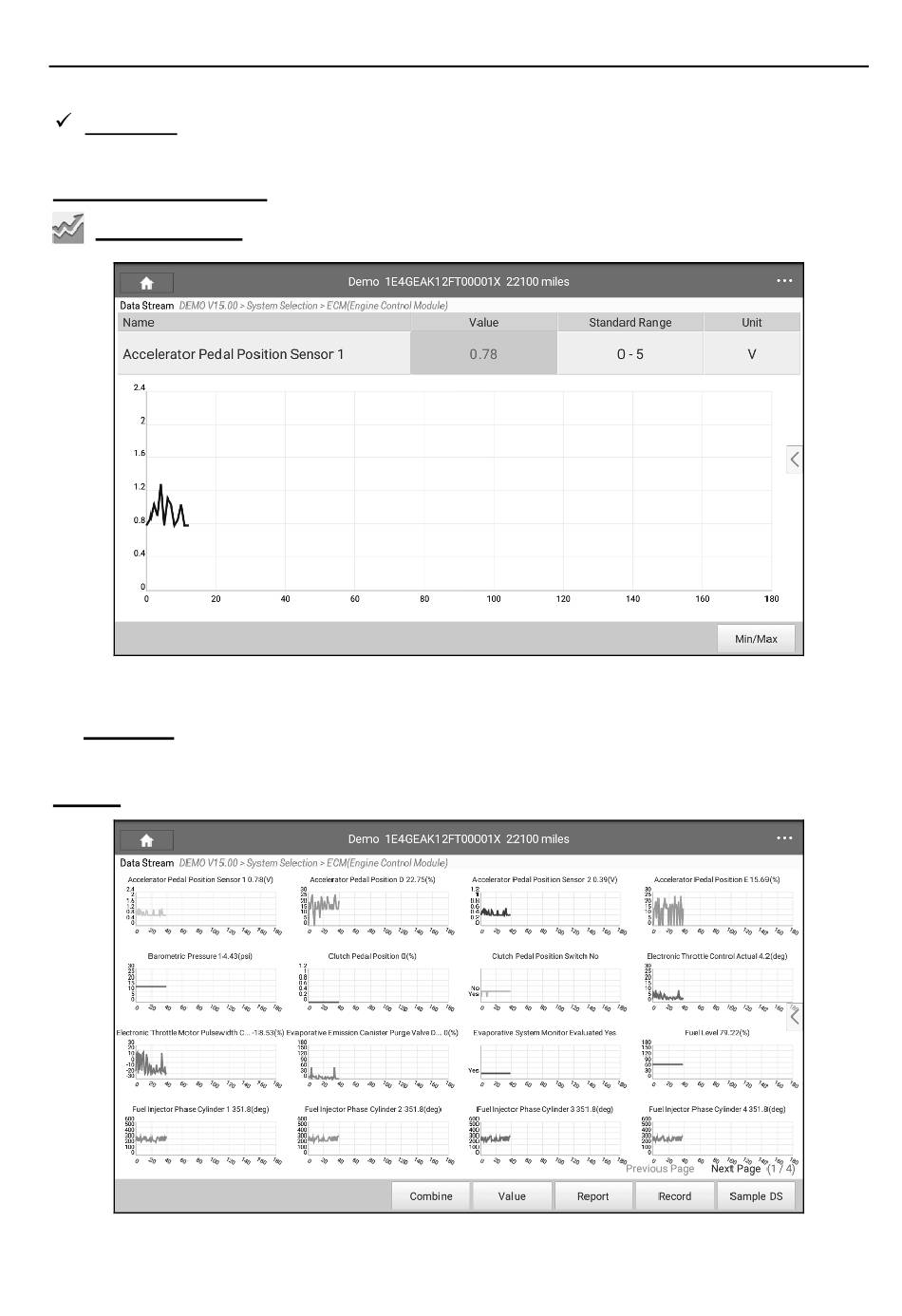

Single graph: Tap it to view the waveform.
• Min/Max: Tap "Min/Max" to define the maximum/minimum value. Once the
value goes beyond the specified value, the system will alarm.
Graph: Tap it to view the waveform.
X-431 Throttle User Manual
Fig. 5-23
Fig. 5-24
39
