Summary of Contents for Mantracourt T24-SAF

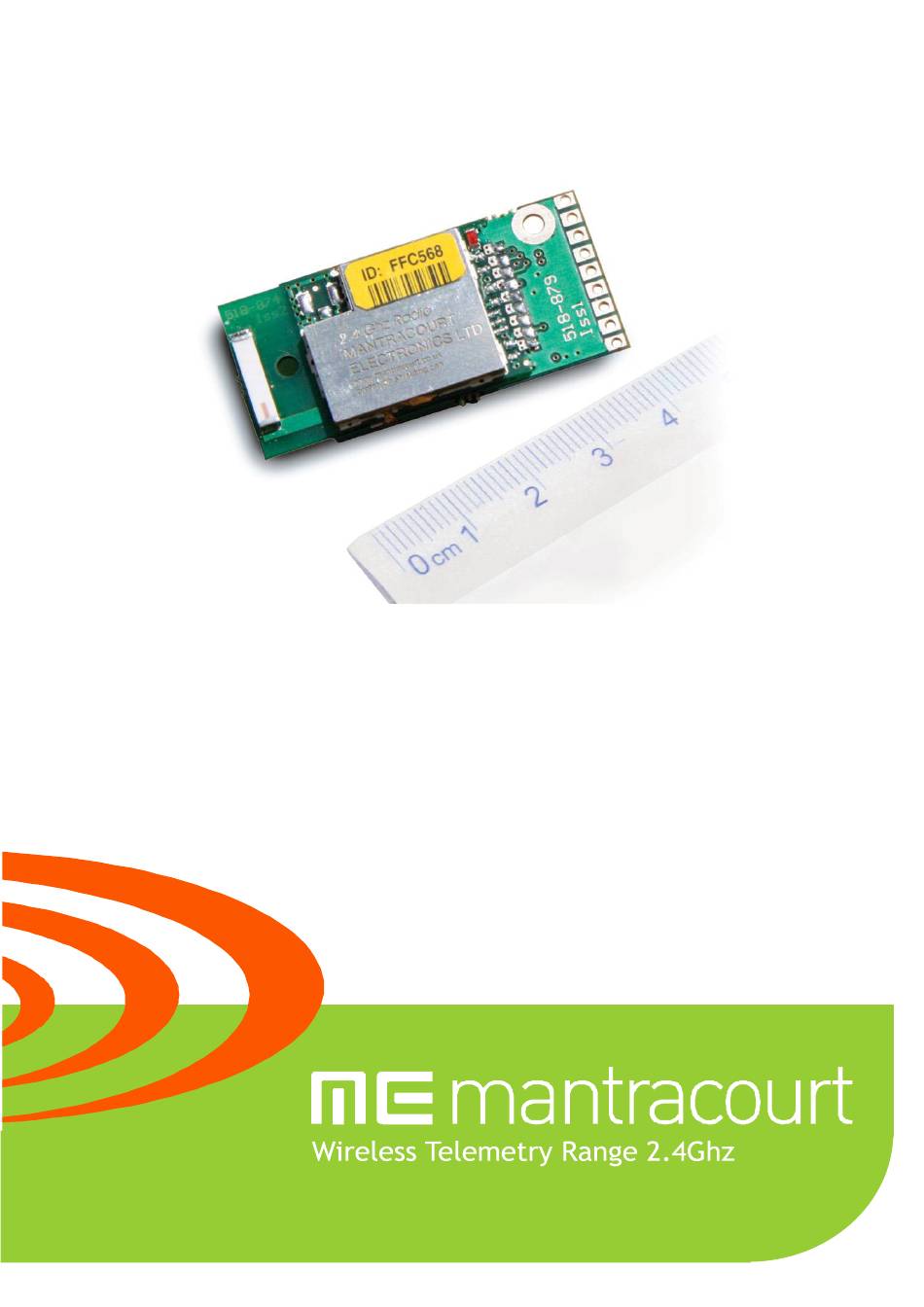

- Page 1 T24-SAf Fast Strain Gauge Acquisition Module User Manual mantracourt.com...
-
Page 2: Table Of Contents
OEM / Reseller Marking and Documentation Requirements ............26 FCC ..........................26 IC ..........................26 CE ..........................26 Declaration Of Conformity ....................27 Worldwide Regional Approvals ....................28 Important Note ......................28 Warranty ......................... 28 Mantracourt Electronics Limited T24-SAf Fast Strain Gauge Acquisition Module User Manual... -
Page 3: Introduction / Overview
+SIG +EXC The resistance of the strain gauge can be between 85 and 5000 Ohms. The T24-SAf can support up to 4 350Ohm strain gauges bridges attached in parallel (At the expense of reduced battery life). The cable lengths between the T24-SAf and the gauges should be kept below 3 meters and generally as short as possible. -
Page 4: Configuration
Toolkit software and a T24-BS base station to allow your computer to communicate with T24 telemetry devices. Calibration Please Note: The calibration feature is not available for the T24-SAf. Installation T24 Toolkit To configure the devices we must use the T24 Toolkit software application. This can be downloaded from our web site or may be shipped with your products. -
Page 5: T24 Toolkit
If no communications can be established the toolkit will remain on this page. You will need to check that the base station is powered and that it is connected to the converter correctly. Mantracourt Electronics Limited T24-SAf Fast Strain Gauge Acquisition Module User Manual... -
Page 6: Home
If you connect successfully the toolkit will change to the Information page. If the pairing fails try again. NOTE: Pairing with the toolkit will not change the radio configuration settings of the connected device. Mantracourt Electronics Limited T24-SAf Fast Strain Gauge Acquisition Module User Manual... -
Page 7: Analyser
The above charts show the traffic from a Wi-Fi network and it can be seen to be operating over channels 6 to 9 and it would be best (though not essential) to avoid using these channels. Mantracourt Electronics Limited T24-SAf Fast Strain Gauge Acquisition Module User Manual... -
Page 8: Data Provider Monitor
Data Provider Monitor NOTE Prior to version 1.1.91 of the T24 Toolkit the value shown for a T24-SAf will look like random characters because the data packet from the T24-SAf contains 10 values not just the normal single value. Version 1.1.91 and later will show the correct value but will only log at 200Hz. -
Page 9: Information
This page shows you information about the connected device. Items you can change: Name You can enter a short description which may help you recognise this device in the future. Mantracourt Electronics Limited T24-SAf Fast Strain Gauge Acquisition Module User Manual... -
Page 10: Battery Life
Ohms. Usage Per 24 Hour Period Enter the number of hours per 24 hour period that the T24-SAf will be turned on and communicating. Mantracourt Electronics Limited T24-SAf Fast Strain Gauge Acquisition Module User Manual... -
Page 11: Battery And Radio Levels
Click this item to set the battery low level. Clicking the Advanced button will give more detailed information on the RSSI and CV levels of the received radio packets. Mantracourt Electronics Limited T24-SAf Fast Strain Gauge Acquisition Module User Manual... -
Page 12: Battery And Radio Levels Advanced Settings
CV is the correlation value and indicates how well the signal can be decoded. This ranges from 55 which is a poor quality signal and 110 which is an excellent signal. Mantracourt Electronics Limited T24-SAf Fast Strain Gauge Acquisition Module User Manual... -
Page 13: Channel And Encryption
Note that some devices such as the T24-AO1 analog output module will allow pairing to an acquisition module. When pairing it will alter the T24-SAf settings to match those of the analog output module. NOTE: Early acquisition module do not yet utilise the encryption keys so these should be left at all zeros. -
Page 14: Save And Restore
All configuration information including calibration data will be overwritten. The file extension is tcf. Advanced Settings Click this button to enter the Advanced Settings Page. Here are settings which do not normally require changing. Mantracourt Electronics Limited T24-SAf Fast Strain Gauge Acquisition Module User Manual... -
Page 15: Data Provider Monitor
Elapsed,Value <carriage Return> Where Elapsed is a timestamp counter provided by the T24-SAf. Each unit represents 500uS and the number will reset to zero every 32.768 seconds. This timestamp aids in spotting lapses in data and allows graphing data even with dropped packets. -
Page 16: Advanced Settings
Allows turning on or off the application of a shunt cal resistor to the bridge input. You must remember to turn this off before exiting the Toolkit software. nV/V Shows the output value so the effect of the Shunt Cal can be seen. Mantracourt Electronics Limited T24-SAf Fast Strain Gauge Acquisition Module User Manual... -
Page 17: Installation
Range underwater is only a decimetre or so depending on packet rate. Best performance underwater is obtained by using low packet rates and immersing water-proofed antennae rather than water-tight enclosures containing the antennae. Mantracourt Electronics Limited T24-SAf Fast Strain Gauge Acquisition Module User Manual... -
Page 18: Power Supply / Battery
This is due to voltage drops caused during the high current phase of the measurement cycle. In the case of a T24-SAf strain gauge input module 300mA required for 250uS. Batteries with an internal resistance of less than 150mOhm will not require the additional inline capacitor module. -
Page 19: Battery Types
The unit comes pre-configured to provide a charging current of 466mA suitable for VARTA LIP653450. This module also supports additional batteries providing a charge current of 133mA via the removal of the leaded resistor (non surface mount). Mantracourt Electronics Limited T24-SAf Fast Strain Gauge Acquisition Module User Manual... -
Page 20: Physical Connections
Battery life = 18 hours * * Note: Battery life is calculated with a T24-SAf running for 2 hours out of every 8 hours, to a 1kΩ bridge. Mantracourt Electronics Limited T24-SAf Fast Strain Gauge Acquisition Module User Manual... -
Page 21: Capacitor Module T24-Bc2
This problem becomes apparent when attempting to communicate with high peak current acquisition modules such as a T24-SAf using the T24 Toolkit or power cycling when the battery is near the end of its life. In normal operation (Low power mode) with an analog output module or the T24-SAf is connected to an uninterrupted battery this module is generally not required. -
Page 22: Mounting
Battery ground of the acquisition module. The mounting hole near the chip antenna cannot accept metal mounting hardware. The connection holes are on a 1.9mm pitch and are a diameter of 1mm. Mantracourt Electronics Limited T24-SAf Fast Strain Gauge Acquisition Module User Manual... -
Page 23: Antenna
T24 acquisition modules fitted with a UFL stud have a suffix ‘e’ to the part number e.g. T24-SAe Note: The suffix ‘e’ is omitted where the T24 acquisition module is fitted inside a T24-ACM or T24-ACMi enclosure e.g. T24-ACM-SA, T24-ACMi SA Mantracourt Electronics Limited T24-SAf Fast Strain Gauge Acquisition Module User Manual... -
Page 24: External Antennas
The sensitivity to the radio transmission will be reduced if the acquisition module is oriented in a vertical or portrait position if a handheld is used because the handheld can only be used in one orientation. Mantracourt Electronics Limited T24-SAf Fast Strain Gauge Acquisition Module User Manual... -
Page 25: Specifications
Operating temperature range ° Storage temperature ° Humidity Physical PCB Dimensions 17 x 37.5 x 6.5mm Approvals Complies with EMC directive. 2004/108/EC The Radio Equipment and Telecommunications Terminal Equipment (R&TTE) Directive, Mantracourt Electronics Limited T24-SAf Fast Strain Gauge Acquisition Module User Manual... -
Page 26: Fcc
(2) this device must accept any interference received, including interference that may cause undesired operation. CAUTION: If the device is changed or modified without permission from Mantracourt Electronics Ltd, the user may void his or her authority to operate the equipment. -
Page 27: Oem / Reseller Marking And Documentation Requirements
Section 15.247 (emissions). Acquisition modules have been certified by the FCC for use with other products without any further certification (as per FCC section 2.1091). Changes or modifications not expressly approved by Mantracourt could void the user’s authority to operate the equipment. -
Page 28: Declaration Of Conformity
61000-4-2 and BS EN 61000-4-3 following the provisions of the EMC Directive 2004/108/EC and Low Voltage Directive 2006/95/EC. December 2007 Brett James FCC ID:VHARAD24 Development Manager Mantracourt Electronics Limited. Mantracourt Electronics Limited T24-SAf Fast Strain Gauge Acquisition Module User Manual... -
Page 29: Worldwide Regional Approvals
Any corrective maintenance required after the warranty period should be performed by 'Mantracourt' approved personnel only. In the interests of continued product development, Mantracourt Electronics Limited reserves the right to alter product specifications without prior notice. Code No. 517-922 Issue 1.4 27.10.14... - Page 30 @ metrolog.net metrolog @ metrolog.net Distribuidor no Brasil e América do Sul | Metrolog | www.metrolog.net | +55 (16) 3371-0112 | +55 (16) 3372-7800 | metrolog@metrolog.net www.metrolog.net / mantracourt.com metrolog@metrolog.net tel +55 (16) 3371-0112 www.metrolog.net / mantracourt.com metrolog@metrolog.net...
