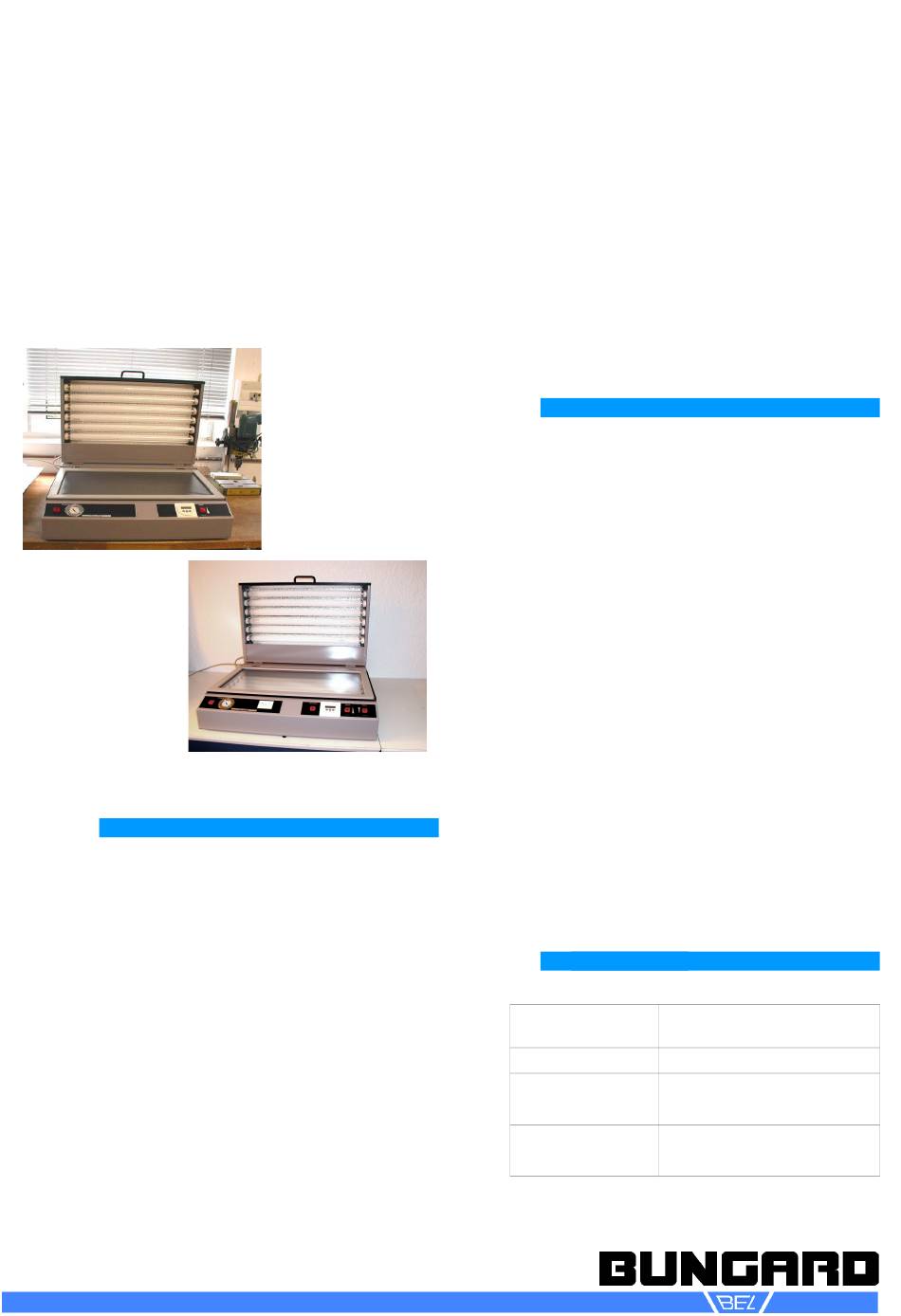

Bungard Hellas-E Instructions For Use

Hellas / Hellas-E
Exposure Unit
Instruction for Use

Introduction

Note:
This instructions apply as well to the single sided
exposure unit called Hellas-E. Hellas-E has on
the lower side an aluminium plate instead of the
glass board and the tubes in the lower lighting
area are removed.

Application

The HELLAS exposure unit is a vacuum assisted
copier suitable for all products which are light
sensitive in the near UV emission range (360-
400nm). These are in particular positive or negat-
ive fotocoated boards, printing plates made from
nylon, aluminium, steel as well as Diazo- and
transfer films.
Bungard Elektronik GmbH & Co. KG, Rilkestraße 1, 51570 Windeck – Germany
Tel.: +49 (0) 2292/5036, Fax: +49 (0) 2292/6175, E-mail: support@bungard.de

Safety Regulations

Pull the power supply plug before all
Maintenance work on the machine.
The intensity and spectre of the UV light from the
fluorescent tubes can be compared to that of skin
tanning sets: It may irritate your eyes. You should
therefore avoid to look directly into the light for a
longer time.
Be extremely careful not to contaminate the foil
with spots of developer or etching liquid.
Do not put pieces with an height of more than
about 5 mm under the frame. This could lead to
serious deformation or even cuts in the foil. Be
cautious not to put any sharp things between the
glass board and the foil, when the vacuum is on.
This might damage the vacuum foil.
Do not block the vacuum pipe which ends at the
glass board (Hellas-E: aluminium plate).
Keep away from moisture
Do not drop
Lift the lid only to place artwork (prevent lid from
faling)

Technical Data

62 cm x 24 cm x 65 cm
Dimensions (Bx-
HxT):
ca. 40 kg
Weight:
220 V~, 50 Hz, ca. 800 W
Electrical Con-
nection:
ca. 570 x 300 mm
Max. Exposure
Size:
