SDX-135Z Wireless Smoke
Detector and Freezer Sensor Users Guide
Content
Smoke Alarm: What to do when the Alarm Sounds .......................... 2
Other Detector visual and Audible Indicators ................................... 3
Troubleshooting Guide .................................................................... 4
Product Features and Specifications ............................................... 6
Introduction...................................................................................... 6
Specifications .................................................................................. 6
Ordering Information ........................................................................ 6
Limitations of Smoke Detectors ....................................................... 7
Recommended Locations for Smoke Detectors ............................... 7
Locations to Avoid ........................................................................... 9
Installation / Activation / Wireless..................................................... 9
Wireless ........................................................................................ 10
Wireless Interconnect Model Compatibility..................................... 10
Resetting a Detector's Wireless Interconnect Settings ................... 11
Enrolling a Detector with a Panel ................................................... 12
Communication ............................................................................. 12
Operation and Testing ................................................................... 12
Operation ...................................................................................... 12
Recognizing Nuisance Alarms ....................................................... 13
®
Control and Locate Feature .................................... 13
Battery ........................................................................................... 14
Low Battery ................................................................................... 14
Permanently Disable Detector / Discharge Battery ........................ 14
Cleaning Detector .......................................................................... 15
Detector should be cleaned at least ONCE a year ......................... 15
Good Safety Habits ....................................................................... 15
Develop and practice a plan of escape .......................................... 15
Regulatory Information .................................................................. 16
Service and Warranty .................................................................... 17
Contact information ....................................................................... 17
Attention: Please take a few minutes to thoroughly read this user
guide which should be saved for future reference.
Note: Leave this user guide with the home owner.
You do NOT need a home Wi-Fi system to use these units.
Multiple wireless units create their own independent wireless
detector network, in addition to wireless connection with a
compatible panel.
© DDMONYY UTC Fire & Security. All rights reserved.

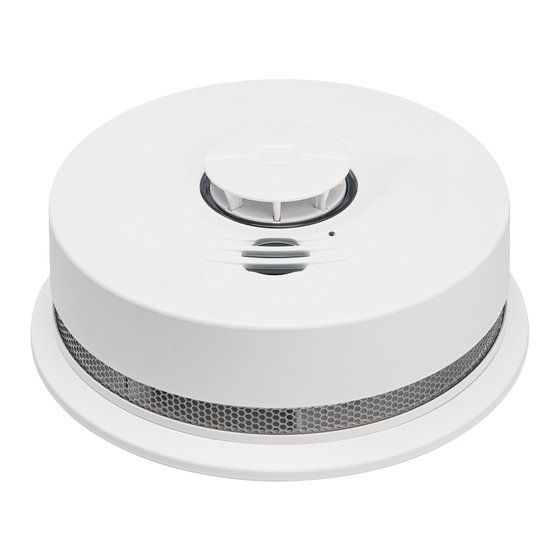

Thank you for purchasing this Interlogix smoke
detector.
This model is powered by a non-replaceable, long life sealed
lithium battery system, and includes SMART HUSH
to temporarily silence nuisance alarms. It is capable of
Wireless Interconnect with compatible units, and can also
communicate with an appropriate panel.
READ the following section: Installation /
Activation / Wireless, before powering the units,
see page 9. You do NOT need a home Wi-Fi
system to use these units. Multiple wireless units create their
own independent wireless detector network.
Teach children how to respond to the alarm and that they
should never play with the unit. Your Interlogix smoke
detector was designed for use in a residential environment. It
is not designed for use in a recreational vehicle (RV) or boat.
Note: Please thoroughly read this user guide and save the
document for future reference and to pass on to any
subsequent owner.
The National Fire Protection Association (NFPA) and the
manufacturer recommend replacing this detector 10 years
from the date code on back of the detector.
1 / 17
®
Control
P/N 466-5308 • REV B • 16MAY18
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Interlogix SDX-135Z
Summary of Contents for Interlogix SDX-135Z
-
Page 1: Table Of Contents
Teach children how to respond to the alarm and that they Permanently Disable Detector / Discharge Battery ......14 should never play with the unit. Your Interlogix smoke Cleaning Detector ................15 detector was designed for use in a residential environment. It Detector should be cleaned at least ONCE a year ...... -
Page 2: Smoke Alarm: What To Do When The Alarm Sounds
Customer Service: 1-855-286-8889 Carbon Monoxide Alarm: What to do Please write down the below information and have this at when the Alarm Sounds hand when you call. Note: This is not a carbon monoxide (CO) alarm, but will receive and transmit a CO alarm signal (four quick beeps repeating Model (on back): every 5 seconds) from an interconnected CO or combination smoke / CO alarm/detector. -
Page 3: Other Detector Visual And Audible Indicators
Other Detector visual and Audible Indicators Operational Mode Visual Indications Audible Indications Action Notes Normal Operation (standby) GREEN LED blinks every 60 seconds. Freeze Warning One RED LED blinks every None None. Flashing continues while condition 20 seconds. exists. Tamper Condition One RED LED blinks every Detector chirps once when Reattach detector to its trim plate,... -
Page 4: Troubleshooting Guide
Troubleshooting Guide Trouble Condition Visual Indications Audible Indications Action Push the Test/Hush button once to Fault Mode/Fatal Error AMBER LED blinks Detector chirps every 30 attempt to reset the detector. every 5 seconds. seconds. LED will blink out an Error Code (number of blinks) when the Test/Hush button is pushed/released once. - Page 5 Trouble Condition Visual Indications Audible Indications Action Remove, discharge, and then dispose of AMBER LED blinks Low Battery Detector chirps every 60 detector. Replace as soon as possible. every 5 seconds. seconds End of Detector Life (EOL) AMBER LED blinks Double detector chirp LED will blink out an Error every 5 seconds.
-
Page 6: Product Features And Specifications
SDX- 135Z is multi-listed to UL217, UL268, and ULC-S531 x 59.0 ± 1.0 mm) requirements. Smoke 2.32 +/- 1.35 %/ft. obscuration The SDX-135Z wireless smoke detector with heat and freeze Sensitivity sensor is compatible with the following panels: Rate-of-Rise 15°F/min (8.3C/min) monitoring above 105°F •... -
Page 7: Limitations Of Smoke Detectors
Limitations of Smoke Detectors Recommended Locations for Smoke Detectors WARNING: PLEASE READ CAREFULLY AND THOROUGHLY • Locate detectors in all sleeping areas. Try to monitor the exit path as the bedrooms are usually farthest from the • Life safety from fire in residential occupancies is based exit. - Page 8 Figure 1: SDX-135Z Smoke Detector Locations Figure 2: SDX-135Z Smoke Detector Floor Locations (single and multiple floor) Figure 3: SDX-135Z Smoke Detector Locations (US Installation) Figure 4: SDX-135Z Smoke Detector Locations (Canadian Installation) 8 / 17 P/N 466-5308 • REV B • 16MAY18...
-
Page 9: Locations To Avoid
If you are installing detectors and will use the Locations to Avoid wireless interconnect function, proceed to section 9.1 “Set Up a Wireless Detector • In the garage. Products of combustion are present when Network (Wireless Interconnect)” If you are not you start your automobile. -
Page 10: Wireless
Note: At this point, you can push/release the test button once on any detector, and the LED will flash the number of The following Interlogix models can be interconnected using enrolled detectors. wireless interconnect: Wait for the network setup to timeout (approximately 15 •... -
Page 11: Resetting A Detector's Wireless Interconnect Settings
The detector is now activated. After installation / designated location per Figure 5: Powering SDX-135Z activation, test your detector as described in Operation to ON. The detector will beep once when the magnet is and Testing section. -
Page 12: Enrolling A Detector With A Panel
(refer to the specific panel installation Note: Use Interlogix brand of Smoke! In A Can part number SM- instructions). 200. Exit from Dealer Sensor Test mode. -
Page 13: Recognizing Nuisance Alarms
® Press the Test/Hush button to quiet the sounder. Note: Dense smoke will override HUSH and sound a continuous alarm. If no fire is present, check to see if one of the reasons Note: Due to the high smoke concentration from the canned listed in “Locations to Avoid”... -
Page 14: Battery
To permanently disable detector / discharge battery: Battery Figure 7: Disable Detector / Discharge Battery (Break Note: This detector is powered by non-replaceable, sealed lithium Tab) batteries. No battery installation or replacement is necessary for the life of the detector. Note: Constant exposure to high or low humidity or temperatures may reduce battery life. -
Page 15: Cleaning Detector
• If you have children or physically challenged people Cleaning Detector residing in your household, use window decals to help emergency personnel identify the sleeping quarters of Detector should be cleaned at least ONCE these individuals. a year Current studies have shown smoke alarms may not awaken You can clean the detector by using a vacuum cleaner hose all sleeping individuals, and that it is the responsibility of and vacuuming through the openings around the perimeter... -
Page 16: Regulatory Information
• (3) On every level of a dwelling unit, including conditions suivantes: (1) l’appareil ne basements. doit pas produire de brouillage, et (2) • l’utilisateur de l’appareil doit accepter tout (4) On every level of a residential board and care brouillage radioélectrique subi, même si occupancy (small facility), including basements and le brouillage est susceptible d’en... -
Page 17: Service And Warranty
For customer support, see www.interlogix.com/customer-support © 2018 UTC Fire & Security Americas Corporation, Inc. Interlogix is part of UTC Climate Controls & Security, a unit of United Technologies Corporation. All rights reserved. May 16, 2018 P/N 466-5308 • REV B • 16MAY18...
