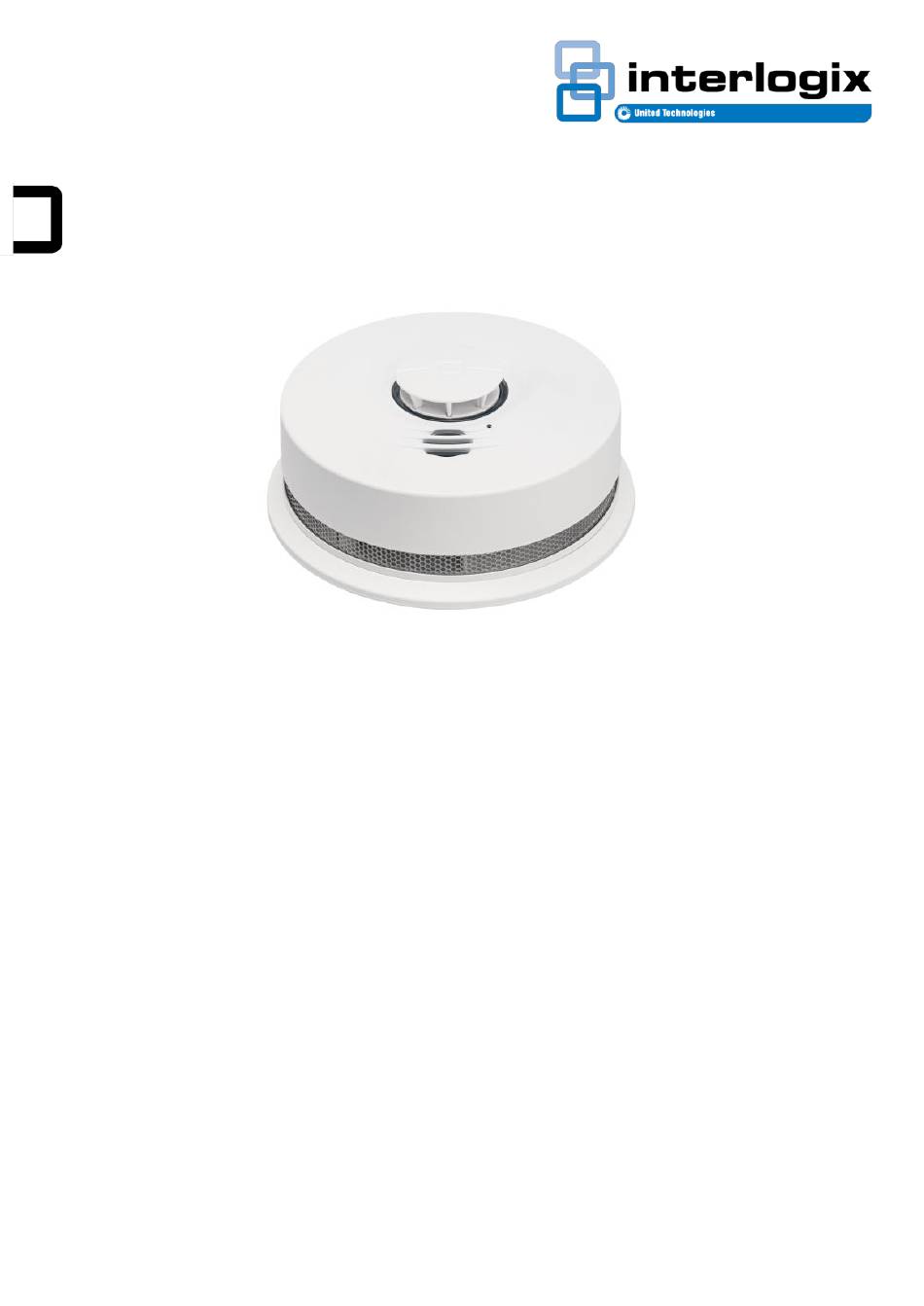

CDX-135Z
Wireless Smoke/CO Detector with Heat and
Freeze Sensor Installation Manual
Attention: Please take a few minutes to thoroughly read this guide which should be
saved for future reference.
The CDX-135Z wireless smoke and carbon monoxide detector with heat and freeze
sensor is compatible with the following Interlogix learn mode panels: Simon®XT, Simon
XTI, Concord®4 (firmware version 4.7 or higher), Advisor®One and UltraSync
Description
The Interlogix CDX-135Z supervised photoelectric smoke and carbon monoxide (CO)
detector with heat and freeze sensors is a self-diagnostic Learn Mode wireless sensor
with wireless interconnection, 10-yr sealed battery and sensor life, built-in sounder,
diagnostic/status LED, integrated fixed temperature and rate-of-rise heat sensor and a
pre-freeze condition sensor.
The CDX-135Z uses a 319.5MHz transmitter for communication to the control panel
and a 915MHz transmitter for interconnection communication between networked
detectors. Up to 24 detectors can be a part of the same interconnected network. The
dual transmitter design ensures interconnection integrity is maintained independent of
control panel status. Because of this unique design the CDX-135Z is multi listed to UL
217, UL268, UL2034 and UL2075 requirements.
The combination alarm combines the detection capabilities of a photoelectric sensor
with that of an electrochemical sensor, which is used to detect CO. The highly accurate
electrochemical CO sensor uses sophisticated onboard microprocessor to effectively
1 P/N 466-5307 • REV A • ISS 15MAR17
©2017 United Technologies Corporation

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CDX-135Z and is the answer not in the manual?

Questions and answers

Edmund
February 17, 2025

Gdzie się znajduje przycisk Test/Wyciszenie

1 comments:
Mr. Anderson
May 14, 2025

The Test/Silence button on the Interlogix CDX-135Z is located on the detector itself. Pressing this button allows you to activate the SMART HUSH™ feature or locate the initiating detector during an alarm event.

This answer is automatically generated

Summary of Contents for Interlogix CDX-135Z

  • Page 1 Up to 24 detectors can be a part of the same interconnected network. The dual transmitter design ensures interconnection integrity is maintained independent of control panel status. Because of this unique design the CDX-135Z is multi listed to UL 217, UL268, UL2034 and UL2075 requirements.
  • Page 2 CO level over time. The detector has a test feature that allows for testing with real CO gas. The CDX-135Z uses a 10-year sealed-in lithium battery ensuring continuous operation over the 10 year life of the detector. This eliminates worry about battery removal or unauthorized deactivation of alarm.
  • Page 3 Figure 1 Figure 2 Locations to Avoid • In the garage. Products of combustion are present when you start your automobile. • Normal cooking may cause nuisance alarms. If a kitchen detector is desired, it should have an alarm silence feature or be a photoelectric type. •...
  • Page 4: Wireless Interconnect Model Compatibility

    The interconnect system should not exceed the NFPA interconnect limit of 12 smoke detectors and/or 18 detectors total (smoke, CO, smoke/CO combination, heat, etc.). WIRELESS INTERCONNECT MODEL COMPATIBILITY The following Interlogix model can be interconnected using wireless interconnect: • SDX-135Z •...
  • Page 5 Power on all detectors by attaching the detectors onto the mounting bracket (trim plate) to activate the battery, or by carefully turning the activation wheel with a screwdriver. See Figure 3. Figure 3 • The GREEN LED will fade on and off once, then the RED LED will begin fading on/off every 3 seconds.
  • Page 6 or wall, the "A" line on the mounting bracket must be parallel with the hallway when ceiling mounted, or horizontal when wall mounted. • Install the detector fully on the mounting bracket (trim plate) by rotating the detector in a clockwise direction. NOTE: The detector will mount to the bracket in 4 positions (every 90 degrees).
  • Page 7 • Install the detector fully on the mounting bracket (trim plate) by rotating the detector in a clockwise direction. NOTE: The detector will mount to the bracket in four positions (every 90 degrees). The detector is now activated. After installation / activation, test your alarm as described in Operation and Testing section.
  • Page 8: Enrolling A Detector With A Panel

    Enrolling a Detector with a Panel The following section provides a general guideline for programming (enrolling) the unit into control panel memory. Refer to the panel documentation for complete programming details. Set the control panel to into installer programming mode When requested to broadcast a signal from the detector to the panel, remove the detector from the mounting bracket (trim plate).
  • Page 9 Carbon monoxide alarm pattern is four quick beeps repeating every 5 seconds WARNING: CARBON MONOXIDE ALARM ACTIVATION INDICATES THE PRESENCE OF CARBON MONOXIDE (CO) AT HIGH CONCENTRATIONS WHICH CAN KILL YOU. If the CO condition that caused the alarm in the first place continues, the initiating alarm unit will reactivate in alarm mode.
  • Page 10: Functional Smoke Test

    The smoke test should be performed annually. A canned smoke testing agent must be used for the functional smoke test NOTE: Use Interlogix brand of Smoke! In A Can part number SM-200. Wait at least 90 seconds after installation to test the smoke detector.
  • Page 11 Make sure the GREEN LED is flashing for normal operation (one GREEN LED blink every 60 seconds). Set the control panel to sensor test mode To expedite testing, by-pass the CO accumulator circuit by placing the detector in “System Test Mode”. Start System Test mode by placing magnet next to reed switch (Figure 4) and hold it for four seconds until unit chirps twice and the RED LED begins blinking rapidly.
  • Page 12: Ambient Light Sensing

    AMBIENT LIGHT SENSING In low light ambient conditions, the GREEN LED will reduce in brightness and intensity. This detector samples the ambient light conditions of its location and, if possible, determines a Night/Day cycle. A valid Night/Day cycle will delay the conditions that require that the detector be replaced (Low Battery or end of Unit Life) or Network Error chirps at night until the next Day cycle begins.
  • Page 13 Audible Operational Mode Visual Indication Indication Action: Smoke/Heat (Fire) On all alarming Alarm per Smoke/fire has been detected. Alarm detectors, the Temporal T3 Follow the instructions at the RED LED blinks Pattern beginning of this User Guide per a Temporal under the section "What to do T3 Pattern Temporal T3...
  • Page 14: Alarm Nuisance And Hush

    Audible Operational Mode Visual Indication Indication Action: System Detector Flashes RED, Temporal T3 and Allow completion of test or Test (button press AMBER, GREEN, T4 patterns perform button press to cancel in System Mode then current before end of countdown - when no alarm protocol on each return to normal operation...
  • Page 15 LOCATE This wireless model includes a feature to help you locate the initiating detector(s) in a wireless interconnect system. During a known smoke alarm event, pushing the Test/Hush button on any non-initiating detector will silence ALL wireless units EXCEPT the initiating detectors(s) for two minutes. After two minutes, all units will resume interconnect alarm if the initiating detector has not been located and silenced.
  • Page 16: Low Battery

    LOW BATTERY This detector is equipped with a low battery monitor circuit. If the battery capacity can no longer provide adequate power for all alarm functions, the low battery condition will occur. See Troubleshooting Guide. The detector battery must be discharged and the detector must be replaced within 7 days of the first occurrence of the “Low Battery Warning”...
  • Page 17: Troubleshooting Guide

    Figure 6 After the tab is broken, use the screwdriver to turn the slotted arrow to the "Permanently Disable Detector/Discharge Battery" location. This will disable the detector, stop the low battery or end of unit life “chirps” and render the detector safe for disposal by draining the battery.
  • Page 18 Audible Trouble Condition Visual Indication Indication Action: Low Battery One AMBER LED Detector chirps 1. Push the Test/Hush button blink every 5 every 60 seconds. once to silence the audible seconds. indication for 24 hours at a time. Remove, discharge, then dispose of detector.
  • Page 19: Co Safety Tips

    It’s advisable to inquire about any applicable fees prior to having the service performed. Interlogix will not pay for, or reimburse the owner or user of this product, for any repair or dispatch calls related to the alarm sounding.
  • Page 20: Symptoms Of Co Poisoning

    SYMPTOMS OF CO POISONING Initial carbon monoxide poisoning symptoms are similar to the flu with no fever and can include dizziness, severe headaches, nausea, vomiting and disorientation. Everyone is susceptible but experts agree that unborn babies, pregnant women, senior citizens and people with heart or respiratory problems are especially vulnerable.
  • Page 21: Good Safety Habits

    • Never attempt to disassemble the detector to clean inside. This action will void your warranty. • The following substances can affect the CO sensor and may cause false readings and damage to the sensor: Methane, propane, isobutane, iso-propanol, ethyl acetate, hydrogen sulfide, sulfide dioxides, alcohol based products, paints, thinner, solvents, adhesives, hair spray, after shave, perfume, and some cleaning agents.
  • Page 22: California State Fire Marshall

    COPYRIGHT Copyright © 2017 United Technologies Corporation. All rights reserved. TRADEMARKS Interlogix is a registered trademark of United Technologies Corporation. Interlogix is part of UTC Climate, Controls & Security, a unit of United Technologies Corporation. PLACED ON THE MARKET BY: UTC Fire &...
  • Page 23: Specifications

    Specifications Power 3V DC non-replaceable sealed lithium batteries Smoke sensor Photoelectric CO sensor Electrochemical Temperature sensor NTC Thermistor Battery life 10 years Detector life 10 years 85dB at 10’ @ 3.2±0.5 KHz pulsing alarm Audible alarm Smoke/heat Temporal T3 pattern Temporal T4 pattern Dimensions Ø...
  • Page 24: Product Ordering

    Product Ordering Model Description CDX-135Z Wireless Interconnected Combination Smoke and Carbon Monoxide Detector with Heat and Freeze Sensor, Sounder, UL 217, UL 268, UL 2034, UL 2075, ULC S531 Accessories Smoke! In A Can (canned smoke) for functional testing of smoke...
  • Page 25 certification supplémentaire avec Industrie Canada, comme un complément d'information et l'application à la notice de Changement Permissif de Classe IV. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •...
  • Page 26: Alarm Procedure

    Alarm Procedure For questions concerning this detector please contact Product Support at 1-855-286-8889. Our internet address is www.interlogix.com/support. For your convenience, write down the following information. If you call Product Support, these are the first questions you will be asked.

Table of Contents
