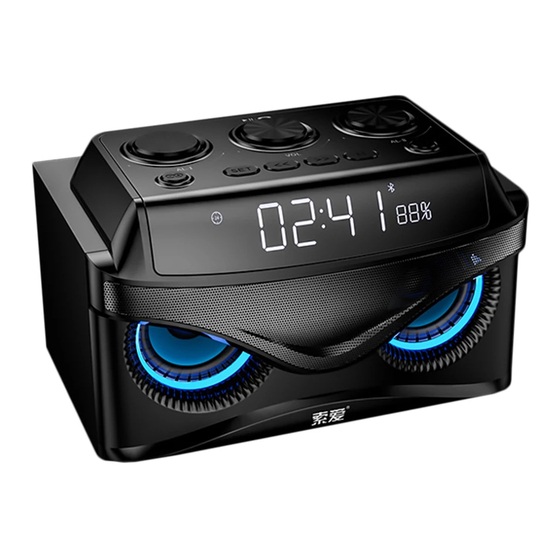

Soaiy S68 Quick Start Manual

Soaiy S68 Quick Start Manual

Bluetooth speaker with clock

Advertisement

Quick Links

Bluetooth Speaker with clock
S68
Quick Start Guide
Foreword
Thanks for choosing our product, our product use 2.1 soundtrack. To bring you
an unprecedented sense of hearing.
Attention: Please read and follow all the alerts and instructions, keep this user
manual for further reference.
一,
Each part of the product:

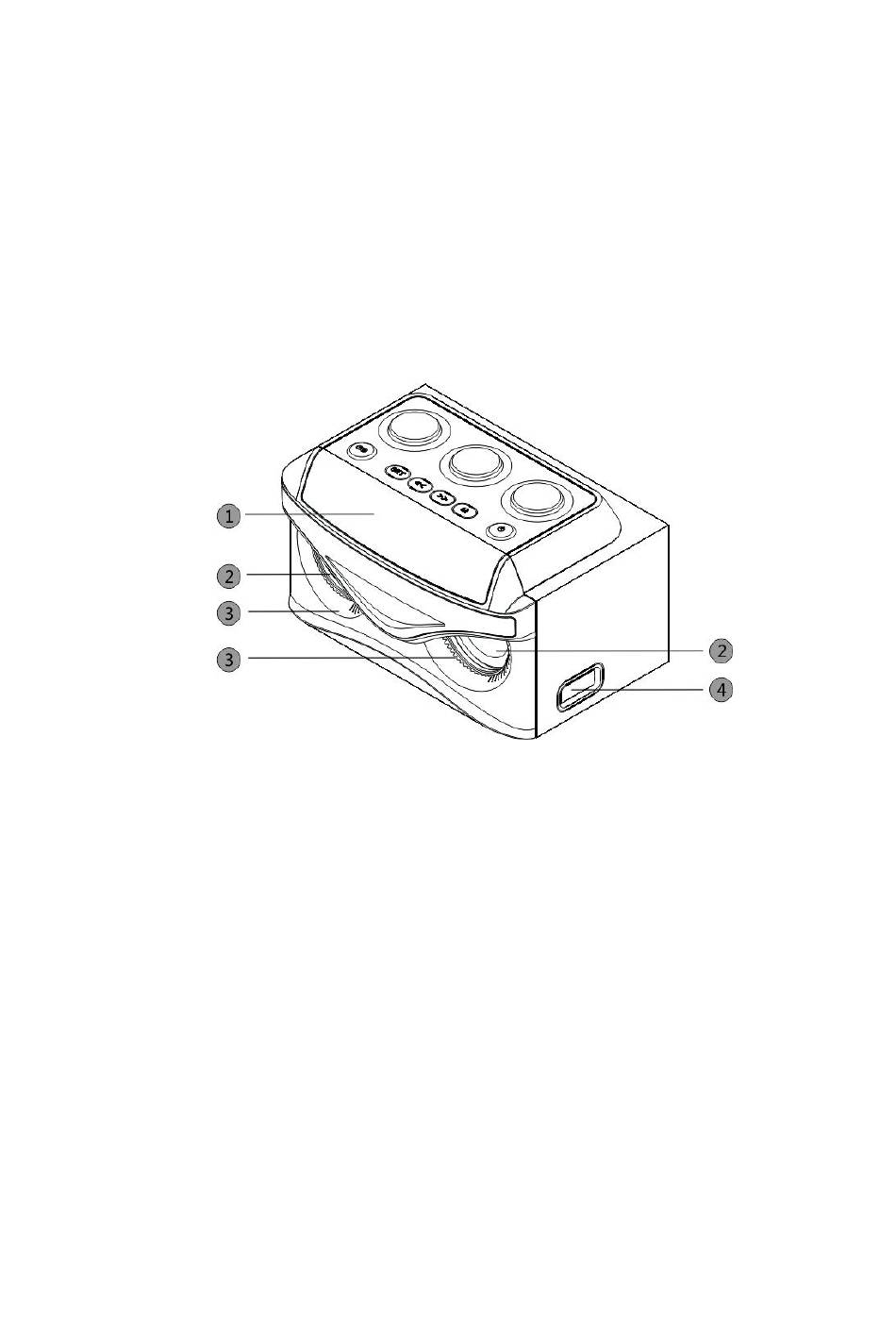

Schematic diagram of front plate
1,LED display screen
2, Left and right soundtrack speaker
3,Left and right spectrum lights(as it moves with music )
4,Subwoofer guide Sound Hole
Schematic diagram of back plate

Advertisement

loading
Need help?

Need help?

Do you have a question about the S68 and is the answer not in the manual?

Questions and answers

Summary of Contents for Soaiy S68

  • Page 1 Bluetooth Speaker with clock Quick Start Guide Foreword Thanks for choosing our product, our product use 2.1 soundtrack. To bring you an unprecedented sense of hearing. Attention: Please read and follow all the alerts and instructions, keep this user manual for further reference. 一,...
  • Page 2 5,Heavy Bass Speaker 6,Product mats 7, Charging indicate light 8, USB Port 9, Aux Port 10, Reset port 11, TF Card port 12, U disk port Control panel schematic 13 , AL-I button: Alarm clock1 set key 14,VOL button( Rotate this button to adjust volume and adjust timer, short press for playing/pause/Answer the call) 15,AL-Ⅱbutton: Alarm clock2 set key 16,Timer button...
  • Page 3 17,SET: Clock set key 18,Previous key 19,Next key 20,M Key: Mode Key 21,Power Button:Long press for turn on/off Display panel schematic 1,Clock,Mode state, Radio frequency and radio number,Playing time display,Volume level 2,Timer 3,Battery charge percent 4,Time display mode 24hours icon 5,Alarm clock I 6,Alarm clockⅡ...
  • Page 4 2,This S68 supports MP3, WMA, WAV, APE, FLAC and other audio format. FM radio mode: 1, After turn on S68, press the “M”switch to radio mode,the icon of FM will always 2, Long Press the“VOL”into the automatic search radio state, long press “>>”“<...
  • Page 5 Vol key to adjust time. After setting completed,short press Timer key to stored and start timing function. The S68 will stop playing automatically when the time is up. 2, Long press the to turn on /off the timing function.
  • Page 6 2,Alarm Clock Cycle selection: Short press “AL-I”switch alarm clock cycle selection status,now the led screen will display “ONE”or “ALL”, then rotate “AL-Ⅰ”key to choose “ONE”for once alarm (the cycle icon will not bright), then it will not alarm again. To choose“ALL”,the cycle icon will always bright.(The alarm clock will ring at the specified time everyday) 3, When you setting the time, if you can not complete the setting within 15s, it will...
  • Page 7 Bluetooth Version V4.2 Bluetooth Distance 10 meters FM frequency band 87.5-108MHz Clock display 24hours format Product Features Two Alarm clocks、Support Timer Battery type Inside Li 7.4V—2000mA Charge input DC 5V—1.5A Degree of separation ≥45db Signal-noise ratio ≥85db Degree of distortion <0.5% Frequency Response 60Hz-15Khz...
  • Page 8 8, This product has no dust-proof, moisture-proof and waterproof function. 9, Do not disassemble this machine without authorization to avoid dangerous. 六,Package List 1*User manual 1*S68 product 1*USB cord 1*Aux cable...
  • Page 9: Fcc Statement

    FCC STATEMENT : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
