Summary of Contents for Soaiy X6

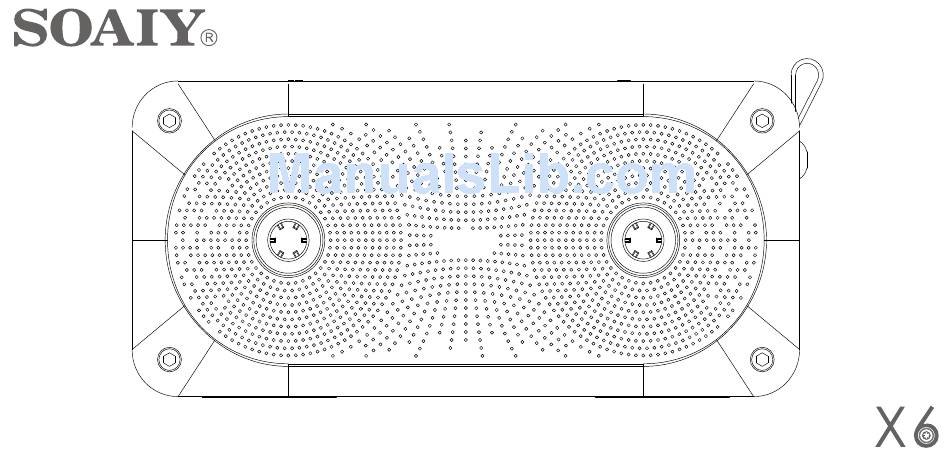

- Page 1 Bluetooth Speaker QuickStartGuide...
-
Page 2: PowerOn/OffOperation
PowerON/OFFOperation Charging the speaker before first use is recommended. Hold the button for 3 seconds to turn on / off the device. Speaker will make a sound when powering on / off. Speaker will power off after 5 minutes of inactivity. - Page 3 1) Turn on Bluetooth on phone/pc/tablet/etc... 2) Turn on Speaker (Make sure speaker has power) 3) Search for Bluetooth signal name: X6 (On your device) 4) Tap on X6 on the screen Android users may need to reset phone if both channels are unable to connect.
- Page 4 Keys Function Operation Pause/ Play...
- Page 5 Keys Function Operation Quick Press (less than 1 second) to switch to the next song. Press and hold to increase volume. Song skipping is not available for Auxiliary Cable (Aux mode)
- Page 6 Keys Function Operation Quick Press (less than 1 second) to switch to the previous song. Press and hold to decrease volume. Song skipping is not available for Auxiliary Cable (Aux mode)
- Page 7 Indicator LED Lights Charging.... Flashing Red Pairing....Flashing Red and Blue Paired....Solid Blue Fully Charged..Solid Red...
-
Page 8: Microphone Hole
Microphone Hole To improve call quality, stay within 30cm from the microphone. Calling from the same room may cause interference in sound quality. - Page 9 Battery LED Indicators Three Solid LED Indicators: Battery is fully charged. Two Solid LED Indicators: Battery capacity is around 60%. One Solid LED Indicator: Battery capacity is less than 30%. Recharging recommended.
- Page 10 Under the Dust Cover AUXaudioinput Reset button Micro-USB charge input...
- Page 11 AUX IN Connect your device to the speaker with the auxiliary cable. Speaker volume buttons are functional. Pause/Play button depends upon the operating system of the phone. Auxiliary connection drains the phone's battery slower.
-
Page 12: Reset Switch
Reset Switch Press reset button with the help of a paper clip or something similar. Reset will reset the speaker and Bluetooth connection. -
Page 13: Usb Interface
USB Interface It is possible to charge from a computer. Computer's USB is generally the slowest method. Charging slowly means a longer lasting battery. USB is fairly universal as most USB plugs have already been converted for 5V. Always check with power source. -
Page 14: Package Contents
Package Contents 3.5mm Audio Cable User Guide X6 User Guide Micro-USB to USB Charge Cable... - Page 15 FCC ID: 2AECY-X6...
-
Page 16: Technical Data
Technical Data Bluetooth Version 2.1+EDR Frequency Response 80Hz to 19KHz OutputPower 3.5W+3.5WRMS Maximum 88dB Impedance 4Ω Netweight 210g Dimension L145*W30 *H66.3 mm Chargingtime 2~3hours Li-ion battery 5 hours Battery Playtime (default volume) 3.7V 1000mAh... - Page 17 ▶Adjust the volume to a suitable level so as to avoid damaging your hearing, or the unit itself. ▶The red indicator will flash when the battery is low,Please charge the speaker in time. Supervised by GuangzhouSoaiy Digital Technology Co.,Ltd Manufactured by Shenzhen Soaiy Technology Co.,Ltd ADD: 2&4/F,Bldg D,Fuxinlin Industrial park,Hangcheng Industrial Zone,Xixiang Street,Bao’an District,Shenzhen,China Website:www.soaiyaudio.com...
