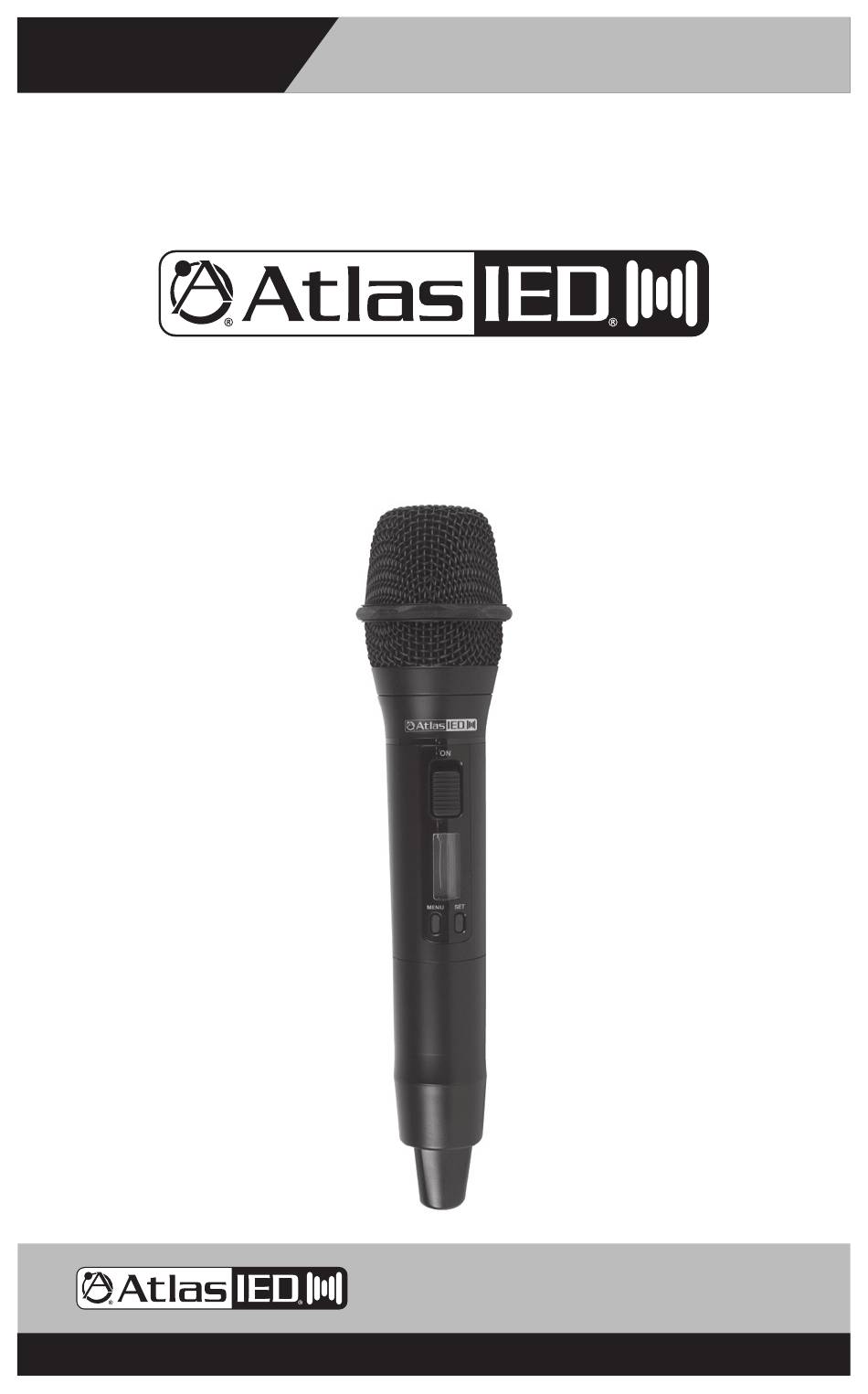

- Page 1 MWHHM Owner’s Manual Wireless Handheld Microphone MWHHM UHF 100 Frequency Wireless Handheld Microphone 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: 800.876.3333 • Fax: 800.765.3435 – 1 – AtlasIED.com Specifications are subject to change without notice.
- Page 2 Wireless Handheld Microphone Description The AtlasIED MWHHM wireless handheld microphone is the ideal choice for a variety of applications ranging from classrooms and conference rooms to lecture halls and live presentations. The MWHHM features a dynamic/condenser type microphone element in a sturdy enclosure that is lightweight and ergonomically designed for comfort.
- Page 3 MWHHM Owner’s Manual Wireless Handheld Microphone Parts and Functions 1. Cartridge 2. Battery Power LED 3. Power Switch 4. LCD Display 5. Menu Button 6. Setting Button 7. Synchronizing Button 8. Battery Compartment 9. Color Cap 10. Sensor Area 11. Charging Contacts 1601 Jack McKay Blvd.
- Page 4 Wireless Handheld Microphone Battery Indicator & Installation The MWHHM handheld microphone requires two (2) AA batteries to operate. Open the battery cover and insert the batteries into the battery compartment. Note: Batteries contain a corrosive acid that may leak and damage the microphone when stored for a long period.
- Page 5 MWHHM Owner’s Manual Wireless Handheld Microphone Synchronizing Channels on the Receiver and Transmitter Align infrared areas of the receiver and transmitter within 12" (30cm). < 12" Figure 2 A. Changing the receiver’s channel 1. Press the synchronizing button on the microphone (Fig 3).
-
Page 6: Channel Setting
MWHHM Owner’s Manual Wireless Handheld Microphone Channel Setting 1. Use MENU button to go to the CHANNEL | FREQUENCY page (Fig 7). 2. Press and hold the SET button for 3 seconds, then the upper-right channel number will flash to allow changes to be made (Fig 8). - Page 7 MWHHM Owner’s Manual Wireless Handheld Microphone System Frequency Range UHF 470-608MHz Switching Bandwidth 25MHz Switchable Frequency 2-way Synchronization RF Power Output < 10mW Spurious Emission > 60 dB Below Carrier Dynamic Range > 110 dB Display Screen T.H.D. < 0.5% Peak Deviation ±40KHz...
-
Page 8: Limited Warranty
Service Should your MWHHM require service, please contact the AtlasIED warranty department at 1-877-689-8055, ext. 277 or www.atlasied.com/support to obtain an RA number. AtlasIED Tech Support can be reached at 1-800-876-3333 or www.atlasied.com/support Visit our website at www.AtlasIED.com to see other AtlasIED products.
