Lindy 38107 Installation Manual

DVI-D Dual Link Video Splitter
Installation Guide
2 Port
4 Port
www.LINDY.com
For Home and Office Use
Tested to Comply with
FCC Standards
© LINDY ELECTRONICS LIMITED & LINDY-ELEKTRONIK GMBH – First EDITION (NOVEMBER 2011)
English
No. 38107
No. 38104

Introduction

Thank you for purchasing the LINDY DVI-D Dual Link Video Splitter. This
device allows a single DVI-D Dual Link signal source to be split to 2 or 4
DVI-D Dual Link displays or projectors for multi-screen presentation or
home theatre use.
Depending on the length and type of cables used the DVI-D Video splitter
can support resolutions of up to 2560 x 1600. To ensure maximum image
quality is maintained throughout your installation then we re-commend you
use LINDY DVI-D Premium / Gold cables.

Features

•
2 or 4 Port DVI-D Dual Link Video Splitter
•
Plug and Play installation
•
Supports resolutions up to 2560 x 1600
•
Built-in EDID simulator
•
HDCP support for output port 1

Installation

The LINDY DVI-D Video Splitter is a true Plug and Play device which does
not require any software or drivers to operate. Simply connect the appro-
priate cables from the source device to the input on the splitter and then
connect appropriate cables from the splitter's outputs to your display
monitors or projectors.

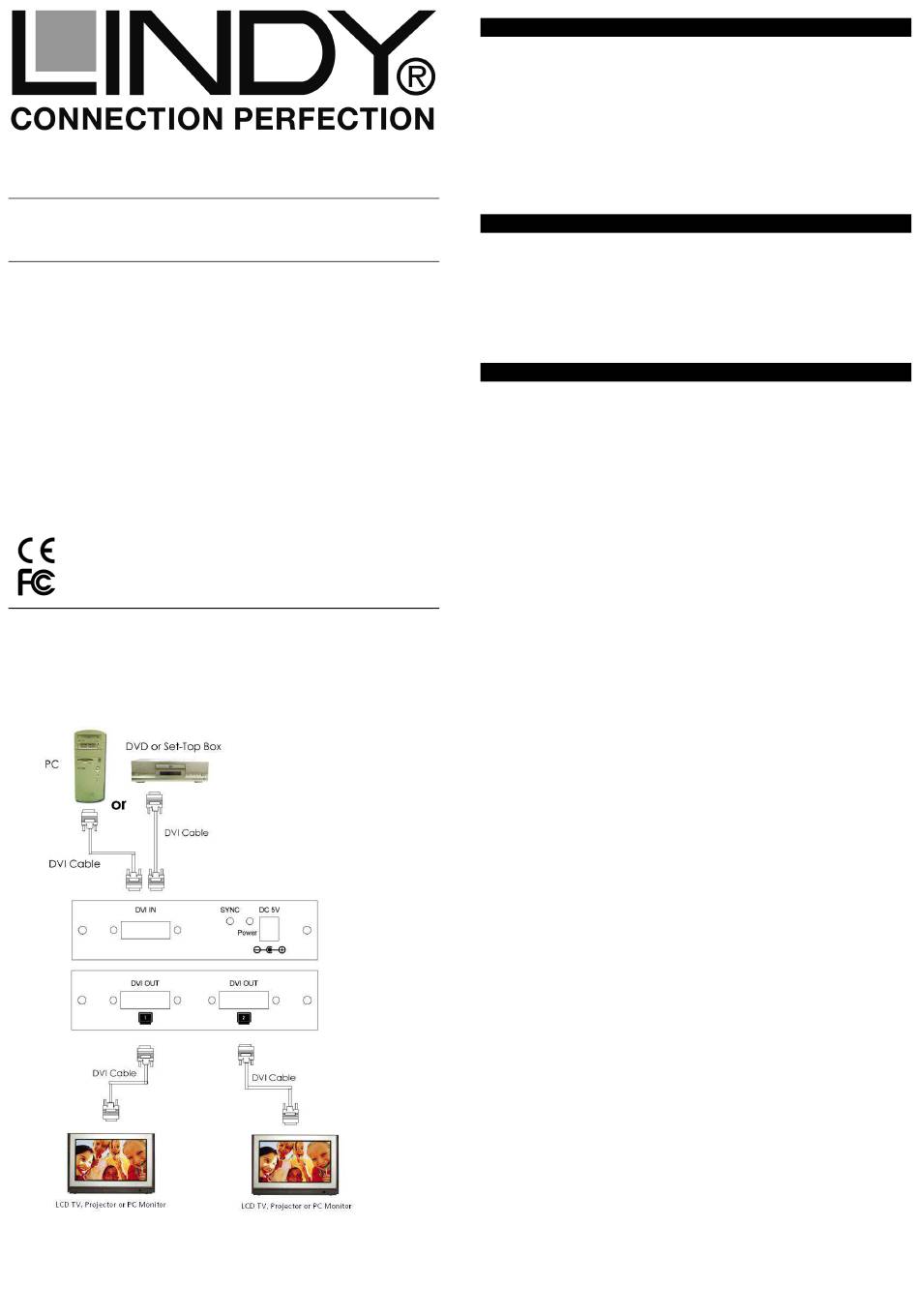

Please refer to the diagram below for a typical application using a 2 Port
DVI-D splitter.

Power-Up Sequence

Ensure all equipment is turned off before connecting the DVI-D Video
Splitter or cables. Once all cables are connected, first apply power to the
DVI-D Splitter, then to your display monitors or projectors and finally apply
power to the source device.
Note: When two active monitors are connected, the device will use the
EDID signal from the monitor attached to OUTPUT 1.

Package Contents

•
2 or 4 Port DVI-D Dual Link Video Splitter
•
5V DC Multi Country PSU
•
This user guide
•
Rubber feet
