Okin Refined JLDP.15.005.501 User Manual

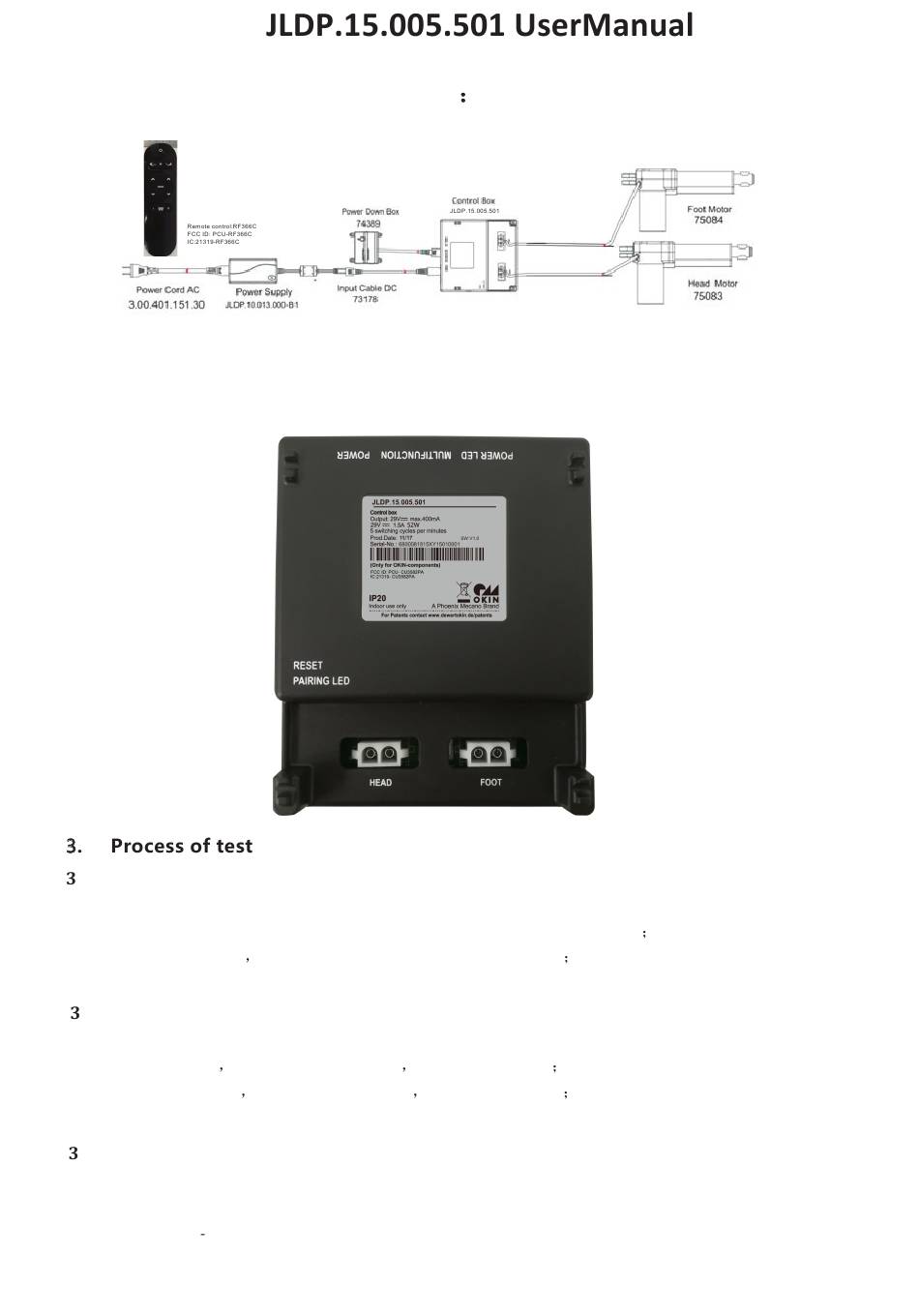

1. Electrical configuration diagram
2. Function Picture
.1. HEAD port
Connect to head actuator,control by remote single:
Click head up button on the remote, head actuator moves out, stop when released
Click head down button head actuator moves in, stop when released
This function takes effect only by pressing the corresponding button on the remote.
.2. FOOT port
Connect to foot actuator,control by remote single:
Click foot up button foot actuator moves out stop when released
Click foot down button foot actuator moves in stop when released
This function takes effect only by pressing the corresponding button on the remote.
.3. FOOT VIBRATION
Connect to foot massage,control by remote:
Click foot massage + button,foot massage strengthens by one level;
Click foot massage button,foot massage weakenby one level;
This function takes effect only by pressing the corresponding button on the remote.
1
