Summary of Contents for Caresono PadScan HD 5

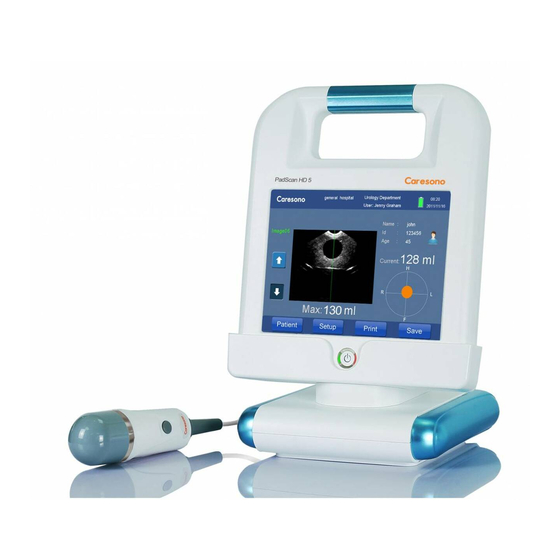

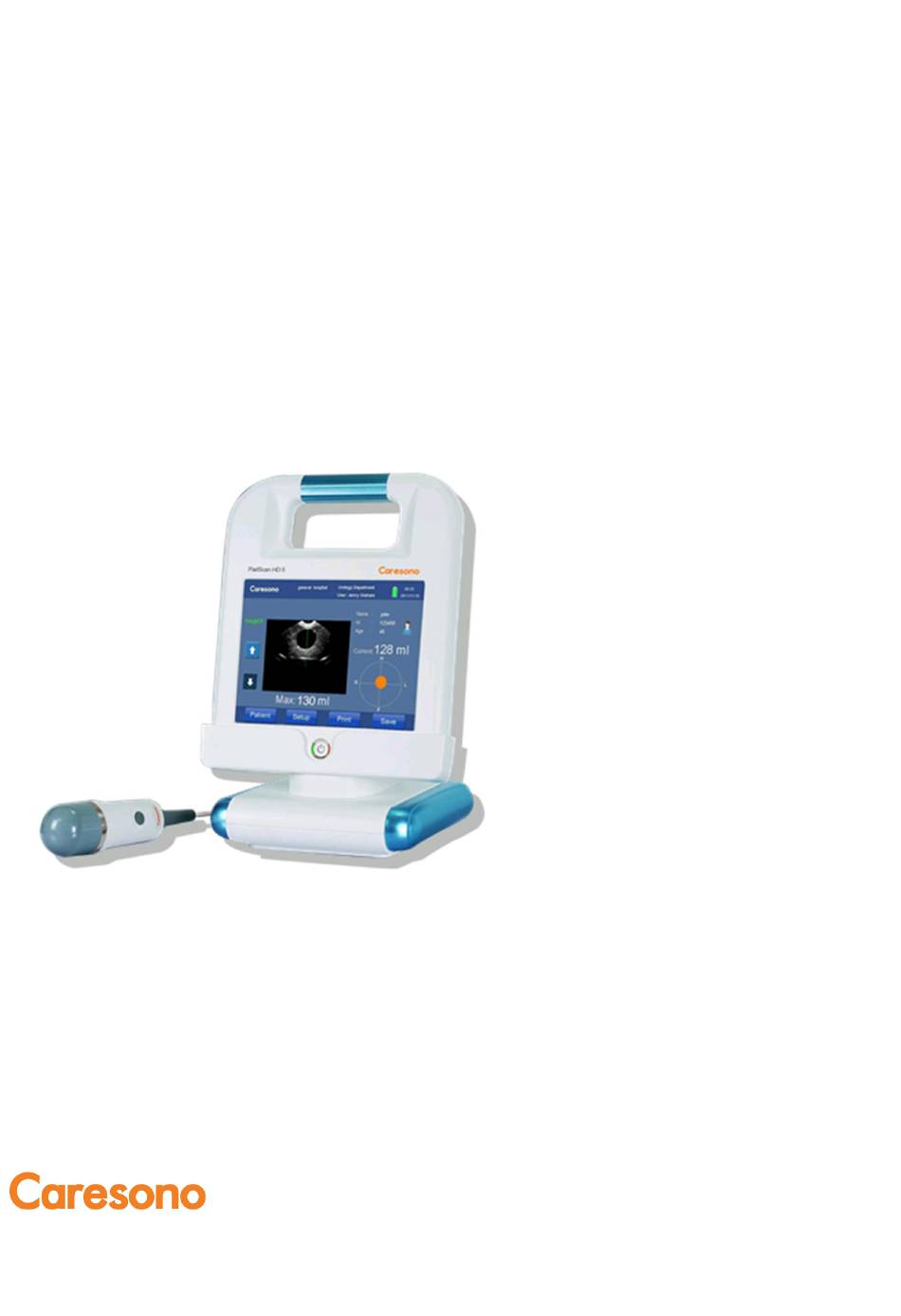

- Page 1 PadScan HD 5 Bladder Scanner User’s Manual RADEMARKS...
- Page 2 Address：4th Floor, N0.11Building, Initiating Zone, Instruments and Meters Industry Base, Near Port Industry Zone, Dandong, Liaoning Tel：+86 415 6279782Fax: +86 415 3191279 Global Sales Center: Caresono Technology Co., Ltd Address: BF13 Nanshan Medical Equipments Park, No.1019Nanhai Rd. Nanshan, Shenzhen, China Tel：+86 755 86367662...
-
Page 3: Table Of Contents
Adapter Power Supply .............................. 6 Battery Power Supply ............................... 6 POSITIONING THE PROBE AND OBTAINING OPTIMAL IMAGES ................7 PADSCAN HD 5 SCANNER SCREENS AND BUTTONS ....................9 Login Screen ................................9 Main Scanning Screen ............................... 9 Expert Mode ................................9 Easy Mode ................................ - Page 4 System Maintenance .............................. 28 Probe Cleaning and Maintenance ........................... 28 Cleaning the Probe ..............................28 Probe Maintenance ..............................28 Battery Use and Maintenance ..........................28 Treating and Disposing of Products After Use ......................29 TECHNICAL SPECIFICATIONS AND GENERAL SYSTEM INFORMATION ..............30 Component Specifications* .............................
-
Page 5: Introduction
Combined power supply with AC adapter and a built-in battery. Intended Use The PadScan HD 5 projects ultrasound energy through the lower abdomen of the patient to obtain images of the bladder which is used to calculate bladder volume noninvasively. -
Page 6: Cautions And Warnings
Check and maintain the device regularly. Do not disassemble or attempt to repair the device and the probe. ONLY CARESONO-trained technicians may service the unit. Equipment Checks 1. -
Page 7: Maintain Probe Safety
Warning: User swill assume responsibility of the risks associated with the use of the device after recommended service life. Manufacturer Declarations WARNING! Changes or modifications not expressly approved by CARESONO could void the user’s authority to operate the equipment. Warning: It is strictly prohibited to perform any modifications to the device without prior permission. -
Page 8: Equipment Unpacking And Installation
Unpacking After unpacking, confirm there is no damage due to shipping, and then check the parts against the packing list. The PadScan HD 5 system arrives with: 1 main unit with docking station and screws 1 Power adapter：AC100-240V±24V 50/60Hz, main unit：DC14V±0.5V ... -
Page 9: Installation
1 Insert here. 2 Screw in tightly. 3 Screw in (when necessary). PadScan HD 5 docking station installation 3. Align the red dot on the main unit with the black dot on the probe, and insert the probe into the main unit. -
Page 10: Battery Installation And Removal
NOTE: The yellow light indicates the battery requires charging. Green light signals it is fully charged. Power Supply PadScan HD 5 power is supplied by two interchangeable methods: adapter and built-in battery. Adapter Power Supply 1. Check that the adapter is properly functioning; verify the EPS is in the specified range. -
Page 11: Positioning The Probe And Obtaining Optimal Images
In order to correctly measure the volume of the bladder, grasp the probe as shown here: A green guideline visible on screen helps center the bladder. ((You can enable/disable this function from SETUP menu>Display>Central guide line ON/OFF) CARESONO PadScan HD 5 User’s Manual... - Page 12 In both Expert mode and Easy mode, a crosshair of project icon guide is displayed at the right side on the screen. It helps re-aim and re-scan. (You can enable/disable this function from SETUP menu>Display>Projection ON/OFF) Please refer to APPENDIX C: RE-AIMING GUIDE for more information about how to re-aim and re-scan. CARESONO PadScan HD 5 User’s Manual...
-
Page 13: Padscan Hd 5 Scanner Screens And Buttons
PADSCAN HD 5 SCANNER SCREENS AND BUTTONS Login Screen Operator: Tap to select user ID Password: Tap to type password Keyboard:use for typing Tap when ID and password are complete Main Scanning Screen Expert Mode Bladder location for volume measurement is determined by the technician scanning the image. Displays a real-time 2D image. -
Page 14: Easy Mode
Tap to print current scan Tap to save current scan Easy Mode Provides guidance to help find the correct location of the bladder. Does not provide a real-time 2D scanned image. Crosshair Profile of the urine bladder CARESONO PadScan HD 5 User’s Manual... -
Page 15: Patient Information Screen
Tap to add Patient Age Tap to add Patient Name Keyboard for typing ID and age Tap to clear content Tap to enter Patient data management Tap to confirm content Tap to cancel screen CARESONO PadScan HD 5 User’s Manual... - Page 16 Keyboard for entering patient name Input patient name Virtual keyboard Caps lock Confirm input Cancel input Backspace CARESONO PadScan HD 5 User’s Manual...
-
Page 17: Save And Review Patient Data
Patient Gender Time and date Urine Volume Operator Name Selected Patient Load selected patient case Previous page Export all patient data to USB Disk Clear all patient data Next page Back to the previous page CARESONO PadScan HD 5 User’s Manual... -
Page 18: Export Patient Data
USB flash disk. NOTE: It will take about 10 seconds to export one selected patient data to the USB flash disk. NOTE: Do not remove the USB flash disk during the exporting. CARESONO PadScan HD 5 User’s Manual... -
Page 19: Patient Data Management
Print the Bladder Scanner Report from [Tools]->[Print]. Patient Data Management interface Report printout NOTE: If you have saved new patient data to HD 5, you need to reboot HD 5 before another attempt of uploading. CARESONO PadScan HD 5 User’s Manual... -
Page 20: Setup Screens
Tap to add the department name. Up to 20 names can be added. Tap to add date and time. Tap to start calibration (see page 24 for more information on how to calibrate) Tap for Language selection. CARESONO PadScan HD 5 User’s Manual... -
Page 21: Service
Tap name for Easy mode Tap name for Expert mode Tap [PRINT] to print a self-test report Tap[START] to enter firmware update CARESONO PadScan HD 5 User’s Manual... -
Page 22: Operator
Tap Operator Login: ON / OFF to turn ON or OFF user login for the entire system. If turned OFF, then access is granted for all users without passwords. Operator log in (ON/OFF) User’s Name User’s Password CARESONO PadScan HD 5 User’s Manual... - Page 23 NOTE: The default administrator’s password is: 123456. The user’s default password is: 000000. NOTE: If you turn off the LOGIN function from SETUP menu, the login procedure will not be enabled during the start-up. CARESONO PadScan HD 5 User’s Manual...
-
Page 24: Print
Tap the Screen Off Time box to input the screensaver activation time (in minutes). Tap the Shut Down Time box to input an automatic system power-off time (in minutes). CARESONO PadScan HD 5 User’s Manual... -
Page 25: Display
Tap ON or OFF to enable or disable the feature. A: Display the maximum volume of current patient’s scans on main screen. Display crosshair of project icon guide on main screen Display central guide line in expert mode CARESONO PadScan HD 5 User’s Manual... -
Page 26: Using The Padscan Hd 5 Bladder Scanner
USING THE PADSCAN HD 5 BLADDER SCANNER Detailed information about screens can be found on page 9. 1. Login Press the power button to turn on the scanner. Tap the LOGIN button and type the access code. NOTE: If you turn off the LOGIN function from SETUP menu, the above login procedure will not be enabled. -
Page 27: Prepare Patient And Position Probe
The scanning takes 5 seconds to complete. Scan analysis in progress Scan analysis complete NOTE: Hold the Probe steady while scanning. Movement will impair the accuracy of the measurement. CARESONO PadScan HD 5 User’s Manual... -
Page 28: View The Scanned Images
Tap SAVE to save the exam data and results. 8. Print Tap PRINT to print the scan results. The printout contains the name of the patient, the patient ID code, patient age, patient gender, scan time, bladder volume, and two ultrasound images. CARESONO PadScan HD 5 User’s Manual... -
Page 29: Calibration
CALIBRATION Please be kindly noted, out of the proprietary technologies in ultrasound imaging and algorithm in measurement, Caresono PadScan Bladder Scanner HD5 retains clinical supremacy of Zero Calibration during its lifetime. Regarding this, we hereby officially specify: Within its lifetime clinical application, under the intact condition of both the PadScan Bladder Scanner HD5 main unit and the probe: 1. - Page 30 The calibration can only be done on Dansk Tissue Equivalent Phantom. The Dansk Phantom should be equipped with the probe holder made by Caresono. The probe head should be immersed by the water on the phantom surface completely; the probe head should touch the phantom surface.
-
Page 31: Troubleshooting
3. Check if the power, the plug of the probe and the sockets are connected well. If problems continue, please contact Caresono technical support. CARESONO PadScan HD 5 User’s Manual... -
Page 32: Cleaning And Preventive Maintenance
CLEANING AND PREVENTIVE MAINTENANCE The PadScan HD 5 is non-immersible. It should be wiped down with a soft, clean cloth dampened with a cleaning solution such as soap and water, or a mild detergent solution, or as per hospital/clinic cleaning instructions. -
Page 33: Treating And Disposing Of Products After Use
For end of life product, waste electrical and electronic equipment should be collected separately and returned to the designated local recycling service. Packaging waste should be collected separately for available national packaging collection and recycling services. CARESONO PadScan HD 5 User’s Manual... -
Page 34: Technical Specifications And General System Information
Probe: 3D mechanical sector Standard ultrasonic frequency of operation: 2.5MHz Volume measure range: 0ml - 999ml. Volume measure accuracy: ±15%, ±15ml (On Caresono tissue equivalent phantom) Scan time: <5 seconds Operation methods: touchscreen Tissue Harmonic Imaging (THI) ... -
Page 35: System Storage
Keep it in a well-ventilated area away from sunlight or caustic gases. Declaration of Electromagnetic Compatibility The operation of PadScan HD 5 will not interfere with other wired, wireless equipment and/or other electrical equipment. Warning: Use of the PadScan HD 5 under strong electromagnetic environments, close to generators, X-ray devices, dentistry physiotherapy equipment, broadcasting stations, or buried cables, etc... -
Page 36: Symbols
Not for general waste. Dispose of in accordance to local Class II Electrical Equipment regulations. Manufacture Date Manufacturer Handle with care Temperature limit Limited layers of storage Upwards Keep dry Keep away from sunlight CARESONO PadScan HD 5 User’s Manual... -
Page 37: Appendix A:labeling
APPENDIX A:LABELING Main Unit Labeling Probe Labeling Adapter Labeling CARESONO PadScan HD 5 User’s Manual... -
Page 38: Appendix B: Acoustic Output Report
APPENDIX B: ACOUSTIC OUTPUT REPORT CARESONO PadScan HD 5 User’s Manual... -
Page 39: Appendix C: Re-Aiming Guide
The following images show how to re-aim. Move the probe to down to the left Move the probe to down to the right Move the probe to up to the left Move the probe to up to the right CARESONO PadScan HD 5 User’s Manual... - Page 40 Move the probe to the right Move the probe to the left Move the probe down Move the probe up CARESONO PadScan HD 5 User’s Manual...
