Summary of Contents for Fine Offset Electronics WH40B

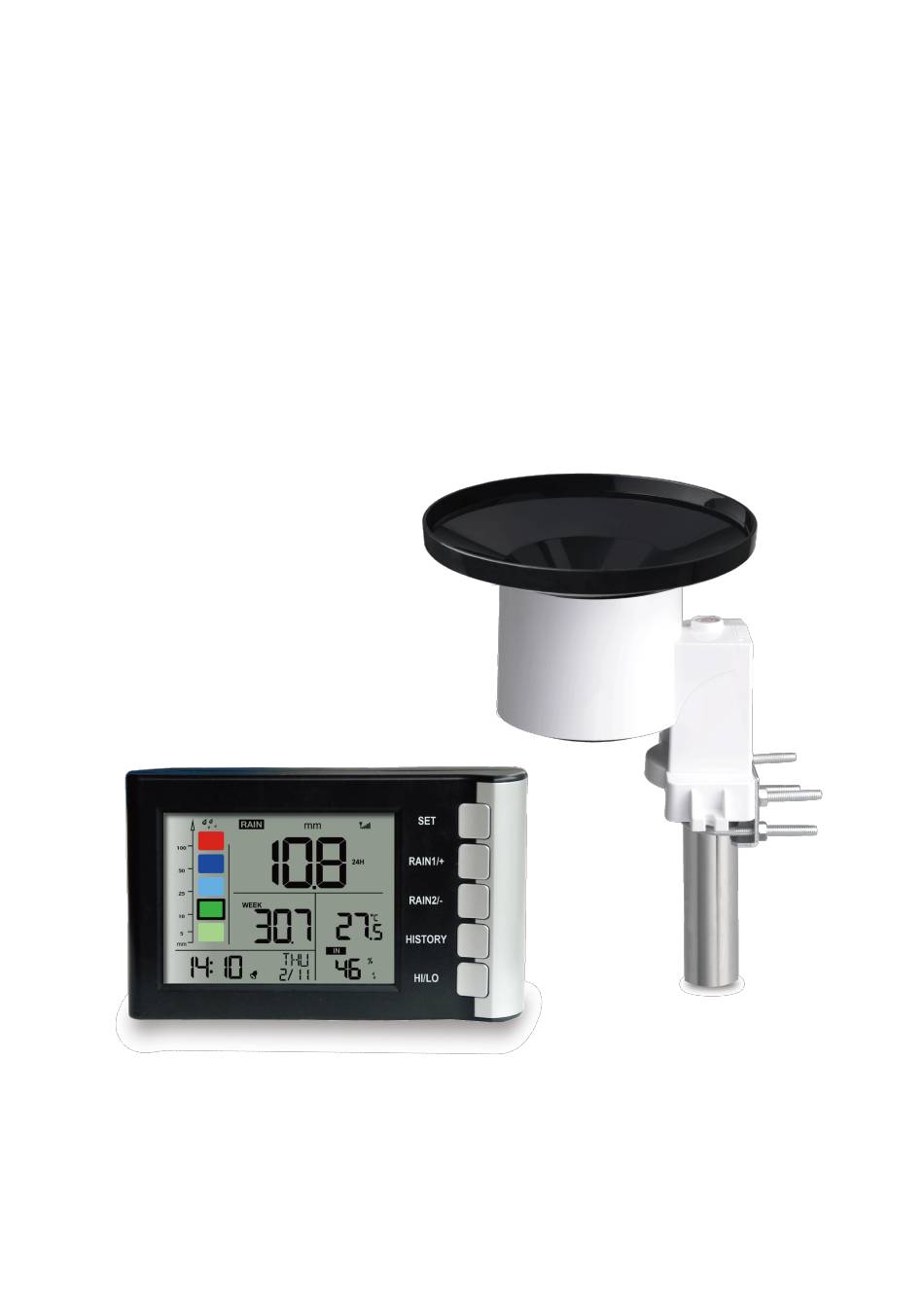

- Page 1 High Precision Digital Rain Gauge with Indoor Temperature and Humidity Model: WH40B...
-
Page 2: Table Of Contents
Contents 1. Introduce..............3 2. Get Started..............3 2.1 Parts List............3 2.2 Recommend Tools.......... 4 2.3 Installation............4 2.4 Mount outdoor sensor........8 3. Console Operation..........11 3.1 Normal Mode..........12 3.2 SET Mode............13 3.3 Rain History Mode........14 3.4 MIN/MAX Mode..........15 3.5 HI/LO Alarm Set Mode.........15 3.6 Factory Reset/Clear Memory......16 4. -
Page 3: Introduce
1. Introduce Thanks for your purchasing of the WH40B High Precision Digital Rain Gauge with Indoor temperature and humidity. To ensure the best product performance, please read this manual and retain it for future reference. 2. Get Started Note: Before placing and installing all components of the... -
Page 4: Recommend Tools
One Rain Collector (Transmitter) One User Manual 2.2 Recommend Tools Hammer installing remote transmitter(rain collector). 2.3 Installation Wireless Rain Collector Set Up 1. Rain collector 2. LED Indicator 3. Bubble level 4. Battery door 5. Screw hole 6. U-bolt install hole... - Page 5 1. Install batteries Insert 1XAA batteries in the battery compartment. The LED indicator will turn on for four seconds and normally flash once every 49 seconds (the sensor transmission update period). Note: If no LED light up or is lighted permanently, make sure the battery is inserted the correct way or a proper reset is happened.
- Page 6 Initial Display Console Set Up 1. Rainfall data display 2. Rainfall grade graph 3. Rainfall of day/week/month/year display 4. Time 5. Rain rate/event/1h/24h display 6. Indoor temperature 7. Indoor humidity 8. Alarm icon 9. Date/Week 10. Signal icon...
- Page 7 11. Wall-mounted hole 12.Table stand 13. Battery door 2. Install the batteries. The unit will turn on all segments of the LCD for 3 seconds after power on and display setting value. Then the unit will start to register the outdoor channel which takes 3 minutes.
-
Page 8: Mount Outdoor Sensor
Full display Normal display 2.4 Mount outdoor sensor Mount with U-bolts The mounting assembly includes two U-Bolts and a bracket that tightens around a 1" to 2” diameter pole (included a D32*H200mm stainless steel tube) using the four U-Bolt nuts. - Page 9 Note: Use the bubble level beside the rain sensor as a guide to verify that the sensor is leveled. Mount with screws The mounting assembly also includes two screws for installation on a flat place.
- Page 10 Note: Use the bubble level beside the rain sensor as a guide to verify that the sensor is leveled. Best Practices for Wireless Communication Wireless communication susceptible interference, distance, walls and metal barriers. We recommend the following best practices for trouble free wireless communication.
-
Page 11: Console Operation
intermittent communication. 3. Line of Sight Rating. This device is rated at 300 feet line of sight (no interference, barriers or walls) but typically you will get 100 feet maximum under most real-world installations, which include passing through barriers or walls. 4. -
Page 12: Normal Mode
Button Function SET: enter the setting mode RAIN 1/+:display RATE,EVENT,1H,24H( normal mode) or + ( programming mode) RAIN 2/-:display DAY, WEEK, MONTH, YEAR, TOTAL( normal mode) or– ( programming mode) HISTORY: display history records / return to normal mode HI/LO: display the MAX, MIN value( normal mode) / Set Alarm ( long press to enter setting alarm mode) 3.1 Normal Mode 3.1.1 In Normal Mode, press the “RAIN 1/+”... -
Page 13: Set Mode
Display rain rate Display rain event Display rainfall total of 1h Display rainfall total of 24h Note: Long press button “RAIN 1/+” over 5s will clear the current rainfall data displayed. 3.1.2 In Normal Mode, press the “RAIN 2/+” button to alternate the display of: Display rainfall of day Display rainfall of week Display rainfall of month... -
Page 14: Rain History Mode
seconds to enter Set Mode. The first setting will begin flashing. You can press the “SET” button again to skip any step, as defined below. 12/24 hour format Manual time setting (hours/minutes) Date format setting(D-M/ M-D) Date setting(year/month/day) Temperature unit setting(°C/°F) Rainfall unit setting(mm/in) Note: In the setting mode, press”... -
Page 15: Min/Max Mode
3.4 MIN/MAX Mode In Normal Mode, press the button “HI/LO” to alternate the following max/min records with timestamp: Indoor temperature Max Indoor temperature Min Indoor humidity Max Indoor humidity Min Note: Long press button “RAIN 2/+” over 5s will clear the current max/min records with timestamp displayed. -
Page 16: Factory Reset/Clear Memory
Indoor temperature HI alert value setting; Indoor temperature LO alert ON/OFF; Indoor temperature LO alert value setting; Indoor humidity HI alert ON/OFF; Indoor humidity HI alert value setting; m) Indoor humidity LO alert ON/OFF; Indoor humidity LO alert value setting; Note: In the alarm setting mode, press”... -
Page 17: Function
4. Function a) Date Calendar (Month/date,2017-2099 Default Year 2017) 12/24 hr format selected Alarm clock b) Indoor temperature and humidity Every 60 second the unit will measure indoor temperature and humidity. Indoor temperature and humidity MAX,MIN records with timestamp Temperature/humidity high/low alert c) Rain Every 49 second the unit will receive wireless rain sensor. -
Page 18: Maintenance
Lost the signal once Received the signal once 5. Maintenance 1. Clean the rain gauge once every 3 months. Rotate the funnel counter-clockwise and lift to expose the rain gauge mechanism, and clean with a damp cloth. Remove any dirt, debris and insects. -
Page 19: Troubleshooting Guide
Replace batteries every 1-2 years. If left in too long, batteries leak environmental challenges. harsh environments, inspect the batteries every 3 months. When replacing the batteries, apply a corrosion preventive compound on the battery terminals, available at Amazon and most hardware stores. In snowy environments, spray the top of the rain collector with anti-icing silicon spray to prevent snow build up. - Page 20 Problem Solution communication due to reception loss related to interference or other location factors, or the batteries may have been changed in the remote and the console has not been reset. The solution may be as simple as powering down and up the console. 1.
- Page 21 Problem Solution lithium batteries. 2. The maximum line of sight communication range is 300" but most users will get 100" or less due to environmental conditions. Move the sensor and remote closer together. 3. If the sensor assembly is too close (less than 5’), move the sensor assembly away from the display console.
-
Page 22: Specifications
7. Specifications Outdoor data Measuring interval: 49 sec Transmission distance in open field: 100m(300 feet) Frequency: 915MHz(North America) Indoor data Measuring interval: 61 sec Rain fall measuring range: 0--6000mm Indoor temperature range: -9.9˚C--60˚C (14℉ to + 140℉) Accuracy: ± 1°F/±0.5°C. Indoor humidity measure range: 10% to 99%. -
Page 23: Liability Disclaimer
8. Liability Disclaimer Reading the “User manual” is highly recommended. The manufacturer and supplier cannot accept any responsibility for any incorrect readings and any consequences that occur should an inaccurate reading take place. This product is designed for use in the home only as indication of weather conditions. - Page 24 authority to operate the equipment. Statement according to FCC part 15.105: NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful...
-
Page 25: Warranty Information
technician for help. 10. Warranty Information We disclaim any responsibility for any technical error or printing error, or their consequences. All trademarks and patents are recognized. We provide a 1-year limited warranty on this product against manufacturing defects in materials and workmanship. - Page 26 This warranty covers only actual defects within the product itself, and does not cover the cost of installation or removal from a fixed installation, normal set-up or adjustments, claims based on misrepresentation by the seller or performance variations resulting from installation-related circumstances.
