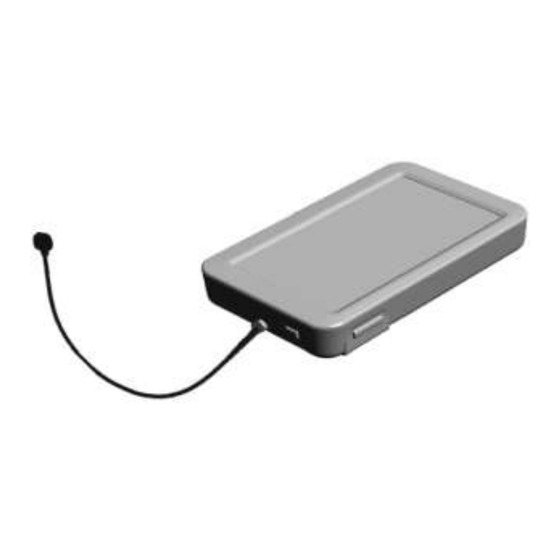

- Page 1 GE-50576-A Acoustic Belt Tension Tester User’s Operation Manual This manual will guide the operation of GE-50576-A. Please read this manual carefully before use to understand all functions of GE-50576-A. Revised 3 JAN 2013 - 1 -...
-
Page 2: Table Of Contents
For more detailed procedures, please consult WARNING !! published service information for the vehicle or Do not drop or allow GE-50576-A to be hit. component being serviced. Remove the microphone from GE-50576-A after use and place in the storage case. -
Page 3: Ge-50576-A Components
3. GE-50576-A Components Item No Description Model Name / Specification GE-50576-05 Li-Ion Battery 3.7V, 800mA MATERIAL : PLASTIC GE-50576-06 STORAGE CASE DIMENSION(MM) : 160*100*60(mm) ACOUSTIC BELT TENSION GE-50576-01 DIMENSION : Approx. 120*75*20(mm) TESTER GE-50576-04 TOUCH PEN GENERAL RESISTIVE TOUCH PEN... - Page 4 Name Description Remark ○ Microphone Flexible shaft directional microphone ○ MIC Connector Nut type microphone connector ○ Tool Body Tool Body ○ DC Adaptor Jack AD/DC converter adaptor jack User supplied per local DC 12V, 2A output is recommended when USB charging is requirements not available.
-
Page 5: Display
4. Display 4-3. Set-up Selection Screen 4-1. Booting Screen Min/Max Range Booting Image Selection Touch Selection Return Company Logo Caution Image 4-4. Min/Max Range Setting 4-2. Main Screen Battery Status Measured Value Average Value MAX Range MIN Range Test Order MAX (-/+) MIN (-/+) dB Indicator... -
Page 6: Operation Instructions
Slide the power button to turn on the unit. The noise) and the result will display on the screen. Power LED will blink, then turn solid green. When a reading is registered on GE-50576-A, a tone will sound, and the start button image changes from ■→▶→■... -
Page 7: Set-Up
The 1 button, allows adjustment of the GE-50576-A can be paused at any time during tested frequency limits. The min/max threshold testing by touching the start button on the can be adjusted from 100~500 Hz by touching screen, or pressing the mechanical start button the left/right. -
Page 8: Noise Cancelation
7. Noise Cancelation To reduce the effects of background noise, the frequency range specification of the belt being measured must be known. Perform the test again with normal background Please refer to published service information for noise, and adjust threshold again to a tighter the vehicle or component being serviced. -
Page 9: Testing Belts
8. Testing Belts 9. Charging Instructions Please refer to vehicle service information for belt specifications As the battery level decreases, the battery status indicator turns off each segment in turn. → → → → Engine Accessory Belt To charge the battery, turn off the power button of the tester. -
Page 10: Technical Specifications
DC Charge : General USB Charging Services recommended / 12V AD/DC Adaptor capability For any issues with GE-50576-A, please contact Normal Charge Time (battery fully SPX Customer Service. discharged) : 4~5 hours with USB port Warranty ...
