Power Soak PS-275 Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Owner's Manual
PS-275

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PS-275 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Power Soak PS-275

Summary of Contents for Power Soak PS-275

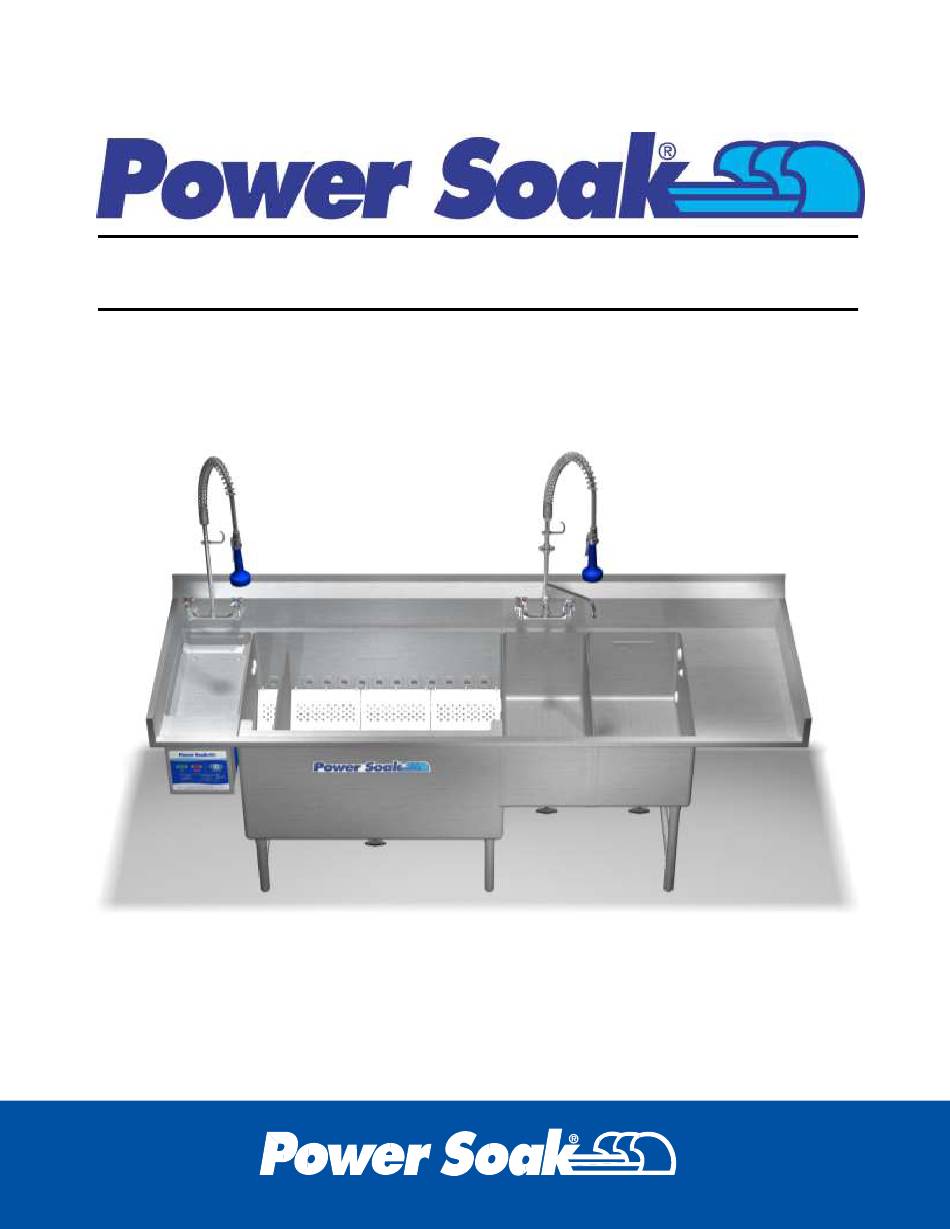

  • Page 1 Owner’s Manual PS-275...

  • Page 3: Table Of Contents

    Personal Injury Hazard ................ 3 Requirements for Detergents and Sanitizers ....4 Detergents ................... 4 Sanitizers ..................... 4 Power Soak Service Assistance ............4 Operating Instructions ..........5 Control Features ............5 Control Panel and Features ........6 START Button ..................7 STOP/IDLE Button ................
  • Page 4 Manually Adding Detergents & Sanitizers .......... 13 Operating the Power Soak ........15 Starting and Stopping the Wash Action ..........15 Introducing Pots and Pans to the Power Soak ........15 Properly Scrapping Pots and Pans ............ 15 Loading and Using the Wash Tank ............ 16 Unload/Load ..................
  • Page 5 Intentionally blank page...

  • Page 7: Introduction And Conventions

    Introduction and Conventions PS-275...

  • Page 8: Product Introduction

    Every machine is manufactured to last, with only high-quality, heavy-duty, 14 gauge stainless steel used in its construction. All electrical components used in a Power Soak machine are of the highest quality. The faucets and drains are designed for quick filling and emptying of the machine's tanks.

  • Page 9: Explanation Of Warning Messages

    Children must not be allowed to play in the sinks, on countertops or with the controls of the Power Soak equipment. Cleaning or use of this machine must not be done by children without super vision. This machine can be used by children...

  • Page 10: Requirements For Detergents And Sanitizers

    Requirements for Detergents and Sanitizers Detergents The PS-275 can use two types of detergents, one type for normal cleaning and one type for “Deep Cleaning” for more effective deep cleaning. The materials to be cleaned and the type of debris to be removed will be a factor in selecting the proper detergent.

  • Page 11: Operating Instructions

    Operating Instructions Control Features PS-275...

  • Page 12: Control Panel And Features

    Control Panel and Features The illustration shows the PS-275 Control Panel Overlay. The overlay is adhered to the front of the control panel box and contains buttons and lights that are imbedded into the overlay. Communication with the UPM is accomplished with cables that...

  • Page 13: Start Button

    START Button The START button is green and labeled “Start”. When pressed and released within 4 seconds it will start the “Normal Mode” wash action. When pressed and held for 8 seconds, it will start the Deep Clean Mode. Pressing the STOP button within 10 seconds will release the selection and return to “stand by”...

  • Page 14: High Fluid Wash Temperate - Light

    High Fluid Wash Temperate - Light This light operates along with the orange beacon to indicate that the wash tank fluid temperature is above 120F / 49C. Deep Cleaning Mode Active - Light When the START button is pressed for more than 5 seconds this light will illuminate indicating that the machine is operating in the Deep Cleaning Mode.

  • Page 15: Indirect Beacon System

    Indirect Beacon System The indirect beacon system shines ultra-bright lights on the floor to signal next action to team members and managers. An optional wireless remote alert light kit is available to repeat these messages in another part of the kitchen. LED Beacons on the bottom of the Optional Wireless Remote Alert Lights control panel.

  • Page 16: Blue Beacon

    Blue Beacon The blue beacon is used alone and in combination with green and red to indicate action messages. Generally, these messages have to do with the wash tank. Green Beacon The green beacon is used alone and in combination with red and blue to indicate action messages.

  • Page 17: Preparing The Machine

    Preparing the Machine Filling the Machine At the beginning of each day or shift, fill the tanks with water that is metered to approximately the correct operating temperatures:  Wash tank (115F / 48C)  Rinse tank (75F / 24C) – For Dip Rinsing Method ...

  • Page 18: Rinse Water

    Optional Wash Tank Filling Alerts The PS-275 controller can help reduce labor and wasted chemicals in the filling process by signaling that a wash tank fill is nearly complete. This allows an operator to begin filling the wash tank, and return to other duties. When the tank is within a few minutes of completing its fill, the blue and green beacons will flash in an alternating pattern.

  • Page 19: Manually Adding Detergents & Sanitizers

    When the tank is full, the chemical can be manually added to the water. Never place concentrated chemicals into an empty tank. If the machine is equipped with the Power Soak Chemical Dispensing system, the control system of the machine will dispense the chemical when the wash pump is started.
  • Page 20  Cleaning solutions need to be selected for the type materials to be cleaned.  Most standard sanitizers can be used with the PS-275, however; consult with a chemical provider to be sure the chemical that is selected is a good choice.

  • Page 21: Operating The Power Soak

    Mode. Introducing Pots and Pans to the Power Soak Dirty pots and pans should be brought to the Power Soak in a timely manner. Do not allow items to sit and air dry. The quicker that items are brought to the Power Soak, rinsed and put in the wash tank, the easier...

  • Page 22: Loading And Using The Wash Tank

    Loading and Using the Wash Tank The Power Soak is a “random loading” machine. This means that Power Soak items are not racked for washing. Instead, they are randomly loaded one at a time and circulate in the wash tank. When items are brought to the machine and the scraps removed, they should be immediately dropped into the wash tank.

  • Page 23: Unload/Load

    Power Soak. Continuous Throughput One way to manage labor with the Power Soak is through the process of completing a wash cycle when an item is dropped off. When a ware is dropped off the operator will: 1.
  • Page 24 Loading and Washing Utensils Each PS-275 Power Soak machine comes with a utensil area that is a 6” divided area in the wash tank. All utensils and other small wares should be loaded into and washed inside this area.

  • Page 25: Rinsing Pots And Pans After Wash Is Complete

    Deep Cleaning and "Night Washing" The Power Soak can be used as a "total cleaning system". Any item in the operation that can be submersed for cleaning and is not fragile or sharp can be washed in the Power Soak. Extremely soiled items and pieces of cooking equipment that require regular, intensive cleaning can be washed in the Power Soak machine overnight.

  • Page 26: Deep Cleaning Mode

    Sanitation supervisors should establish standard operating procedures for items to be cleaned using the Night Washing feature of the Power Soak. Deep Cleaning Mode HOT WATER! Wash sink water can exceed 120°F (49°C).
  • Page 27 The 30 second “grace period” after the START button is pressed allows the operator to verify the correct mode of operation. When the “grace period” expires the PS-275 is locked into the mode of operation until the wash tank is fully drained and re-filled.

  • Page 28: Changing The Wash Solution

    “Deep Clean Mode Active” light on the control panel. 5. Leave the PS-275 to run. When the deep wash period is complete, the deep cleaning period will automatically turn the wash action on and off (cycle time is selected in the program settings).

  • Page 29: Wash, Rinse And Sanitizer Clean-Up

    pattern. Once this has happened, the wash pump is “locked out” and the only way to restart the wash action is to drain and refill the sanitizer tank. The “lock out” is a setting in the program that can be turned off. Wash, Rinse and Sanitizer Clean-Up Between each water change and at the end of each night, all tanks and drain boards should be thoroughly cleaned with hot, soapy water.

  • Page 30: Preventative Maintenance

    Preventive Mainenance Preventative Maintenance PS-275...

  • Page 31: Daily

    The Power Soak PS-275 requires minimal, routine preventative maintenance. The following procedures should be done to ensure that the PS-275 remains reliable. If there are any questions regarding the preventative maintenance procedures, please contact the factory at 888- 994-7636. Daily Clean the liquid level sensors that are located on the side walls of the wash and sanitizer tanks.
  • Page 32 Troubleshooting PS-275...

  • Page 33: Facility Owner/Manager Section

    All other procedures must be performed by an authorized service agency. To obtain the name of a recommended service agent in your area, please call the Power Soak Service Department at 888-994-7636. If the wash action will not start: ...

  • Page 34: Authorized Service Agency Section

    Explanation of LED Sequence To verify the proper operation of the Power Soak machine, the operating logic of the controls will need to be examined. This will require opening the control box by removing the two screws on the face of the enclosure cover.
  • Page 35  Be sure that all connections to and from the Liquid Level sensors are secure and that there is no physical damage to the wiring.  If damage to connectors and/or wiring is found, contact Power Soak Systems, Inc. at 888-994-7636.
  • Page 36 This type of error can be reset by turning the power to the machine off for a few seconds and then turning it back on. Please have the “Error Code” information available prior to calling Power Soak Systems. The machine serial number will also be needed at the time of the call.
  • Page 37 Intentionally blank page...

  • Page 38: Installation & Decommissioning

    Installation & Decommissioning PS-275...

  • Page 39: Electrical Requirements

    Please refer to the detailed installation instructions that were sent with the Power Soak PS-275. Electrical Requirements The electrical requirements of the PS-275 are on the serial number plate located on the front corner of the wash tank, adjacent to the control panel enclosure and inside the enclosure itself.

  • Page 40: Plumbing Requirements

    If any or all of the PS-275 is returned to the source where it was purchased, there will be no obligation for the Power Soak...
  • Page 41 Power Soak is a registered trademark of Unified Brands, Inc. The Power Soak Design and concept is fully patented. Unified Brands Inc. 1055 Mendell Davis Drive Jackson, MS 39272 Phone (888) 994-7636 or (800) 444-9624 Fax (601) 371-9732 www.unifiedbrands.net Part#: 36212...
