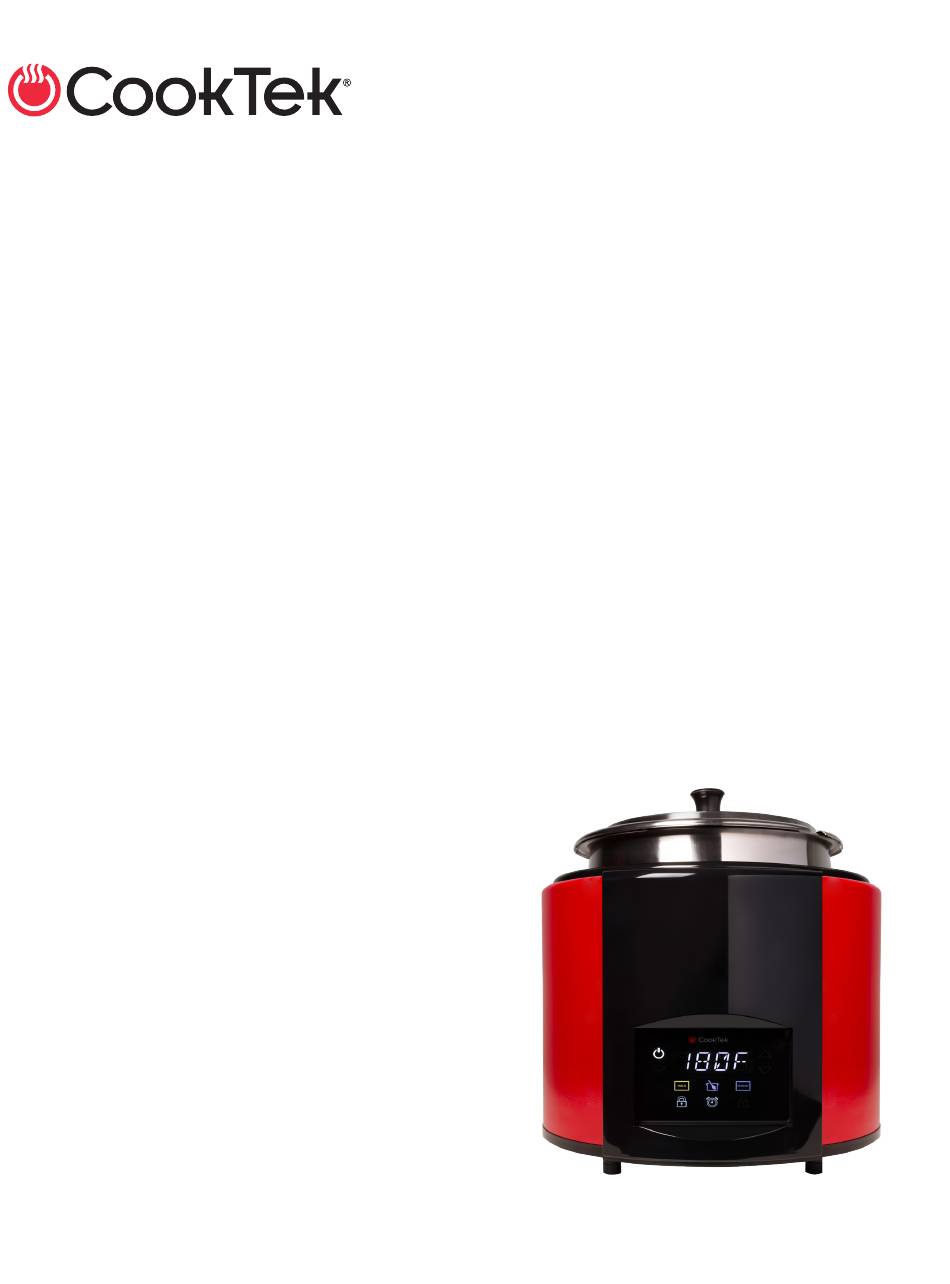

Owner's Manual
f o r t h e co o k t e k s i n a qu a ™ s o u p e r ™
m od e l s : s as 08 1- 7, s a s 082 - 7 , s a s 0 8 1 - 1 1 & s a s 0 8 2 - 1 1 ,
s as d 08 1- 7, s a s d 0 82 - 7 , s a s d 0 8 1 - 1 1 & s a s d 0 8 2 - 1 1
CAUTION: Read the instructions before using the equipment.
©2018 CookTek
Advertisement
Table of Contents
Related Manuals for CookTek SinAqua Souper
Summary of Contents for CookTek SinAqua Souper
- Page 1 08 1- 7, s a s d 0 82 - 7 , s a s d 0 8 1 - 1 1 & s a s d 0 8 2 - 1 1 CAUTION: Read the instructions before using the equipment. ©2018 CookTek...
- Page 2 Original Instructions The information contained in this manual is important for the proper installation, use, maintenance, and repair of this equipment. Follow these procedures and instructions to help ensure satisfactory results and trouble-free service. Errors – descriptive, typographic, or pictorial – are subject to correction. Specifications are subject to change without notice.
-
Page 3: Table Of Contents
Table of Contents Safety Instructions Important Safety Instructions General Safety Information Grounding Instructions Power Cord Replacement Specifications and Installation Theory of Operation Dimensions: Countertop Dimensions: Drop-In Certifications Electrical Specifications Installation: Countertop Installation: Drop-in Use and Care Operation Maintenance Troubleshooting North America Limited Warranty... - Page 5 DO NOT allow children to play with this equipment. • This product may only be serviced by an authorized service agent or by CookTek personnel. • DO NOT attempt to open the unit or perform service of any kind. For service information, contact CookTek at +1 (214) 379-6000.
-
Page 6: Safety Instructions
If the power cord is damaged, it must be replaced by the manufacturer, its service agent, or a similarly qualified person. Please make sure that the power cord is firmly attached to your CookTek unit BEFORE plugging the unit into the power receptacle and attempting operation. -
Page 7: Theory Of Operation
Theory of Operation dimensions: Countertop exterior - Souper 7 qt. The SinAqua™ Souper™ is a portable countertop unit from CookTek used for rethermalizing food and preci- Height: 14.86” (377 mm) sion holding. Employing a forward-thinking design Width: 11.75” (298 mm) and high-contrast, easy-to-use capacitive touch control, Depth: 12.17”... -
Page 8: Dimensions: Drop-In
SPeCIfICATIONS ANd INSTALLATION 2.3” (58 mm) 2.3” (58 mm) 14.9” 14.9” 10.4” 11.1” 10.4” 11.1” (378 mm) (378 mm) (264 mm) (282 mm) (264 mm) (282 mm) UNLESS OTHERWISE SPECIFIED: NAME DATE DRAWN DIMENSIONS ARE IN INCHES 11.74” 13.72” TOLERANCES: CHECKED ANGULAR: MACH .5 DEG (298 mm) -
Page 9: Certifications
Certifications 7 or 11 Qt Souper™ Models: SAS081-7, SAS081-11, SAS082-7, SAS082-11 SASD081-7, SASD081-11, SASD082-7, SASD082-11 100–120 V, 50/60 Hz, UNITed STATeS/ CANAdA (208V) 7A, 800 W NeMA 5-15P electrical Specifications 200–240 V, 50/60 Hz, UNITed STATeS/ The SinAqua™ Souper™ must be plugged into a CANAdA (240V) 4A, 800 W NeMA 6-20P... -
Page 10: Installation: Drop-In
SPeCIfICATIONS ANd INSTALLATION Installation: drop-in Installing the Souper™ and Control Box 1. Connect the Micro USB cable to the Souper unit Install or locate this equipment only in accordance with (Figure 5, below). the instructions below. 2. Install the Souper™ using the following surface cutout dimensions: Unpacking Instructions - 7 Qt Souper™: 12-inch (305 mm) diameter hole... - Page 11 Connect Micro USB cable here 4X .22” ø (5.59 mm) Back side of surface figure 7: Control Box Installation .27” (6.86 mm) 4X .22” ø (5.59 mm) .43” 4.00” (101.6 mm) (10.92 mm) 4.86” (123.44 mm) 3.36” 3.90” (85.34 mm) (99.06 mm) .27”...
-
Page 12: Use And Care
USe ANd CAre Operation To edit the reheat temperature: a. While in Reheat mode, touch the Reheat icon. b. Use the arrows (4) to change the temperature. NOTE: Adjust the temperature in increments of 5°F (2-3°C) from 140-200°F (60-93°C). c. Press the Checkmark icon (5) to store the change. -
Page 13: Maintenance
DO NOT use abrasive cleaners on the tureen. Troubleshooting In the event of a possible malfunction, your CookTek Souper™ will beep and display an error code on the alphanumeric display. Please consult the following table when encountering an error code. To reset error conditions, press the POWER icon, or unplug the unit. -
Page 14: North America Limited Warranty
Pizza Delivery Systems. Limited Warranty warranty is made only to the initial purchaser of the Equipment from CookTek or its authorized dealer; it is not assignable to subsequent purchasers unless CookTek consents to such assignment in writing. THIS WARRANTY DOES NOT INCLUDE ANY THIRD-PARTY INSTALLATION, REMOVAL, OR DAMAGE COST... - Page 15 (including negligence), or otherwise, resulting from any breach by CookTek or its service agents of this warranty, or resulting from the manufacture, use, or defects, of or in the Equipment, even if CookTek was apprised of the possibility of such damages.
- Page 16 For service or information: with i n n o r t h a me r i c a c al l Customer Support at 800.90 T U R B O outs id e n o rt h a me r i c a c al l +1 214.379.6000 or Your Authorized Distributor Global Operations Customer Support...
