TINO™ PRODUCT INSTRUCTIONS

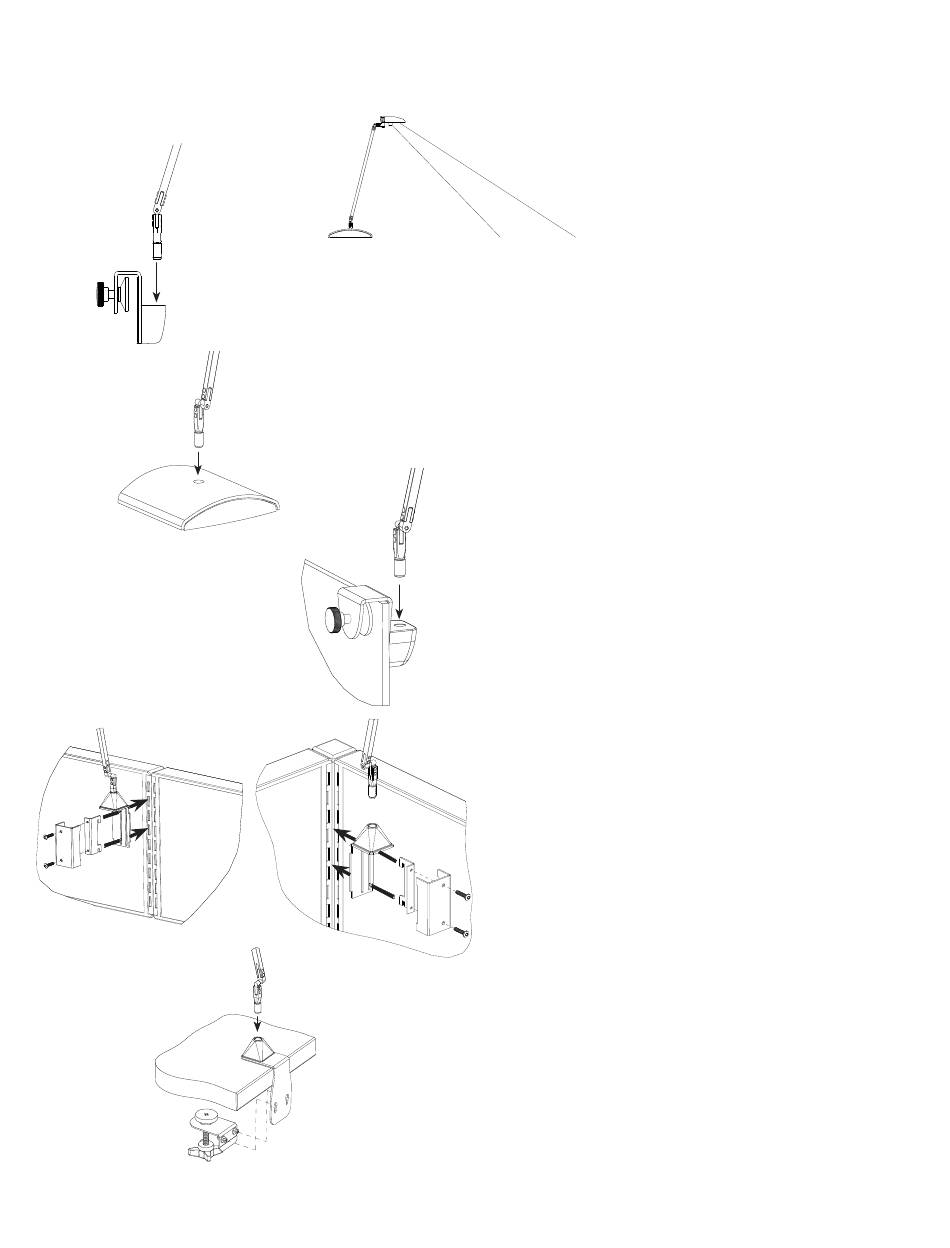

Assembling Arm to Divider Mount

1. Apply pressure near the top of the bushing.
2. (Fig. 1) Insert Arm base into divider mount.

Assembling Arm to Free Standing Base

1. Apply pressure near the top of the bushing.
2. (Fig. 2) Insert Arm base into Free standing mount.
(Figure 5)
TINO™ should be mounted or placed 1'
behind the desktop location you desire to
illuminate.

Fastening the Divider Mount

1. Open the divider mount by rotating the knob counter
clockwise to an appropriate size.
2. (Fig. 3) With care place divider mount into divider.
Panel Mount Installation (Fig. 4 & 5):
1. For in-line panel (Fig. 4), insert the teeth of bracket
through the center slot of the panel bracket.
2. For corner panel (Fig. 5), remove screws and rotate
the bracket cover so that the screw holes will be on
the opposite side. Reattach and Insert the teeth of
bracket through the outer slot of the panel bracket.
3. While holding the screws in, Insert the teeth into the
slotted standard and press downward insuring the
teeth are fully hooked over the slots.
4. Tighten screws alternately using a 3/32 Hex Driver
until bracket is securely tight on panel
Clamp Mount Installation (Fig. 6)
1. Slide the base bracket between the panel and the
work surface.
2. Unscrew the knob on adjuster bracket to the lowest
position and insert into slots on base bracket.
3. Tighten knob against bottom of work surface
16518.000.000 Rev. B
