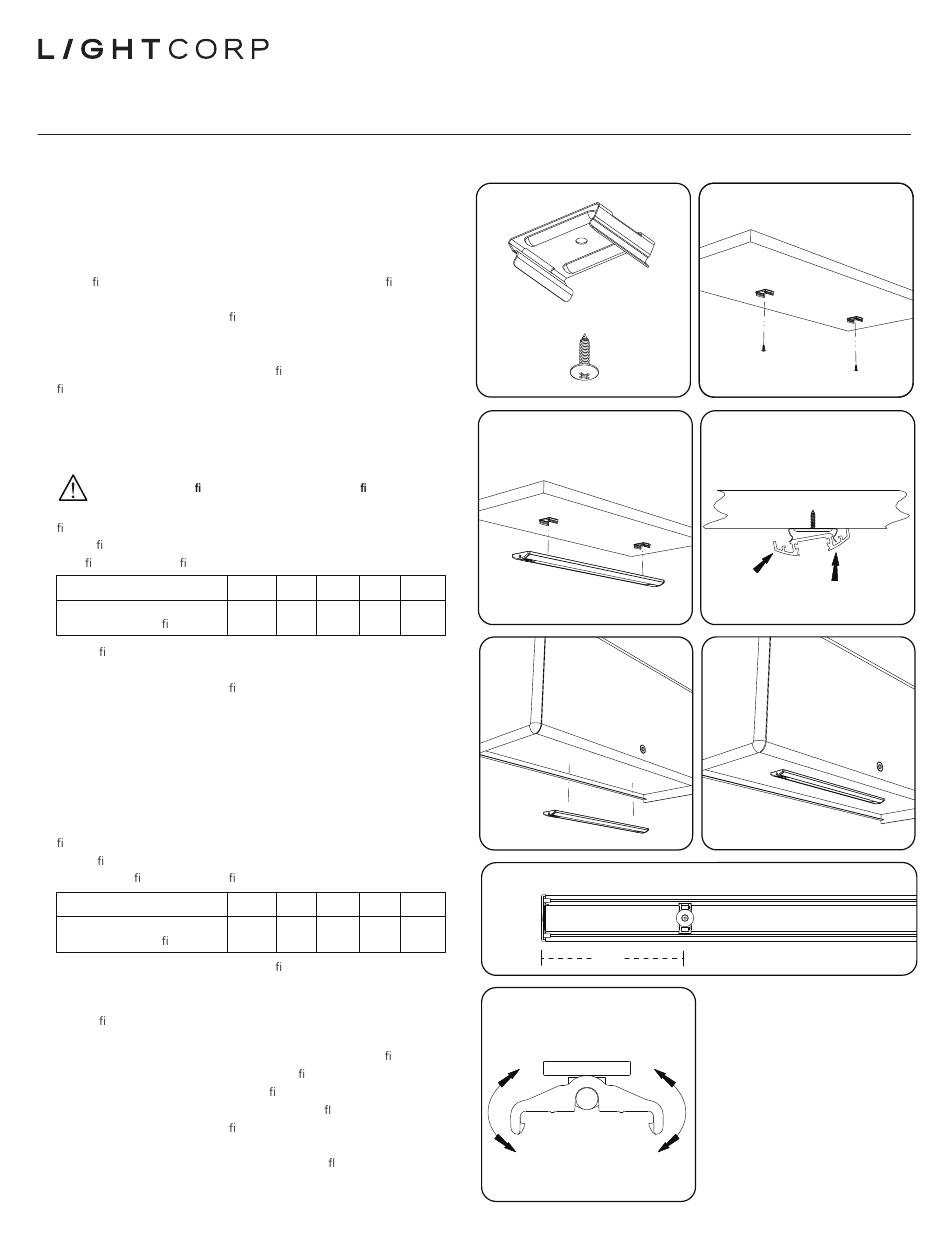

Lightcorp Reed Premier Mounting Instructions

S C R E W M O U N T
1. Kit includes two (2) bracket clips, two (2) screws (Fig. 1).
2. Screw bracket clip to shelf in desired location (approximately 12"
spacing centered under the shelf), ensuring that both clips are
oriented in the same direction (Fig. 2).
3. Raise xture to clip, aligning the channel on the back of xture
with clip and snap in place (Fig. 3 and Fig. 4).
4. Plug DC cord to either end of xture and route to power supply.
5. If equipped with an occupancy sensor, connect the third screw
bracket clip in-line with the two already installed, and
approximately 2" from the end of the xture. Connect the sensor to
xture and snap into place (Fig. 12).
6. Place power supply on any horizontal surface, allowing the plug to
be inserted into 120V AC, 60Hz, grounded outlet (Fig. 11).
S T A N D A R D M A G N E T I C M O U N T
Caution: Magnetic eld present in magnet mount xture.
1. Magnetic clips attach by clamping to the back surface of the
xture housing, for direct mounting to metal shelving.
2. For all xtures: use 1 magnetic clip per end located at the distance
speci ed for the given xture length (Fig. 7) in the table below:
FIXTURE FAMILY
Approximate clip distance
"X" from end of xture
3. Locate xture to the desired position on metal shelf (Fig. 5) and set
in place (Fig. 6).
4. Plug DC cord to either end of xture and route to power supply.
5. If equipped with an occupancy sensor, connect the standard
magnetic clip to the OS body and install (Fig. 12).
6. Place power supply on any horizontal surface, allowing the plug to
be inserted into 120V AC, 60Hz, grounded outlet (Fig. 11).
M A G N E T I C A N G L E M O U N T
1. Magnetic angle clips attach by clamping to the back surface of the
xture housing for direct mounting to metal shelving.
2. For all xtures: use 1 magnetic angle clip per end located at the
distance speci ed for the given xture length (Fig. 7) in the table below:
FIXTURE FAMILY
Approximate clip distance
"X" from end of xture
3. Place one side of the clip against the xture housing and press the
opposite side down until it snaps into place. Adjust clip positions
to the recommended position shown above, by sliding into place.
4. Locate xture to the desired position on metal shelf (Fig. 5) and set
in place (Fig. 6).
5. Adjust light output angle to desired direction by rotating the xture (Fig.
8). For best results, push on the edge of the xture to change angle.
6. If clip doesn't hold position, remove xture and tighten with a T10
driver. To remove, pry off one edge gently with a at head screw driver.
7. Plug DC cord to either end of xture and route to power supply.
8. If equipped with an occupancy sensor, connect the standard
magnetic clip to the OS body and install using exible cord
provided per the instructions on the reverse side.
CONTINUES ON BACK
17" 24" 31" 44" 58"
1" 3" 3" 6" 9"
17" 24" 31" 44" 58"
1" 3" 3" 6" 9"
