- Page 1 1080P IOT CAMERA USER MANUAL...
-
Page 2: Table Of Contents
LED Indicators What’s Included Wi-Fi Requirements Mobile Device Requirements Download the Momentum App Setup Pairing Pairing additional Momentum Devices Pairing additional non-Momentum Devices Setting up Rules Triggers Adding a New Rule Mobile Alerts Storage Options ... - Page 3 About Momentum © 2016 Momentum Momentum is a registered trademark in the United States. Apple and iPhone are registered trademarks of Apple Inc. Google, Google Play, and Android are trademarks of Google LLC. All other brands and product names are or may be trademarks of their respective owners.
-
Page 4: Introduction

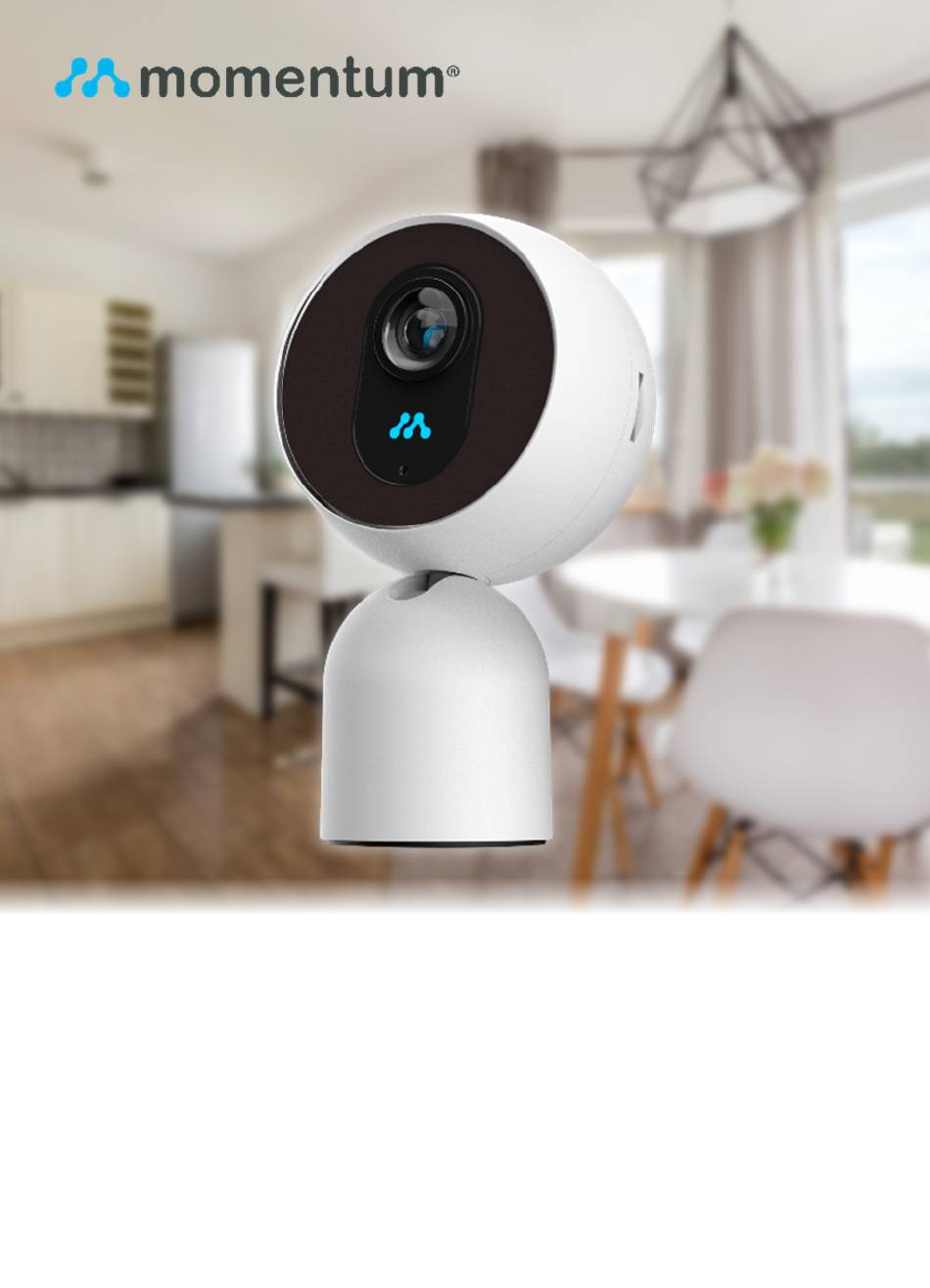

Introduction The Momentum ™ is an indoor 1080P HD Smart Home Security Camera with wireless monitoring capabilities that can be accessed from anywhere where you have an internet connection. It’s great for indoor surveillance for your home, office, shop, warehouse, or other locations. -
Page 5: Led Indicators
LED Indicators 1080P IOT CAMERA displays an LED indicator light that lets you know what it is doing. Solid Light: Camera is booting up. Slow Blinking Light: Disconnected from Wi-Fi. Double Blinking Blue Light: Ready to connect to Wi-Fi. Light: 1080P IOT CAMERA is connected Blinking Blue to Wi-Fi. -
Page 6: What's Included
What’s Included Camera AC Power Adaptor USB Cable Mounting Sticker Wall Anchors x 2 Screws x 2... -
Page 7: Wi-Fi Requirements
2.4GHz or 5GHz band for camera setup. Mobile Device Requirements The Momentum app requires a smart phone or tablet device that runs on Android or iOS. Please see the in-app description for device compatibility for the most up-to-date... -
Page 8: Download The Momentum App
Make sure the app logo you download matches the one shown below. Create an Account If you don’t already have a Momentum account, you will need to create one. To create a new account, follow the in-app instructions. -
Page 9: Setup
Setup To begin using your Momentum device you will first need to pair it to your Momentum account and then connect it to your Wi-Fi network. Pairing IMPORTANT: Make sure your mobile device is connected to the same Wi-Fi network as the one you will be connecting the camera to. - Page 10 2) Open the app and select 1080P IOT CAMERA. From the Momentum app, select Pair device, then select 1080P IOT CAMERA. 3) Connect to 1080P IOT CAMERA’s Wi-Fi access point. When prompted in the app, go to your mobile device’s Wi-Fi settings.
-
Page 11: Pairing Additional Momentum Devices
1 – 5 that were used in pairing your initial Momentum device. Pairing additional Non-Momentum Devices You can use your Momentum app to control non- Momentum devices like the Nest™ Learning Thermostat. To pair non-Momentum devices, select Pair in the Devices section of the app menu and select the non-Momentum device you wish to pair. -
Page 12: Setting Up Rules
Setting up Rules Your 1080P IOT CAMERA camera will record video when rules have been set through the Momentum App. Rules allow your device to activate and monitor the area while you are not watching the live stream. Set triggers to have your 1080P IOT CAMERA activate under certain conditions. -
Page 13: Mobile Alerts
If you’d like to stop receiving alerts, you must delete the Rule, or you can turn it off from your mobile device’s notification settings for the Momentum App. If you have a cloud plan, you may also view all your previous alerts by tapping the Activity tile on your Dashboard. -
Page 14: Storage Options
The micro-SD card slot can be found on the side of the camera device. (see pg. 4) Momentum Capture Cloud Storage After you initially pair a Momentum device to your Momentum account, you will be provided FREE cloud recordings that last for 24hrs. The Momentum Capture... -
Page 15: Micro-Sd Card Storage
Micro-SD Card Storage You also have the option to use your own micro-SD card (up to 128GB) instead for back-up storage. Insert the micro-SD card into 1080P IOT CAMERA’s micro-SD slot on the side of the camera. The camera will automatically record events and camera photos you take directly into the micro-SD card as back-up storage. -
Page 16: Your Dashboard
Your Dashboard Your dashboard is your app’s home screen where you can view and access your paired devices. You can rearrange the Tiles on your dashboard by tapping the Pencil icon in the top right corner of the app. You can also make some device tiles larger or smaller when editing your dashboard. -
Page 17: Camera Functions
Camera Functions 1080P IOT CAMERA has several functions you can control through the Momentum app. Watching Live Video To view live video stream, first select the camera you would like to view. Rotate your mobile device to view in either portrait mode or landscape mode. -
Page 18: Taking Photos
Tap the Record Video icon to start recording. The video will record based on a 20 second clip. To save you must either have a: 1. Micro-SD card inserted into the camera. 2. Momentum Capture cloud storage subscription. Record Video Take Photo... -
Page 19: Audio Functions
Microphone icon. You must tap on the icon again to de- select it to begin hearing 1080P IOT CAMERA’s side again. To only listen through Robbi’s audio, make sure the Microphone icon is de-selected. Microphone Button... -
Page 20: Viewing Recorded Photos And Videos
Viewing Recorded Photos and Videos To view Cloud videos, tap the Activity tile to view recorded videos, captured photos, or alerts for a specific day. You can also access the activity list from the live camera view. When you select a video in your activity list, it will begin playing back automatically. -
Page 21: Saving And Deleting Recordings
Saving and Deleting Recordings If you have purchased a cloud subscription and set up a rule for recordings, footage of those recordings will be automatically saved onto the cloud for the predetermined time, depending on which plan the camera has. If you have inserted your own micro-SD card and set up a rule for recordings, footage of those recordings will be saved on the micro-SD card until the storage becomes full... -
Page 22: Device Settings
Device Settings Under the Menu tab, you will find My Devices. Here you can change your device’s name, check on the device’s Cloud subscription status, update the firmware, and adjust the camera’s image-quality, motion detection and sound detection levels. Use the slide bar to adjust the image-quality, motion detector and sound detector to your liking. -
Page 23: Siren Activation
Siren Activation Your 1080P IOT CAMERA has a built-in siren that is loud enough to scare away any perpetrators. You can activate the siren from the Siren Tile or the live view screen. Live View Screen Siren Tile Restoring Forgotten Passwords If you've forgotten your login password, tap on the Forgot Password button at the sign in page. -
Page 24: Resetting The Camera
If it still does not fix the issue, trying resetting the camera. Reset the Camera 1. To reset your Momentum device, hold the Reset button on the back of the camera for about 10 seconds. During the reset sequence, the LED indicator light on the front of the camera will first display a solid red, then double blinking blue. -
Page 25: Troubleshooting
Troubleshooting Assistance is available both in the app and on the Momentum website. To access the most current version of the user’s manual, tap the Menu icon to launch the screen with a menu bar and tap Support. For further assistance, go to... -
Page 26: About Momentum
About Momentum Momentum provides an easy-to-setup home security camera that connects to your smart phone or tablet giving you real-time video streaming and two-way voice communication – anywhere, anytime. Momentum subscribers also have access to IOT cloud-based storage for camera-captured videos from a user-friendly mobile app. - Page 27 1080P IOT CAMERA QUICK START GUIDE...
- Page 28 Step 1: Download the app Download the Momentum App from the Apple App Store or Google Play. Connect your mobile device Wi-Fi to the network you want your camera to be paired to. Important: Make sure the app you download matches the same logo as shown above.
- Page 29 Step 2: Create an Account Sign up for a new account. Once you’ve finished entering your information, you will receive an email verification link. Click on the email link to activate your account. Return to the app and sign in.
- Page 30 St ep 3: Plug in 1080P IOT CAMERA Micro-USB Power Port Connect the Micro-USB cable to the back of the camera and the power adapter. Plug in the power adapter to an outlet.
- Page 31 St ep 4: Pair • From the Momentum app, select Pair Device. • Select the 1080P IOT CAMERA camera from the list of devices. • Go to your mobile device’s Wi-Fi settings. • Connect to the ‘1080P IOT CAMERA’ Wi-Fi network.
- Page 32 Step 5: Connect to Wi-Fi Network Go back to the Momentum App. Your Wi-Fi network will auto load, so you will just need to enter your network password. (If your Wi-Fi network did not show up, that means your mobile device was not connected to it prior to pairing.
- Page 33 Step 6: Name your Camera Enter a name for your camera or select one of the preset options. Select Get Started to complete the setup process. (If you’d like to pair more cameras, repeat steps 4-6.)
- Page 34 Quick Tips: Light Indicators & Status 1. Solid – Booting 2. Slow Blinking – Disconnected from Wi-Fi 3. Double Blinking Blue – Ready to connect to Wi-Fi. 4. Blinking Blue – Connected to Wi-Fi 5. Solid Blue – Live streaming Note: If the camera has failed to connect to your Wi-Fi, try resetting the camera by following these steps.
- Page 35 Quick Tips: 2. The camera will then start the reset sequence. Note that the camera will still be bound to the same Momentum account it was initially paired with. 3. During the reset sequence, the camera’s indicator light will go from...
- Page 36 Troubleshooting - If you are having trouble connecting or using your device, please see our FAQ page on our website or contact our customer service team. Toll Free: 1 888 818 0436 E-mail: help@momentumcam.com...
- Page 37 FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device,pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 38 This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Apollo Tech USA, Inc. 8608 Utica Ave. #220, Rancho Cucamonga, CA 91730 Customer Service: +1 888 818 0436 E-mail: help@momentumcam.com Version 1.0...
