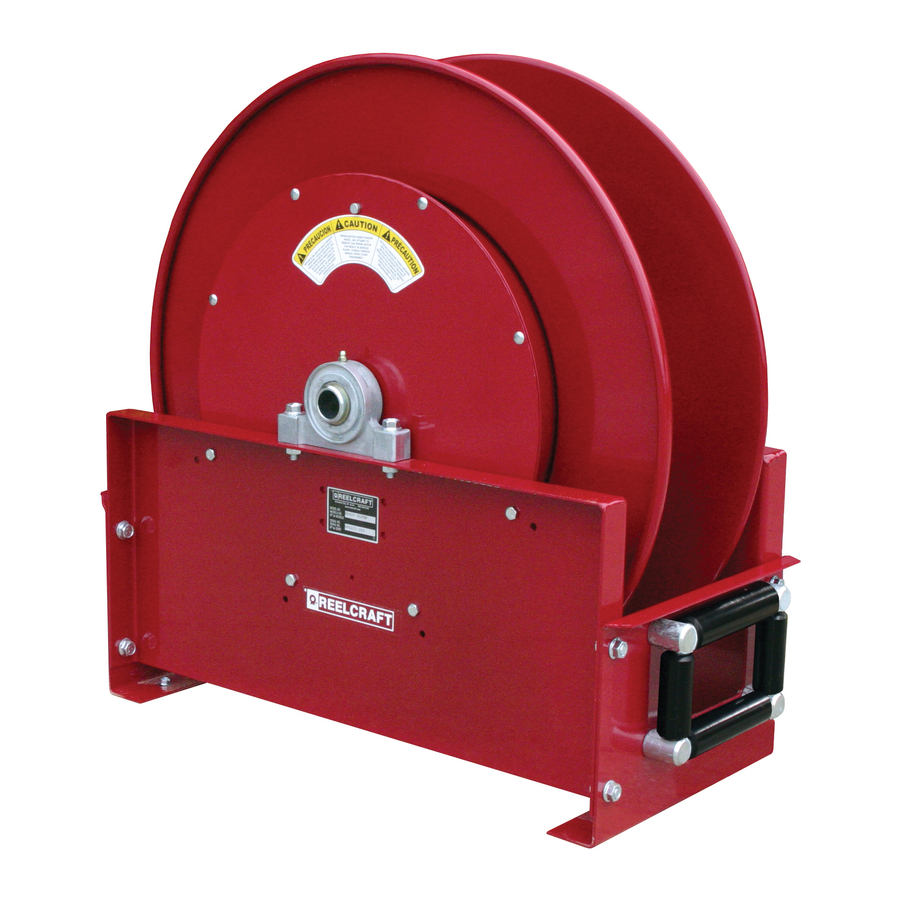

ReelCraft E9200 OLP Operating Instructions

Operating Instructions
Series E9000 Spring Driven Hose Reels
Low Pressure Model Numbers:
E9200 OLP E9330 OLP
E9275 OLP E9340 OLP
E9299 OLP E9350 OLP
E9300 OLP E9375 OLP

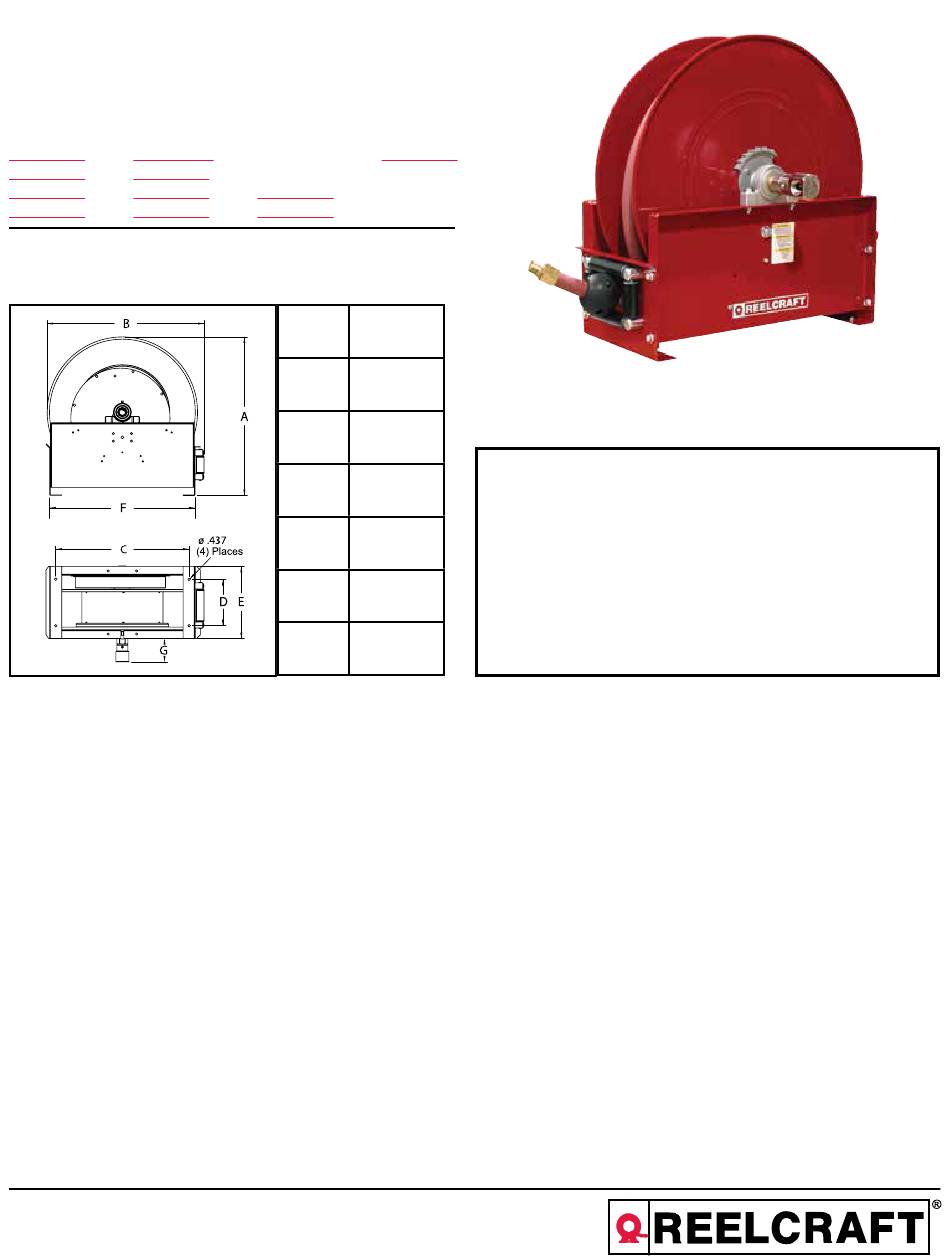

Dimensions
INSTALLATION:
The swivel union is packed separately in the reel carton, use teflon tape to assure a satisfactory seal. A flexible hose
connection must be used between the hose reel inlet and the source of supply to prevent possible misalignment and
binding. Non flexible connections will void the warranty, pressure rating of inlet hose must be equal to or more than
the pressure rating of the reel. Consult factory for proper spring when installing reels above 16 ft.
LUBRICATION: Hose reel spring and bearings are factory lubricated and require no further lubrication.
REPLACING HOSE: 1. Wind spool flange clockwise-facing swivel-until spring is tight.
2. Back off three turns and latch.
3. Insert hose through roller guide.
4. Connect hose fitting to female outlet ell.
ADJUSTMENTS:
To adjust spring tension, add or remove wraps of hose from the spool, one wrap at a time until desired tension is
obtained.
REPAIRS:
Extensive repairs should be performed only by an authorized serviceman or factory to avoid damage which may
void your warranty. Remove all spring tension before beginning disassembly process.
MODIFICATION:
Hose latching mechanism can be removed for constant tension applications.
Reelcraft Industries, Inc. • 2842 E Business Hwy 30, Columbia City, IN 46725
Ph: 800-444-3134 / 260-248-8188 • Fax: 800-444-4587 / 260-248-2605
Customer Service: 855-634-9109 • reelcraft@reelcraft.com • www.reelcraft.com
E9305 OLP E9450 OLP
E9399 OLP
E9400 OLP
E9430 OLP
A 26 1/4"
B 24 1/8"
C 4 3/4"
D 12"
E 7 3/4"
F 22 1/4"
G 12 1/4"
1. Models designed for fuel are coded with the prefix "F" i.e., "FE9400 OLP."
Check name plate on the reel before installing.
2. Do not use reel at higher pressures or temperatures than listed on the back
of this bulletin.
3. Remove all spring tension before beginning dissassembly process.
4. Reel spring motor case is permanently sealed. Any attempt to remove the
spring motor may cause serious injury.
SAFETY
Form# 613-193 Rev: 6/2018
